CHAPTER 1
Introduction to the Passive Optical Network
A passive optical network (PON) or Gigabit Passive Optical Network (GPON) is a point-to-multipoint (P2MP)
network that uses a combination of active transmission equipments and passive cable components to provide
network connectivity to end user's devices. This network is suitable for building access networks such as
fiber-to-the-home (FTTH), or fiber-to-the-office (FTTO), or fiber-to-the-company (FTTC) for providing
internet access by running fiber optic cable directly from an internet service provider to a user's home or
business. The PON technology is based on the ITU-T G.984 standard.
PON transmits Ethernet, Asynchronous Transfer Mode (ATM), and Time Division Multiplexing (TDM)
traffic. It consists of mainly two active transmission equipments, Optical Line Terminal (OLT) and Optical
Network Terminal (ONT). One of the main characteristics of PON is the use of passive optical splitters in the
fiber distribution network, enabling a single feeding fiber from the service provider’s central office to serve
multiple homes and small businesses.
The network path between the terminals is known as Optical Device Network (ODN), which comprises passive
optical components, such as optical fibers and passive optical splitters. The ODN provides optical channels
that interconnect the OLT to the ONTs. The optical fiber cables cover a distance of 20km to 30km.
A single optical fiber from the OLT connects to a passive optical splitter that is located near an end user's
premises. The optical splitter divides optical power into nseparate paths to end user. The number of optical
paths can vary from 2 to 128. From the optical splitter, a single-mode fiber strand is connected to each end
user's devices. Data is broadcast in the downstream direction and transmitted in the TDMA mode based on
timeslots in the upstream direction.
Cisco Catalyst PON Series Switches Hardware Installation Guide
1
Figure 1: Front Panel of a CGP-OLT-8T
The data, voice, and video signals of an end-user devices are sent to ONTs. The signals are converted into
Ethernet packets and then transmitted over optical fibers to the OLT using the PON uplink ports on the ONTs.
Ethernet packets are forwarded to the upper-layer IP network using the uplink port on the OLT.
For more information, see the following sections:
•Cisco Catalyst PON Series OLT Overview, on page 2
•Cisco Catalyst PON Series ONT Overview, on page 7
•Cisco Catalyst PON Manager Overview, on page 11
Cisco Catalyst PON Series OLT Overview
The Cisco Catalyst PON Series OLT is an aggregation device that is located at a service provider's central
office of the PON network. The main functions of a Cisco Catalyst PON Series OLT are traffic scheduling,
buffer control, and bandwidth allocation. The Cisco Catalyst PON Series OLT manages the network traffic
that is in the form of video, data, and voice signals in a PON network, and sends them downstream to the
Cisco Catalyst PON Series ONTs on the network. The Cisco Catalyst PON Series OLT also receives the
signals from the Cisco Catalyst PON Series ONTs located at an end user's premises and sends them to their
destination over the internet.
A Cisco Catalyst PON Series OLT can support up to 128 Cisco Catalyst PON Series ONTs per port. A Cisco
Catalyst PON Series OLT provides 8/16xPON ports, 4xG combo ports and 2x10G small form-factor pluggable
(SFP+) ports for uplink. A Cisco Catalyst PON Series OLT carries abundant services and flexible network
mode over one optical network, and is especially suitable for networks such as enterprise LAN, video
application, and high-speed internet.
Cisco Catalyst PON Series OLT Models
The following table lists the Cisco Catalyst PON Series OLT models and their description.
Cisco Catalyst PON Series Switches Hardware Installation Guide
2
Introduction to the Passive Optical Network
Cisco Catalyst PON Series OLT Overview
Table 1: Cisco Catalyst PON Series OLT Models and Description
DescriptionModel
Cisco Catalyst PON Series OLT with 8xPON port, 4x1 G combo port, and 2x10 G
SFP+ module uplink slot.
CGP-OLT-8T
Cisco Catalyst PON Series OLT with 16xPON port, 4x1 G combo port, and 2x10
G SFP+ module uplink slot.
CGP-OLT-16T
Front Panel
This section describes the front-panel components of Cisco Catalyst PON Series OLT.

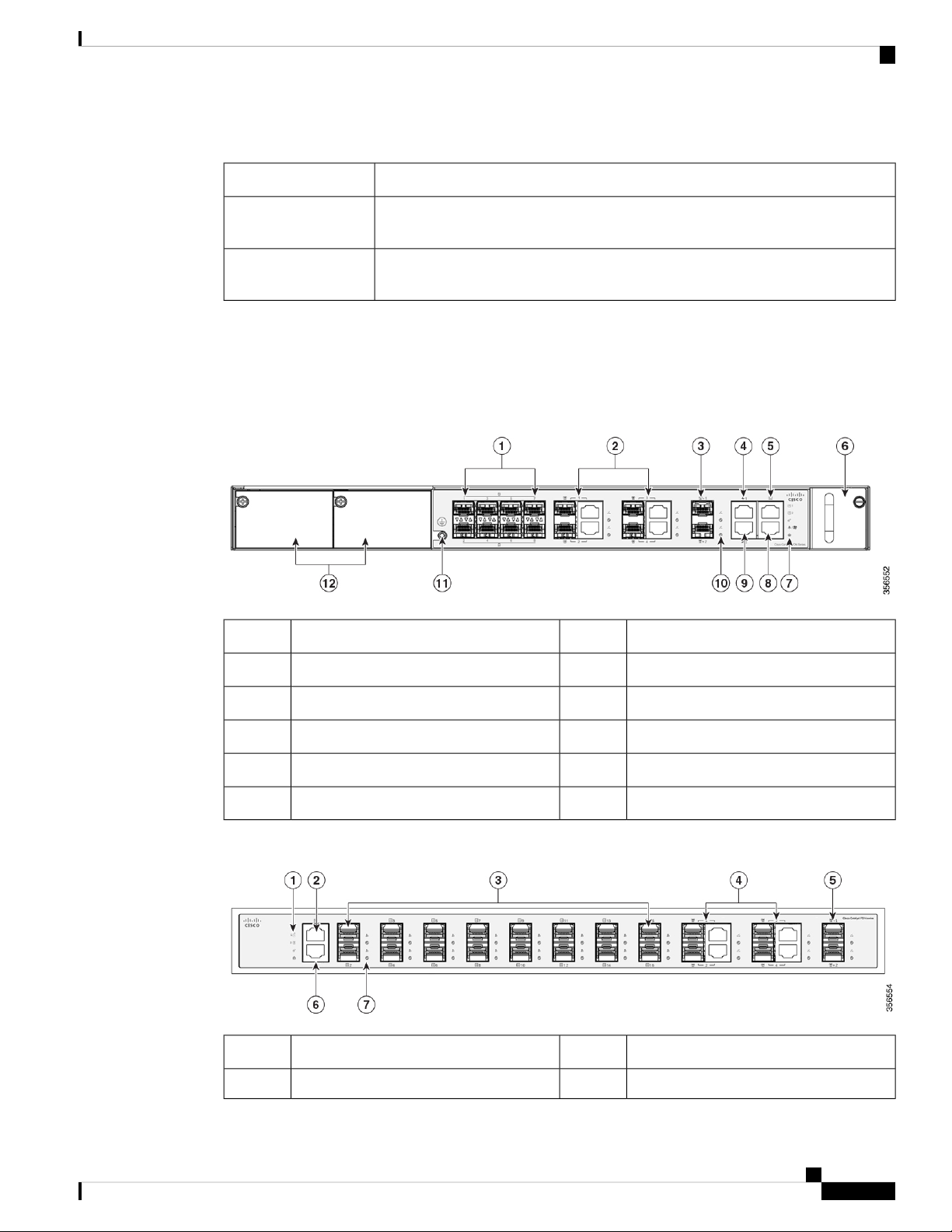

Figure 2: Front Panel of CGP-OLT-8T
System LEDs7PON ports1
Auxiliary port81 G combo ports2
Reserve alarm port910 G SFP+ ports3
Port LEDs10Reserve alarm port4
Grounding connector11Console port5
Power modules12Fan module6
Figure 3: Front Panel of CGP-OLT-16T
10 G SFP+ port5System LEDs1
Auxiliary port6Console port2
Cisco Catalyst PON Series Switches Hardware Installation Guide
3
Introduction to the Passive Optical Network
Front Panel
Port LEDs7PON ports3
--1 G combo ports4
Rear Panel
This section describes the rear-panel components of CGP-OLT-16T:
Figure 4: Rear Panel of CGP-OLT-16T
Grounding connector2AC or DC power connector1
Ports
PON Ports
The PON ports use multi-source agreement (MSA) type UPC or SC-PC fiber connector. The PON ports
support a bandwidth of 2.466 Gbps downstream and 1.244 Gbps upstream.
Console Port
The console port connects the Cisco Catalyst PON Series OLT to a PC running Microsoft Windows or to a
terminal server and uses the RJ-45 crossover cable. The RJ-45 console port connection uses the supplied
RJ-45-to-DB-9 female cable.
Auxiliary Port
The auxiliary port connects the Cisco Catalyst PON Series OLT to a host such as a Windows workstation or
a terminal server through the auxiliary port. The auxiliary out-of-band management port is a virtual routing
and forwarding (VRF) interface and uses an RJ-45 crossover cable.
1 G Combo Ports
A combo port is a combination of an SFP interface and an RJ-45 port. When the SFP interface is active, the
adjacent RJ-45 port is disabled. The 1 G ports use LC connectors for fiber-optic connections and RJ-45
connectors for copper connections.
10 G SFP+ Ports
The 10 G ports use LC connector cables for fiber-optic connections and RJ-45 connector cables for copper
connections. The SFP slots support only SFP+ modules. These SFP+ modules are field replaceable, and
provide uplink interfaces when installed in an SFP+ module slot.
Cisco Catalyst PON Series Switches Hardware Installation Guide
4
Introduction to the Passive Optical Network
Rear Panel
For more information on compatible Cisco SFP+ modules, see the Cisco Catalyst PON Series Switches Release
Notes.
Reserve Alarm Port
The reserve alarm port connects to external monitoring systems such as the Environment Monitor System.
This functionality is currently disabled.
Note
Power Supply
The Cisco Catalyst PON Series OLT chassis has redundant power supply slots that operate with one or two
power supply modules. The chassis supports field-replaceable AC-input and DC-input power supply modules.
Hybrid power supply plugs are not supported.
Note
AC Power Supply
The following table lists the power supply ratings.
Output Power (Watts)Input Voltage (VAC)
100220
100110
Cisco Catalyst PON Series Switches Hardware Installation Guide
5
Introduction to the Passive Optical Network
Power Supply
DC Power Supply
The following table lists the power supply ratings.
Output Power (Watts)Input Voltage (VAC)
100-36 to -72VDC (with extended range upto -75VDC)
Voltage differential between inputs is unlimited.
LEDs
You can use LEDs to monitor the activity and performance of Cisco Catalyst PON Series OLT.
Table 2: System LEDs
IndicationColorLED
Normal power from power supplyGreen (solid)PWR1 and PWR2
No power from power supplyOFF
OLT is running normally
Green (blinking)RUN
OLT is not running
or
OLT is running abnormally
OFF
or
Green (solid)
Auxiliary port is not connected
OFFAUX
Auxiliary port is connected, but not
transmitting data
Green (solid)
Auxiliary port is connected and is
transmitting data
Green (blinking)
Power supply is normal
Green (solid)OUT
No power supplyOFF
Cisco Catalyst PON Series Switches Hardware Installation Guide
6
Introduction to the Passive Optical Network
LEDs
Andere Handbücher für Catalyst PON Series
1
Dieses Handbuch passt für folgende Modelle
7
Inhaltsverzeichnis
Andere Cisco Schalten Handbücher
Cisco
Cisco N7700 Kurzanleitung
Cisco
Cisco 4506-E - Catalyst Switch Installationsanleitung
Cisco
Cisco Catalyst Series Switch 2940 Bedienungsanleitung
Cisco
Cisco Catalyst Express 500-24LC Bedienungsanleitung
Cisco
Cisco WS-X45-SUP6L-E Kurzanleitung
Cisco
Cisco Catalyst 4500 Series Bedienungsanleitung
Cisco
Cisco Catalyst 3030 Bedienungsanleitung
Cisco
Cisco Small Business 200 Series Bedienungsanleitung
Cisco
Cisco Nexus 7000 Series Installations- und Betriebsanleitung
Cisco
Cisco ESW-520-24 Installationsanleitung
Cisco
Cisco Nexus 93180YC-FX3S Bedienungsanleitung
Cisco
Cisco Catalyst 3750G-16TD Handbuch
Cisco
Cisco WS-C4003 - Catalyst 4000 Chassis Switch Bedienungsanleitung
Cisco
Cisco IE-5000 Bedienerhandbuch
Cisco
Cisco Cisco Small Business Unmanaged Switch SD208 Bedienungsanleitung
Cisco
Cisco Cisco Small Business Unmanaged Switch SR224 Bedienungsanleitung
Cisco
Cisco Nexus 3548 series Bedienungsanleitung
Cisco
Cisco UNIFIED COMMUNICATIONS UC320W Bedienungsanleitung
Cisco
Cisco CSS11501 - 100Mbps Ethernet Load Balancing... Handbuch
Cisco
Cisco WS-C2950SX-48-SI Bedienungsanleitung
