Cisco IE 3010 Switch Getting Started Guide

78-19582-02

Cisco IE 3010 Switch

Getting Started Guide

• About this Guide

• Box Contents

• Running Express Setup

• Managing the Switch

• Installing the Switch

• Wiring the Power Source

• Connecting the Switch Ports

• Troubleshooting

• Obtaining Documentation and Submitting a Service Request

Cisco IE 3010 Switch Getting Started Guide

78-19582-02

About this Guide

This guide describes how to use Express Setup to initially configure your

Cisco IE 3010 switch. It also covers switch management options, rack-mounting,

wiring procedures, port and module connection procedures, and troubleshooting.

For additional installation and configuration information for the switch, see the

Cisco IE 3010 switch documentation on Cisco.com. For system requirements,

important notes, limitations, open and resolved bugs, and last-minute

documentation updates, see the release notes, also on Cisco.com. For translations

of the warnings that appear in this publication, see the Regulatory Compliance

and Safety Information for the Cisco IE 3010 Switch on the documentation CD.

The product warranty information is on the documentation CD.

When using the online publications, see the documents that match the Cisco IOS

software version running on the switch.

Cisco IE 3010 Switch Getting Started Guide

78-19582-02

Cisco IE 3010 Switch Getting Started Guide

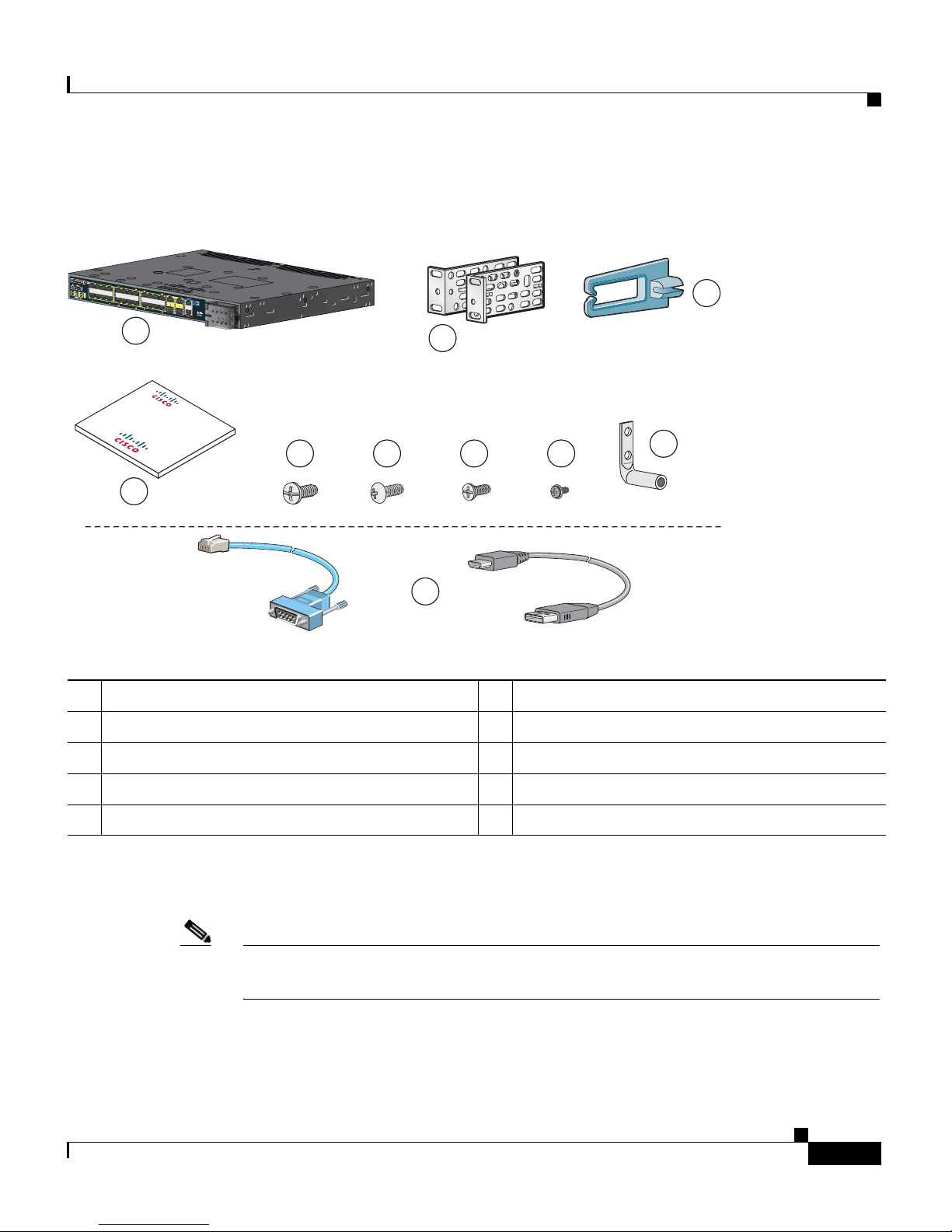

Box Contents

1Cisco IE 30101switch

1. Cisco IE-3010-24TC shown. Your switch model might look different.

6Four number-12 Phillips truss-head screws

2Two 19-inch mounting brackets 7Six number-8 Phillips flat-head screws

3Cable guide 8One black Phillips machine screw

4Documentation 9Dual-hole ground lug

5Four number-8 Phillips machine screws 10 Console cable or USB cable2

2. Item is orderable.

Note Verify that you have received these items. If any item is missing or damaged,

contact your Cisco representative or reseller for instructions.

Cisco IE 3010

Documentation CD

5 6 7 8 9

208330

CiscoIE3010

Cisco IE 3010 Switch Getting Started Guide

78-19582-02

Running Express Setup

You should use Express Setup to enter the initial IP information. You can then

access the switch through the IP address for further configuration.

Note To use the CLI-based initial setup program, see Appendix C, “Configuring the

Switch with the CLI Setup Program,” in the switch hardware guide.

You need this equipment:

• PC with Windows 2000, XP, Vista, or Windows Server 2003

• Web browser (Internet Explorer 6.0, 7.0, or Firefox 1.5, 2.0, or later) with

JavaScript enabled

• Straight-through or crossover Category 5 or 6 cable

Note Before running Express Setup, disable any pop-up blockers or proxy settings on

your browser and any wireless client running on your PC.

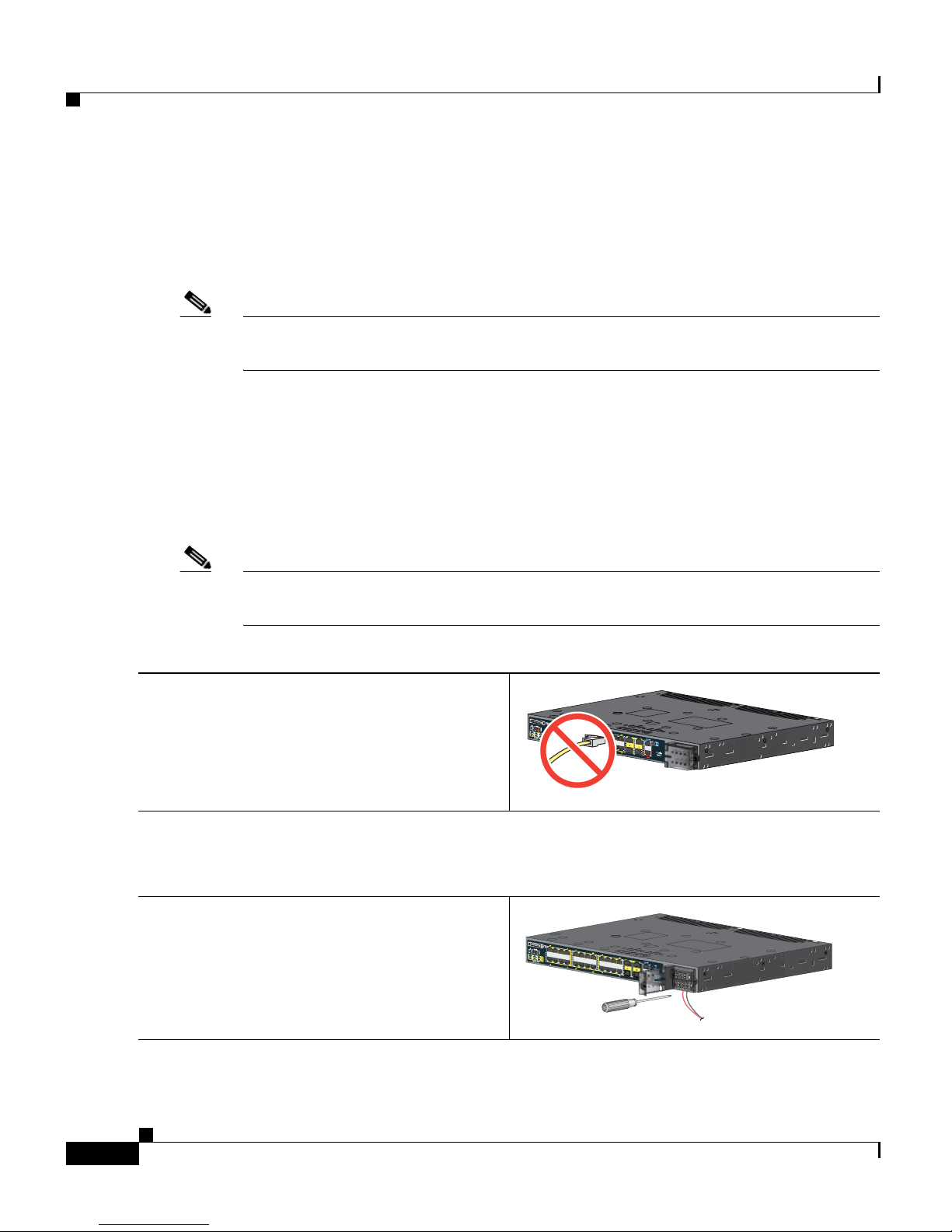

Step 1 Make sure that nothing is connected to the

switch.

Step 2 During Express Setup, the switch acts as a DHCP server. If your PC has a static IP address,

temporarily configure your PC settings to use DHCP.

Note Write down the static IP address. You need this address in Step 12.

Step 3 Connect the wires to the switch power-input

terminal.

See the “Wiring the Power Source” section on

page 16 for instructions about AC- or

DC-power connections.

CiscoIE3010

208331

208332

Cisco IE 3010 Switch Getting Started Guide

78-19582-02

Cisco IE 3010 Switch Getting Started Guide

Step 4 Approximately 45 seconds after the switch powers on, it begins the power-on self-test

(POST), which can take up to 5 minutes.

During POST, the SYSTEM LED blinks green, and the port LEDs turn green.

When POST is complete, the SYSTEM LED remains green, and the other LEDs turn off.

Troubleshooting

If the SYSTEM LED blinks green, does not turn green, or turns amber, contact your Cisco

representative or reseller. The switch failed POST.

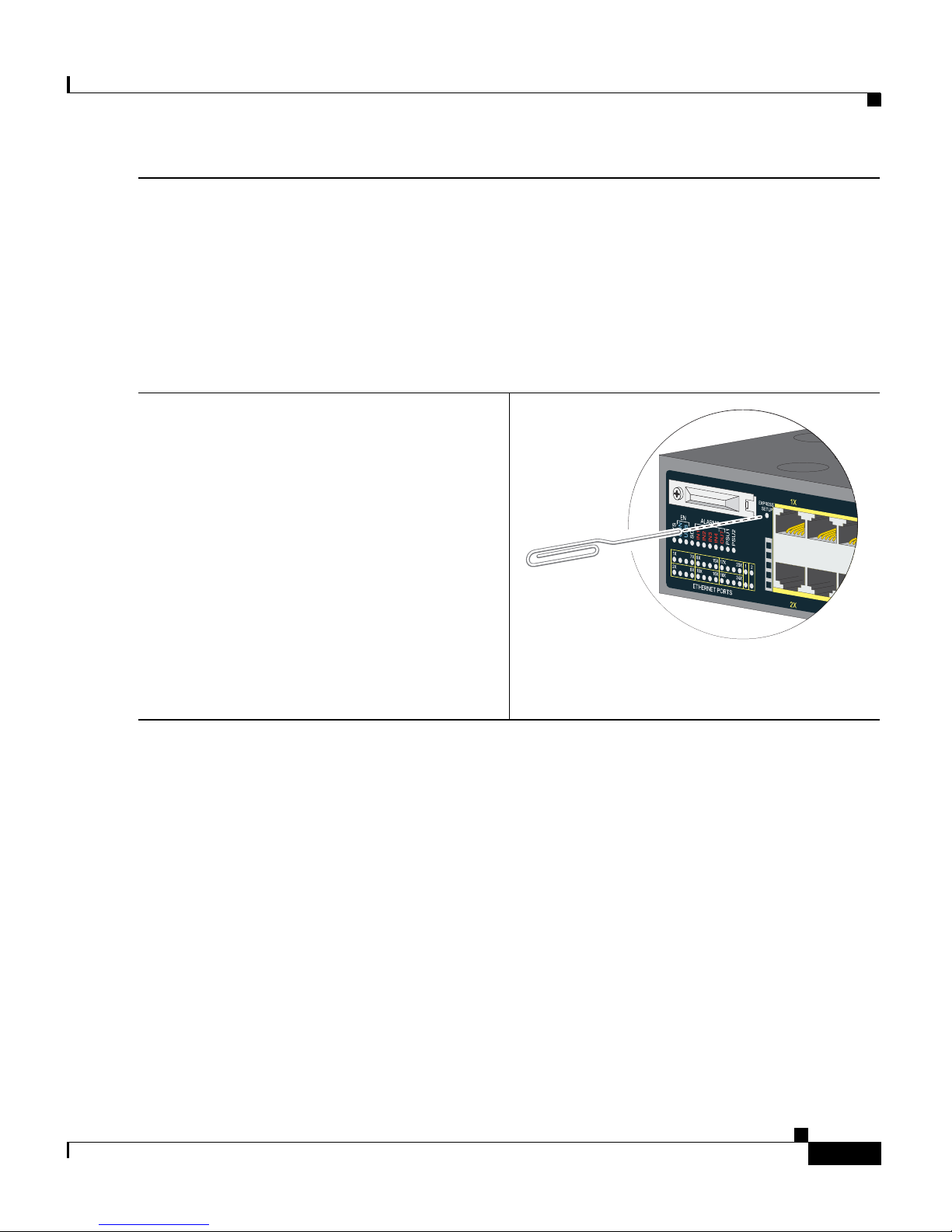

Step 5 Press the recessed Express Setup button with

a simple tool, such as a paper clip.

You might need to press the button for

3 seconds.

When you press the Express Setup button, a

switch 10/100 Ethernet port LED blinks

green.

Troubleshooting

If a switch port LED does not blink green,

repeat Steps 1 to 5. You can also use the setup

program described in the switch hardware

guide.

207218

Cisco IE 3010 Switch Getting Started Guide

78-19582-02

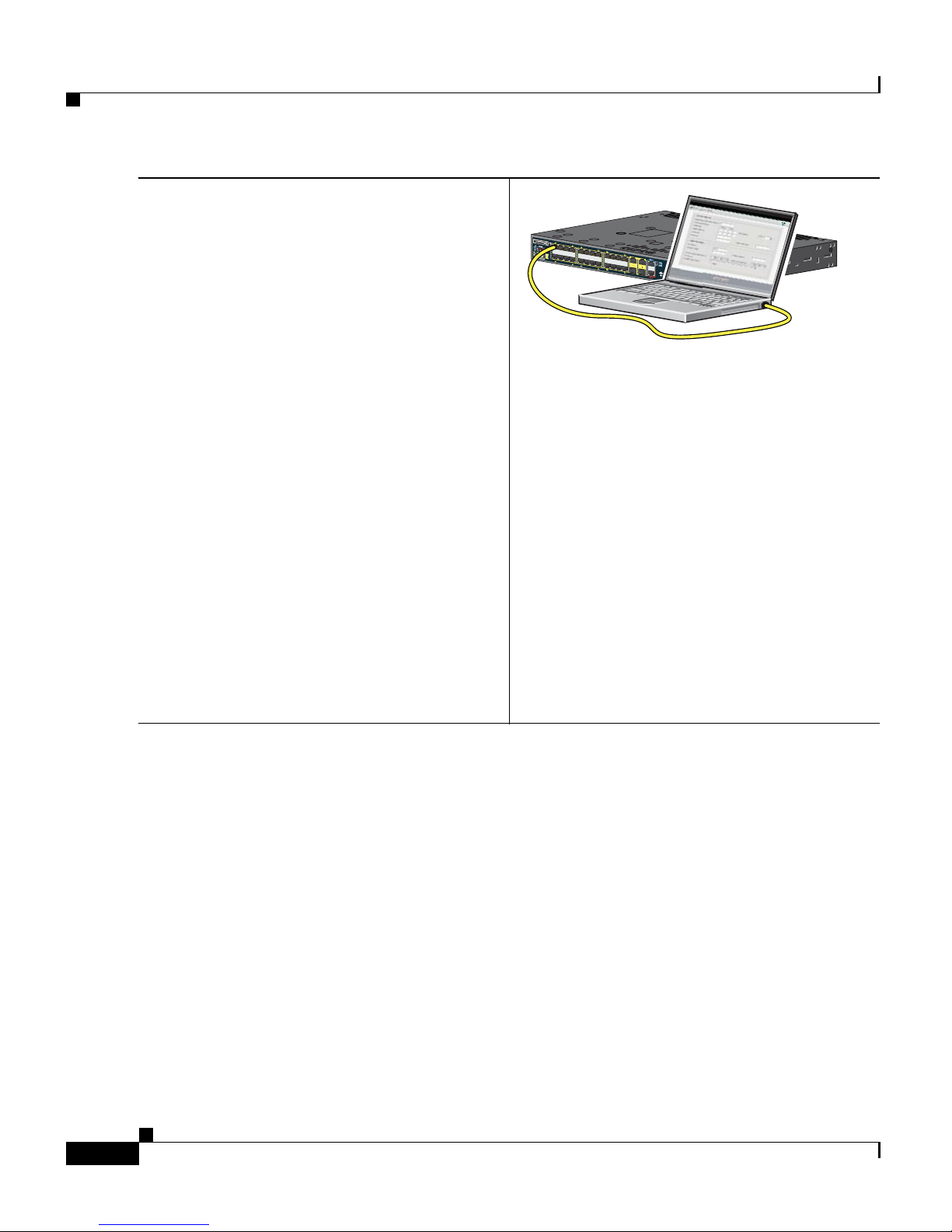

Step 6 Connect a Category 5 or 6 cable to the

blinking 10/100 Ethernet port.

Connect the other end of the cable to the

Ethernet port on your PC.

Wait until the port LEDs on the switch and

your PC or laptop are either green or blinking

green. Green LEDs mean a successful

connection.

Troubleshooting

If the port LEDs are not green after about 30

seconds, make sure that:

• You connected the Ethernet cable to the

blinking 10/100 Ethernet port (not to an

uplink port such as the dual-purpose

port).

• You are using a Category 5 or 6 cable and

that the cable is not damaged.

• The other device is turned on.

You can ping IP address 169.254.0.1 to verify

the connection.

Cisco CGS 2520

207181

Cisco IE 3010 Switch Getting Started Guide

78-19582-02

Cisco IE 3010 Switch Getting Started Guide

Step 7 Start a browser session on the PC, open a well-known website, such as Cisco.com. The switch

prompts you for the default username and password. At the prompt, enter the default

username and password cisco.

The Express Setup window appears.

Troubleshooting

If the Express Setup window does not appear, make sure that any browser pop-up blockers or

proxy settings are disabled and that any wireless client on your PC or laptop is disabled.

Cisco IE 3010 Switch Getting Started Guide

78-19582-02

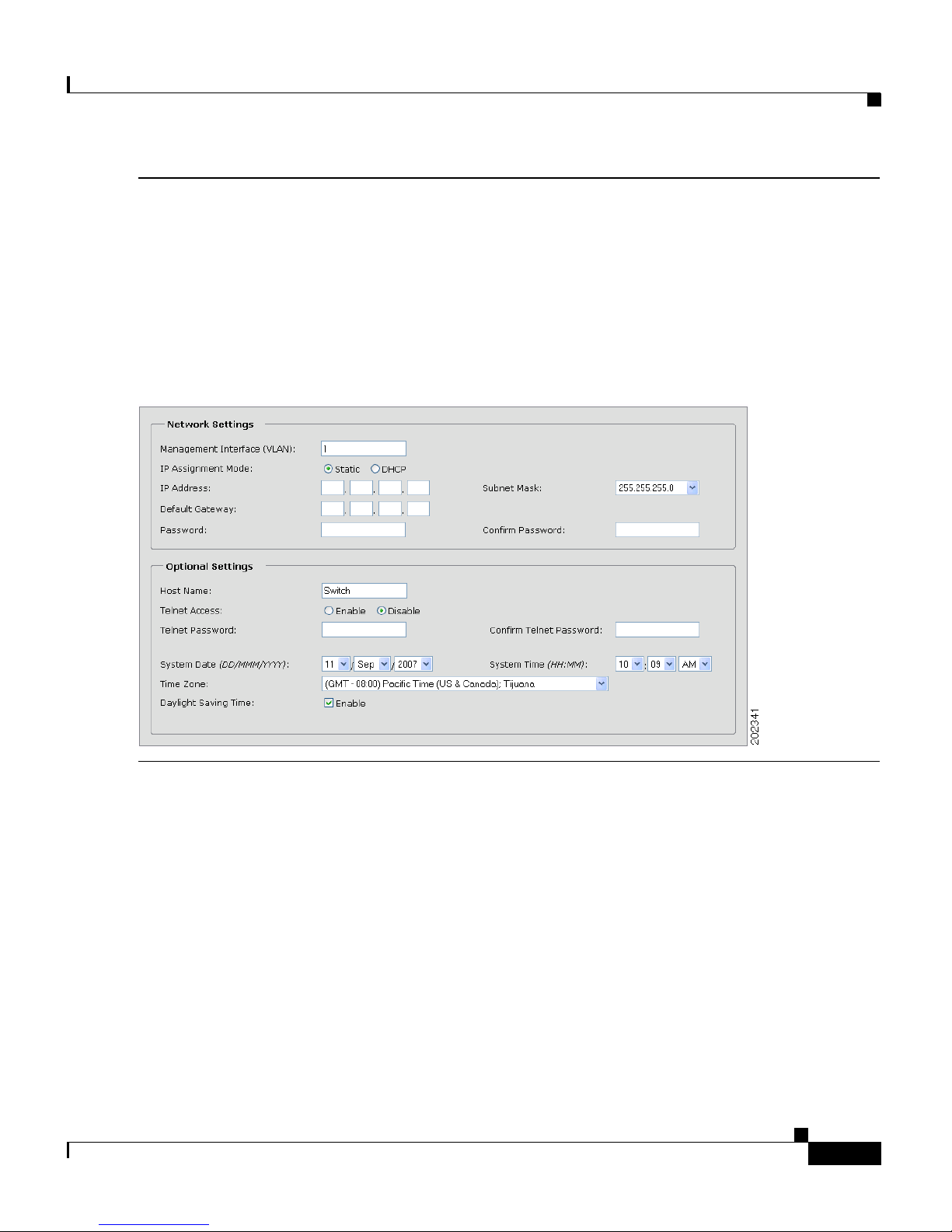

Step 8 Enter this information in the Network Settings fields:

Note All entries must be in English letters.

• In the Management Interface (VLAN ID) field, the default is 1.

Note We recommend that you use the default VLAN value. During Express Setup,

VLAN 1 is the only VLAN on the switch. Enter a new VLAN ID only if you want to

change the management interface through which you manage the switch. The VLAN

ID range is 1 to 1001.

• In the IP Assignment Mode field, we recommend that you use the default, Static, which

means that the switch always has the IP address that you assign. Use the DHCP setting

when you want the switch to automatically obtain an IP address from a DHCP server.

• In the IP Address field, enter the IP address of the switch.

• In the Subnet Mask field, click the drop-down arrow, and select a subnet mask.

• In the Default Gateway field, enter the IP address for the default gateway (router).

• Enter your password in the Switch Password field. The password can be from 1 to 25

alphanumeric characters, can start with a number, is case sensitive, allows embedded

spaces, but does not allow spaces at the beginning or end. In the Confirm Switch

Password field, enter your password again.

Note You must change the password from the default password, cisco.

Step 9 Enter the Optional Settings now, or enter them later:

You can enter other administrative settings in the Express Setup window. For example, the

optional administrative settings identify and synchronize the switch for enhanced

management. NTP synchronizes the switch clock with the network clock. You can also

manually set the system clock settings.

Click Submit to save your changes.

For more information about the Express Setup fields, see the online help for the Express Setup

window.

Step 10 After you click Submit, these events occur:

• The switch is configured and leaves Express Setup mode.

• The browser displays a warning message and tries to connect with the earlier switch IP

address. Typically, connectivity between the PC and the switch is lost because the

configured switch IP address is in a different subnet from the PC IP address.

Cisco IE 3010 Switch Getting Started Guide

78-19582-02

Cisco IE 3010 Switch Getting Started Guide

Managing the Switch

After completing Express Setup and installing the switch in your network, you

can use the CLI for further configuration. You can enter Cisco IOS commands and

parameters through the CLI. Use one of these options to access the CLI:

• Switch RJ-45 Console Port

• Switch USB Console Port

Switch RJ-45 Console Port

1. Connect the RJ-45-to-DB-9 adapter cable to the 9-pin serial port on the PC.

Connect the other end of the cable to the switch console port.

2. Start a terminal-emulation program on the PC.

3. Configure the PC terminal emulation software for 9600 baud, 8 data bits, no

parity, 1 stop bit, and no flow control.

4. Use the CLI to enter configuration commands. See the software configuration

guide and the command reference for more information.

Switch USB Console Port

If you use the USB console port, you must install the Cisco Windows USB device

driver on the PC that is connected to the USB console port. See the switch

hardware installation guide for installation instructions.

1. Connect an USB cable to the PC USB port. Connect the other end of the cable

to the mini-B (5-pin-connector) USB console port on the switch.

2. Start a terminal-emulation program on the PC.

Step 11 Disconnect the switch from the PC, and install the switch in your network. See the “Installing

the Switch” section on page 10.

Step 12 If you changed the static IP address on your PC in Step 2, change it to the previously

configured static IP address.

Step 13 See the “Managing the Switch” section on page 9 for information about configuring and

managing the switch.

Cisco IE 3010 Switch Getting Started Guide

78-19582-02

3. Configure the PC terminal emulation software for 9600 baud, 8 data bits, no

parity, 1 stop bit, and no flow control.

4. Use the CLI to enter configuration commands. See the software configuration

guide and the command reference for more information.

Note You cannot use the switch RJ-45 console port and the switch USB console

port at the same time to access the CLI.

Installing the Switch

This section covers 19-inch rack-mounting, wiring procedures, and switch port

connections. The illustrations show the Cisco IE-3010-24TC switch. You can

install and connect other Cisco IE 3010 switches as shown in these examples. For

alternate mounting procedures, such as installing the switch on a wall and for

additional cabling information, see the switch hardware installation guide.

Equipment That You Need

• Ratcheting torque flathead screwdriver that exerts up to 15-inch pound (in-lb)

of torque

• Ring, spade, or flanged spade terminal (terminals should be insulated):

–

Ring terminal (such as Tyco part number 2-34158-1 for 16–14 AWG, or

2-34852-1 for 12–10 AWG wire)

–

Spade terminal (such as Tyco part number 54367-2 for 16–14 AWG wire)

–

Flanged spade terminal (such as Tyco part number 2-324165-1 for 16–14

AWG wire, or 1-324581-1 for 12–10 AWG wire)

Andere Handbücher für IE 3010

Inhaltsverzeichnis

Andere Cisco Schalten Handbücher

Cisco

Cisco Catalyst 3560-C Bedienungsanleitung

Cisco

Cisco Catalyst 1800 Guide Bedienungsanleitung

Cisco

Cisco SRW224G4-K9-NA Bedienungsanleitung

Cisco

Cisco CSS5 SSL K9 - Syst. CSS11500 SSL MODULE Handbuch

Cisco

Cisco Small Business 200 Series Bedienungsanleitung

Cisco

Cisco AJ732A - MDS 9134 Fabric Switch Bedienungsanleitung

Cisco

Cisco SCE8000 GBE Bedienerhandbuch

Cisco

Cisco Catalyst 9400 Series Betriebsanleitung

Cisco

Cisco IE-3000-8TC Bedienungsanleitung

Cisco

Cisco Nexus 7000 Series Installations- und Betriebsanleitung

Cisco

Cisco AJ732A - MDS 9134 Fabric Switch Bedienungsanleitung

Cisco

Cisco Nexus 3548 series Bedienungsanleitung

Cisco

Cisco Cisco Small Business Unmanaged Switch SD2008 Bedienungsanleitung

Cisco

Cisco Nexus 9508 Handbuch

Cisco

Cisco SG350XG-2F10 Bedienungsanleitung

Cisco

Cisco Nexus 93108TC-FX3 Handbuch

Cisco

Cisco Nexus 9332D-GX2B Handbuch

Cisco

Cisco Catalyst 2960-S Series Bedienungsanleitung

Cisco

Cisco 6500 - Catalyst Series 10 Gigabit EN Interface Module... Bedienungsanleitung

Cisco

Cisco 2950 - Catalyst Switch Installationshandbuch

Cisco

Cisco 3750-24FS - Catalyst Switch - Stackable Bedienungsanleitung

Cisco

Cisco Cisco Line Card 4500 E-Series Bedienungsanleitung

Cisco

Cisco Catalyst Series Switch 2940 Originalbetriebsanleitung

Cisco

Cisco IE 4010 Handbuch

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
