Citizen 0S11 Bedienungsanleitung

0S10 0S20 0S11 0S21 0S00

13 ½’’’

Size

<ligne>

Height

<mm> 4.13

Accuracy

<per Month> ±20 sec

500 pcs

Original

Package

Clearance

Movement

0.3-0.4mm

0.15mm

Hand

case

5 years

*60 minutes chronograph operation per day

Battery

Life

Battery consumption could be minimum

by pulling out the stem (=Power-Saving)

Minute 0.40

Second 0.11

Small 0.02

Balance

Weight

<μN.m>

Featured by Shock Detection

Φ30.8

Pusher

SR927W

Attached

Stem

065-543

24 Hour

Chronograph

Minute

0S200S10

0S11

0S00

0S21

Date

SUN

Day

12 SUN 7

12 7

Center

Chronograph

Hour

Reset the chronograph

DO NOT set Day and Date

between 9:00pm –1:00am

Setting the Date

Push “A”

Start and Stop the chronograph

Push “B”

Setting the Time

Set CHRONOGRAPH hands to reset

Push A to reset the hands position to the ZERO position,

And continue to push A to put them forward

Small Second

High Hand Ver.

0S1A

0S2A

0S2B

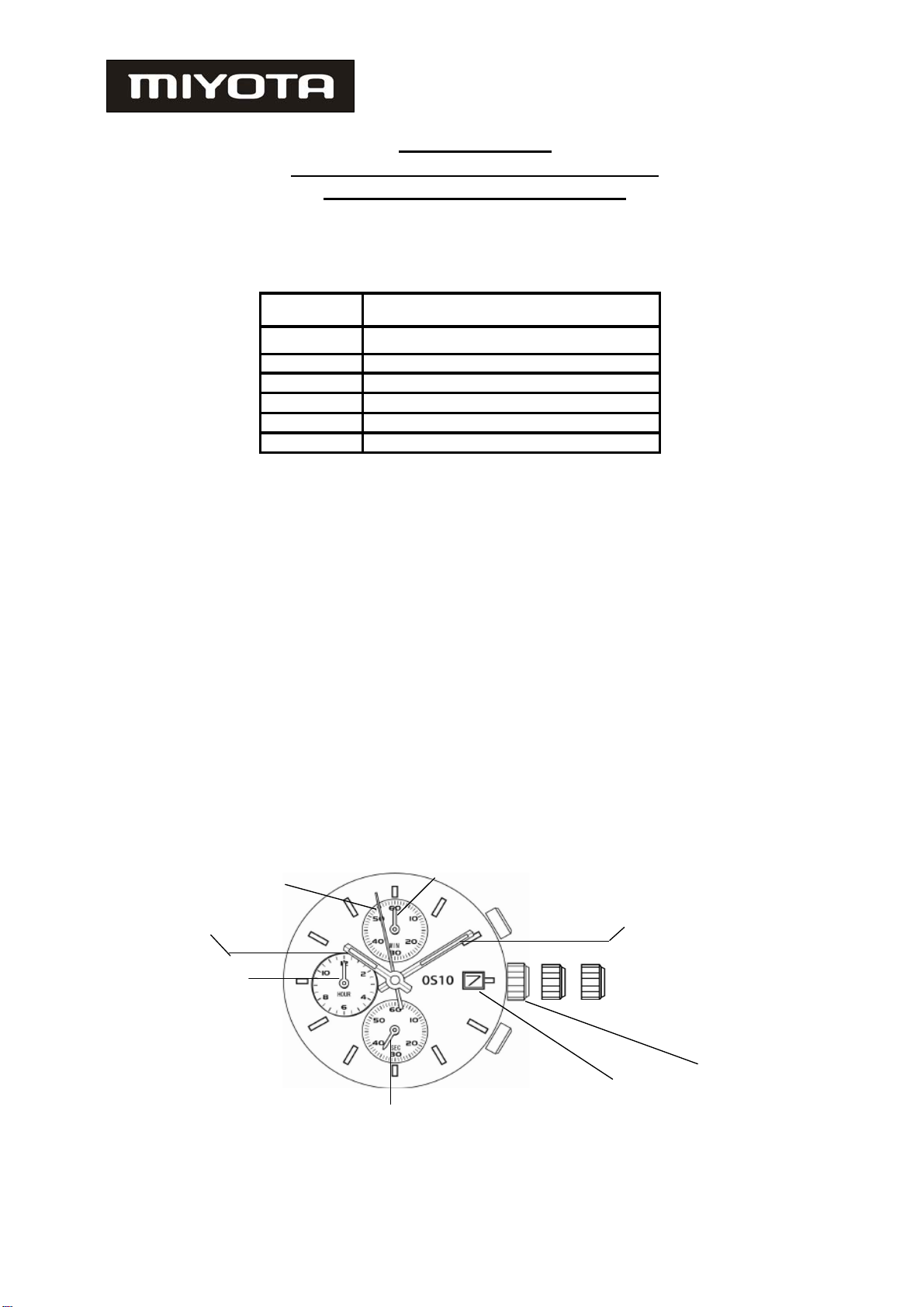

MOVEMENT SPECIFICATIONS

CAL.0S10

13-1/2 LINGE, 3 EYES CHRONOGRAPH

ANALOGUE QUARTZ, 0 JEWEL

BY CITIZEN WATCH CO., LTD. JAPAN

MANUFACTURED IN JAPAN

1. BASIC SPECIFICATION

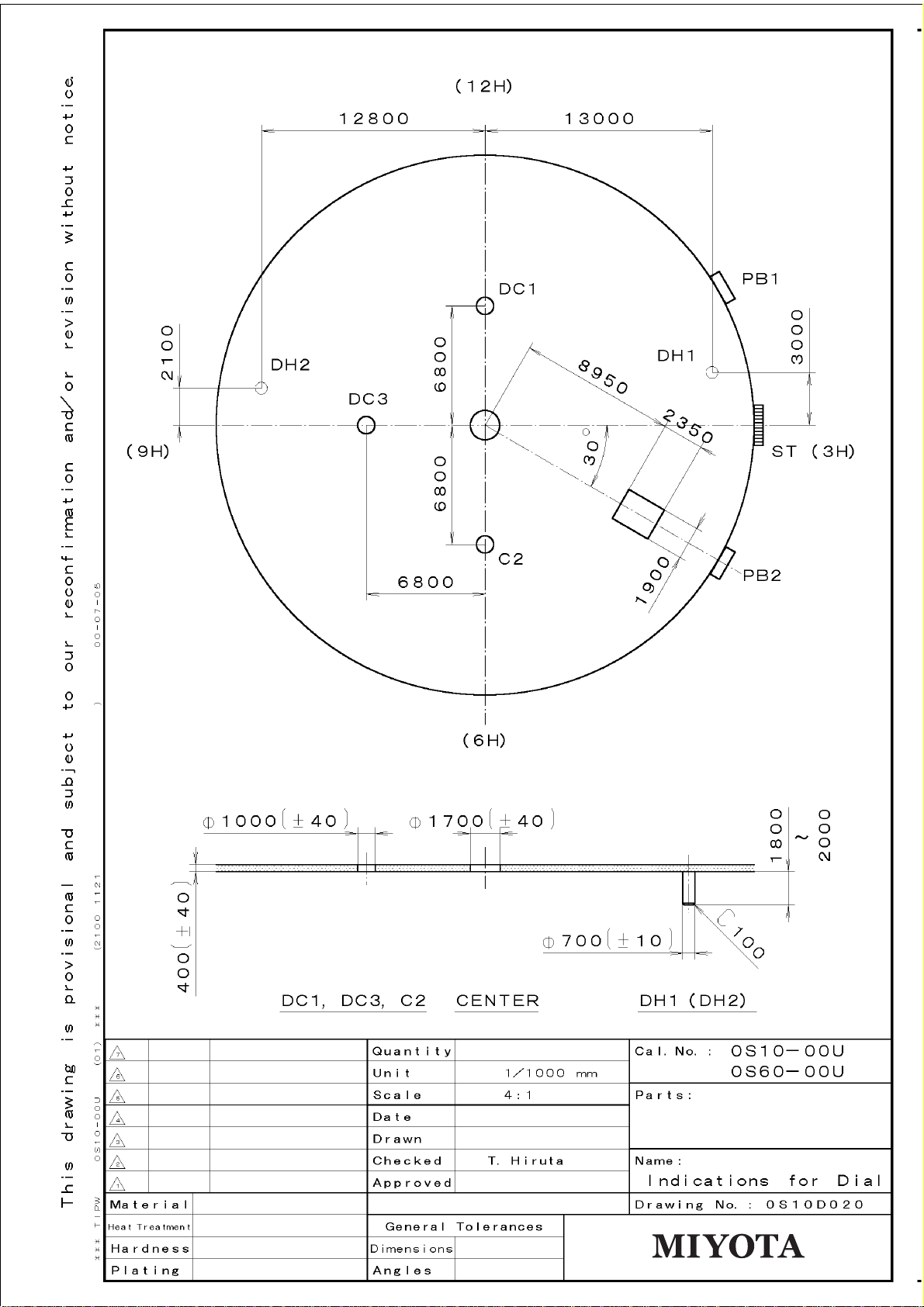

(1) Cal. No. *TO CONFIRM WITH MOV'T DRAWING ATTACHED

CALIBRE

Ligne

Size*mm

Date

Total heigh

Battery life

Batter

(* 60 minutes chronograph operation per day)

(2) Time standard

Type of quartz : Tuning fork type quartz crysta

Frequency : 32,768H

ccuracy : +/-20 s/month worn under normal circumstances

(3) Balanceable weight of hand

Minute hand Max. 0.4 μN.m

Center Chrono Second hand Max. 0.11 μN.m

Other small hands Max. 0.02 μN.m

(4) Function

Chronograph 1/1 sec. basis

(Up to 11 hour 59 min. 59 sec.)

Powercell Saving Reset Mechanism(PSRM)

Over-loading Compensation Device(OLCD)

Digital Frequency Control(DFC) for time adjustment

SILVER OXIDE SR927

or equivalen

0S10

13-1/2

Φ30.80mm

4.13MM

Approx. 3 years

Normal crown

position

Chronograph

minute hand

Hour hand

Chronograph

hour hand

Second hand

Calendar

Minute hand

Button A

Button B

Chronograph

second hand

2. SEPARATED PART

Setting stem x1

Code 065-453

Length from movement center to far end 23.00mm

of setting stem

Thread................................. Ф0.9mm x 8.50mm

3. OTHERS

* Measurement of time rate

The unit(gate) time of measurement must be set at "10 sec." or integer fold

value of 10 sec. owing to the DFC system, and the measurement must be

performed in the form of complete watch.

* Marking on movement

JAPAN

MIYOTA CO.

(CAL. NO.)

NO JEWELS

* Typical clearance

Mov't - Caseback minimum 150 microns

Top of hands - Glass 300 - 400 microns *

* subject to the glass, case structure, and the length of hand

* Note

Please use aluminum material hand for Chrono second hand

* TACHYMETER

The tachymeter is the device which measures the speed of an automobile. Knowing is how

many seconds the car covers a distance of 1km, the meter can measure the approximate

average speed per hour during a journey (up to the maximum measurable range of

tachymeter is 60 seconds.)

If the chronograph is started at the same time as measurement, and stopped after 1 km,

the average speed per hour can be determined according to the position of the second

hand. If the car covers the distance of 1km in 45second, the average hourly speed during

the journey will be about 80 km.

4. INSTRUCTION MANUAL

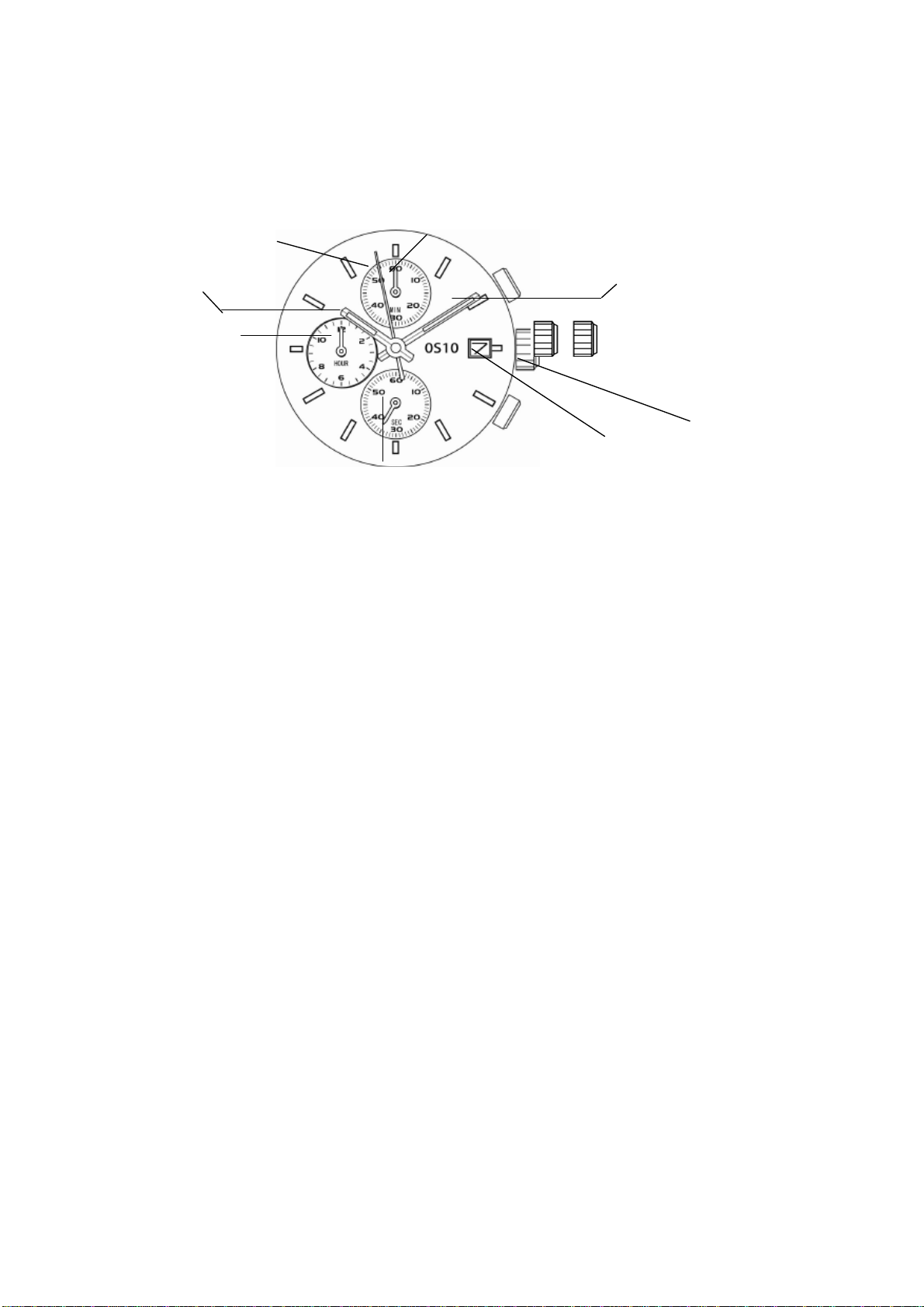

) DISPLAYS AND BUTTONS

B) SETTING THE TIME

1. Pull the crown out to the 2nd position so that the second hand stops at (0) position.

2. Turn the crown to set hour and minute hands.

3. When the crown is pushed back to the normal position in synchronization with a time

signal, small second hand begins to run.

C) SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown to left to set the date.

* If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may

not change on the following day.

3. After the date has been set, push the crown back to the normal position.

D) USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to

maximum of 12 hours.

The chronograph 1/1 second hand keeps continuously for 30 seconds after starting,

and then stops at 0 position.

Measuring time with the chronograph

1. Press button "B" to change the watch to the chronograph mode.

The second hand stops at the 0 second position, and changes to the chronograph

1/1 second hand.

2. The chronograph can be started and stopped each time button "A" is pressed.

The chronograph 1/1 second hand stops at the 0 second position 30 seconds after

starting, When button "A" is pressed to stop the chronograph, the chronograph 1/1

second hand advances rapidly to display the measured time.

3. Pressing button "B" resets the chronograph and all hands return to their 0 positions.

Chronograph

minute hand

Hour hand

Chronograph

hour hand

Second hand

Calendar

Minute hand

Button A

Button B

Chronograph

second hand

Normal crown

position

"A"

RESET "A" TIME MEASUREMENT STOP

"B" "A"

"B"

E) CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure should be performed when the chronograph second hand and

chronograph 1/1 second hand do not return to the 0 second position after the

chronograph has been reset, and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.

2. Press button "A" to set the chronograph second hand to the 0 position.

3. Press button "B" to set the chronograph second hand to 0 position.

The chronograph hands can be advanced rapidly by continuously pressing button

"A" or "B".

4. Once the hands have been zeroed, reset the time and return the crown to its

normal position.

5. Press button "B" to check that the chronograph hands are reset to the 0 position.

* Do not return crown to normal position while chronograph second hand return

to 12:00 (ZERO) position.

Each hands stop on the way when crown are returned to normal position and these

positions are recognized as 12:00 (ZERO) position.

Chronograph

minute hand

Hour hand

Chronograph

hour hand

Second hand

Calendar

Minute hand

Button A

Button B

Chronograph

second hand

Normal crown

position

Chronograph

minute hand

Hour hand

Chronograph

hour hand

Second hand

Calendar

Minute hand

Button A

Button B

Chronograph

second hand

Normal crown

position

F) FITTING METHOD OF HANDS

Place the module on case back shown in the figure and position the reference hand,

then fit the hands according to the following procedure.

1. Pull out the crown to the time setting position. (2nd Click Position

)

2. Turn the crown anticlockwise, and stop turning right after the date changes. After the date

starts changing, turn the crown slowly.

3. Push in the crown by one step. Be careful of not turning the crown.

4.Fit the reference hand, hour hand and minute hand to the 12-o'clock position.

When fitting the hands, remove the case back and place the movement on work stand.

These specifications might be changed without prior notice.

Chronograph

minute hand

Hour hand

Chronograph

hour hand

Second hand

Calendar

Minute hand

Button A

Button B

Chronograph

second hand

Normal crown

position
