CITROEN XANTIA Bedienungsanleitung

PRIVATE CARS

XANTIA-XM-SYNERGIE

PRIVATE CARS

CAR 050008

Book 2

2001

AC.QCAV/MTD

Méthodes Techniques Documentation



’’The intellectual property rights relating to the technical information contained in this document belong

exclusively to the manufacturer. Reproduction, translation or distribution in whole or in part without

prior written authorisation from the manufacturer is forbidden.‘‘

«The technical information contained in this document is intended for the exclusive use of the trained personnel of the

motor vehicle repair trade. In some instances, this information could concern the security and safety of the vehicle. The

information is to be used by the professional vehicle repairers for whom it is intended and they alone would assume full

responsibility to the exclusion of that of the manufacturer».

’’The technical information appearing in this brochure is subject to updating as the characteristics of each

model in the range evolve. Motor vehicle repairers are invited to contact the CITROËN network periodically

for further information and to obtain any possible updates».

2001

PRESENTATION

THIS HANDBOOK summarises the characteristics, adjustments, checks and special features of CITROEN vehicles, not including COMMERCIAL

vehicles for which there e ists a separate handbook.

The handbook is divided into the following groups representing the main functions :

GENERAL - ENGINE - INJECTION - IGNITION - CLUTCH, GEARBOX, DRIVESHAFTS - AXLES, SUSPENSION, STEERING - BRAKES -

HYDRAULICS - ELECTRICAL - AIR CONDITIONING.

In each section, the vehicles are dealt with in the following order : XANTIA-XM-SYNERGIE and all models where applicable.

The information given in this handbook is based on vehicles marketed in EUROPE.

IMPORTANT

If you find that this handbook does not always meet your requirements, we invite you to send us your suggestions which we will take into account

when preparing future publications. For e ample :

– INSUFFICIENT INFORMATION

– SUPERFLUOUS INFORMATION

– NEED FOR MORE DETAILS

Please send your comments and suggestions to :

CITROEN U.K. td.

221, Bath Road,

S OUGH,

S 1 4BA.

U.K.

XANTIA Parking brake 240 - 241

Bleed of brakes

242

Parking brake

244

Bleed of brakes

245

SYNERGIE Parking brake 249

SUSPENSION

De-pressurising 250 - 260

HYDRAU ICS

Pneumatic XANTIA 261 - 265

units XM 266 - 269

E ECTRICITY

Starter motors 270 - 272

Alternators 273 - 279

Charging circuit 280

Preheater plugs 281

AIR CONDITIONING

R 134 a quantities 282

Special features 283 - 288

Checking temperatures 289 - 290

Checking pressures 291

XANTIA 293 - 297

XM 298 - 301

SYNERGIE 302 - 303

INDEX

GENERA XANTIA 1 - 8

XM 9 - 13

SYNERGIE 14 - 15

XANTIA 17 - 18

XM 19

SYNERGIE 20

Lubricants 21 - 34

ENGINE

Specifications 36 - 38

Cyl. head marking and tightening 51 - 61

Au iliary equipment drive belt 62 - 78

Checking and setting valve timing 83 - 84

Valve clearances 121

Oil pressure 122

Oil filter 125

INJECTION

Idling, anti-pollution 127

Petrol injection 128 - 129

Anti-pollution technical checks 130

Emission standards 131 - 137

LPG safety requirements 138 - 142

Identification

of vehicles

Capacities

A le

geometry

Brake specifications Aircon

system

HDi safety requirements 143 - 146

Checks: HDi fuel circuit 147 - 148

Checks: HDi air circuit 149

Checks: Turbo pressure 150 - 151

Checks: HDi e haust gas recycling 152

DELPHI checking, timing 153 - 156

BOSCH checking, timing 157 - 163

IGNITION

Sparking plugs 164

C UTCH-GEARBOX-DRIVESHAFTS

Speedometer 165

Clutch adjustments 169 - 176

Driveshafts 214

AX ES-SUSPENSION-STEERING

XANTIA 215 - 223

XM 224 - 230

SYNERGIE 231 - 236

BRAKES

XANTIA 237 - 238

XM 243

SYNERGIE 246

PRESENTATION

THIS HANDBOOK summarises the characteristics, adjustments, checks and special features of CITROEN vehicles, not including COMMERCIAL

vehicles for which there e ists a separate handbook.

The handbook is divided into the following groups representing the main functions :

GENERAL - ENGINE - INJECTION - IGNITION - CLUTCH, GEARBOX, DRIVESHAFTS - AXLES, SUSPENSION, STEERING - BRAKES -

HYDRAULICS - ELECTRICAL - AIR CONDITIONING.

In each section, the vehicles are dealt with in the following order : XANTIA-XM-SYNERGIE and all models where applicable.

The information given in this handbook is based on vehicles marketed in EUROPE.

IMPORTANT

If you find that this handbook does not always meet your requirements, we invite you to send us your suggestions which we will take into account

when preparing future publications. For e ample :

– INSUFFICIENT INFORMATION

– SUPERFLUOUS INFORMATION

– NEED FOR MORE DETAILS

Please send your comments and suggestions to :

CITROEN U.K. td.

221, Bath Road,

S OUGH,

S 1 4BA.

U.K.

XANTIA Parking brake 240 - 241

Bleed of brakes

242

Parking brake

244

Bleed of brakes

245

SYNERGIE Parking brake 249

SUSPENSION

De-pressurising 250 - 260

HYDRAU ICS

Pneumatic XANTIA 261 - 265

units XM 266 - 269

E ECTRICITY

Starter motors 270 - 272

Alternators 273 - 279

Charging circuit 280

Preheater plugs 281

AIR CONDITIONING

R 134 a quantities 282

Special features 283 - 288

Checking temperatures 289 - 290

Checking pressures 291

XANTIA 293 - 297

XM 298 - 301

SYNERGIE 302 - 303

INDEX

GENERA XANTIA 1 - 8

XM 9 - 13

SYNERGIE 14 - 15

XANTIA 17 - 18

XM 19

SYNERGIE 20

Lubricants 21 - 34

ENGINE

Specifications 36 - 38

Cyl. head marking and tightening 51 - 61

Au iliary equipment drive belt 62 - 78

Checking and setting valve timing 83 - 84

Valve clearances 121

Oil pressure 122

Oil filter 125

INJECTION

Idling, anti-pollution 127

Petrol injection 128 - 129

Anti-pollution technical checks 130

Emission standards 131 - 137

LPG safety requirements 138 - 142

Identification

of vehicles

Capacities

A le

geometry

Brake specifications Aircon

system

HDi safety requirements 143 - 146

Checks: HDi fuel circuit 147 - 148

Checks: HDi air circuit 149

Checks: Turbo pressure 150 - 151

Checks: HDi e haust gas recycling 152

DELPHI checking, timing 153 - 156

BOSCH checking, timing 157 - 163

IGNITION

Sparking plugs 164

C UTCH-GEARBOX-DRIVESHAFTS

Speedometer 165

Clutch adjustments 169 - 176

Driveshafts 214

AX ES-SUSPENSION-STEERING

XANTIA 215 - 223

XM 224 - 230

SYNERGIE 231 - 236

BRAKES

XANTIA 237 - 238

XM 243

SYNERGIE 246

GENERALGENERAL

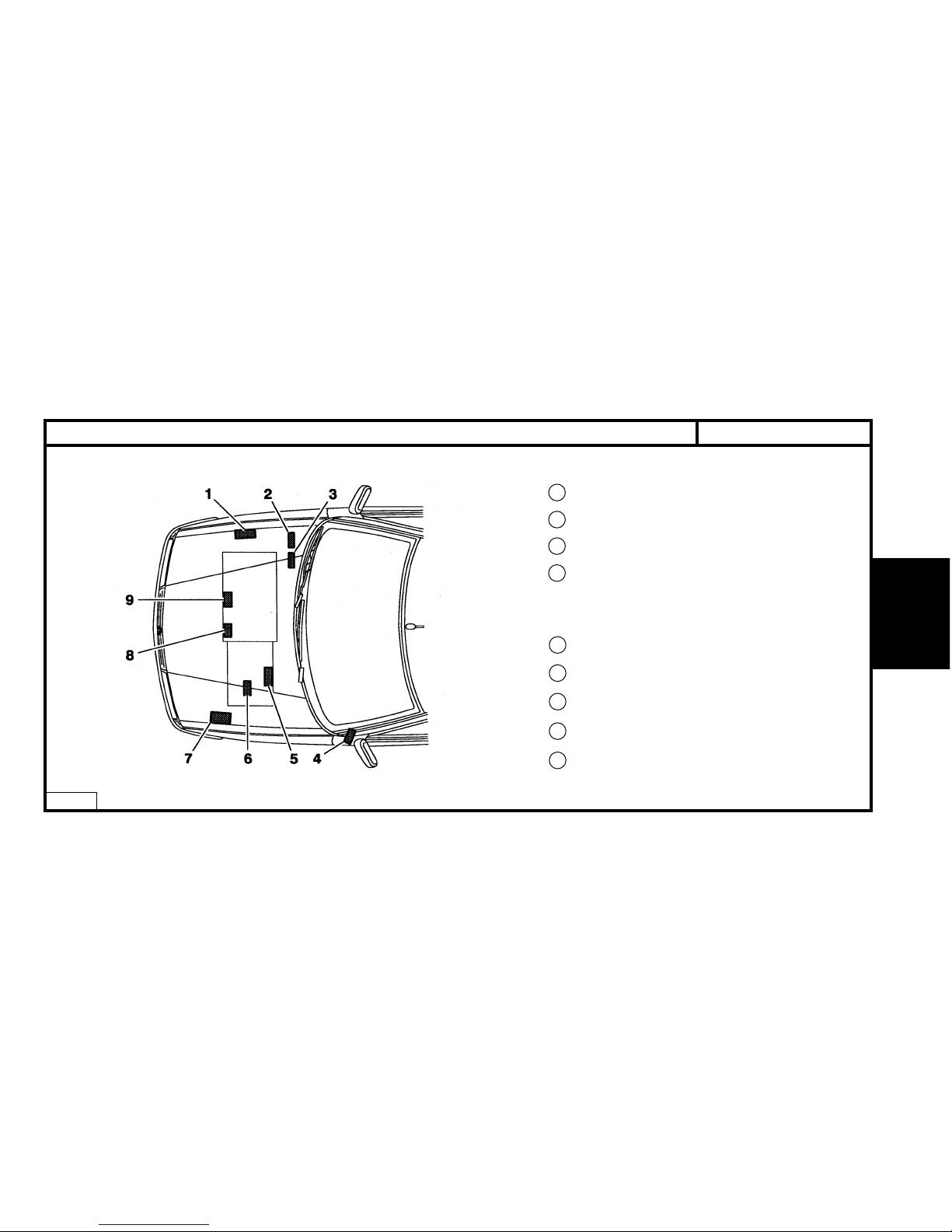

XANTIA - All TypesIDENTIFICATION OF VEHICLES

E1AP07ED

1Manufacturer’s cold stamp.

2R.P. organisation N°.

3Paint code.

401/02/99 # Label

- Pression de gonflage.

- N° organisation P.R.

- Code peinture

5Automatic gearbox identification ref.

Manual gearbox identification ref.

7Manufacturer’s name plate.

8XU5 - XU7 - ES9J4 engine plate.

9XU10 - XUD engine plate.

GENERAL

X1 BFZF X1 BFXF X1 LFYM X1 LFYF X1 LFYN X1 LFYB

BFZ BFX LFY

1580 1761

BE3/5 AL4 BE3/5 AL4 BE3/5

20 TE 00 20 TE 35 20 TP 52 20 TE 35 (*) 20 TP 52 20 TE 36

Emission standard L3 L4

Type code

Engine type

Cubic capacity (cc)

Fiscal rating (hp)

Gearbox type

Gearbox ident. plate

XANTIA - All Types IDENTIFICATION OF VEHICLES

PETROL SALOON

SX SX

1. i 1.8 i

1.8 i 1 V

Auto.

(*) = Long gearbox.

GENERALGENERAL

Emission standard L4 L3

Type code

Engine type

Cubic capacity (cc)

Fiscal rating (hp)

Gearbox type

Gearbox ident. plate

X1 LFYN/IF (*) X1 LFYB/IF (*) X1 RFVM X1 RFVF X7 XFZF X7 XFZM

LFY RFV XFZ

1761 1998 2946

91314

AL4 BE3/5 AL4 BE3/5 ML/5 4HP20

20 TP 52 20 TE 36 20 TE 53 20 TE 37 20 LE 89 20 HZ XX

XANTIA - All TypesIDENTIFICATION OF VEHICLES

PETROL SALOON

1.8i 1 V

SX SX Exclusive Activa SX

Exclusive

2.0i 1 V 30.i V

(*) = IF = Fiscal incentive.
