OPERATION & MAINTENANCE
INSTRUCTIONS
LS0413
PETROL POWER WASHER
MODEL NO: PLS190N, PLS260N
PART NO: 7330345, 7330355
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
INTRODUCTION
Thank you for purchasing this CLARKE Petrol Power Washer.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
UNPACKING
Unpack your power washer and check to ensure the following items are
present. Contact your Clarke dealer immediately if any parts are missing or
damaged.
Power Washer Delivery Hose
Gun Assembly Lance / Nozzle Assembly
2 x Wheels 2 x Rubber Foot
Inlet Hose Detergent Hose
2 x Axle Tommy Bar
Hose / Lance Storage Bracket Spark Plug Box Spanner
Pump Vent Assembly Separate engine manual
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
GUARANTEE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . 4
SAFETY SYMBOLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
BEFORE USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
USING YOUR POWER WASHER . . . . . . . . . . . . . . . . . . . . 12
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
EXPLODED DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
PARTS LIST PLS190N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
PARTS LIST PLS260N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
PLS190N DECLARATION OF CONFORMITY PAGE 1. . . . 25
PLS260N DECLARATION OF CONFORMITY PAGE 1. . . . 26
DECLARATION OF CONFORMITY PAGE 2 . . . . . . . . . . . 27
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
GENERAL SAFETY RULES
1. NEVER direct the spray towards any person or animal.
2. NEVER direct the spray towards electrical wiring or equipment.
3. NEVER hold your finger over the high pressure nozzle.
4. NEVER allow children to use this machine.
5. NEVER operate the machine with any of the covers removed.
6. NEVER attempt any repairs to this machine always refer to a qualified
service agent.
7. NEVER supply any liquid other than water to the water inlet.
8. NEVER use the chemical injection facility to introduce solvents, e.g. paint
thinners, petrol, oil etc.
9. ALWAYS release any residual pressure in the system by turning off the water
supply and operating the trigger before disconnecting any hose or
accessory.
10. ALWAYS keep the machine itself dry and well clear of water spray
11. ALWAYS wear protective clothing and safety glasses. Loose particles and
other debris may be propelled at high speed by the water jet.
12. ALWAYS grip the gun firmly before pressing the trigger, expect the gun to
‘kick’ when starting.
13. ALWAYS respect the requirements of the local water company. Power
washers may only be connected to the mains drinking water supply, if a
backflow preventer valve is installed in the supply hose.
14. When not in use, ALWAYS disconnect from the water supply, and ensure the
system is completely drained. Store in a cool dry location.
15. When using the chemical injection facility, use only the chemical cleaning
agents (detergents), that are approved for power washers. CLARKE Traffic
Film Remover or CLARKE Wash and WAX (available from your dealer), is
recommended.
16. Refuel in a well ventilated area with the engine switched off.
17. Do not use or refuel near naked flames.
WARNING: Water at high pressure can be dangerous and can cause
damage to persons or property if the operator is careless. Never allow
anyone to operate this equipment unless they are thoroughly reliable,
and familiar with the safety precautions.
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

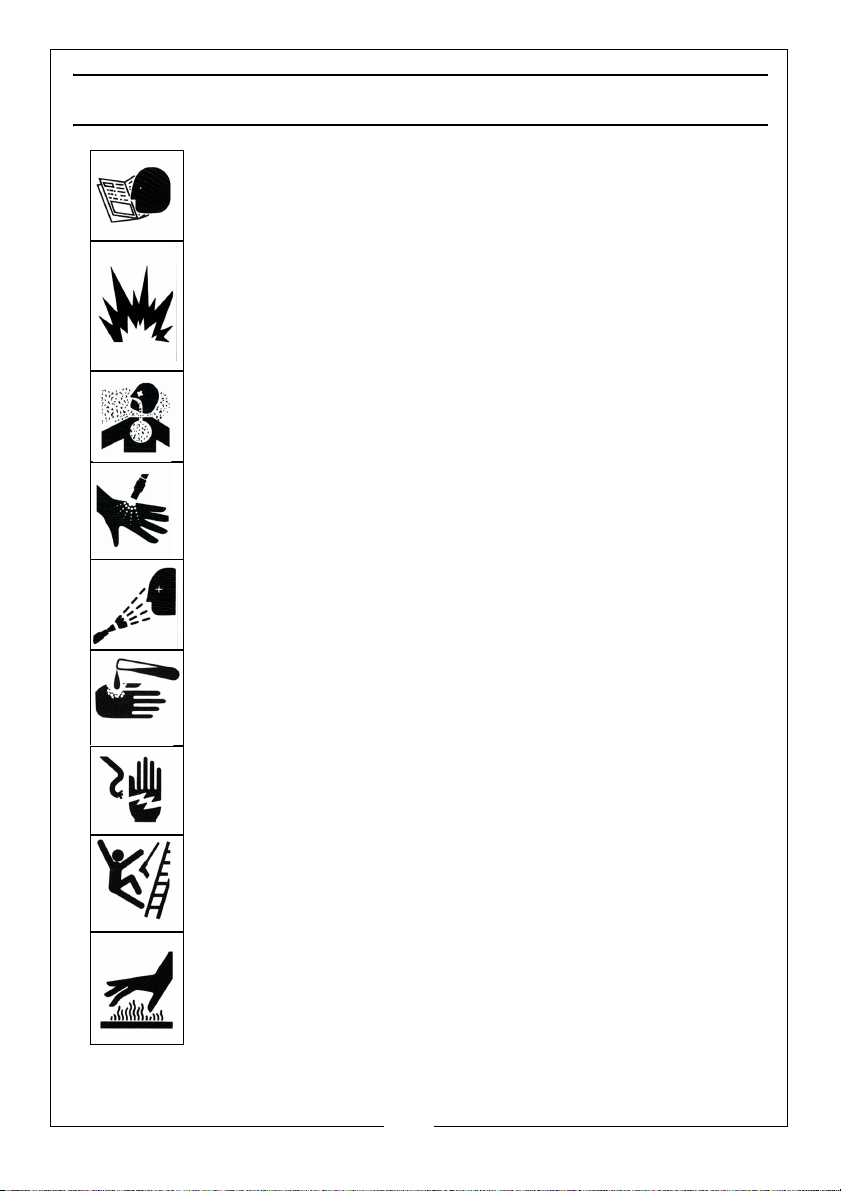

SAFETY SYMBOLS
ALWAYS: Read this manual. Understand all warnings and
instructions before operating this equipment.
DANGER: Risk of fire or explosion. Shut off engine before
adding fuel. Keep work area free of combustible materials.
Do not spray flammable liquids.
DANGER: Risk to breathing. Engine exhaust fumes can kill.
For outdoor use only. Work in a well ventilated area.
WARNING: Risk of injection or severe injury. Do not direct
discharge stream at persons or animals. Keep clear of nozzle.
This machine is to be used only by qualified operators.
WARNING: Risk of spray injury. Spray can propel objects.
Always wear ANSI approved Z87.1 Safety Glasses.
WARNING: Risk of chemical burn. Never spray acids, corrosive
or toxic chemicals. Use only cleaners formulated for power
washers.
WARNING: Risk of electrocution. Never direct spray toward
any electrical device or electrical outlet.
WARNING: Risk of unsafe operation. Keep children away
from this equipment. Gun kicks back. Hold with both hands.
WARNING: Risk of hot surfaces. Avoid contact with hot
engine exhaust components. Don't allow hoses to contact
the engine muffler during or after use.
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

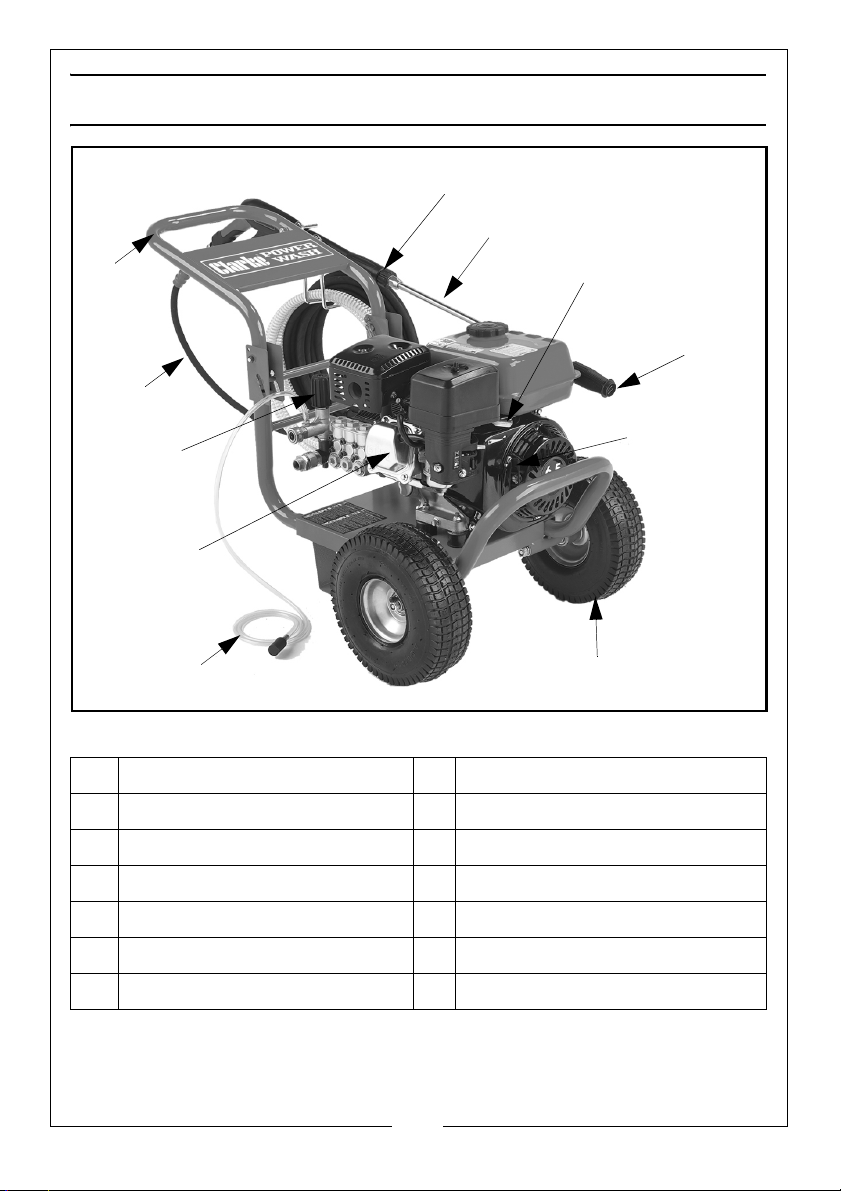

OVERVIEW
1
2
10
4
5
6
7
8
9
3
11
NO DESCRIPTION NO DESCRIPTION
1 Gun/lance 7 High pressure hose
2 Spray wand 8 Foldable handle
3 Engine 9 Pressure regulator
4 Adjustable nozzle 10 Engine starter
5 Wheels 11 Throttle
6 Chemical detergent hose
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

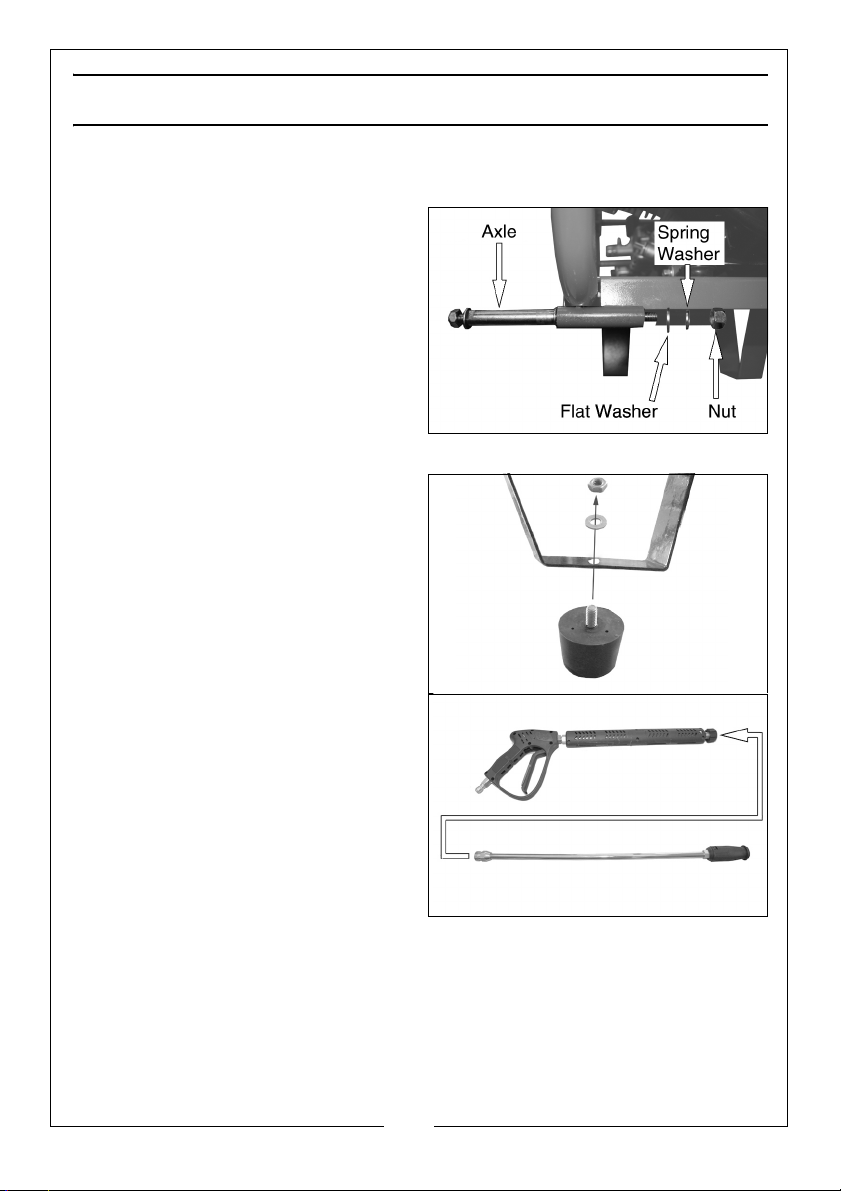

ASSEMBLY
CONNECTING THE WHEELS
1. Remove the nut, spring washer
and washer from the axle.
2. Fit the axles into the axle ports as
shown, secure with the nut, spring
washer and flat washer.
3. Fit the wheels to the axles and
secure with the nut and washer.
NOTE: Do not overtighten the nuts,
the wheels must be able to
rotate freely.
RUBBER FEET
1. Fit the rubber feet to the legs as
shown.
ASSEMBLE THE LANCE
1. Connect the spray wand to the
lance and tighten securely.
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

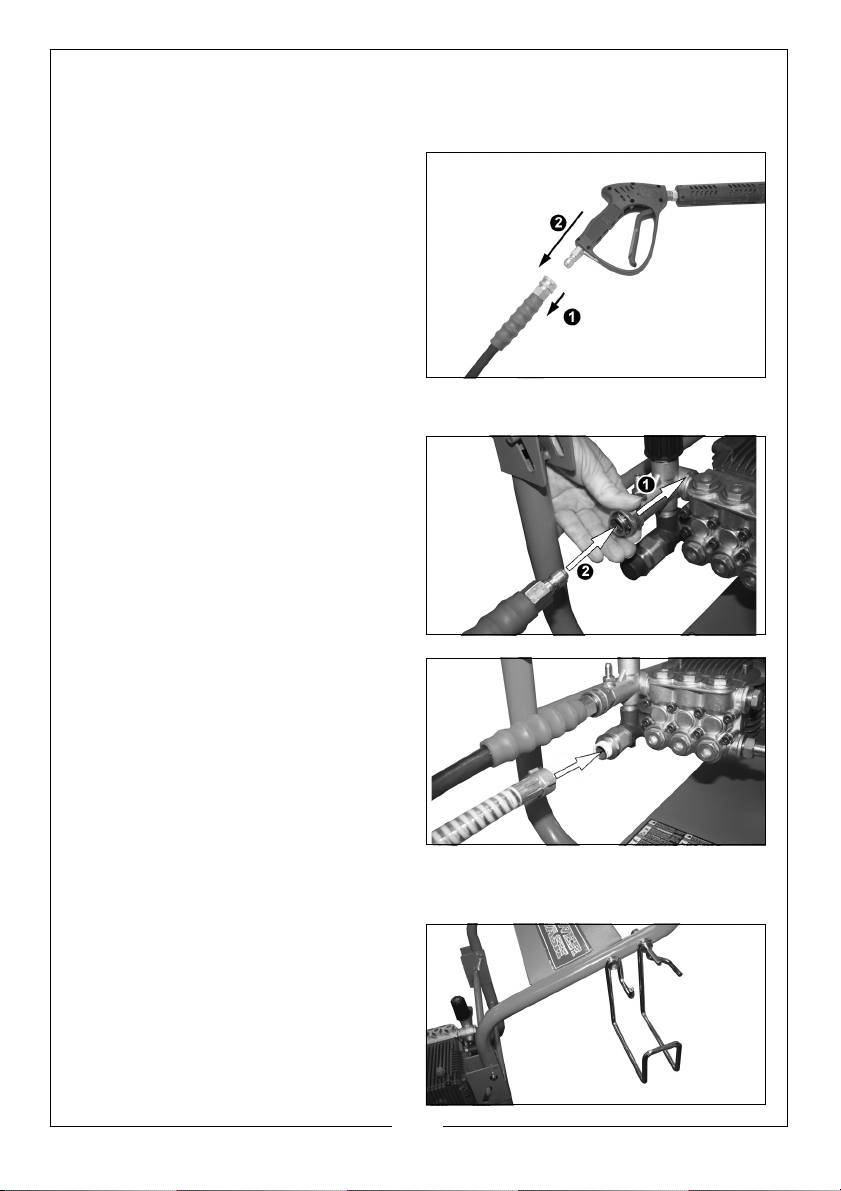

THE HIGH PRESSURE HOSE
CONNECT THE HOSE TO THE GUN
1. Slide the connector on the hose
backwards.
2. Push the gun into the connector.
3. Release the connector.
NOTE: Make sure the connection is
secure.
CONNECT THE HOSE TO THE POWER WASHER
1. Slide the connector on the power
washer towards the machine.
2. Push the hose into the connector.
3. Release the connector.
NOTE: Make sure the connection is
secure.
CONNECT WATER INLET HOSE
1. Remove the travel cap if fitted.
2. Connect the water supply hose to
the water inlet.
NOTE: Water source must provide
a minimum of 5 gallons per
minute at 20 p.s.i.
NOTE: Make sure the water inlet
hose is screwed on tightly.
HOSE / LANCE STORAGE BRACKET
1. Fit the bracket into the position
shown and secure using the
washers and nuts supplied
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

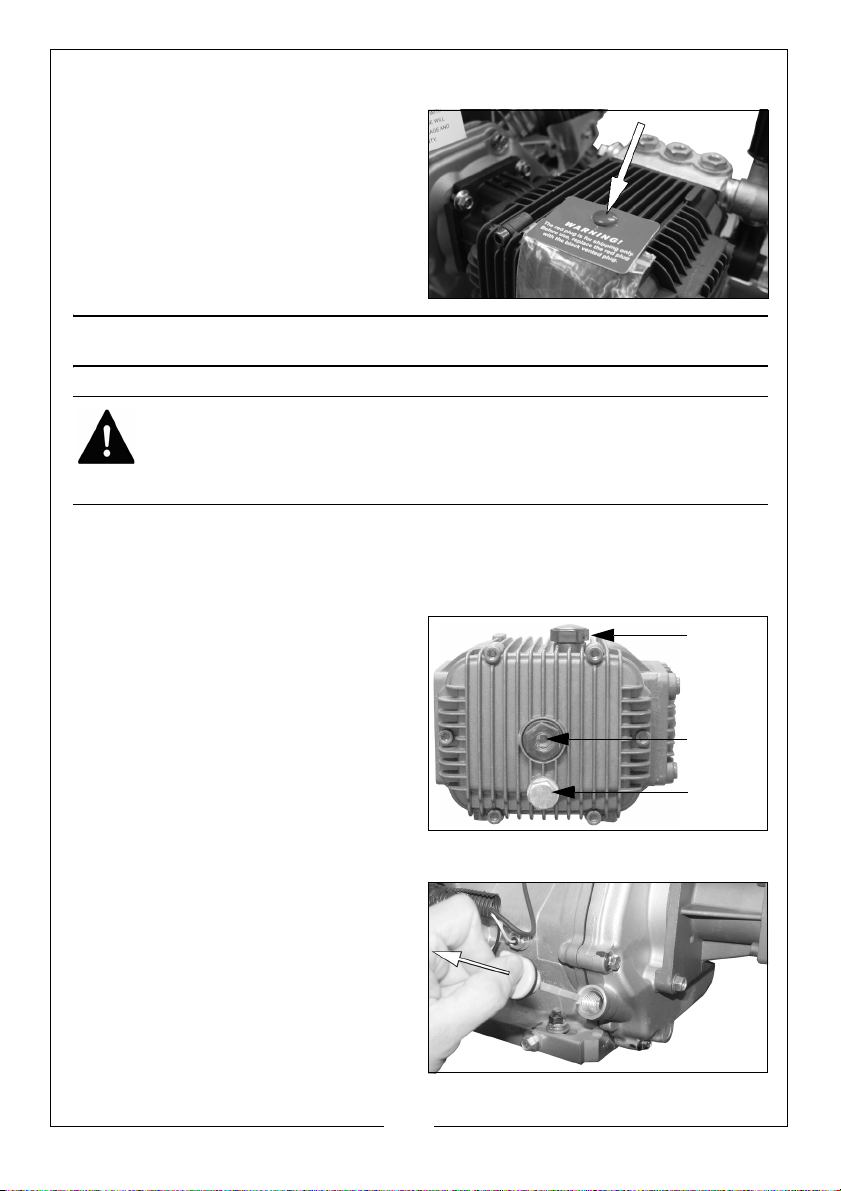

REMOVE THE TRAVEL PLUG BEFORE USE.
1. Remove the red travel plug.
2. Inside the small bag attached is
an oil filler cap which needs to be
fitted in its place.
BEFORE USE
IMPORTANT: The engine is supplied without any oil in it and must be filled to
the correct level before use, see below.
CHECKING THE PUMP OIL LEVEL
Look at the sight glass on the pump
to check the oil level inside.
If required, remove the oil filler cap
and top up with oil.
• We recommend the use of
SAE30 oil in this pump.
CHECKING THE ENGINE OIL LEVEL
1. Turn the oil filler cap/dipstick anti-
clockwise and remove it from the
oil filler tube, wipe the dipstick
with a clean cloth.
2. Insert the oil filler cap/dipstick
back into the oil filler tube and
then remove it again. Do not
screw it in when doing this.
WARNING: TO CARRY OUT THIS CHECK, PLACE THE POWER WASHER ON
LEVEL GROUND WITH THE ENGINE SWITCHED OFF.
WARNING: TAKE CARE NOT TO TOUCH ANY HOT PARTS OF THE POWER
WASHER WHEN CHECKING THE OIL LEVELS.
SIGHT GLASS
DRAIN CAP
OIL FILLER CAP
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

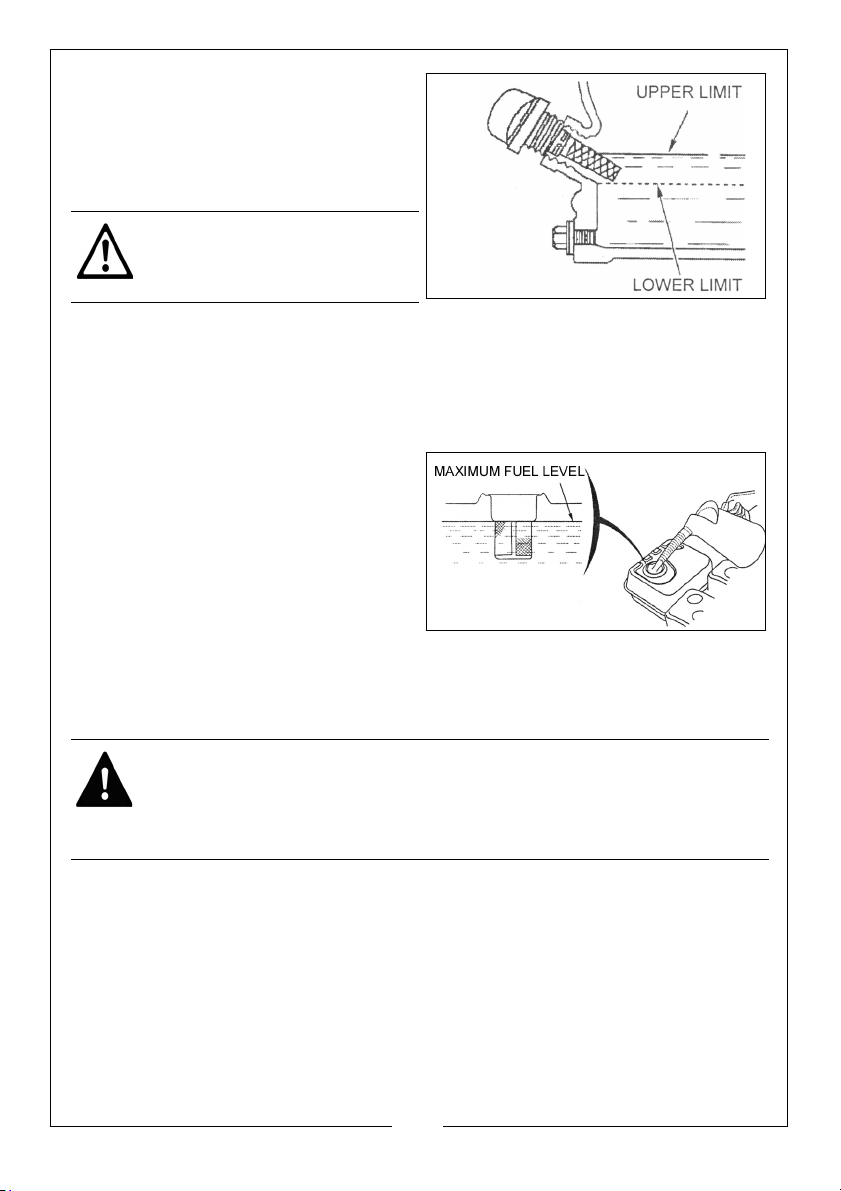

3. If the oil is low, fill the oil reservoir to
the edge of the oil filler hole.
• We recommend the use of
SAE30 oil in the engine.
4. Replace the oil filler cap.
CAUTION: RUNNING THE
ENGINE WITH INSUFFICIENT OIL
CAN CAUSE ENGINE DAMAGE.
CHECKING THE FUEL LEVEL
1. To check the fuel level, remove the fuel tank cap.
2. Just inside the fuel tank is a fuel strainer. Check this filter periodically and
remove any contaminants which may have accumulated.
3. Refuel in a well-ventilated area,
before starting the engine. If the
engine has been running, allow it
to cool. Refuel carefully to avoid
spilling fuel. Do not fill above the
fuel strainer shoulder.
4. After refueling, Replace the fuel
filler cap securely.
RECOMMENDED FUEL
Use unleaded petrol with an octane rating of 86 or higher. Do not overfill.
WARNING: ALWAYS REFUEL IN A WELL VENTILATED AREA AWAY FROM
ANY HEAT SOURCES.
WARNING: ALLOW THE UNIT TO COOL DOWN BEFORE REFUELLING.
WARNING: DO NOT LEAVE FUEL WITHIN THE REACH OF CHILDREN.
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Clarke Hochdruckreiniger Handbücher
Clarke
Clarke POWER WASH JET 7000 Bedienungsanleitung
Clarke
Clarke JET 9500B Bedienungsanleitung
Clarke
Clarke Power Wash PLS195A Bedienungsanleitung
Clarke
Clarke PLS195 Bedienungsanleitung
Clarke
Clarke Power Wash ELS145 Installations- und Betriebshandbuch
Clarke
Clarke Tiger1550 Installations- und Betriebshandbuch
Clarke
Clarke ELS140 Installations- und Betriebshandbuch
Clarke
Clarke JETSTAR 1850 Bedienungsanleitung
Clarke
Clarke JET 9000 Bedienungsanleitung
Clarke
Clarke King 130 Handbuch
Clarke
Clarke King 140 Hotwasher Installations- und Betriebshandbuch
Clarke
Clarke PLS130AH Installations- und Betriebshandbuch
Clarke
Clarke JET 5000 Handbuch
Clarke
Clarke PLS195B Bedienungsanleitung
Clarke
Clarke JETSTAR 1700 Installations- und Betriebshandbuch
Clarke
Clarke TIGER 1800A Bedienungsanleitung
Clarke
Clarke JET 8000 Bedienungsanleitung
Clarke
Clarke TIGER1700 Bedienungsanleitung
Clarke
Clarke TIGER 2600 Bedienungsanleitung
Clarke
Clarke JET 7500 Bedienungsanleitung
