CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.16.09

is prohibited without permission.

STK# DIMENSIONS

104895 12' W x 8' 7" H x 17' 3" L

ClearSpan™

Backyard Cedar Greenhouse

Ground Level

Photo may show a model of a different length.

CLEARSPAN™CEDAR GREENHOUSES

2Revision date: 06.16.09

YOU MUST READ THIS DOCUMENT BEFORE YOU

BEGIN TO ASSEMBLE THE SHELTER.

Thank you for purchasing this ClearSpan™ greenhouse.

When properly assembled and maintained, this product will

provide years of reliable service. These instructions include

helpful hints and important information needed to safely

assemble and properly maintain the greenhouse. Please

read these instructions before you begin.

If you have any questions during the assembly, contact

Customer Service for assistance.

SAFETY PRECAUTIONS

Wear eye protection.•

Wear head protection.•

Wear gloves when handling metal and wood.•

Use a portable GFCI (Ground Fault Circuit Interrupter)• when working with power tools and cords.

Do not climb on the greenhouse during or after• construction.

Do not occupy the greenhouse during high winds,• tornadoes, or hurricanes.

Provide adequate ventilation if the structure is• enclosed.

Do not store hazardous materials in the greenhouse.•

Provide proper ingress and egress to prevent• entrapment.

ANCHORING INSTRUCTIONS

Prior to assembling this greenhouse, please read the

anchoring precautions and instructions included with the

kit. Anchoring instructions are included in the MUST READ

document. You must anchor the building after the base is

assembled and before the panels are installed.

WARNING: The anchor assembly is an integral part

of the greenhouse construction. Improper anchoring

may cause greenhouse instability and failure of the

structure. Failing to anchor the greenhouse properly

will void the manufacturer’s warranty and may cause

serious injury and damage.

LOCATION

Choosing the proper location is an important step before

you begin to assemble the structure. Always consult local

and regional building codes before you begin.

The following suggestions and precautions will help you

determine whether your selected location is the best

location.

Never erect the structure under power lines.•

Identify whether underground cables and pipes are• present before preparing the site or anchoring the

structure.

Location should be away from structures that could• cause snow to drift on or around the building.

Do not position the greenhouse where large loads• such as snow and ice, large tree branches, or other

overhead obstacles could fall.

SITE

After choosing a location, proper preparation of the site is

essential. The following site characteristics will help ensure

the integrity of the structure.

A level site is required to properly and safely erect and• anchor the frame.

Drainage: Water draining off the structure and from• areas surrounding the site should drain away from the

site to prevent damage to the site, the structure, and

contents of the structure.

WARNING: The individuals assembling this structure

are responsible for designing and furnishing all

temporary bracing, shoring and support needed during

the assembly process. For safety reasons, those who

are not familiar with recognized construction methods

and techniques must seek the help of a qualified

contractor.

SITE PREPARATION

The information regarding the preparation of the site is

presented as a general set of guidelines.

Soil conditions vary greatly among different sites. If

needed, consult the services of a qualified engineer

before you prepare the site to determine the best and

most efficient way to construct the greenhouse.

Prepare the site so drainage is away from the building

and in a direction that will not cause erosion around the

support structure.

CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.16.09

REQUIRED TOOLS

The following list identifies the main tools needed to

assemble the greenhouse. Additional tools and supports

may be needed.

Transit or laser level for site layout•

String line and tape measure•

Marker, carpenter's level, and shovel•

Variable speed drill and impact driver (cordless with• extra batteries works best)

Wrenches or ratchet and impact socket set• (recommended)

Drill and bits•

Hammers, gloves, and eye protection•

Ladders, work platforms, and other machinery for lifting• designed to work safely at the height of the greenhouse

UNPACK AND IDENTIFY PARTS

The following steps will ensure that you have all the

necessary parts before you begin to assemble the

greenhouse.

Unpack the contents of the shipment and place where1. you can easily inventory the parts. Refer to the Bill of

Materials/Spec Sheets.

Verify that all parts listed on the Bill of Materials/Spec2. Sheets are present. If anything is missing or you have

questions, consult the Pictorial Parts Guide and all

shelter diagrams throughout these instructions for

clarification, or contact Customer Service.

At this time, you do not need to open the plastic

bags containing the fasteners (if used).

ATTENTION: To prevent splitting, drill and countersink

all mounting holes in greenhouse panels and other cedar

components.

Failing to drill and countersink the holes may split the

cedar when mounting screws are tightened.

ASSEMBLE AND ANCHOR THE BASE

For concrete surfaces, anchor the frame using customer-

supplied brackets and wedge anchors. Consult the

services of a qualified contractor for additional information

and details.

Measure all lengths of plastic lumber and match them to

the lumber lengths shown in the chart found below the

base diagrams in the Quick Start section.

ASSEMBLY PROCEDURE

Following the instructions as presented will help ensure

the proper assembly of your greenhouse. Failing to follow

these steps may result in an improperly assembled and

anchored greenhouse and will void all warranty and

protection to which the owner is entitled.

The steps outlining the assembly process are as follows:

Verify that all parts are included in the shipment. Notify1. Customer Service for questions or concerns.

Read these instructions, the Must Read document, and2. all additional documentation included with the shipment

before you begin assembling the shelter.

Gather the tools, bracing, ladders (and lifts), and3. assistants needed to assemble the greenhouse.

Check the weather4. before you install any panels. Do

not install panels on a windy or stormy day.

Re-evaluate the location and site based on the5. information and precautions presented in the

documentation included with the shipment.

Lay out the site (if this has not been completed).6.

Assemble the base frame and7. anchor to the site.

NOTE: Do not assemble the greenhouse on a

base frame that has not been anchored to the site.

Consult the anchoring diagram near the back of these

instructions and the Must Read document for anchoring

comments and instructions.

Assemble the greenhouse components in the order8. they are presented

Read the care and maintenance information at the end9. of these instructions.

Complete and return all warranty information as10. instructed.

CLEARSPAN™CEDAR GREENHOUSES

4Revision date: 06.16.09

The following graphics and photos will help you identify the

different parts of the building. (Some parts are not shown.)

FAS8 & FAS13 & FAS14

Construction Screws

FAF25P & FAF28P

Phillips Head Screws

104639

Pass-thru Connector 104636

Corner Bracket

104642

A-Angle 104643

Middle Connector

LAY OUT THE BUILDING SITE

After the site is prepared, identifying the location of the

greenhouse corners helps to square the frame after it is

assembled.

Taking these steps before assembling the greenhouse

saves time and ensures that the structure is positioned as

desired. The following procedure is a suggested method.

Its use depends on the size of the greenhouse, the

footings, and the method used to anchor the shelter.

SQUARE THE SITE

Identify a corner where a building rafter will be1. positioned, drive in a stake, and string a line the exact

width of the building and stake in place.

String a line at least as long as the building from the2. first stake at 90°.

NOTE: A transit can be used to ensure an accurate 90°

angle, or the 3-4-5 rule can be used. Refer to diagram.

Using multiples of 3-4-5 such as 6-8-10 or 12-16-20

helps to maintain an accurate 90° angle.

After squaring the position of the building and placing3. a stake at all corners, string a line between the stakes

to mark the base of the building.

CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.16.09

Ground Level

FRONT

BACK

SIDE

SIDE BOARD

BACK BOARD

ATTENTION: Verify that the

front and back boards are seated

against the corner bracket.

3Outside

Inside

Align the

centers of the

connectors with

the measured

marks.

ASSEMBLE BASE FRAME

Consult the Assembled Base and Exploded Base Views at the back of these instructions to assemble the

base frame.

NOTE: All screws in this step are installed in the sides of the baseboards. DO NOT install screws into the

top of the baseboards.

Gather the correct board lengths and assemble each baseboard using two (2) middle connectors; one1. placed over the top edge and one placed over the bottom edge at the joint between the boards. Use

3/4" Phillips head screws (FAF25P) to secure middle connectors.

With the baseboards assembled, attach the corner brackets as shown below using 3/4" Phillips head2. screws (FAF25P) to secure. Repeat at the remaining corners. Consult diagrams to properly install the

corner brackets and to assemble the frame.

On each3. side, attach pass-thru connectors (#104639) in the locations shown below. Consult the

Assembled Base View diagrams near the back of these instructions for the correct measurements and

locations. Use 3/4" Phillips head screws (FAF25P) to secure pass-thru connectors.

Consult the diagrams near the back of these instructions4. to square and anchor the assembled frame.

CLEARSPAN™CEDAR GREENHOUSES

6Revision date: 06.16.09

Frame length of your

building may differ

from what is shown.

Seat the corner panels into the corner brackets as

shown and secure using 3/4" Phillips head screws.

Corner Panel

3/4" Phillips

head screws

Brackets come pre-

installed. Secure using

3/4" Philips head screws.

Verify the ridge

bracket is to

the inside.

CG12123

View as seen

from the inside

BACK BOARD

INSTALL BACK PANELS

WARNING: To prevent damage to the

panels and to prevent serious personal

injury, do not attempt to install the panels

on windy days.

Secure corner panels (#CG12100 &1. #CG12101) to the base frame using 3/4"

Phillips head screws (FAF25P). Attach to

the base frame using the corner brackets

and the pre-installed brackets on the

corner panels as shown.

NOTE: If needed, brace panels in place or

have an assistant hold the panels steady

until side panels can be attached to the

end panels.

Install the back center panel (#CG12123). Secure panel using the pre-installed 3" x 3" flat brackets and2. 3/4" Phillips head screws (FAF25P) as shown.

Install the back peak panel (#CG12114). Secure panel using the pre-installed brackets on the corner3. panels as shown and the FAF25P screws.

CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.16.09

NOTE: Brace panels during

assembly, if needed.

INSTALL SIDE PANELS

WARNING: To prevent damage to the

panels and to prevent serious personal

injury, do not attempt to install the panels

on windy days.

Beginning at the corner, attach a side panel1. to the back end panel using three 2-1/2"

construction screws (#FAS13).

NOTE: Drill and countersink all mounting

holes for panel installation. Install

construction screws through the end panel

and into the side panel as shown below.

Secure side panels (#CG96113) to the2. base frame using 3/4" Phillips head screws

(FAF25P). Attach to the base frame using the pass-thru connectors as shown. Align the centers of the

pass-thru connectors with the edge of the side panels as shown to the right, and secure using 3/4"

Phillips head screws.

Repeat steps to install panels for the remaining side.3.

View as seen

from the outside.

ATTENTION: Verify that

all pre-installed brackets

are to the inside of the

greenhouse.

FAS13 Construction

screw locations Frame length of your

building may differ

from what is shown.

CLEARSPAN™CEDAR GREENHOUSES

8Revision date: 06.16.09

4INSTALL FRONT PANELS

WARNING: To prevent damage to the panels and to prevent serious personal injury, do not attempt to

install the panels on windy days.

Secure front panels (#CG12100 & #CG12101) to the base frame as previously described in Section 2.1.

Attach front panels to the side panels using three 2-1/2" construction screws (#FAS13) as described in2. Section 3. Drill and countersink all mounting holes.

Attach the front peak panel (#CG12114) as described in Section 2.3.

NOTE: Verify that the ridge bracket is to the inside of the greenhouse.

CG12101

CG12114

CG12100

Frame length of your

building may differ

from what is shown.

CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.16.09

5ATTACH AND MARK TOP PLATES

Gather the parts:

96" top plate (#10513696)•

12" top plate (#10513612)•

2-1/2" construction screws (#FAS13)•

Using FAS13 construction screws spaced at1. 12" intervals, attach two (2) 96" and one (1)

12" top plate to the top of the side panels on

one side. Repeat for the remaining side. Drill

and countersink holes.

Measure and mark 25-1/2" from the end of2. the installed top plate. Continue measuring

and marking in 25-1/2" increments for the

on-center middle rafter locations.

NOTE: Mark the outside of the top plates

and not the top. This allows the mark to be

visible when the rafter assemblies are set

into position.

ATTENTION: Drill and countersink all mounting holes

before you install and tighten the mounting screws.

FAS13

construction

screws

1Drill and countersink

all mounting holes.

25-1/2"

Top Plate Locations

Top Plate

Frame length of your

building may differ

from what is shown.

CLEARSPAN™CEDAR GREENHOUSES

10 Revision date: 06.16.09

View as seen

from the inside

FAF25P

Phillips head

screw

104642

A-Angle bracket

NOTE: Attach rafters

with the angled brackets

facing the back panels.

Pre-drill

fastener hole.

Verify rafter

is over the

edge when

drilling so as to

not drill into the

top plate.

Align the

center of the

rafter leg with

the previously

measured

mark.

FAS13

construction

screw

Frame length of your

building may differ

from what is shown.

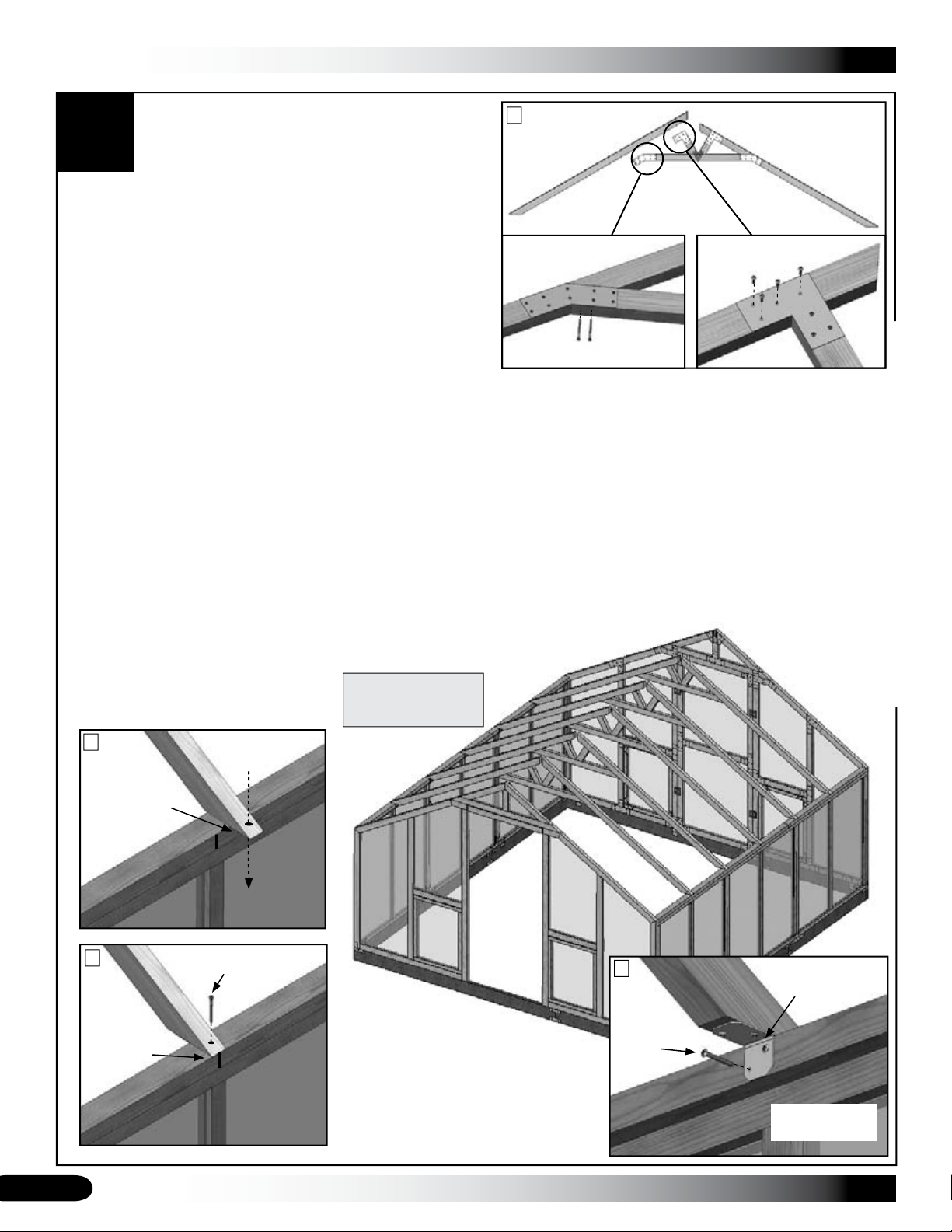

6ASSEMBLE AND ATTACH MIDDLE RAFTERS

Rafters are shipped in two sections and must

be assembled before they are attached to the

greenhouse.

Assistance may be required to attach rafters.

Align the pre-drilled holes in the rafter leg1. with the holes of the angle brackets. Using

the screws that shipped with the rafter

sections, assemble the rafter. See diagrams

to the right.

NOTE: When properly assembled, a space is present between the top ends of each rafter leg for the

ridge assembly, which is installed later.

Locate an assembled rafter and position it on the previously installed top plates. Align the center of the2. rafter legs with the first set of marks. Allowing the end of the rafter leg to hang over the edge, drill and

countersink a hole for the rafter fastener using a 1/8" drill bit.

NOTE: You must pre-drill and countersink the hole for the rafter fastener to prevent the rafter leg from

splitting. DO NOT drill into the top of the top plate.

Verify the centers of the rafter legs are aligned with the previously measured marks. Using the pre-drilled3. holes in the previous step and 2-1/2" FAS13 construction screws, secure the rafter legs to the top plate.

Select two (2) A-angle brackets (#104642) and attach one to the underside of each rafter leg on the4. inside as shown below. Secure using 3/4" FAF25P Phillips head screws.

Repeat steps for all remaining rafters.5.

1Diagram shows

rafter sections as

they are shipped.

Inhaltsverzeichnis

Andere ClearSpan Gewächshaus-Bausatz Handbücher

ClearSpan

ClearSpan R030A00007 Bedienungsanleitung

ClearSpan

ClearSpan 104813PCA Bedienungsanleitung

ClearSpan

ClearSpan Super Moo-Tel Building 38' Wide Bedienungsanleitung

ClearSpan

ClearSpan ClearSpan 104950F Bedienungsanleitung

ClearSpan

ClearSpan Tall Boy Moo-Tel Bedienungsanleitung

ClearSpan

ClearSpan Storage Master 104598 Bedienungsanleitung

ClearSpan

ClearSpan Premium Solar Star 104918 Bedienungsanleitung

ClearSpan

ClearSpan CL108545 Bedienungsanleitung

ClearSpan

ClearSpan R030B00008 Bedienungsanleitung

ClearSpan

ClearSpan 104828PCA Bedienungsanleitung

ClearSpan

ClearSpan PB00816R4 Bedienungsanleitung

ClearSpan

ClearSpan CL108547 Bedienungsanleitung

ClearSpan

ClearSpan 106417 Bedienungsanleitung

ClearSpan

ClearSpan 36' Wide Pony Wall Building Bedienungsanleitung

ClearSpan

ClearSpan Cedar 8' Wide End Frame Kit Bedienungsanleitung

ClearSpan

ClearSpan Pro Solar Star R030 Handbuch

ClearSpan

ClearSpan Premium Moo-Tel Series Bedienungsanleitung

ClearSpan

ClearSpan Pro Solar Star Bedienungsanleitung

ClearSpan

ClearSpan Premium Solar Star Bedienungsanleitung

ClearSpan

ClearSpan 34' Wide Pony Wall Building Bedienungsanleitung

ClearSpan

ClearSpan 104818PCA Bedienungsanleitung

ClearSpan

ClearSpan R020B00008 Bedienungsanleitung

ClearSpan

ClearSpan 30' Wide Pony Wall Building Bedienungsanleitung

ClearSpan

ClearSpan R020B00000F Bedienungsanleitung

Beliebte Gewächshaus-Bausatz Handbücher anderer Marken

ACD PRESTIGE

ACD PRESTIGE MR3 H Bedienungsanleitung

Vitavia

Vitavia VA0040-TRP Bedienungsanleitung

VegTrug

VegTrug Nursery Bedienungsanleitung

Riverstone Networks

Riverstone Networks Monticello 041315V Bedienungsanleitung

STC

STC Easy Grow 6x12 Greenhouse Bedienungsanleitung

CLIMA POD

CLIMA POD Spirit V7 Series Bedienungsanleitung

Vitavia

Vitavia GAIA JUMBO Bedienungsanleitung

Palram

Palram Harmony 6'x4' Bedienungsanleitung

Sproutwell

Sproutwell GRANGE - 5 Bedienungsanleitung

ACD

ACD Piccolo 03 Bedienungsanleitung

Growhouse

Growhouse Lean To 6 x 8 Bedienungsanleitung

Riverstone Networks

Riverstone Networks Grower's 181010V Bedienungsanleitung

GrowSpan

GrowSpan 500 Series Bedienungsanleitung

Robinsons

Robinsons 5ft Wide LEAN-TO Bedienungsanleitung

Botanica

Botanica E Bedienungsanleitung

PNI

PNI SP6000 Bedienungsanleitung

Hortus

Hortus 211-203 Programmierhandbuch

Robinsons

Robinsons 6' Lean-To Bedienungsanleitung
