CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.18.09

is prohibited without permission.

STK# DIMENSIONS

104900 8' W x 9' 8" H x 17' 3" L

Ground Level

Photo may show a model of a different length.

ClearSpan™

Home-Attached Cedar Greenhouse

CLEARSPAN™CEDAR GREENHOUSES

2Revision date: 06.18.09

YOU MUST READ THIS DOCUMENT BEFORE YOU

BEGIN TO ASSEMBLE THE SHELTER.

Thank you for purchasing this ClearSpan™ greenhouse.

When properly assembled and maintained, this product will

provide years of reliable service. These instructions include

helpful hints and important information needed to safely

assemble and properly maintain the greenhouse. Please

read these instructions before you begin.

If you have any questions during the assembly, contact

Customer Service for assistance.

SAFETY PRECAUTIONS

Wear eye protection.•

Wear head protection.•

Wear gloves when handling metal and wood.•

Use a portable GFCI (Ground Fault Circuit Interrupter)• when working with power tools and cords.

Do not climb on the greenhouse during or after• construction.

Do not occupy the greenhouse during high winds,• tornadoes, or hurricanes.

Provide adequate ventilation if the structure is• enclosed.

Do not store hazardous materials in the greenhouse.•

Provide proper ingress and egress to prevent• entrapment.

ANCHORING INSTRUCTIONS

Prior to assembling this greenhouse, please read the

anchoring precautions and instructions included with the

kit. Anchoring instructions are included in the MUST READ

document. You must anchor the building after the base is

assembled and before the panels are installed.

WARNING: The anchor assembly is an integral part

of the greenhouse construction. Improper anchoring

may cause greenhouse instability and failure of the

structure. Failing to anchor the greenhouse properly

will void the manufacturer’s warranty and may cause

serious injury and damage.

LOCATION

Choosing the proper location is an important step before

you begin to assemble the structure. Always consult local

and regional building codes before you begin.

The following suggestions and precautions will help you

determine whether your selected location is the best

location.

Never erect the structure under power lines.•

Identify whether underground cables and pipes are• present before preparing the site or anchoring the

structure.

Location should be away from structures that could• cause snow to drift on or around the building.

Do not position the greenhouse where large loads• such as snow and ice, large tree branches, or other

overhead obstacles could fall.

SITE

After choosing a location, proper preparation of the site is

essential. The following site characteristics will help ensure

the integrity of the structure.

A level site is required to properly and safely erect and• anchor the frame.

Drainage: Water draining off the structure and from• areas surrounding the site should drain away from the

site to prevent damage to the site, the structure, and

contents of the structure.

WARNING: The individuals assembling this structure

are responsible for designing and furnishing all

temporary bracing, shoring and support needed during

the assembly process. For safety reasons, those who

are not familiar with recognized construction methods

and techniques must seek the help of a qualified

contractor.

SITE PREPARATION

The information regarding the preparation of the site is

presented as a general set of guidelines.

Soil conditions vary greatly among different sites. If

needed, consult the services of a qualified engineer

before you prepare the site to determine the best and

most efficient way to construct the greenhouse.

Prepare the site so drainage is away from the building

and in a direction that will not cause erosion around the

support structure.

CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.18.09

REQUIRED TOOLS

The following list identifies the main tools needed to

assemble the greenhouse. Additional tools and supports

may be needed.

Transit or laser level for site layout•

String line and tape measure•

Marker, carpenter's level, and shovel•

Variable speed drill and impact driver (cordless with• extra batteries works best)

Wrenches or ratchet and impact socket set• (recommended)

Drill and bits•

Hammers, gloves, and eye protection•

Ladders, work platforms, and other machinery for lifting• designed to work safely at the height of the greenhouse

UNPACK AND IDENTIFY PARTS

The following steps will ensure that you have all the

necessary parts before you begin to assemble the

greenhouse.

Unpack the contents of the shipment and place where1. you can easily inventory the parts. Refer to the Bill of

Materials/Spec Sheets.

Verify that all parts listed on the Bill of Materials/Spec2. Sheets are present. If anything is missing or you have

questions, consult the Pictorial Parts Guide and all

shelter diagrams throughout these instructions for

clarification, or contact Customer Service.

At this time, you do not need to open the plastic

bags containing the fasteners (if used).

ATTENTION: To prevent splitting, drill and countersink

all mounting holes in greenhouse panels and other cedar

components.

Failing to drill and countersink the holes may split the

cedar when mounting screws are tightened.

ASSEMBLE AND ANCHOR THE BASE

For concrete surfaces, anchor the frame using customer-

supplied brackets and wedge anchors. Consult the

services of a qualified contractor for additional information

and details.

Measure all lengths of plastic lumber and match them to

the lumber lengths shown in the chart found below the

base diagrams in the Quick Start section.

ASSEMBLY PROCEDURE

Following the instructions as presented will help ensure

the proper assembly of your greenhouse. Failing to follow

these steps may result in an improperly assembled and

anchored greenhouse and will void all warranty and

protection to which the owner is entitled.

The steps outlining the assembly process are as follows:

Verify that all parts are included in the shipment. Notify1. Customer Service for questions or concerns.

Read these instructions, the Must Read document, and2. all additional documentation included with the shipment

before you begin assembling the shelter.

Gather the tools, bracing, ladders (and lifts), and3. assistants needed to assemble the greenhouse.

Check the weather4. before you install any panels. Do

not install panels on a windy or stormy day.

Re-evaluate the location and site based on the5. information and precautions presented in the

documentation included with the shipment.

Lay out the site (if this has not been completed).6.

Assemble the base frame and7. anchor to the site.

NOTE: Do not assemble the greenhouse on a

base frame that has not been anchored to the site.

Consult the anchoring diagram near the back of these

instructions and the Must Read document for anchoring

comments and instructions.

Assemble the greenhouse components in the order8. they are presented

Read the care and maintenance information at the end9. of these instructions.

Complete and return all warranty information as10. instructed.

CLEARSPAN™CEDAR GREENHOUSES

4Revision date: 06.18.09

The following graphics and photos will help you identify the

different parts of the building. (Some parts are not shown.)

FAS8 & FAS13

Construction Screws

FAF25P

Phillips Head Screws

104639

Pass-thru Connector 104636

Corner Bracket

LAY OUT THE BUILDING SITE

After the site is prepared, identifying the location of the

greenhouse corners helps to square the frame after it is

assembled.

Taking these steps before assembling the greenhouse

saves time and ensures that the structure is positioned as

desired. The following procedure is a suggested method.

Its use depends on the size of the greenhouse, the

footings, and the method used to anchor the shelter.

SQUARE THE SITE

Identify a corner where a building rafter will be1. positioned, drive in a stake, and string a line the exact

width of the building and stake in place.

String a line at least as long as the building from the2. first stake at 90°.

NOTE: A transit can be used to ensure an accurate 90°

angle, or the 3-4-5 rule can be used. Refer to diagram.

Using multiples of 3-4-5 such as 6-8-10 or 12-16-20

helps to maintain an accurate 90° angle.

After squaring the position of the building and placing3. a stake at all corners, string a line between the stakes

to mark the base of the building.

104643

Middle Connector

104642

A-Angle

CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.18.09

1ASSEMBLE BASE FRAME

Consult the Assembled Base and Exploded Base Views at the back of these instructions to assemble the

base frame.

NOTE: All screws in this step are installed in the sides of the baseboards. DO NOT install screws into the

top of the baseboards.

Gather the correct board lengths and assemble the1. sideboards using two (2) middle connectors; one

placed over the top edge and one placed over the bottom edge at the joint between the boards. Use

3/4" Phillips head screws (FAF25P) to secure middle connectors.

With the baseboards assembled, locate one front/back board, one sideboard, and a corner bracket.2. Assemble corner as shown below using 3/4" Phillips head screws (FAF25P) to secure. Repeat at the

remaining corners.

On the3. outer sideboard, attach pass-thru connectors (#104639) in the locations shown below. Consult

the Assembled Base View for the correct measurements and locations. Use 3/4" Phillips head screws

(FAF25P) to secure pass-thru connectors.

Consult the diagrams near the back of these instructions4. to square and anchor the assembled frame.

INNER SIDEBOARD

OUTER SIDEBOARD

BACK

FRONT

VERTICAL WALL

Diagram shows vertical

wall surface to which the

greenhouse is attached.

Outside

Inside

Align the

centers of the

connectors with

the measured

marks.

ATTENTION: Verify that the

front and backboards are seated

against the corner brackets.

SIDEBOARD

BACKBOARD

CLEARSPAN™CEDAR GREENHOUSES

6Revision date: 06.18.09

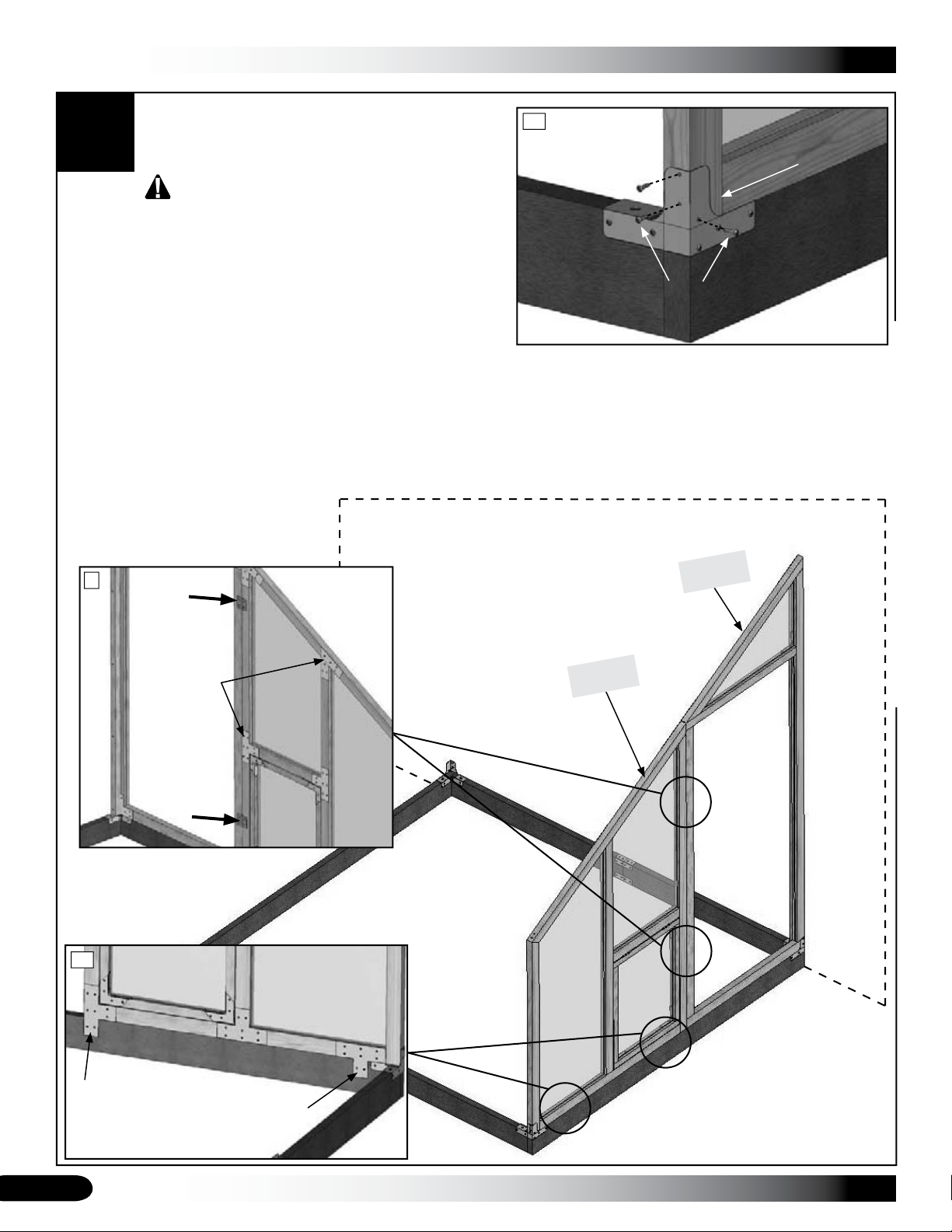

INSTALL FRONT PANELS

WARNING: To prevent damage to the panels

and to prevent serious personal injury, do not

attempt to install the panels on windy days.

Secure front panels (#CG08100 & #CG08106)1. to the base frame using 3/4" Phillips head

screws. Attach to the base frame using the

corner brackets (1a) and the pre-installed

brackets on the front panels (1b) as shown.

NOTE: If needed, brace panels in place or

have an assistant hold the panels steady until

side panels can be attached to the front panels.

Secure panels together using the pre-installed 3" x 3" square brackets positioned over both panels and2. 3/4" Phillips head screws as shown.

Front Panel

3/4" Phillips

head screws

Seat the panels into the corner brackets as shown

and secure using 3/4" Phillips head screws.

FRONTBOARD

Frame length of your

building may differ

from what is shown.

VERTICAL WALL

CG08100

front panel

CG08106

front panel

Verify the

pre-installed

brackets are

to the inside.

2View as seen

from the inside.

Brackets come pre-

installed. Secure using

3/4" Philips head screws.

View as seen

from the inside.

CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.18.09

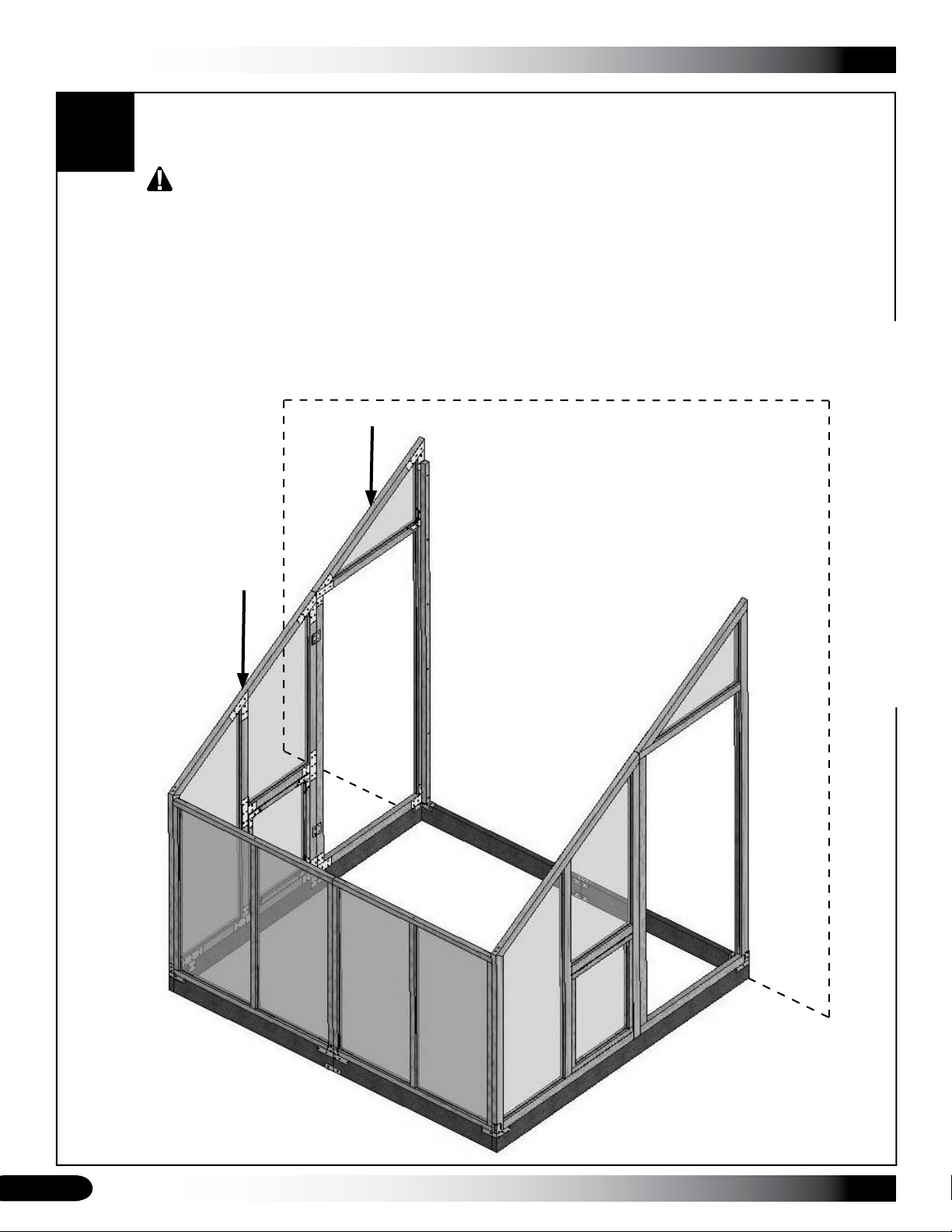

3INSTALL SIDE PANELS

WARNING: To prevent damage to the

panels and to prevent serious personal

injury, do not attempt to install the panels

on windy days.

Secure side panels (#CG96113) to the1. base frame using 3/4" Phillips head

screws. Attach to the base frame using the

pass-thru connectors as shown.

ATTENTION: Align the centers of the pass-

thru connectors with the edge of the side

panels as shown to the right, and secure

using 3/4" Phillips head screws.

Attach side panel to the front panel using three 2-1/2" construction screws (#FAS13).2.

NOTE: Construction screws are installed through the front panel and into the side panel as shown below.

View as seen

from the outside.

ATTENTION: Verify that

all pre-installed brackets

are to the inside of the

greenhouse.

NOTE: Brace panels during

assembly, if needed.

Frame length of your

building may differ

from what is shown.

Attach panels as

shown until side is

complete.

VERTICAL WALL

FAS13 construction

screw locations.

CLEARSPAN™CEDAR GREENHOUSES

8Revision date: 06.18.09

4INSTALL BACK PANELS

WARNING: To prevent damage to the panels and to prevent serious personal injury, do not attempt to

install the panels on windy days.

Secure back panels (#CG08101 & #CG08107) to the base frame as previously described in Section 2.1.

Attach back panel to the side panel using three (3) 2-1/2" construction screws (#FAS13) as described2. in Section 3.

Secure panels together using the pre-installed 3" x 3" square brackets positioned over both panels and3. 3/4" Phillips head screws as described in Section 2.

NOTE: Verify that the pre-installed brackets are to the inside of the greenhouse.

Frame length of your

building may differ

from what is shown.

VERTICAL WALL

CLEARSPAN™CEDAR GREENHOUSES

Revision date: 06.18.09

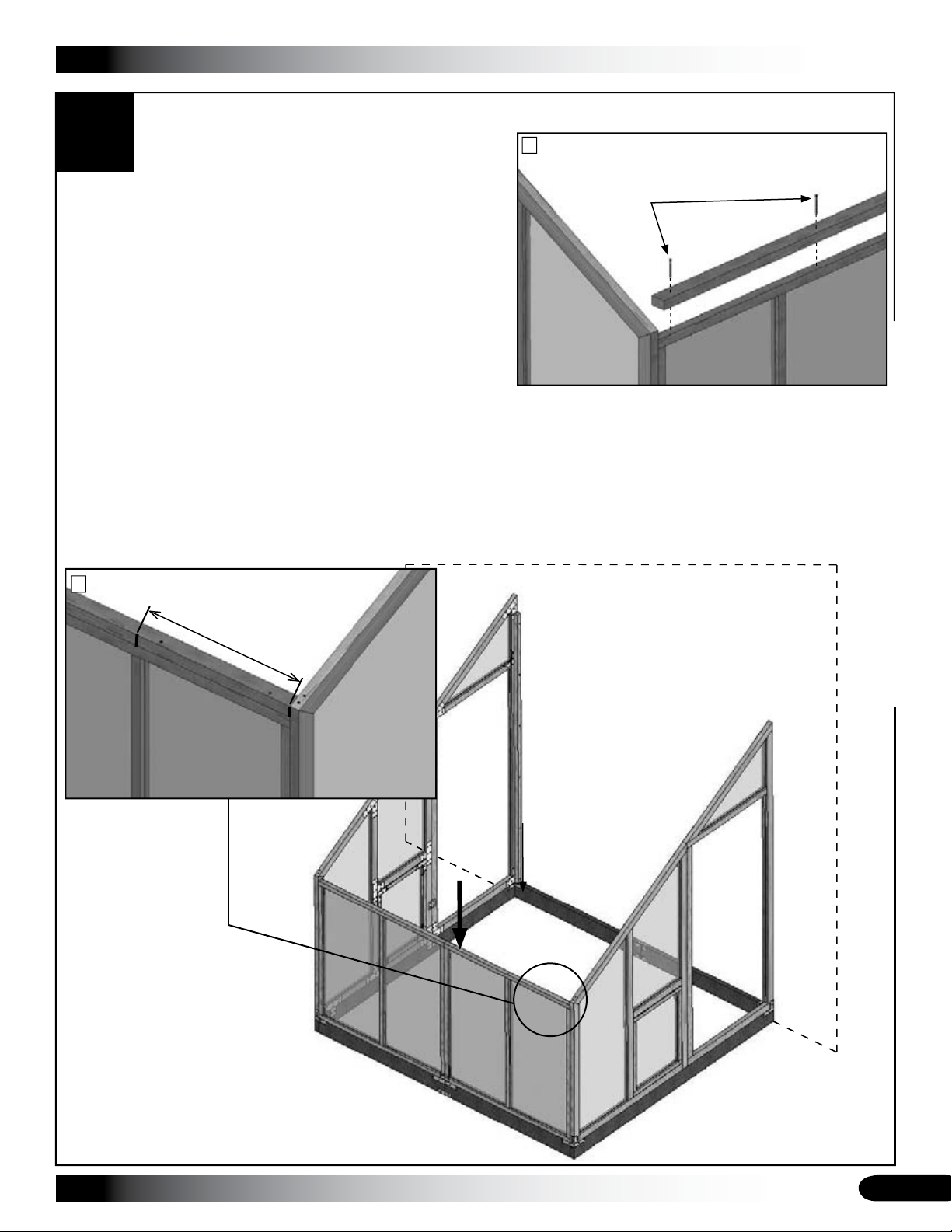

5ATTACH AND MARK TOP PLATES

Gather the parts:

96" top plate (#10513696)•

12" top plate (#10513612)•

2-1/2" construction screws (#FAS13)•

Using FAS13 construction screws spaced at 12"1. intervals, attach two (2) 96" top plates and one

(1) 12" top plate to the top of the side panels.

Measure and mark 25-1/2" from the end of the2. top plate. Continue measuring and marking

in 25-1/2" increments for the on-center middle

rafter locations.

NOTE: Mark the outside of the top plates and

not the top. This will allow the mark to be visible

when the rafter assemblies are set into position.

FAS13

construction

screws

25-1/2"

Frame length of your

building may differ

from what is shown.

VERTICAL WALL

CLEARSPAN™CEDAR GREENHOUSES

10 Revision date: 06.18.09

6INSTALL VERTICAL SUPPORTS AND RIDGE ASSEMBLY

Vertical supports may be shipped pre-attached to the end

panels. Attach vertical supports as described in Step 1 if

needed, otherwise skip to Step 2.

Position a vertical support board flush against the inside1. of the front panel as shown to the right. Verify that the

board is sitting flush on the baseboard and is flush against

the vertical wall. Secure to the front panel using 2-1/2"

construction screws (#FAS13). Repeat for the back panel.

NOTE: Drill and countersink mounting holes in support

boards to prevent splitting.

Position the ridge assembly (#CG08127 & #CG08129 &2. #CG08130) on top of the vertical support boards. Verify that

the rafter brackets are facing upwards.

IMPORTANT: Consult the Ridge Assembly diagram in the

back of these instructions to properly assemble the ridge.

Verify the ridge assembly is flush against the end panels, vertical supports, and the vertical wall and3. secure to the vertical supports using 2-1/2" construction screws (#FAS13).

Once the ridge assembly is in place, verify that it is level. Secure the ridge assembly and vertical4. supports to the vertical wall using customer-supplied fasteners.

IMPORTANT: Due to the variety of vertical wall material, the customer is responsible for supplying the

appropriate fasteners to secure the ridge assembly and vertical supports to the vertical wall.

FAS13

screw

locations

Vertical

Support

Actual frame may differ from frame shown.

Vertical support attachment is the same.

Customer-supplied

fastener locations

Frame length of your

building may differ

from what is shown.

FAS13

screw

Ridge Assembly

Inhaltsverzeichnis

Andere ClearSpan Gewächshaus-Bausatz Handbücher

ClearSpan

ClearSpan PB00556R3S Bedienungsanleitung

ClearSpan

ClearSpan Premium Solar Star Bedienungsanleitung

ClearSpan

ClearSpan 106183 Bedienungsanleitung

ClearSpan

ClearSpan Beef Master 108441W Bedienungsanleitung

ClearSpan

ClearSpan Super Moo-Tel Building 38' Wide Bedienungsanleitung

ClearSpan

ClearSpan ClearSpan 104950F Bedienungsanleitung

ClearSpan

ClearSpan 104895 Bedienungsanleitung

ClearSpan

ClearSpan CL108545 Bedienungsanleitung

ClearSpan

ClearSpan CL108548 Bedienungsanleitung

ClearSpan

ClearSpan PB00710R3 Bedienungsanleitung

ClearSpan

ClearSpan Gothic Style Solar Star Bedienungsanleitung

ClearSpan

ClearSpan Pro Solar Star R030 Handbuch

ClearSpan

ClearSpan Premium Moo-Tel Series Bedienungsanleitung

ClearSpan

ClearSpan Gothic Style Solar Star Series Bedienungsanleitung

ClearSpan

ClearSpan CL108552 Bedienungsanleitung

ClearSpan

ClearSpan R020B00008 Bedienungsanleitung

ClearSpan

ClearSpan 104818PCA Bedienungsanleitung

ClearSpan

ClearSpan R030A00007 Bedienungsanleitung

ClearSpan

ClearSpan R030B00008 Bedienungsanleitung

ClearSpan

ClearSpan 104881 Bedienungsanleitung

ClearSpan

ClearSpan EZ-Growl Bedienungsanleitung

ClearSpan

ClearSpan Premium Solar Star 104918 Bedienungsanleitung

ClearSpan

ClearSpan 30' Wide Pony Wall Building Bedienungsanleitung

ClearSpan

ClearSpan 500 Cold Frame Series Bedienungsanleitung

Beliebte Gewächshaus-Bausatz Handbücher anderer Marken

ACD PRESTIGE

ACD PRESTIGE MR3 H Bedienungsanleitung

Vitavia

Vitavia VA0040-TRP Bedienungsanleitung

VegTrug

VegTrug Nursery Bedienungsanleitung

Riverstone Networks

Riverstone Networks Monticello 041315V Bedienungsanleitung

STC

STC Easy Grow 6x12 Greenhouse Bedienungsanleitung

CLIMA POD

CLIMA POD Spirit V7 Series Bedienungsanleitung

Vitavia

Vitavia GAIA JUMBO Bedienungsanleitung

Palram

Palram Harmony 6'x4' Bedienungsanleitung

Sproutwell

Sproutwell GRANGE - 5 Bedienungsanleitung

ACD

ACD Piccolo 03 Bedienungsanleitung

Growhouse

Growhouse Lean To 6 x 8 Bedienungsanleitung

Riverstone Networks

Riverstone Networks Grower's 181010V Bedienungsanleitung

GrowSpan

GrowSpan 500 Series Bedienungsanleitung

Robinsons

Robinsons 5ft Wide LEAN-TO Bedienungsanleitung

Botanica

Botanica E Bedienungsanleitung

PNI

PNI SP6000 Bedienungsanleitung

Hortus

Hortus 211-203 Programmierhandbuch

Robinsons

Robinsons 6' Lean-To Bedienungsanleitung
