ClearSpan R035B00000F Bedienungsanleitung

Revision date: 11.02.10

is prohibited without permission.

STK# DESCRIPTION

R035B00000F Rafter Kit for 35' Wide

ClearSpan™

35' Wide Rafter Kit with Mounting Feet

Photo may show a building of a different length and width.

2Revision date: 11.02.10

ATTENTION: The pre-punched purlin mounting holes in the short rafter

section are not spaced evenly. Before assembly, measure from the end

of the short rafter section to the set of pre-punched purlin mounting

holes that is 39-7/16" (more or less) from the end. Position that section

of the short rafter toward and connect it to the chevron, which will be at

the top of the assembled rafter.

Repeat this procedure for all rafter assemblies to ensure that the purlin

mounting holes remain aligned throughout the length of the frame. If the

purlin holes do not align during the frame assembly, verify that all rafters

are assembled as shown on this page and throughout this manual.

Consult the diagrams below and all rafter diagrams throughout this

manual before you assemble the rafter.

Short Rafter Section Short Rafter Section

Rafter Assembly Instructions

Ground Level

Rafter Leg

(CFG072ANCS003) Rafter Leg

(CFG072ANCS003)

Mounting Foot

(108500)

Mounting Foot

(108500)

Strut

(108938)

Strut

(108938)

Rafter Section

(

CFG035PC16GS05

)

Rafter Section

(

CFG035PC16GS04

)

Rafter Section

(

CFG035PC16GS05

)

Rafter Section

(

CFG035PC16GS04

)

33-7/16"

39-7/16"

33-7/16"

39-7/16"

End of Short

Rafter Section

End of Short

Rafter Section

ATTENTION: During the rafter assembly, verify

that you have positioned the long end of the short

rafter section—approximately 39-7/16" from the

end of the section to the purlin mounting holes—

toward the peak of the assembly.

See the Over-the-Top diagram at the end of this

manual and Page 6 for additional details.

39-7/16"

33-7/16"

Short Rafter Section

Pre-Punched Purlin

Mounting Holes

Chevron

Joggled End of the

Long Rafter Section

Purlin Purlin

Assembled Rafter

39-7/16"

33-7/16"

End of Short

Rafter Section

End of Short

Rafter Section

Revision date: 11.02.10

Side Proﬁle Connection Details

When additional rafters are added to a standard building to change the rafter spacing from 6' on-center to 4' on-center,

cable patterns may change for some building lengths. The Side Profile diagrams in this guide show the cable patterns

for buildings with 4' on-center rafter spacing. Use the diagrams for your building during the assembly.

REMEMBER: A standard building has 6' on-center rafter spacing. The diagrams in this guide show frames with 4' on-

center rafter spacing. This 110644 kit is not used when additional rafters are purchased to lengthen the original building.

The diagrams on this page correspond to the details circled on the main Side Profile diagrams found on the remaining

pages. Some details may not apply to some frame lengths. In some instances, the cable bracket shown in Detail A and

Detail B is used to secure two (2) cables or four (4) cables. To secure two (2) cables, use two of the connection points on

the 108874 bracket only. Actual angle of the cable runs may vary from the detail. Consult the Side Profile diagrams.

Use the components contained in the 110644 adaptor kit sent with your building. This kit is used for all building widths

and lengths. Some components may not be needed for your building. Consult the diagrams in this guide to determine

what components of the kit are needed for your building when rafter spacing is 4' on-center.

ATTENTION: REPLACE

THE ORIGINAL STRUT

108872 WITH THE

SHORTER 108871

STRUT INCLUDED IN

THIS ADAPTOR KIT.

108874

CABLE ASSEMBLY

AS2167

(SHACKLE)

DETAIL D

RAFTER

CABLE ASSEMBLY

AS2167

(SHACKLE)

EYE BOLT (108868)

LOCK WASHER(FAMA38B)

3/8" HEX NUT (FALB04B)

DETAIL C

DETAIL B

DETAIL A

108874

FAME08B

(3/8” FLAT WASHER)

108503

(CABLE BRACKET)

Adaptor Kit #110644 contains these parts:

108874 Double Roll Form Cable Connection Plate 2

108868 3/8" Cable Eye Bolt (welded shut) 1

FAME08B 3/8" at washer (zinc) 1

FALB04B 3/8"-16 nut (zinc) 1

FAMA38B 3/8" lock washer (zinc) 1

108503 1/8" steel cable bracket (135 degree) 1

108871 7' Strut 1.66 14g single punch (82") 4

4Revision date: 11.02.10

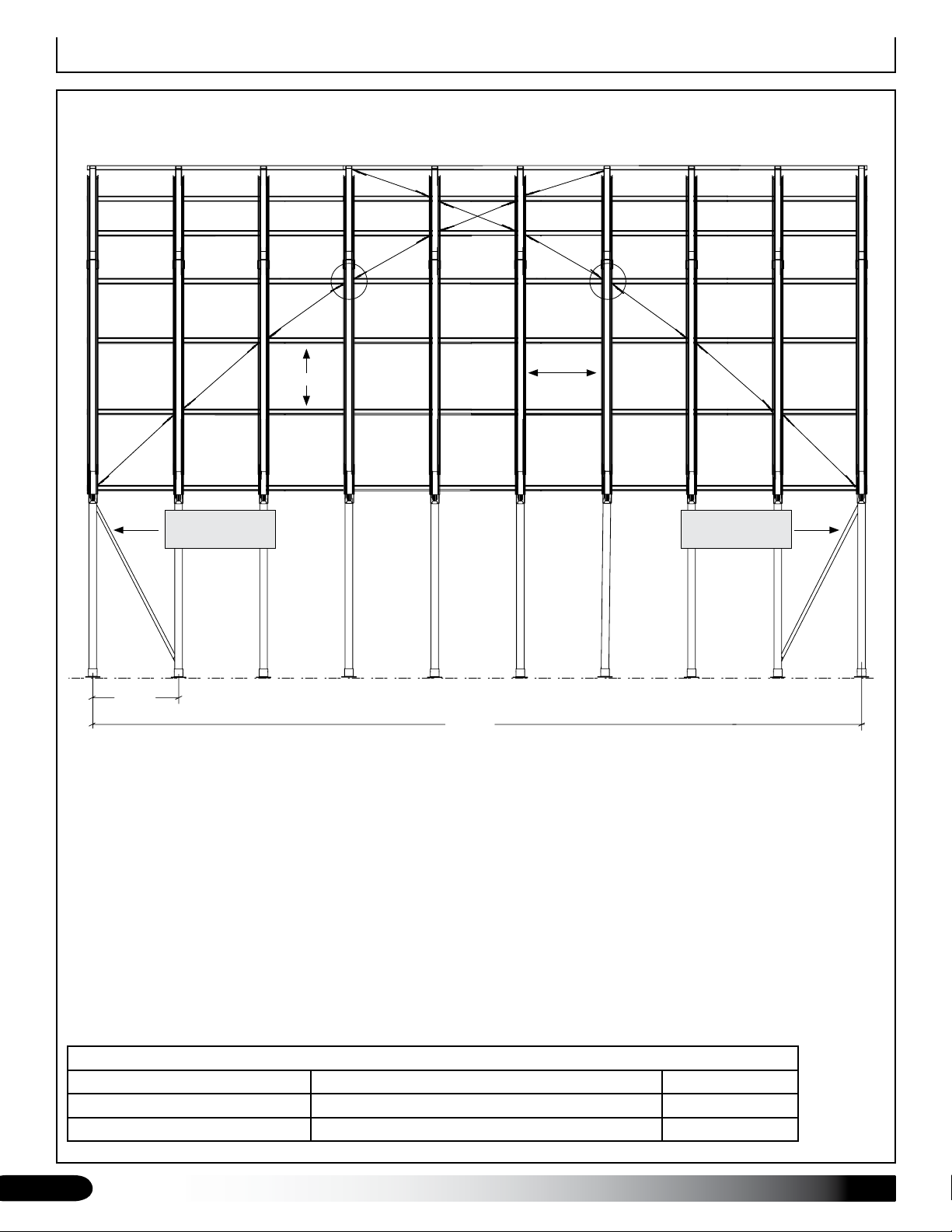

Side Proﬁle - 35' x 36' (4' Rafter Spacing)

Use these parts from the 110644 adaptor kit for your 35' x 36' building:

108874 (See Detail A.) Double Roll Form Cable Connection Plate 2

108871 (See note above.) 7' Strut 1.66 14g single punch (82") 4

ATTENTION: REPLACE THE ORIGINAL BUILDING STRUT (108872)

WITH THE 108871 STRUT INCLUDED IN THIS KIT.

4'-0"

(on-center)

36'-0"

GROUND LEVEL

108871 Strut

included with kit.

108871 Strut

included with kit.

Rafters

Purlins

ATTENTION: Cable pattern is the same for paneled greenhouse frames where the purlins run on top of the

rafters. Sample frame shows the purlins attached to the underside of the rafters. Your frame may differ.

Revision date: 11.02.10

Side Proﬁle - 35' x 40' (4' Rafter Spacing)

Use these parts from the 110644 rafter kit for your 35' x 40' building:

108874 (See Detail B.) Double Roll Form Cable Connection Plate 2

108871 (See note above.) 7' Strut 1.66 14g single punch (82") 4

ATTENTION: REPLACE

THE 108872 STRUT SENT

WITH YOUR BUILDING

WITH THE SHORTER

108871 STRUT INCLUDED

IN THIS ADAPTOR KIT.

FOUR (4) OF THE

ORIGINAL 108873 SINGLE

ROLL-FORM CABLE

BRACKETS WILL NOT BE

USED WHEN THE RAFTER

SPACING CHANGES

FROM 6' ON-CENTER

TO 4' ON-CENTER. THIS

AFFECTS THE 35' X 40'

BUILDING ONLY.

(on-center)

40'-0"

4'-0"

(on-center)

GROUND LEVEL

108871 Strut

included with kit.

108871 Strut

included with kit.

Rafters

Purlins

Side Proﬁle - 35' x 48' (4' Rafter Spacing)

ATTENTION:

REPLACE THE

108872 STRUT

SENT WITH YOUR

BUILDING WITH

THE SHORTER

108871 STRUT

INCLUDED IN THIS

ADAPTOR KIT.

Cable pattern is the

same for paneled

greenhouse frames

where the purlins run

on top of the rafters.

Sample frame shows

the purlins attached to

the underside of the

rafters. Your frame

may differ.

4'-0"

(on-center)

48'-0"

GROUND LEVEL

108871 Strut

included with kit.

108871 Strut

included with kit.

Rafters

Purlins

Use these parts from the 110644 rafter kit for your 35' x 48' building:

FAME08B (See Details C & D.) 3/8" at washer (zinc) 1

108874 (See Detail A.) Double Roll Form Cable Connection Plate 2

108503 (See Details C & D.) 1/8" steel cable bracket (135 degree) 1

108871 (See note above.) 7' Strut 1.66 14g single punch (82") 4

6Revision date: 11.02.10

Side Proﬁle - 35' x 60' (4' Rafter Spacing)

Use these parts from the 110644 adaptor kit for your 35' x 60' building:

108874 (See Detail A.) Double Roll Form Cable Connection Plate 2

108871 (See note above.) 7' Strut 1.66 14g single punch (82") 4

ATTENTION: REPLACE THE

ORIGINAL BUILDING STRUT

(108872) WITH THE 108871

STRUT INCLUDED IN THIS KIT.

4'-0"

(on-center)

60'-0"

(on-center)

GROUND LEVEL

108871 Strut

included with kit.

108871 Strut

included with kit.

Rafters

Purlins

ATTENTION: Cable pattern is the same for paneled greenhouse frames where the purlins run on top of the

rafters. Sample frame shows the purlins attached to the underside of the rafters. Your frame may differ.

Revision date: 11.02.10

4'-0"

(on-center)

72'-0"

(on-center)

GROUND LEVEL

Side Proﬁle - 35' x 72' (4' Rafter Spacing)

Use these parts from the 110644 adaptor kit for your 35' x 72' building:

108868 (See Detail C.) 3/8" Cable Eye Bolt (welded shut) 1

FAMA38B (See Detail C.) 3/8" lock washer (zinc split) 1

FALB04B (See Detail C.) 3/8"-16 nut (zinc) 1

108871 (See note above.) 7' Strut 1.66 14g single punch (82") 4

108871 Strut

included with kit.

108871 Strut

included with kit.

ATTENTION: REPLACE THE

ORIGINAL BUILDING STRUT

(108872) WITH THE 108871

STRUT INCLUDED IN THIS KIT.

Rafters

Purlins

ATTENTION: Cable pattern is the same for paneled greenhouse frames where the purlins run on top of the

rafters. Sample frame shows the purlins attached to the underside of the rafters. Your frame may differ.
