Coffee Queen NORDIC Bedienungsanleitung
Rev. 090921
U / EN
User manual
NORDIC
Juice machine
Your retail dealer
...............................................................................
...............................................................................
2.
General !
Readtheinstructionscarefullybeforeyoustartworkingwiththisequipment.
Theequipmentshouldbe installed and serviced bytrainedstaff
General
Dispenser description for Nordic
Nordic is a dispenser for cooling water and mixing juice- concentrate to a ready to drink
product.The dispenser is for three non-carbonated drinks and chilled water.
- The dispenser is connected to the water mains by a pressurised tube and to an electric wall
socket by a power plug.
- The water-pressure is adjusted with the water-regulator and the pressure is displayed on the
manometer.
- The water is chilled by the cooling-block, which in its turn is chilled by the air-cooled
compressor.
- The water-temperature is adjustable with a thermostat.The mixing ratio product/water is
adjusted with the ejectors.
- Pushing one of the four buttons on the front panel dispenses the mixed product or water.
Venturi ejector
Themixingratiois adjusted on the ejectors.Whenwater
flowsthroughtheejector, theconcentratemixeswiththe
water.
Themixing ratio is regulatedon the ejector. There are
twokinds,one for products withcells, and one for
productswithoutcells.
Turntheadjustmentscrewsaccordingtothelabelonthe
ejector in order to increase or decrease the amount of
concentrate.
3.
Dispenser description Nordic
Picture description

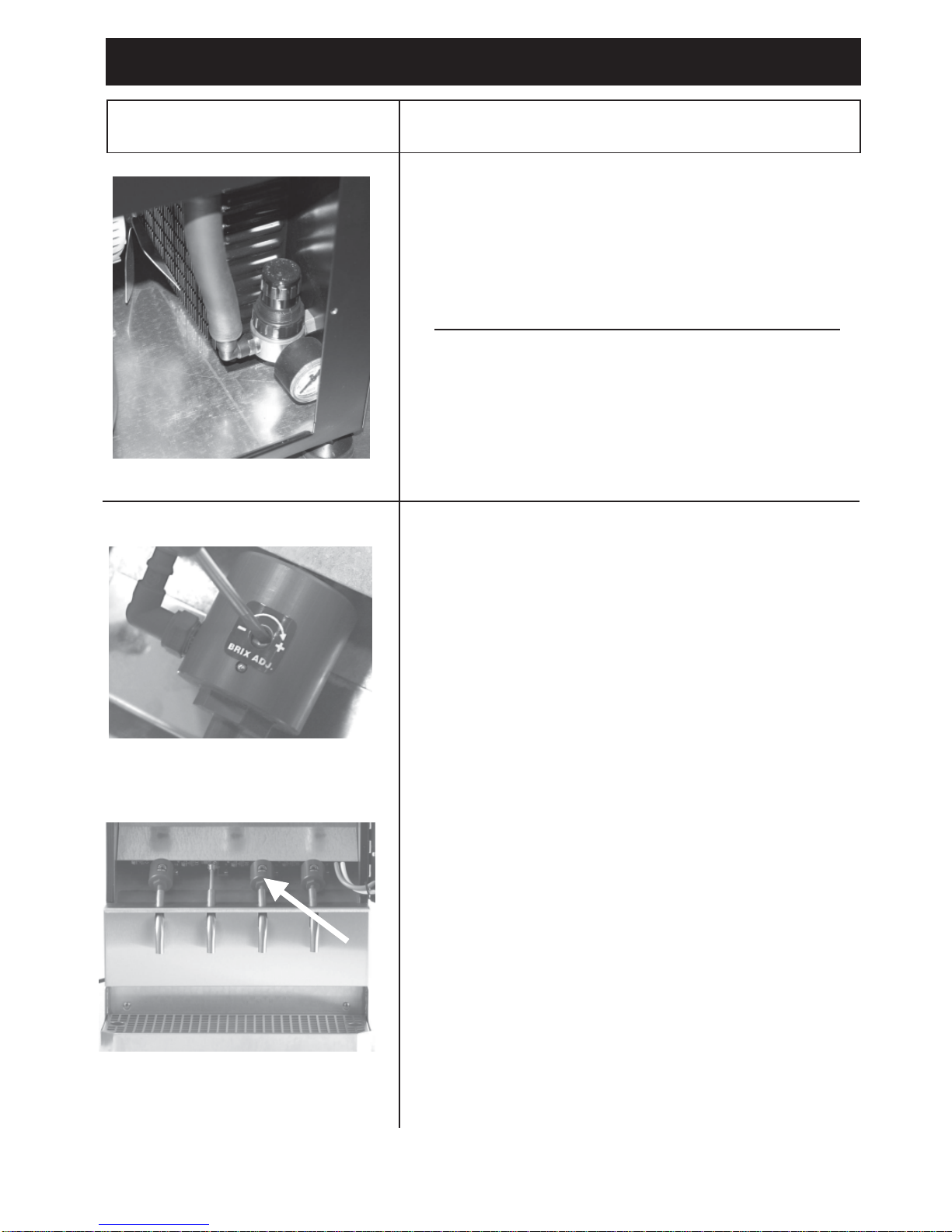

Water-regulator with manometer
Thewater-regulatorcanbe adjusted up to 6bar.
The minimum pressure is 2,2 bar.
Note!Whenadjustingthepressure, dispense product.
4.
Dispenser description Nordic
Picture description

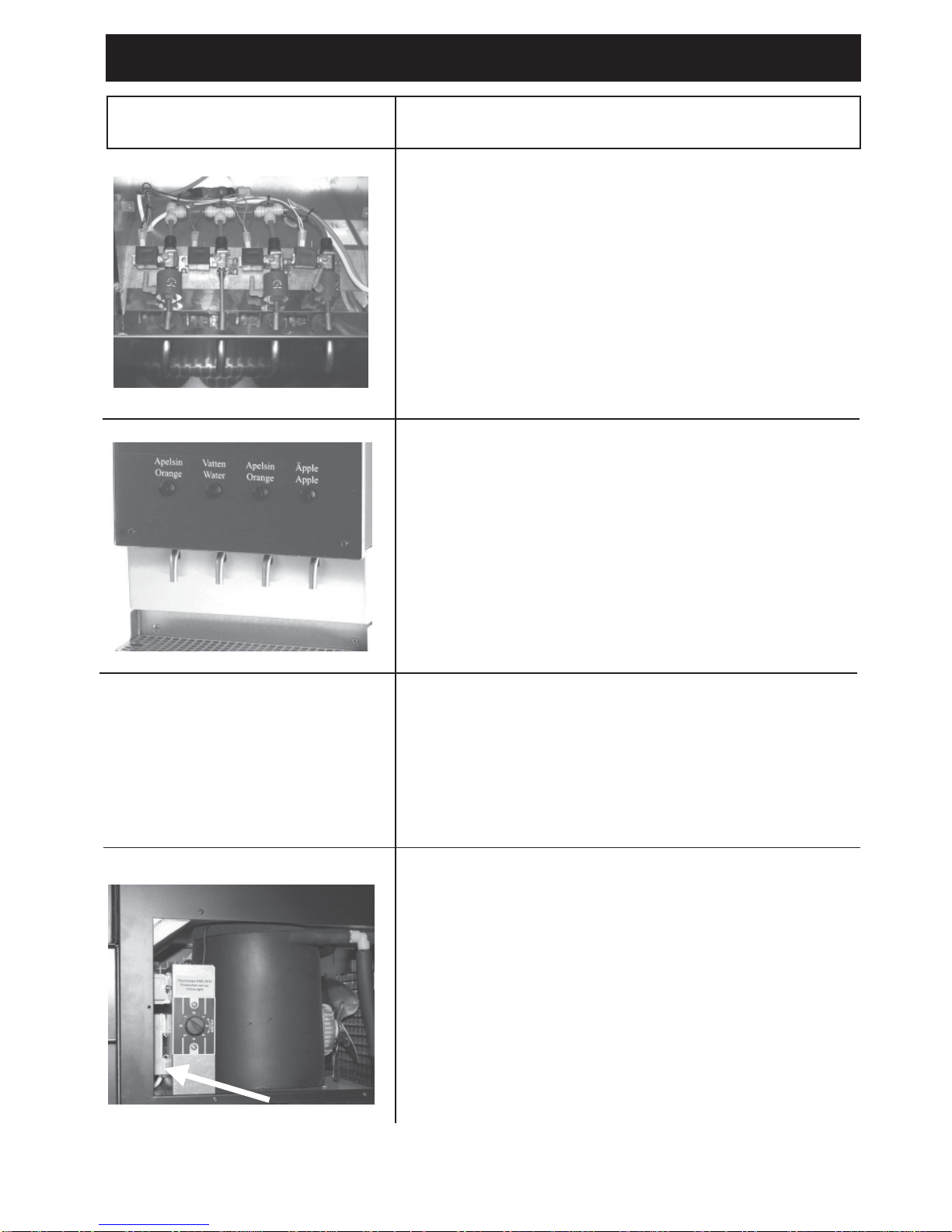

Water valve
TheWatervalveis connected to the ejector and
opensthewater-flow.
Push-button
Thepushbuttonsonthefrontpanel
controlsthewater valves.
Useonlyonebuttonata time.
Cooling-block
Thecooling-blockisaflowthroughblock with three built-in
stainlesssteel coils.
The coils are for water, refrigerant R134A and
thermostat
Transformer
The transformer is a 230 / 24 V (32 VA).
Thetransformersupplies24Vto the magnetic-valves.
5.
Dispenser description Nordic
Picture description

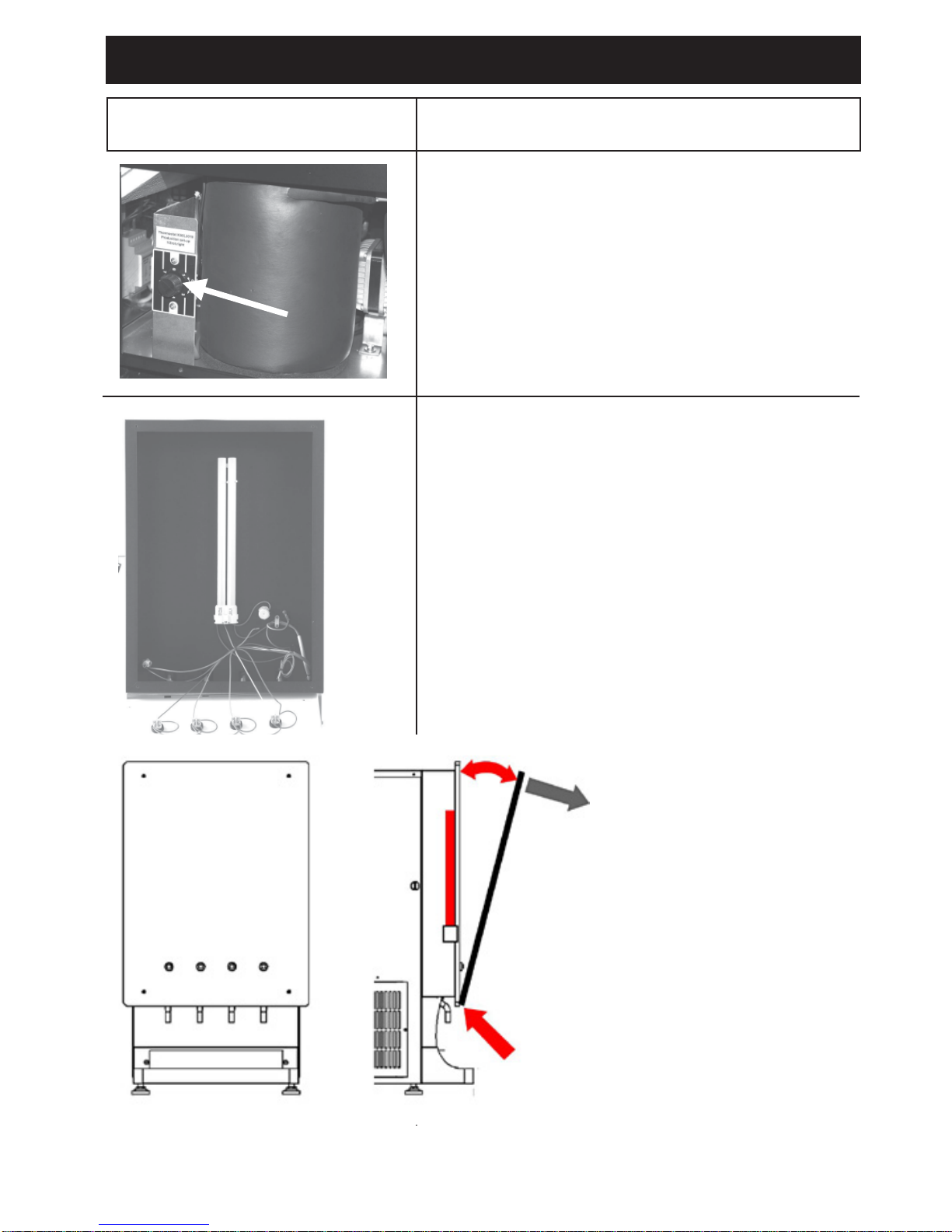

Thermostat
Thethermostatkeepsthetemperaturewithincorrect
range.Factoryadjusteddonot adjust, this may cause
damage and water leakage in the dispenser.
Illumination
Behindthefrontpanelthereisalow-energyfluorescent
lampwith the effect off24W.
Thefluorescentlampis a PL-lamp.
Change low-energy lamp
Loosenfrontplate(4screws).(A),hold the frontplatte
see(B). Lift outfrontplate (C)andchange lamp.
assemblethefrontplate.
AA
AA
B
C
D
6.
Dispenser description Nordic
Picture description

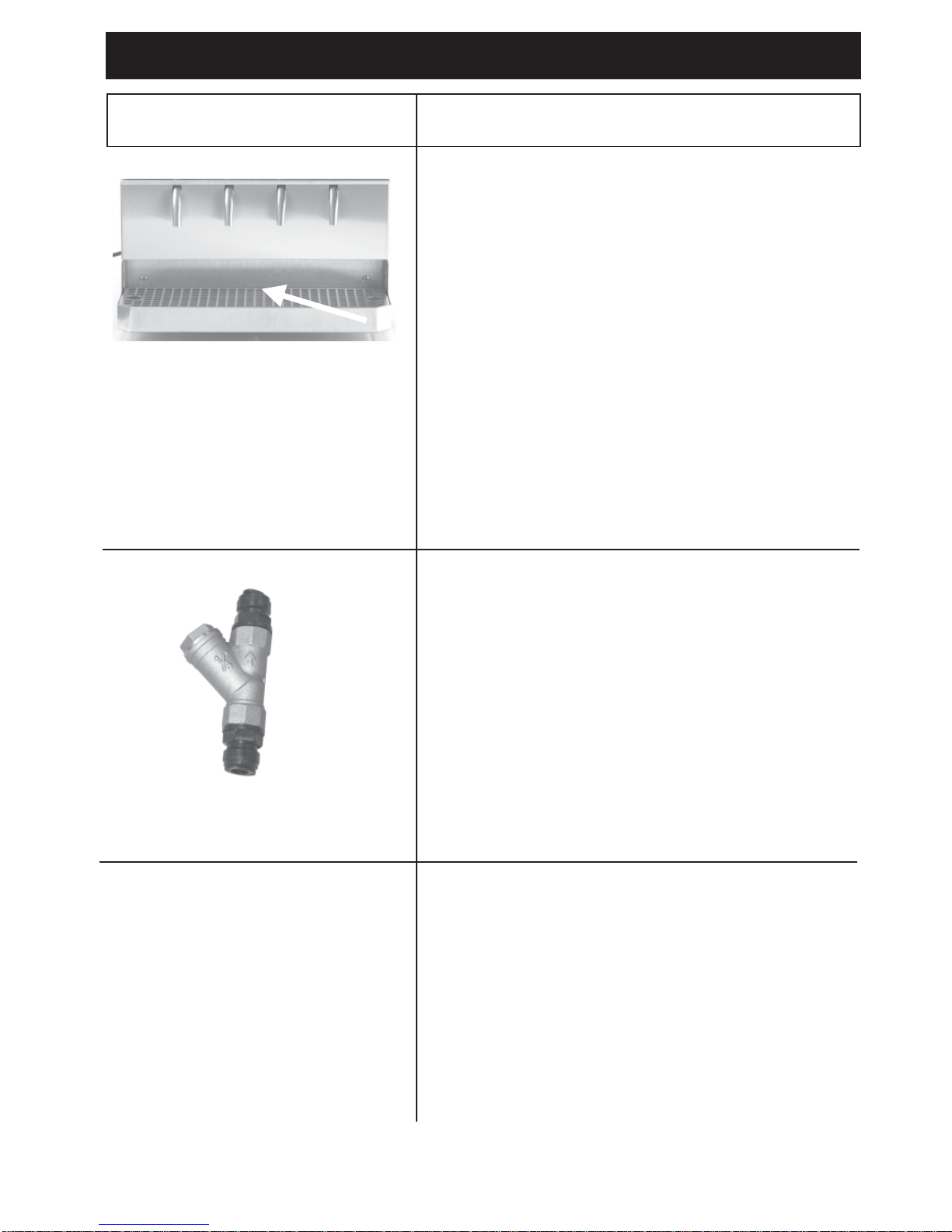

Drip-tray
It is possible to connect drainage to the drip-tray.
Large particle-filter
A large particle-filter is fitted between the cooling block
andthewatervalves.
It is possible to rinse the filter if needed.

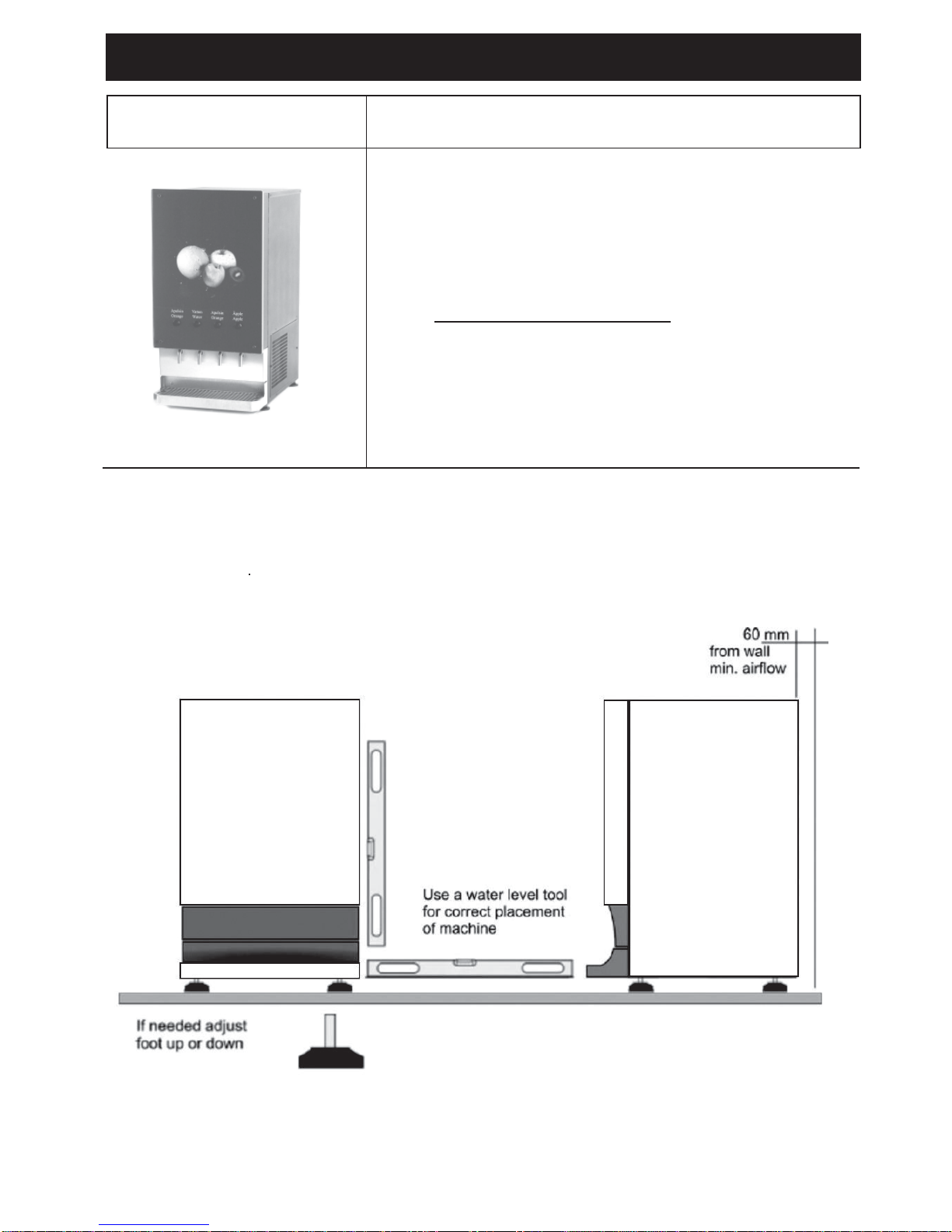

7.
Installation and users instruction Nordic
Picture description
Unpack dispenser from the packaging and ensure
that nothing is damaged.
Place the dispenser to it´s position. Note:
The dispenser weights about 49 kg.
Don’t lift by door/front panel.
Allow a space of min. 40mm around the
frame for air circulation.
Place the machine on a flat level and waterproof surface.
Ifnecessaryadjustment with the adjustablefeets.

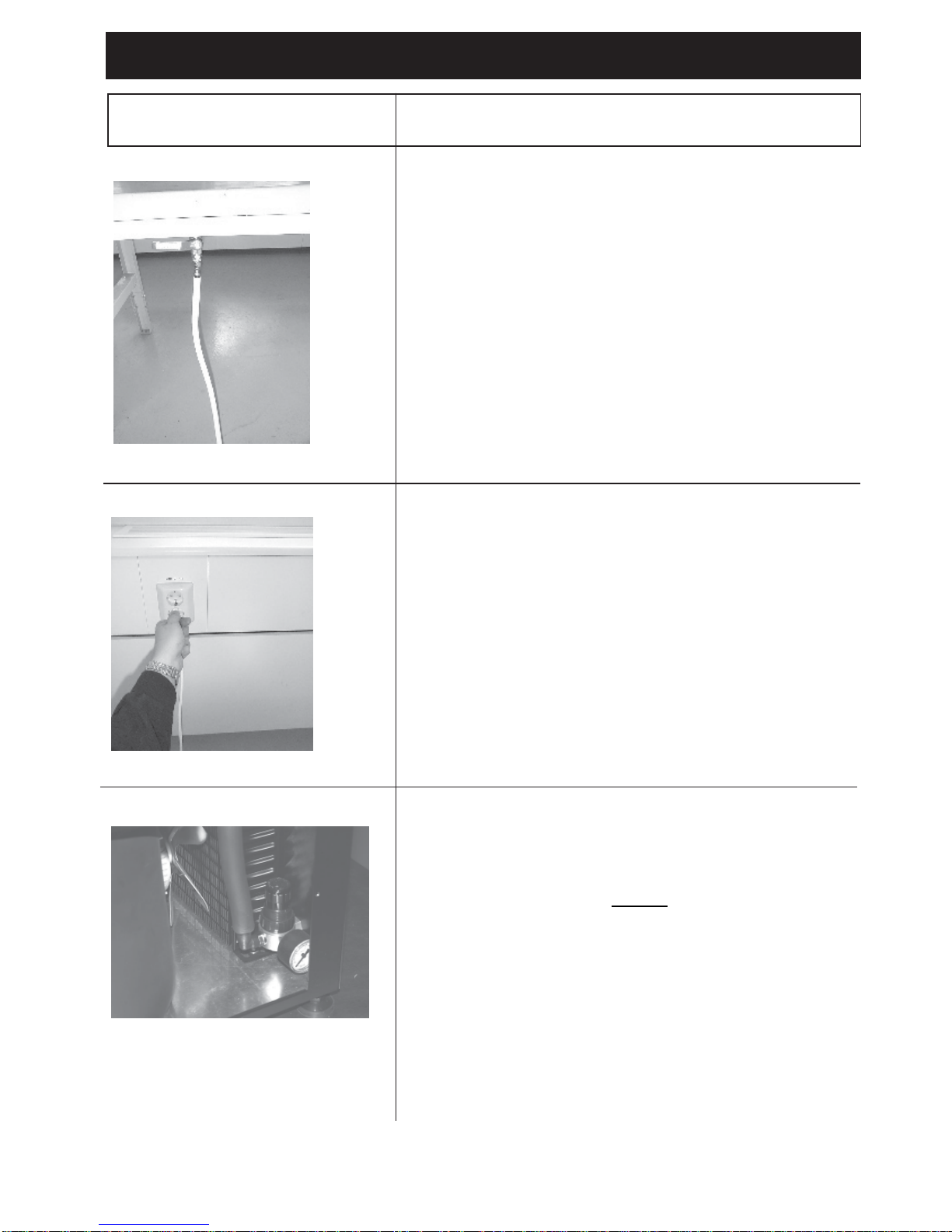

8.
Installation and users instruction Nordic
Picture description
Connect the water-hose from the dispenser to the
cold water mains (do not forget seals).
Turn on the water and check for leaks.
Note!
It is strongly recommended to use some sort of
water isolator in the water line in case of an
emergency leakage.
Connectthepower-plugtothewallsocket.
Now the compressor starts and the front panel
lights up.
Thewaterpressureis factory adjusted to
2.2bar,which is the correct workingpressure.
Checkbypressing and holdingone product button and
readingthemanometer. If thereisvariationsadjustby
pullingupknoband turn it until you getareadingof
2.2 bar.
9.
Installation and users instruction Nordic
Picture description

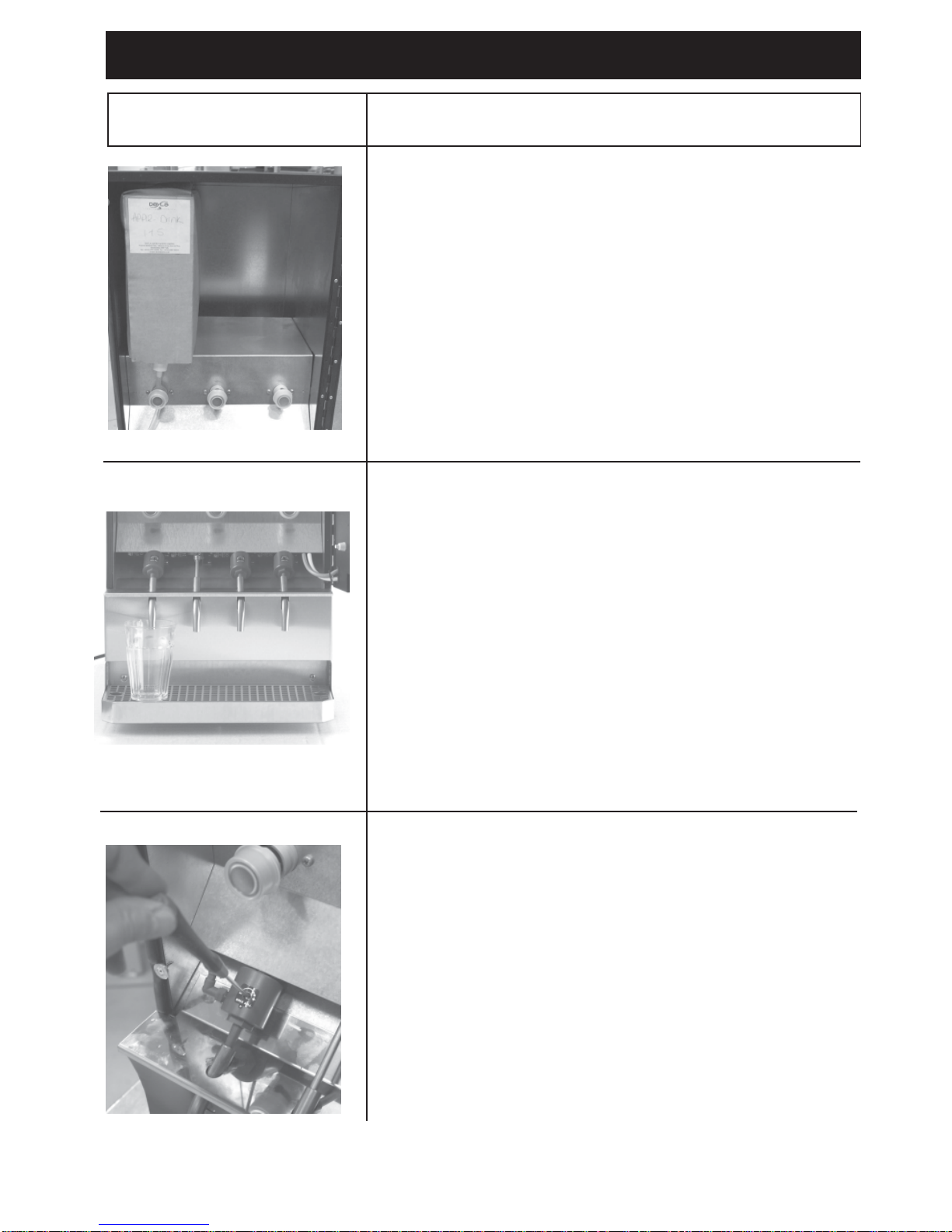

Place the bag-in-box in the dispenser and connect
it to the pinch solenoid-valve and ejector.
Pushing the centre of the pinch solenoid valve and
sliding the tube in from the side, fixes the tube.
Cut the tube to correct length and push it onto the
elbow connector on the ejector.
Place a cup under the outlet pipe.
Dispense a glass of product by pressing
the push-button.
Check that the brix-value (mixing ratio) is
okay, if not adjust.
Toadjustthebrix,usetheadjustmentscrewontheejector.
The dispenser is now ready to use
10.
Maintenance Nordic

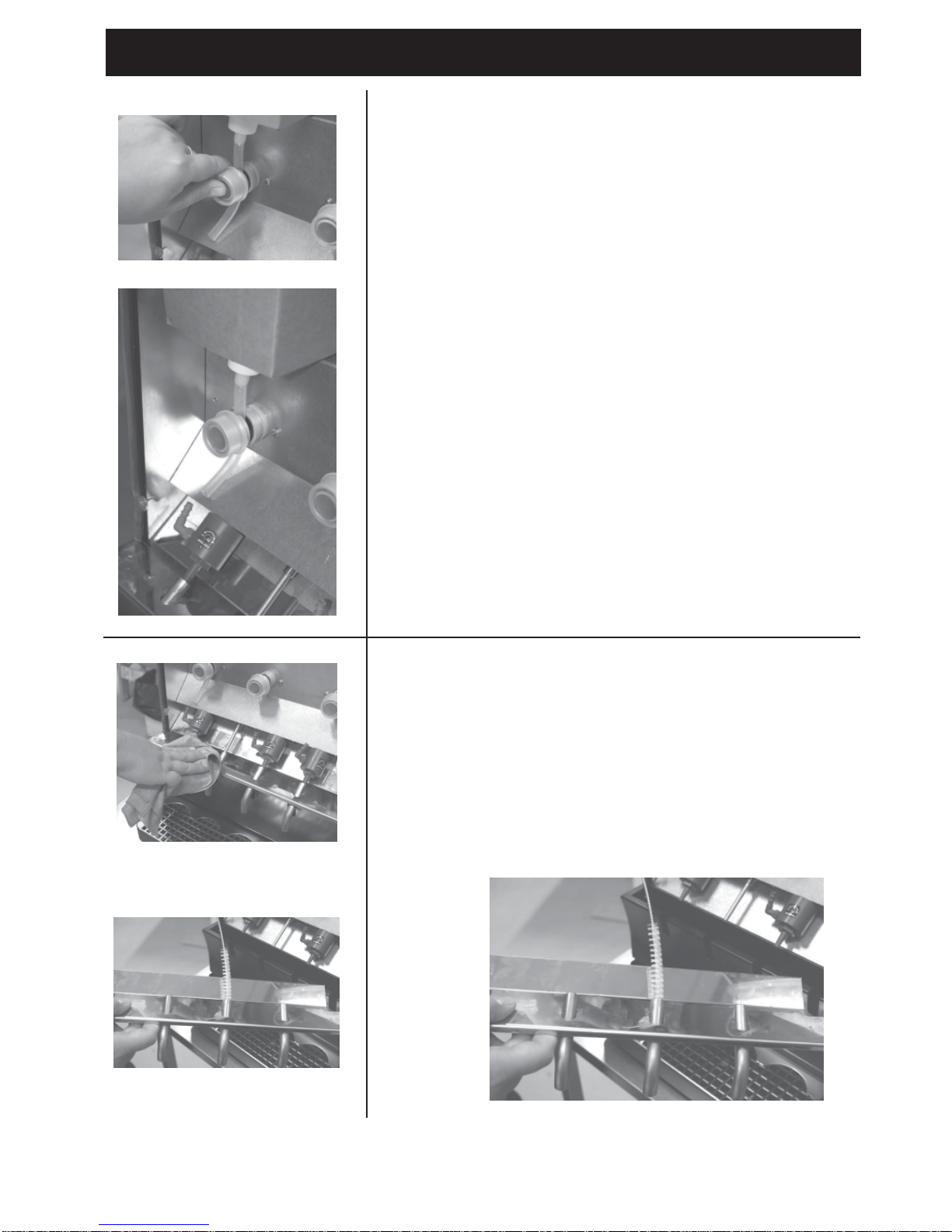

Change of bag-in-box
1. Turn the box sotheperforatedside is turned upwards.
2. Brake the perforation on the box and place the main pipe
inthepunched hole
3. Place the box in the dispenser so that the tube points
down to wards the pinch-solenoid. Press the end of the
pinch-solenoidandinsert the tube fromthe side
4. Checkthe tube length sothatit will reach 1cm intothe
venturenipple.
5. Ifthe tube is to long, cut ittotherightlength.
6. Slipthe tube to the venture nipple.
7. Makesure that thetube is not twisted,and shut thedoorto
thedispenser.
8. Placea cup under theoutlet-pipesanddraw until the juice
comesout.
Daily cleaning
1. Cleaninternal and external surface withadampedrag.
2. Usethe cleaning-brush to clean the outlet-pipes
3. Wetthe brush inwater and putit in the outletpipe from the
inside of the door.
4. Cleanthe drip-tray.
