DataMan®8600 Verifier

Reference Manual

2021 February 26

Revision: 6.1.10.17

Legal Notices

The software described in this document is furnished under license, and may be used or copied only in accordance with

the terms of such license and with the inclusion of the copyright notice shown on this page. Neither the software, this

document, nor any copies thereof may be provided to, or otherwise made available to, anyone other than the licensee.

Title to, and ownership of, this software remains with Cognex Corporation or its licensor. Cognex Corporation assumes

no responsibility for the use or reliability of its software on equipment that is not supplied by Cognex Corporation.

Cognex Corporation makes no warranties, either express or implied, regarding the described software, its

merchantability, non-infringement or its fitness for any particular purpose.

The information in this document is subject to change without notice and should not be construed as a commitment by

Cognex Corporation. Cognex Corporation is not responsible for any errors that may be present in either this document or

the associated software.

Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this document

may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, nor

transferred to any other media or language without the written permission of Cognex Corporation.

Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as

well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.

The following are registered trademarks of Cognex Corporation:

Cognex, 2DMAX, Advantage, AlignPlus, Assemblyplus, CheckitwithChecker, Checker, CognexVisionforIndustry,

CognexVSOC, CVL, DataMan, DisplayInspect, DVT, EasyBuilder, Hotbars, IDMax, In-Sight, LaserKiller, MVS-8000,

OmniView, PatFind, PatFlex, PatInspect, PatMax, PatQuick, SensorView, SmartView, SmartAdvisor, SmartLearn,

UltraLight, VisionSolutions, VisionPro, VisionView

The following are trademarks of Cognex Corporation:

The Cognex logo, 1DMax, 3D-Locate, 3DMax, BGAII, CheckPoint, CognexVSoC, CVC-1000, FFD, iLearn, In-Sight

(design insignia with cross-hairs), In-Sight2000, InspectEdge, Inspection Designer, MVS, NotchMax, OCRMax,

PatMaxRedLine, ProofRead, SmartSync, ProfilePlus, SmartDisplay, SmartSystem, SMD4, VisiFlex, Xpand

Other product and company trademarks identified herein are the trademarks of their respective owners.

Legal Notices

Table of Contents

Legal Notices 2

Table of Contents 3

Symbols 4

8600 Series Handheld Verifier Kit Contents 5

Data Matrix Symbol Quality Verification 6

Upgrading a Device for Verification 6

Getting Started 7

Stand-off 7

Stand-off Installation 7

Calibration 8

Code Quality 10

Verification 10

Formatting Output Data 10

Verification Configuration 12

Saving the Setup 12

Code Quality Configuration Codes 12

Precautions 13

Table of Contents

Symbols

The following symbols indicate safety precautions and supplemental information:

WARNING:This symbol indicates a hazard that could cause death, serious personal injury or electrical shock.

CAUTION:This symbol indicates a hazard that could result in property damage.

Note: This symbol indicates additional information about a subject.

Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

Symbols

8600 Series Handheld Verifier Kit Contents

8600 verifier stand-off Calibration card (stored in protective sleeve)

This document

Note: Refer to your DataMan 8600 Reference Manual for information on initial setup and establishing

communication with the reader itself, as well as compliance information.

WARNING:LASER LIGHT, DO NOT STARE INTO BEAM: CLASS 2 LASER PRODUCT FAILURE TO FOLLOW

THESE INSTRUCTIONS MAY CAUSE SERIOUS INJURY

8600 Series Handheld Verifier Kit Contents

Data Matrix Symbol Quality Verification

DataMan 8600 Verifier handheld verifiers ensure that a Data Matrix symbol meets the AIM DPM (Direct Part Mark) /

ISO/IEC TR 29158 Quality Guideline.

The DataMan 8600 Verifier handheld verifiers provide:

lContract Compliance: The DataMan 8600 Verifier software, integrated lighting, and fixed optics meet the AIM-

DPM / ISO/IEC TR 29158 Quality Guideline.

lSystem Calibration: The DataMan 8600 Verifier verifier includes a certified calibration card necessary to calibrate

the reader.

Upgrading a Device for Verification

If you are upgrading a previously purchased DataMan 8600 Verifier reader to be used as a verifier, your reader must be

using firmware version 5.4.4 or newer. To update the firmware:

1. Connect your reader to the DataMan Setup Tool.

2. Choose System > Update Firmware.

3. Select the file DM8600_v.5.4.4.bin.gz or newer from the directory where the firmware update automatically

navigates (Cognex\DataMan\Firmware\DM8000 Series).

To enable the DPM Verification feature, you must upload a feature key file to the reader:

1. Connect the reader to the DataMan Setup Tool.

2. Choose System > Upload Feature Key.

3. Select the feature key file that you received from Cognex.

4. The reader automatically reboots after the upgrade and it is ready to use for verification.

Data Matrix Symbol Quality Verification

Getting Started

Stand-off

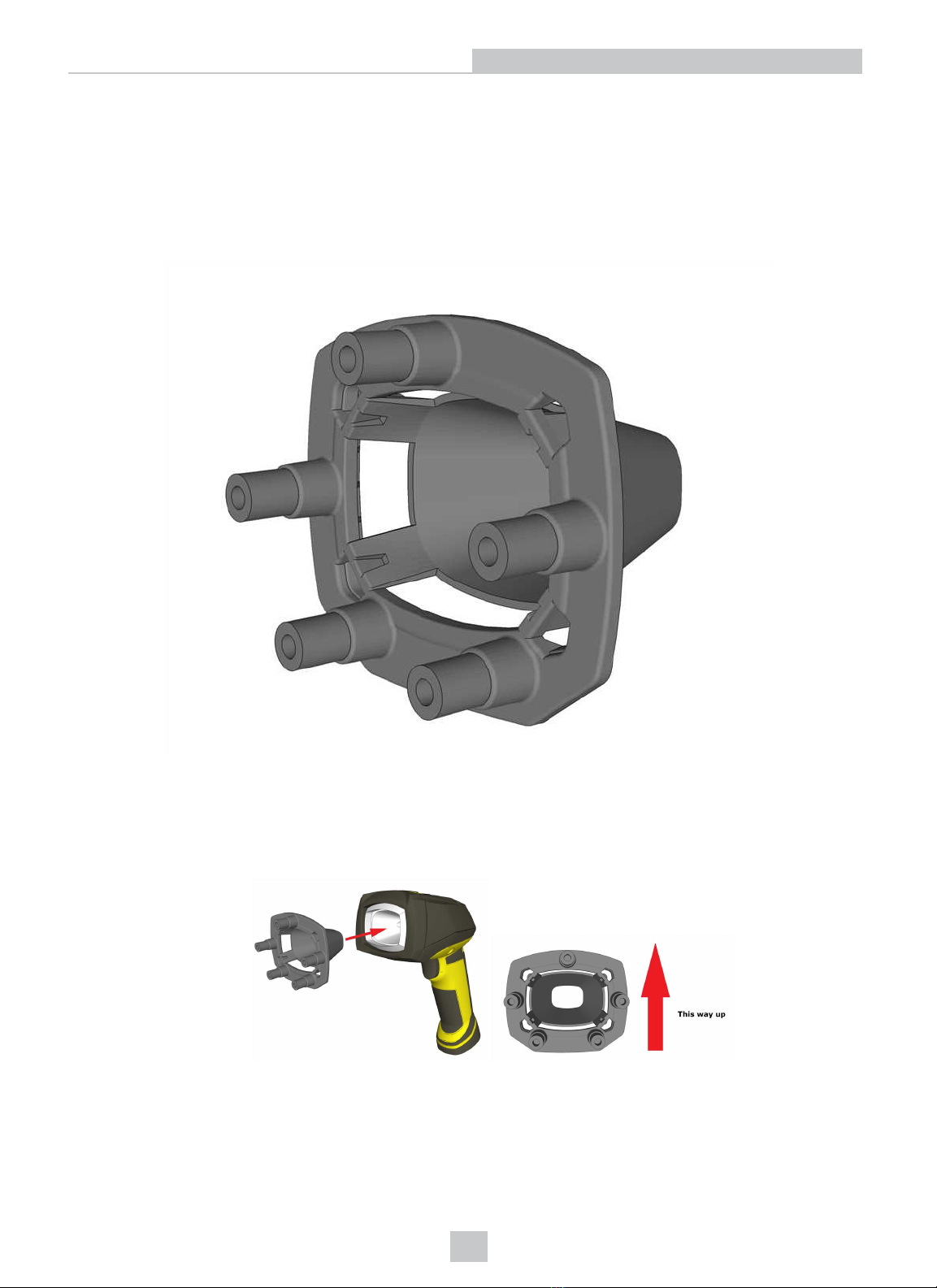

The stand-off is an accessory that consists of a plastic frame that is attachable to the device (see below).

The stand-off accessory comes with one set of 7mm spacers which must be screwed onto the stand-off.

The reading distance the spacer provides is 7mm.

Stand-off Installation

1. Attach the stand-off carefully to your DataMan 8600 Verifier reader.

Getting Started

2. The stand-off snap-fits into the reader.

Calibration

1. Start the DataMan Setup Tool and connect to your reader.

2. Select the Code Quality Settings task pane.

3. Check the box for Verification Enabled under the Verification tab.

4. Place the verifier against the calibration card with the symbol centered below the reader, and squeeze the trigger

5. Continue squeezing the trigger. Calibration can take several seconds

The DataMan Setup Tool displays a graphic guide if the symbol is not precisely aligned with the reader. Adjust

the position and rotation of the reader until the center of the red rectangle lies inside the green rectangle and

there is no more than 10 degrees rotation between the symbol and the reader. The reader beeps once when

calibration is complete.

Getting Started

6. The system displays a green check box that says System Calibrated under Calibration in Verification Settings.

Getting Started

Code Quality

Verification

In order to perform Direct Part Mark Verification, your reader must be calibrated as described in the previous section. To

read symbols and view verification results, perform the following steps:

1. Start the DataMan Setup Tool and connect to your reader.

2. Navigate to Settings > Code Quality.

3. Under the Verification Settings tab, check Verification Enabled.

4. Select the Results Display task pane by clicking Code Quality under View).

5. Place the verifier against the symbol and squeeze the trigger. The symbol must be centered within the field of

view, and the reader must be perpendicular to the surface containing the symbol and at the correct rotation. If the

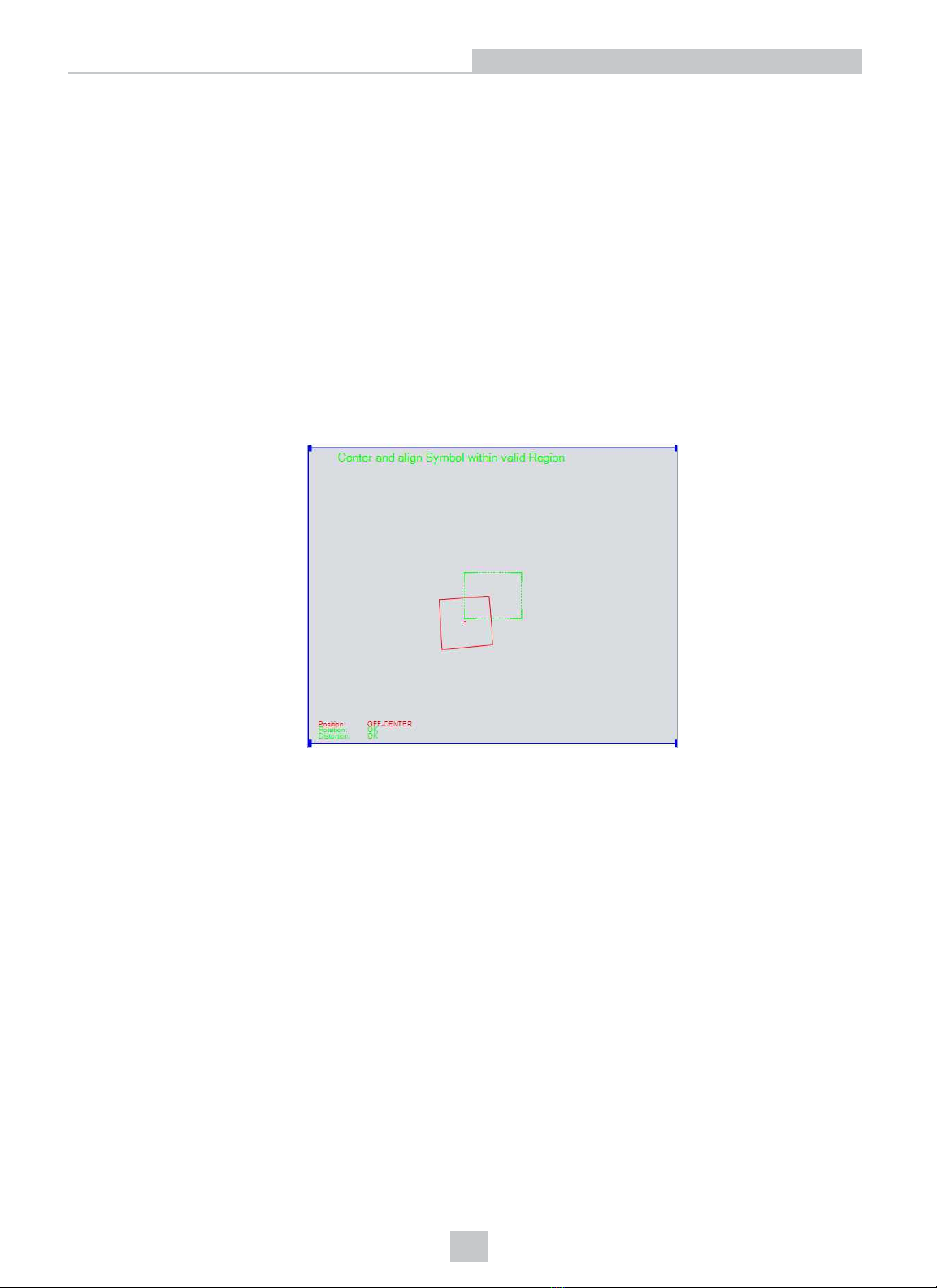

reader is out of position, the DataMan Setup Tool displays this guide:

The verifier stand-off must be used to ensure correct symbol presentation and lighting requirements for the AIM-

DPM / ISO/IEC TR 29158 Quality Guideline.

6. Move the reader until the center of the red rectangle lies within the green target rectangle. The reader beeps to

indicate that the symbol has been read and verified.

Formatting Output Data

Use the Data Formatting task pane of the DataMan Setup Tool to construct a customized output string each time you

read and verify a symbol. This allows the verifier to return Code Quality results when connected to a third-party

application instead of the DataMan Setup Tool.

Code Quality
