Commell FS-A78 Bedienungsanleitung

FS-A78

PICMG1.3 Full-size CPU Card

User’s Manual

Edition 1.1

2014/3/13

FS-A78 User’s Manual

-1-

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

FS-A78 User’s Manual

-2-

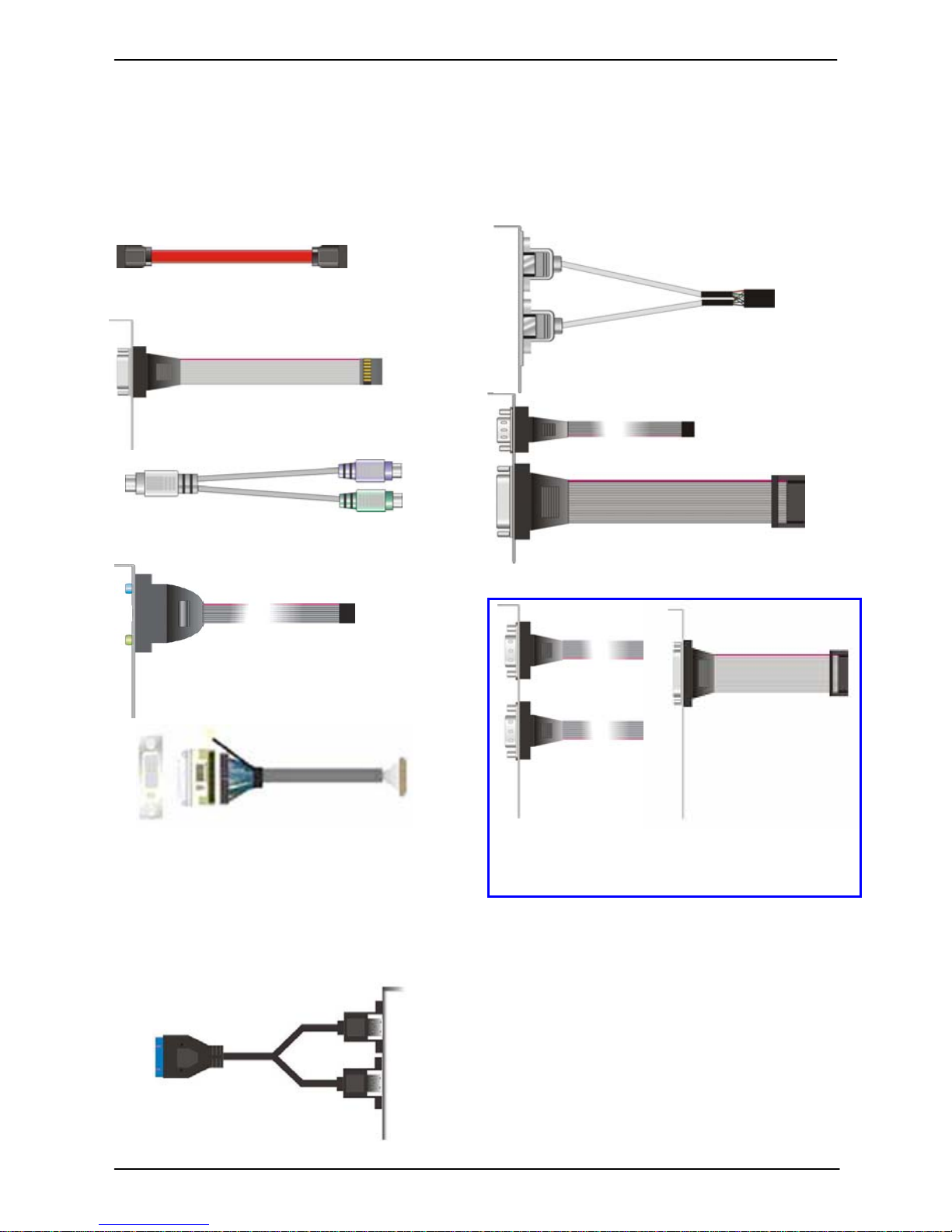

Packing List:

Please check the package content before you starting using the board.

Hardware:

FS-A78 PICMG 1.3 Full-size CPU Card motherborad x 1

Cable Kit:

SATA Cable x 2

(OALSATA3-L)/ (1040529)

Printed Matters:

Driver CD (Including User’s Manual) x 1

USB2.0 Cable x 1

(OALUSBA-1)/ (1040172)

USB3.0 Cable x 1

(OALUSB3) (Optional)

(OALUSB3)/ (1040531)

VGA Cable x 1

(

OALVG

-S-7

)

(

1040556

)

PS/2 Keyboard & Mouse Cable x 1

(OALPS2/MKN)/ (1040551)

Audio Port Cable x 1

(OALPJ-HD)/ (1040120)

DVI module with bracket x 1

BADPDVIP_A&OALDVI-DF13)/

(

4120008021&1040483

)

DB25 & DB9 cable x 1

(FS-A78G01/ FS-A78G04 Only)

(

OAL1S1P

)

(

1040041

)

DB9 cable x 1 & DB25 cable x 1

(FS-A78G201/ FS-A78G204 Only)

(OAL2S1P)/ (1040191)

Optional:

FS-A78 User’s Manual

-3-

Index

Chapter 1 <Introduction>..............................................................................5

1.1 <Product Overview>.....................................................................................5

1.2 <Product Specification>................................................................................6

1.3 <Mechanical Drawing>.................................................................................8

1.4 <Block Diagram>..........................................................................................9

Chapter 2 <Hardware Setup>......................................................................10

2.1 <Connector Location>................................................................................10

2.2 <Jumper Location & Reference>................................................................ 11

2.3 <Connector Reference>.............................................................................12

2.3.1 <Internal Connectors> ...................................................................12

2.3.2 <External Connectors>..................................................................12

2.4 <CPU and Memory Setup> ........................................................................13

2.4.1 <CPU installation>.........................................................................13

2.4.2 <Memory Setup> ...........................................................................14

2.5 <CMOS & ATX Setup>...............................................................................15

2.6 <Serial ATA Interface>................................................................................16

2.7 <Ethernet Interface>...................................................................................17

2.8 <Onboard Display Interface> .....................................................................18

2.8.1 <Analog Display>...........................................................................18

2.8.2 <Digital Display>............................................................................19

2.8.3 <VGA Interface>............................................................................23

2.8.4 <DVI Interface >.............................................................................24

2.9 <Integrated Audio Interface>......................................................................25

2.10 <USB Interface>.......................................................................................26

2.11 <Serial Port>.............................................................................................28

2.12 <MSATA Interface>...................................................................................30

2.13 <GPIO and SMBUS Interface>.................................................................31

2.14 <Power Supply and Fan Interface >.........................................................32

2.14.1 <Power Input> .............................................................................32

FS-A78 User’s Manual

-4-

2.14.2 <Fan connector> ..........................................................................33

2.15 <Switch and Indicator> .............................................................................34

Chapter 3 <System Setup> .........................................................................35

3.1 <Audio Configuration> ................................................................................35

3.2 <Display Properties Setting>.......................................................................36

3.3 <SATA configuration>..................................................................................38

3.4 <SATA RAID Configuration>.......................................................................39

Chapter 4 <BIOS Setup> .............................................................................41

Appendix A <I/O Port Pin Assignment>.....................................................43

A.1 <Serial ATA Port>........................................................................................43

A.2 <IrDA Port>.................................................................................................43

A.3 <LAN Port>.................................................................................................43

A.4 <Parallel Port>............................................................................................44

Appendix B <Flash BIOS>...........................................................................45

B.1 <Flash Tool>...............................................................................................45

B.2 <Flash BIOS Procedure> ...........................................................................45

Appendix C <Programming GPIO’s> .........................................................46

Appendix D <Programming Watchdog Timer >........................................47

Contact Information.....................................................................................48

FS-A78 User’s Manual

-5-

Chapter 1 <Introduction>

1.1 <Product Overview>

FS-A78 the 4th Generation Intel of the PICMG 1.3 Full-size CPU Card Motherboard ,

supports 4th Generation Intel® Core™ i7, Core™ i5, Core™ i3, Celeron, Pentium

Desktop Processor and features Intel Q87 chipset, integrated HD Graphics, DDR3

memory, REALTEK High Definition Audio, Serial ATAIII with RAID function for a system

and Intel Gigabit LAN.

Intel Haswell Processor

The 4th Generation Intel® Core™ processor family desktop is the next generation of

64-bit, the processors are based on Intel® microarchitecture formerly known as Haswell,

manufactured on 22nm process technology with 3-D tri-gate transistors.

Features for Intel Q87 chipset

The board integrates Intel Q87 chipset, supports integrated HD Graphics, built-in high

speed mass storage interface of Serial ATAIII interface with RAID function, High

Definition Audio with 2 channels surrounding sound.

FS-A78 User’s Manual

-6-

1.2 <Product Specification>

General Specification

Form Factor PICMG 1.3 Full-size CPU Card

CPU Supports 4th Generation Intel® Core™ i7/ i5/ i3/ Celeron/ Pentium Desktop

Processor.

Package type: FCLGA1150

Memory Two DDR3/DDR3L (support 1.5V) 1333/1600 DIMM up to 16GB

Support Non-ECC, unbuffered memory only

Chipset Intel Q87 Express chipset

Real Time Clock Chipset integrated RTC with onboard lithium battery

Watchdog Timer Generates a system reset with internal timer for 1min/s ~255min/s

Power Management Supports ACPI 4.0 compliant

Serial ATA Interface Intel® Q87 PCH built-in 4 x Serial ATAIII interface up to 600MB/s Support RAID 0,

1, 5, 10 and Intel Rapid Storage Technology.

(not support SATA II device)

VGA Interface Intel® Clear Video integrated HD Graphics Technology

DVI Interface Onboard DVI connector

LVDS Interface Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

Display port Interface Onboard Display port connector

Audio Interface Intel® integrated Q87 with Realtek ALC888 HD Audio.

LAN Interface 1 x Intel® I210 Gigabit LAN

1 x Intel® I217-LM Gigabit LAN

GPIO interface Onboard programmable 8-bit Digital I/O interface

Extended Interface Support 1 PCI-Express x16 and 1 PCI-Express x4 or 4 PCI-Express x1, 4 PCI,

MSATA

(mSATA only Support SATAIII)

Internal I/O Port 1 x RS232/422/485, 5 x RS232, 1 x GPIO port, 1 x Audio connector, 1 x IrDA

connector, 1 x SMBUS connector, 1 x CRT, 1 x LVDS, 1 x DVI, 1 x LPC, 1 x

LPT(Parallel port), 4 x USB2.0 and 6 x USB3.0 ports, 4 x SATAIII

External I/O Port 1 x PS/2 Keyboard/Mouse Port, 1 x Display port, 2 x RJ45 LAN ports

Power Requirement Need Backplane from Standard 24-pin ATX power supply (20-pin is compatible)

and P4 4-pin 12V(Onboard)

Dimension 338mm x 126mm (L x W)

Temperature Operating within 0~60 centigrade

Storage within –20~85 centigrade

FS-A78 User’s Manual

-7-

Ordering Code

FS-A78G01 DVI, CRT, LVDS, Display port, USB3.0 & 2.0, 6 x Serial Port, SATAIII, IrDA, GPIO,

LPC, LPT, Realtek HD Audio, SMBUS, mSATA, 1 x Gigabit LAN (I217LM).

Support 1 PCI-Express x16 and 4 PCI-Express x1

FS-A78G04 Onboard DVI, CRT, LVDS, Display port, USB3.0 & 2.0, 6 x Serial Port, SATAIII,

IrDA, GPIO, LPC, LPT, Realtek HD Audio, SMBUS, mSATA, 1 x Gigabit LAN

(I217LM).

Support 1 PCI-Express x16 and 1 PCI-Express x4

FS-A78G201 Onboard DVI, CRT, LVDS, Display port, USB3.0 & 2.0, 6 x Serial Port, SATAIII,

IrDA, GPIO, LPC, LPT, Realtek HD Audio, SMBUS, mSATA, 2 x Gigabit LAN.

Support 1 PCI-Express x16 and 4 PCI-Express x1

FS-A78G204 Onboard DVI, CRT, LVDS, Display port, USB3.0 & 2.0, 6 x Serial Port, SATAIII,

IrDA, GPIO, LPC, LPT, Realtek HD Audio, SMBUS, mSATA, 2 x Gigabit LAN.

Support 1 PCI-Express x16 and 1 PCI-Express x4

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

FS-A78 User’s Manual

-8-

1.3 <Mechanical Drawing>
