Commell MP-954 Bedienungsanleitung

MP-954

User’s Manual

Edition 1.1

2009/10/23

MP-954 User’ s Manual

The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT.

MP-954 User＇s Manual

Packing List:

Hardware:

MP-954 Mini-PCI Card x1

Cable kit:

Com port cable (OALES-BKU2) x 2

CD Content::

Drivers & User’s Manual

MP-954 User’ s Manual

1.0 <Product Specification>

General Specification

Form Factor Mini-PCI Type III B with 124-pin interface

Controller OXFORD OXuPCI954

Features Four 16C950 High performance UART channels

1.1 <Connector Assignment>

1.2 <Jumper Location & Reference>

JCSEL1

JCSEL2

CN_COM3/4CN_COM1/2

119

122

JCSEL2 JCSEL1

11 CN_COM1/2&3/4

MP-954 User’ s Manual

Connector: CN_COM1/2

Type:20-pin (10x2 pitch=1.27x2.54mm) header

Pin Description Pin Description

1 DCD1- 2 RX1-

3 TX1- 4 DTR1-

5 GND 6 DSR1-

7 RTS1- 8 CTS1-

9 RI1 10 NC

11 DCD2-/

422TX-/485- 12 RX2-/

422TX+/485+

13 TX2-/422RX+ 14 DTR2-/422RX-

15 GND 16 DSR2-

17 RTS2- 18 CTS2-

19 RI2 20 NC

Connector: CN_COM3/4

Type: 20-pin (10x2 pitch=1.27x2.54mm) header

Pin Description Pin Description

1 DCD3- 2 RX3-

3 TX3- 4 DTR3-

5 GND 6 DSR3-

7 RTS3- 8 CTS3-

9 RI3 10 NC

11 DCD4- 12 RX4-

13 TX4- 14 DTR4-

15 GND 16 DSR4-

17 RTS4- 18 CTS4-

19 RI4 20 NC

MP-954 User’ s Manual

1.3 <Jumper Setting>

JCSEL1 JCSEL2

RS-232

RS-485

RS-422

RS422/RS485 output form COM2

5 1

122

5 1

122

5 1

122

MP-954 User’ s Manual

1.3 <Driver Setting>

1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ …

2. Please choose “Device Manager”

3. You can see other devices ”Other PCI Bridge Device”

and “PCI Serial Port”

MP-954 User’ s Manual

4. Please choose “Other PCI Bridge Device” then press

Update Driver

5. Please choose ”NO, not this time“

MP-954 User’ s Manual

6. Install software for ”Other PCI Bridge Device” Please

choose ”Install from a list or specific location”

7. Please choose “Search for the best driver in these location”

Check “Include this location in the search” then press

“Browse”

MP-954 User’ s Manual

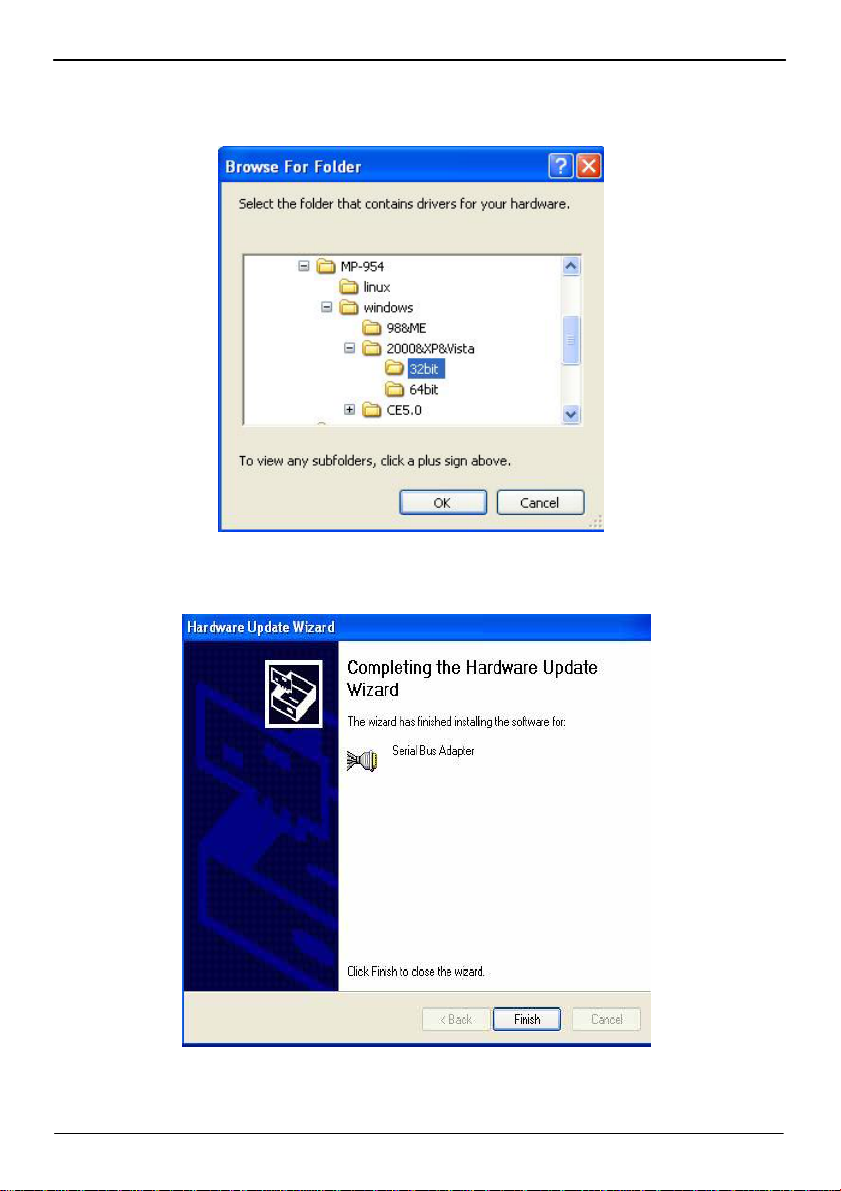

8. Please select the file location

”C:\Driver\MP-954\windows\2000&XP&Vista\32bit”

9. Completing the hardware update wizard
