FS-977PRO

User’s Manual

Edition 1.0

all rights are reserved. The information in this document is subject to change

without prior notice to make improvements to the products.

This document contains proprietary information and protected by copyright.

No part of this document may be reproduced, copied, or translated in any

form or any means without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are

property of their respective owners.

Disclaimer

Taiwan Commate Computer Inc. shall not be liable for any incidental or

consequential damages resulting from the performance or use of this product.

Taiwan Commate Computer Inc. does not issue a warranty of any kind,

express or implied, including without limitation implied warranties of

merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the

specifications of the product described within it at any time without notice and

without obligation to notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any question please visit our website at http://www.commell.com.tw.

FS-977PRO User’s Manual 1

Packing List

Hardware

FS-977 Single Board Computer........................................ X 1

Cable Kit

34-pin FDD Cable ............................................................. X 1

TV-out Cable with bracket................................................. X 1

1 x COM / 1 x LPT Port DB9 / DB25 Cable (VL only)........ X 1

2 x COM Port DB9 Cable (VL2 only)................................. X 1

1 x LPT Port DB25 Cable (VL2 only) ................................ X 1

Dual-USB Port Cable with Bracket.................................... X 2

PS/2 Keyboard and Mouse Cable..................................... X 1

40-pin UltraATA/100 IDE Cable........................................ X 2

Audio Cable ...................................................................... X 1

3-pin to 4-pin ATX cable.................................................... X 1

Printed Matter and Software

User’s Manual................................................................... X 1

Driver CD.......................................................................... X 1

FS-977PRO User’s Manual

Table of Content

Chapter 1. Introduction ......................................................................5

1.1 Product Overview..................................................................................5

1.2 Specification..........................................................................................6

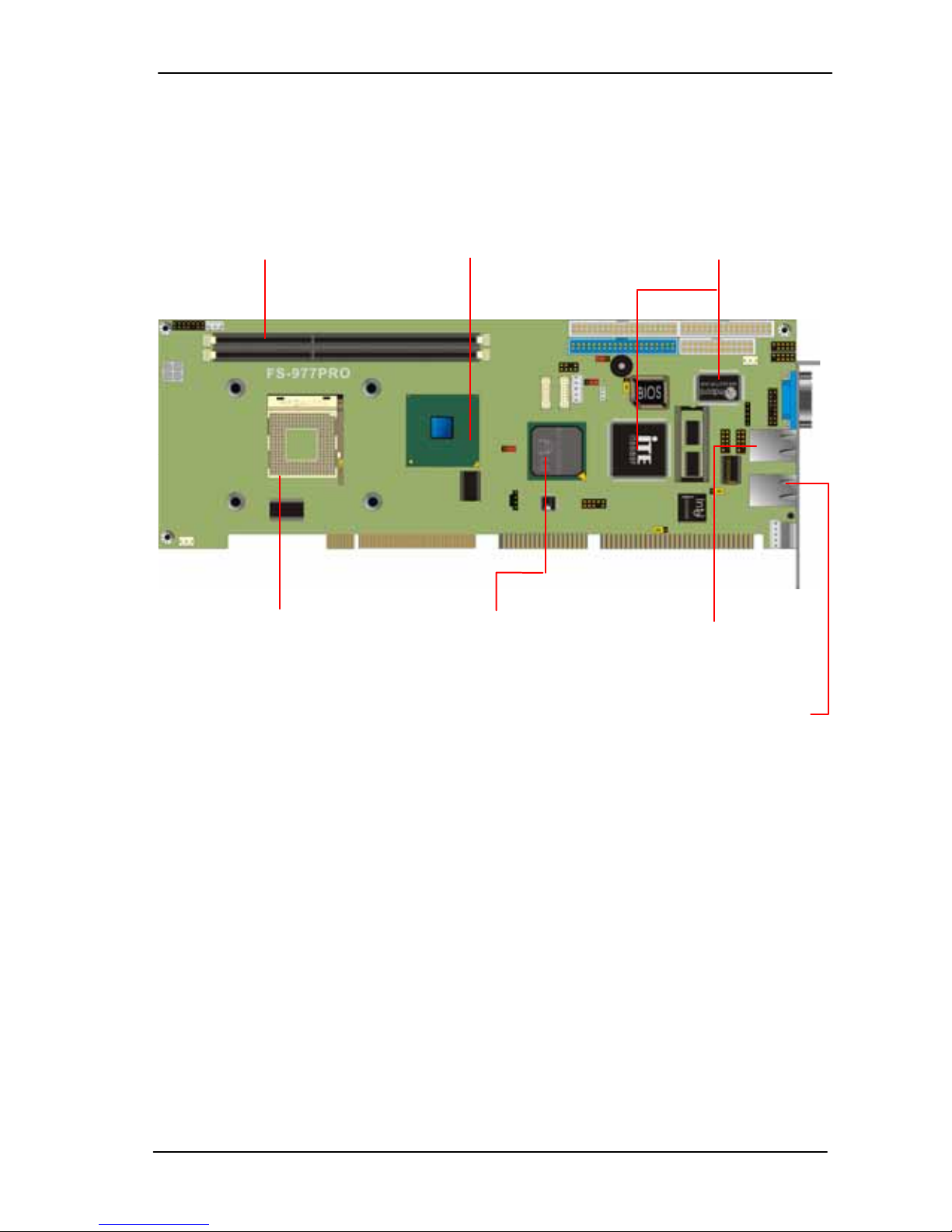

1.3 Component Placement .........................................................................9

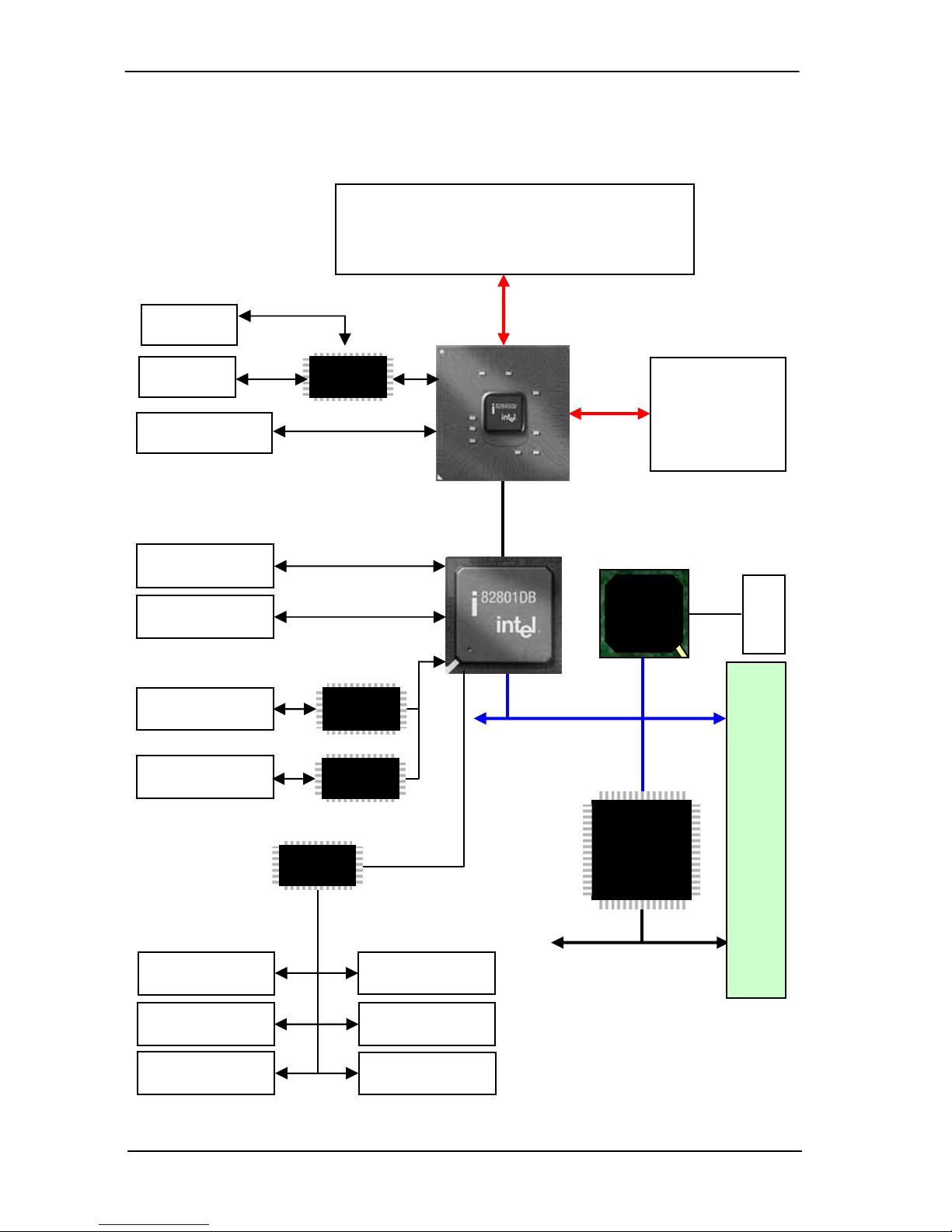

1.4 Block Diagram.....................................................................................10

Chapter 2. Hardware Setup.................................................................11

2.1 Jumper and Connector Location ................................................................. 11

2.1.1 Jumper Reference.............................................................................12

2.1.2 Connector Reference........................................................................13

2.2 CPU and DRAM Setting......................................................................14

2.3 CMOS Setting.....................................................................................14

2.4 Watchdog Timer Setting......................................................................15

2.5 Embedded Solid State Disk ................................................................16

2.6 Power and Fan Connector..................................................................17

2.7 VGA Interface .....................................................................................18

2.7.1 Standard Analog VGA Interface.......................................................18

2.7.2 Digital VGA Interface.........................................................................19

2.7.3 TV-out Interface.................................................................................21

2.8 Ethernet Interface ...............................................................................22

2.9 Audio Interface....................................................................................23

2.10 Switch and Indicator............................................................................24

Chapter 3. BIOS Setup......................................................................25

Chapter 4. Driver Installation...........................................................27

FS-977PRO User’s Manual 3

Appendix. A I/O Port Pin Assignment.............................................29

A.1 IDE Port.............................................................................................. 29

A.2 Floppy Port......................................................................................... 30

A.3 Parallel Port........................................................................................ 31

A.4 Serial Port........................................................................................... 32

A.4.1 Onboard RS-232C Serial Port ..........................................................32

A.4.2 On Bracket RS-232C Serial Port......................................................32

A.5 USB Port ............................................................................................ 33

A.6 IrDA Port............................................................................................. 33

A.7 VGA Port ............................................................................................ 34

A.8 LAN Port............................................................................................. 34

A.9 AT Keyboard Port ............................................................................... 35

A.10 PS/2 Keyboard and Mouse Port......................................................... 35

Appendix B.Flash the BIOS................................................................37

B.1 BIOS Auto Flash Tool ......................................................................... 37

B.2 Flash Method...................................................................................... 37

Appendix C. System Resource........................................................39

C.1 I/O Port Address Map......................................................................... 39

C.2 Memory Address Map......................................................................... 40

C.3 IRQ and DMA Resource..................................................................... 41

Contact Information.............................................................................44

FS-977PRO User’s Manual

Chapter 1. Introduction

1.1 Product Overview

The FS-977PRO SBC (Single Board Computer) is an all-in-one industrial

full-size PICMG (PCI/ISA)-bus CPU card based on Intel Socket 478 Pentium

4 architecture. With Intel Brookdale-GV chipset, Intel 845GV GMCH and ICH4,

FS-977PRO offers the value computing solution including Intel NetBurst

micro-architecture, 533/400 MHz of FSB, 2GB DDR SDRAM, Intel Extreme

Graphics with 266 MHz VGA core, 256-bit 3D engine, Intel Dynamic Video

Memory up to 64 MBytes, LVDS interface, TV-out, one Intel PRO/100+ LAN

and one Intel PRO/1000+ LAN, Hi-Speed USB 2.0 and M-systems

DiskOnChip solid state flash disk interfaces.

Based on the Intel's long term supply chipset in the EIA (Embedded Intel

Architecture) division’s product roadmap, FS-977PRO should be the ideal

solution for the industrial applied computing platform with high computing

capacity, cost effect and long life cycle. With Intel’s latest technology, the

FS-977PRO should be the leading edge of computing capacity for the

advanced industrial computing platform with the features as below.

Intel Hyper-Threading Technology

The FS-977PRO supports Intel Hyper-Threading Technology to offer the

better computing capacity for the industrial applied computing application.

Based on Intel's latest technology, "the Intel Pentium 4 Processor with

Hyper-Threading technology allows software programs to "see" two

processors and work more efficiently. Improves performance and system

responsiveness in today's multitasking environments by enabling the

processor to execute instruction threads in parallel."

Powerful Computing Capacity

With Intel’s latest CPU technology, FS-977PRO supports Intel Socket 478

Pentium 4 CPU up to 3.06 GHz at 533 MHz of FSB and low cost Intel Socket

478 Celeron CPU up to 2.4 GHz at 400 MHz of FSB. The FS-977PRO also

provides two GBytes of DDR200/266/333 of system memory capacity.

Hi-Speed USB 2.0 Interface:

Intel ICH4 built-in Hi-Speed USB 2.0 controller offers the Hi-Speed USB 2.0

interface with up to 480 Mbps of data transfer bandwidth with the USB

bootable setting in the BIOS.

FS-977PRO User’s Manual 5

1.2 Specification

General Specification

Form Factor Full-size PICMG-bus CPU Card / Slot PC

PICMG version 1.0 (Rev. 2.0), PCI version 2.0 compliant

CPU Intel Socket 478 Pentium 4 / Celeron CPU

at 400/533 MHz FSB (100/133MHz x 4)

Intel 0.13-/0.18-micron Northwood / Willamette CPU

Support Intel Hyper-Threading Technology

Memory Two 184-pin DIMM sockets support up to 2 GBytes

DDR200/266/333 SDRAM.

(No ECC/register DIMM support)

Chipset Intel 82845GV GMCH and 82801DB ICH4

BIOS Phoenix-Award 2Mb PnP flash BIOS

Green Function Power saving mode supported in BIOS with DOZE,

STANDBY and SUSPEND modes. ACPI version 1.0 and

APM version 1.2 compliant

Watchdog Timer Generates NMI or system reset programmable watchdog

timer with 1 to 255 sec./min. of time out value

Real Time Clock Intel ICH4 built-in RTC with onboard lithium battery

Enhanced IDE PCI enhanced IDE interface supports dual ports up to 4

ATAPI devices with UltraATA/100 supported

Jumper selectable Vcc power output on IDE2 for power

cable free DOM (DiskOnModule) flash disk

ISA High Drive ISA 64mA high Drive capacity with TI 245 buffer on both

of ISA address and data bus

Solid State Disk Interface

Flash Type M-systems DiskOnChip 2000, DiskOnChip Millennium,

IDE Pro and DiskOnModule (DOM) solid state flash disk

Package 32-pin DIP JEDEC (DiskOnChip)

40-pin IDE port (DOC IDE Pro, DiskOnModule)

Capacity 1GB of DiskOnChip and 512 MB of DiskOnModule

FS-977PRO User’s Manual

Multi-I/O Port

Chipset Intel 82801DB ICH4 and Winbond W83627HF-AW LPC

super-I/O controller

Serial Port Two RS-232 serial ports. Both with 16C550 compatible

UART and 16 bytes FIFO.

USB 2.0 Port Four Hi-Speed USB 2.0 ports with Intel ICH4

Support 480 Mbps of data transfer rate

Parallel Port One bi-direction parallel port with SPP/ECP/EPP mode

Floppy Port One floppy port supports up to two FDD

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse PS/2 keyboard and mouse ports, AT keyboard port

VGA Display Interface

Chipset Intel 845GV GMCH built-in Intel Extreme Graphics with

266 MHz VGA core

Video Memory Intel Dynamic Video Memory with auto detect video

memory up to 64 MBytes shared with system memory

Display Type CRT and LCD monitor

LVDS Color LCD

LCD Interface 24-bit single/dual channel LVDS interface

Connector External DB15 female connector on bracket for CRT

Dual Internal 20-pin header for LVDS interface

Internal 16-pin header for analog VGA display

TV-out Interface

Chipset Intel 845GV GMCH built-in Intel Extreme Graphics with

Chrontel CH7017A-T TV-out encoder

TV Mode Support both of NTSC and PAL mode

Connector Internal 8-pin header for TV-out interface

FS-977PRO User’s Manual 7

Ethernet Interface

Chipset One Intel PRO/100+ LAN interface and one Intel

PRO/1000+ LAN interface

Primary LAN (LAN1): Intel ICH4 with Intel 82562ET PHY

Secondary LAN (LAN2): PCI Intel 82540EM

Type LAN1:10Base-T / 100Base-TX,

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

LAN2: 10Base-T / 100Base-TX/1000Base-T

auto-switching Fast Ethernet

Full duplex, IEEE802.3, 802.3u, 802.3ab compliant

Audio Interface

Chipset Intel ICH4 built-in AC97 3D audio controller with codec

Interface Line-in, line-out, CD-in, Mic-in

Power and Environment

Power Req. +5V, +12V, -12V DC input from PICMG backplane

Additional +12V on 4-pin connector for Pentium 4 PSU

ATX Function 3-pin ATX interface with 5V standby and power-on

Dimension 338 (L) x 122 (H) mm, standard PICMG form factor

Temperature Operating within 0 ~ 60oC (32 ~ 140oF)

Storage within -20 ~ 85oC (-4 ~ 185oF)

EMI

Ordering Code

FS-977PROVXL Full-size PICMG Socket 478 Pentium 4 DDR CPU Card

with 533/400 MHz FSB, Intel Extreme Graphics, Intel

PRO/100+ LAN , LVDS interface, TV-out, Audio,

Hi-Speed USB 2.0, DOC Socket and ISA 64mA High Drive

Capacity

FS-977PROVXL2 Same as FS-977PROVL but

with Intel PRO/100+ LAN and Intel PRO/1000+ LAN

FS-977PRO User’s Manual

1.3 Component Placement

ITE8888 ISA Bridge

Winbond 83627HF-AW

LPC Su

er-I

2 x 184-pin DIMM Sockets

System Memory

2 GB DDR200/266/333

Intel 845GV GMCH

Built-in Intel

Extreme Graphics

mPGA478 CPU Socket

Intel Pentium 4 / Celeron

533/400 MHz FSB

Intel 82801DB ICH4

Built-in Hi-Speed

USB 2.0 Interface

Intel PRO/100+ LAN

Intel ICH4 with 82562ET

Intel PRO/1000+ LAN

with 82540EM

FS-977PRO User’s Manual 9

1.4 Block Diagram

Intel Socket 478 Pentium 4 / Celeron CPU

Intel 0.13-/0.18-micron Northwood / Willamette

Support Intel Hyper-Threading Technology

FSB 400 / 533 MHz

100 / 133 MHz x 4

LVDS

Encoder

LCD

LAN2

Two 184-pin

DIMM Sockets

up to 2 GBytes

DDR SDRAM

UltraATA100 IDE

100 MBps

DDR266

DDR333

ATAPI Device

ISA Bus Interface

Intel

266 Mbps

Hub

Link

Intel 845GV

GMCH

CRT

AT Keyboard

PS/2 Mouse Floppy

Serial Device Parallel Device

LPC

SIO

PS/2 Keyboard

Hi-Speed USB 2.0

480 Mbps Intel ICH4

PCI Bus Interface

Intel

82540EM

iTE 8888

PCI-ISA

Bridge

PICMG Backplane

LAN1 PHY

Codec

Audio Devices

USB Devices

LVDS

FS-977PRO User’s Manual

Inhaltsverzeichnis

Andere Commell Hauptplatine Handbücher

Commell

Commell LV-67P Bedienungsanleitung

Commell

Commell LV-67X Bedienungsanleitung

Commell

Commell LV-67D Bedienungsanleitung

Commell

Commell LV-67F Bedienungsanleitung

Commell

Commell LV-6714 Bedienungsanleitung

Commell

Commell LV-67G Bedienungsanleitung

Commell

Commell Mini-ITX Motherboard LV-671 Bedienungsanleitung

Commell

Commell LV-675 Bedienungsanleitung

Commell

Commell MS-C78 Bedienungsanleitung

Commell

Commell LV-683 Bedienungsanleitung

Commell

Commell LV-67Z Bedienungsanleitung

Commell

Commell LV-673 Serial Bedienungsanleitung

Commell

Commell LV670 Series Bedienungsanleitung

Commell

Commell LV-67TK7 Bedienungsanleitung

Commell

Commell PMCA Bedienungsanleitung

Commell

Commell LV-67O Bedienungsanleitung

Commell

Commell LV-67PNX Bedienungsanleitung

Commell

Commell LV-681 Bedienungsanleitung

Commell

Commell LV-67H Bedienungsanleitung

Commell

Commell LP-175 Bedienungsanleitung

Commell

Commell K7TA Series Bedienungsanleitung

Commell

Commell LP-172D Bedienungsanleitung

Commell

Commell FS-A72 Bedienungsanleitung

Commell

Commell LE-37P Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
