Commell LV-681 Bedienungsanleitung

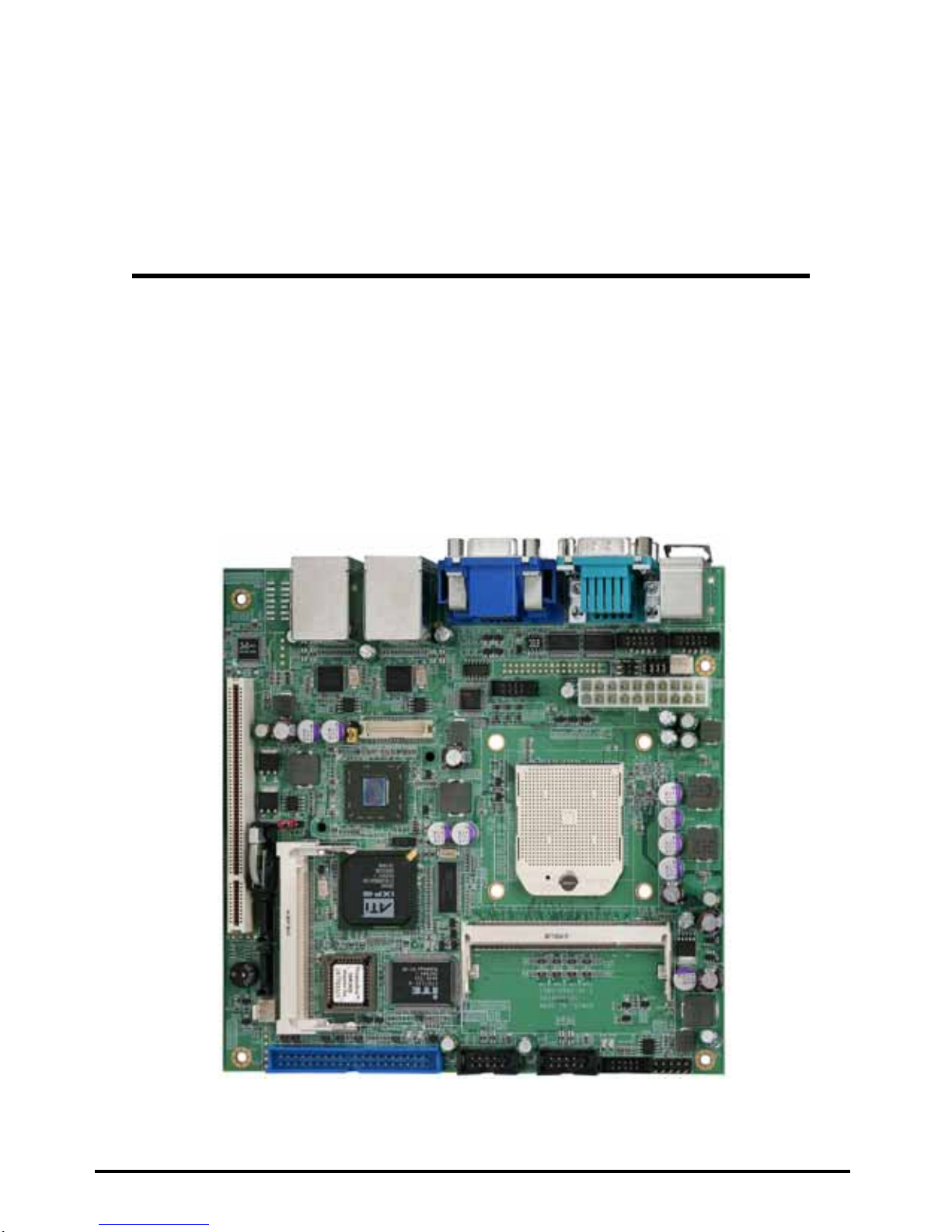

LV-681

Mini-ITX motherboard

User’s Manual

Edition: 1.00

2007/04/09

LV-681 User’s Manual 1

LV-681 User’s Manual 2

The trademarks mentioned in the manual are legally registered to their respective

companies. Disclaimer

Notice

The written content provided with this product in the property of Taiwan Commate. No part

of this manual may be reproduced, copied, transmitted in any form or by any means without

prior written permission of Taiwan Commate.

Manual Classification

In order to assist in the use of this product, Taiwan Commate has categorized the user

manual. For detailed product information and specifications, please carefully read the

“ Product User Manual ”.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at http://www.commell.com.tw.

LV-681 User’s Manual 3

Packing List

Please check package component before you use our products.

☆ LV –681 board

☆ Quick Installation Guide

☆ CD for manual and drivers

☆ Cable Kit ( CPU cooler, IDE cable, Serial ATA cable, Serial Port cable, I/O

Shield )

LV-681 User’s Manual 4

Table Of Contents

General Information

< Introduction >…..……….………………………………………………………………6

< Specification>....................................................................錯誤! 尚未定義書籤。

< Block Diagram>...................................................................................................9

<Mechanical Drawing >..........................................................................................9

Hardware Installation

<Connector Location>..........................................................................................12

< List of Connectors >………………………………………………………………….13

<Jumper Locations>.............................................................................................14

< List of Jumpers>………………………………………………………………………14

< Jumpers Setting>……………………………………………………………………..15

< LVDS Panel Voltage Selection ( JP1 ) >……………………………………………15

< Clear CMOS Selection ( JU5 ) >…………………………………………………….15

<COM2 RS232/422/485 Slection ( JP3, JP2 )>……………………………………..16

<LVDS Connector ( CN2 )>……………………………………………………………17

< VGA & AUDIO Connector ( CN5 )>…………………………………………………17

< GPIO Connector ( CN6 ) >…………………………………………………………..18

< COM3 RS-232 Connector ( CN8 ) >………………………………………………..18

< COM4 RS-232 Connector ( CN9 )>………………………………………………...18

< Front Panel Connector ( CN10 ) >………………………………………………….19

< EIDE Connector Connector ( J4 ) >………………………………………………...19

< PS2 KB/ MS Connector ( J5 ) >……………………………………………………..20

< CPU Fan Connector ( J7 ) >…………………………………………………………20

< Systen Fan Connector ( J8 ) >………………………………………………………20

< ATX Power Connector ( J9 ) >……………………………………………………….20

< Slim Floppy Connector ( J11 ) >…………………………………………………….21

< COM1 RS-232 Connector ( COM1 Down ) >………………………………………22

< COM1 RS-232 Connector ( COM1 Up )>…………………………………………..22

LV-681 User’s Manual 5

< USB1 Connector ( USB1 ) >…………………………………………………………22

< USB2 Connector ( USB2 ) >………………………………………………………...22

< CompactFlash Slot ( CFD1 ) >………………………………………………………22

< SoDIMM Slot ( DIMMA1 ) >………………………………………………………….22

< SoDIMM Slot ( DIMMA2 ) >………………………………………………………….23

< Mini - PCI Slot ( MPCI1 ) >…………………………………………………………...23

<PCI-E Gigabit LAN / USB Connector ( RJUSB1 A / B )>…………………………23

<PCI-E Gigabit LAN / USB Connector ( RJUSB1 A / B ) >…………………………23

<SATA1 Connector ( SATA1 ) >…………………………….…………………………23

<SATA2 Connector ( SATA2 ) >…………………………….…………………………23

BIOS Setup

<AwardBIOS CMOS Setup Utilit>…………………………………………………….24

<Main CMOS Features>………………………………………………………………24

<Advanced BIOS Feature>……………………………………………………………26

<Power Management Setup>…………………………………………………………27

<PnP / PCI Configurations>…………………………………………………………..28

<Peripherials Setup>…………………………………………………………………..29

<PC Health Status>……………………..……………………………………………..31

<Boot Status>…………………………………………………………………………..32

<Save & Exit Setup>…………………………………………………………………..33

<Load Optimized Defaults>…………………………………………………………..33

<Exit Without Saving>…….…………………………………………………………..33

<Set Password>…………..…………………………………………………………...33

Appendix

<Watch Dog timer Setting >............................................34

LV-681 User’s Manual 6

General Information

Introduction

The LV-681 Mini – ITX board incorporates the ATI RS485M + ATI RS460 chipset , supports

the AMD Turion 64 / Sampron uPGA 638 Pin processors with 800 MHz Front Side Bus

( FSB ), The RS485M integrates an ATI RADEON X-300-based 2D/3D graphics engine,

dual display, The SB460 is a south bridge that integrates key I/O, communications, and

audio features. The board supports DDRII 533 MHz system memory, PCI interface, Gigabit

LAN, Audio, LVDS, CompactFlash, Mini – PCI, SerialATA, USB 2.0, COM

Multimedia Applications

For multimedia application solution, ATI RS485M chipset provides on board high

performance graphics, 18 – bit LVDS interface, Audio function. This feature will be good of

use in very requirement of the multimedia application.

Widely Expanded Interface

The board provides PCI slot, you can add a third LAN port, and also provides Mini – PCI slot

and CompactFlash Type II slot.

LV-681 User’s Manual 7

Specification

Board LV-681 Mini - ITX

CPU AMD Mobile Turion 64 638-pin Processor

Sempron 638-pin Processor

Chipset ATI RS485M + ATI SB460

Memory 2 DDR II SoDIMM slot support DDR II 400 / 533 MHz SDRAM Up

to 2GB

VGA Built in ATI RS485M chipset

I / O Control ATI SB460 + ITE 8712 + Fintek F81216D

LAN 2 Realtek RTL8111B 10 / 100 / 1000Mbit

PCI-Express Giga LAN

Audio ATI SB460 with RealtekALC655 Codec

IDE 1 40Pin UDMA 66/ 100 / 133 ATA IDE connection

SATA 2 Serial ATA 150MBbit/sec ports

Slot 1 Mini – PCI slot

1 CompactFlash slot

1 PCI slot

BIOS Phoenix – Award 4Mb PnP Flash

GPIO 8 – bit digital I / O

Green Function ACPI 1.0 and APM 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 Min. of

time - out

Real Time Clock ATI SB460 built – in RTC with Lithium battery

Form Factor Mini – ITX 6.69 “( L ) x 6.69” ( W ) / 17 x 17 mm

LV-681 User’s Manual 8

VGA Display

Chipset ATI RS485M chipset

Memory Shared system memory

Display CRT / LCD monitor with analog for 18 – bit dual channel LVDS interface

Internal I/O Ports

GPIO 1 GPIO Port Connector

USB 2 USB Connector Supports 4 USB ports

Serial Port 1 RS-232 Connector Supports 2 COM ports

IDE 1 40-Pin IDE connector

LVDS 1 18-Bit LVDS Connector

FAN 2 FAN Connector

External I/O Ports

Keyboard/ Mouse 1 PS / 2 ports

Serial Ports 1 external RS – 232 port ( COM 1 )

1 external RS – 232 / 422 / 485 port ( COM 2 )

VGA 1 VGA port

Audio 1 external jack for MIC – In / Line – In / Line – Out

LAN 2 external RJ – 45 ports with LED

USB 4 external USB 2.0 ports

Power And Environment

POWER ATX 20 Pin power connector

TEMPERATURE Operating temperature with 0°C~65°C (32°F~149°F)

Storage temperature with 20°C~80°C (-68°F~176°F)

LV-681 User’s Manual 9

1.3 <Block Diagram>

LV-681 User’s Manual 10

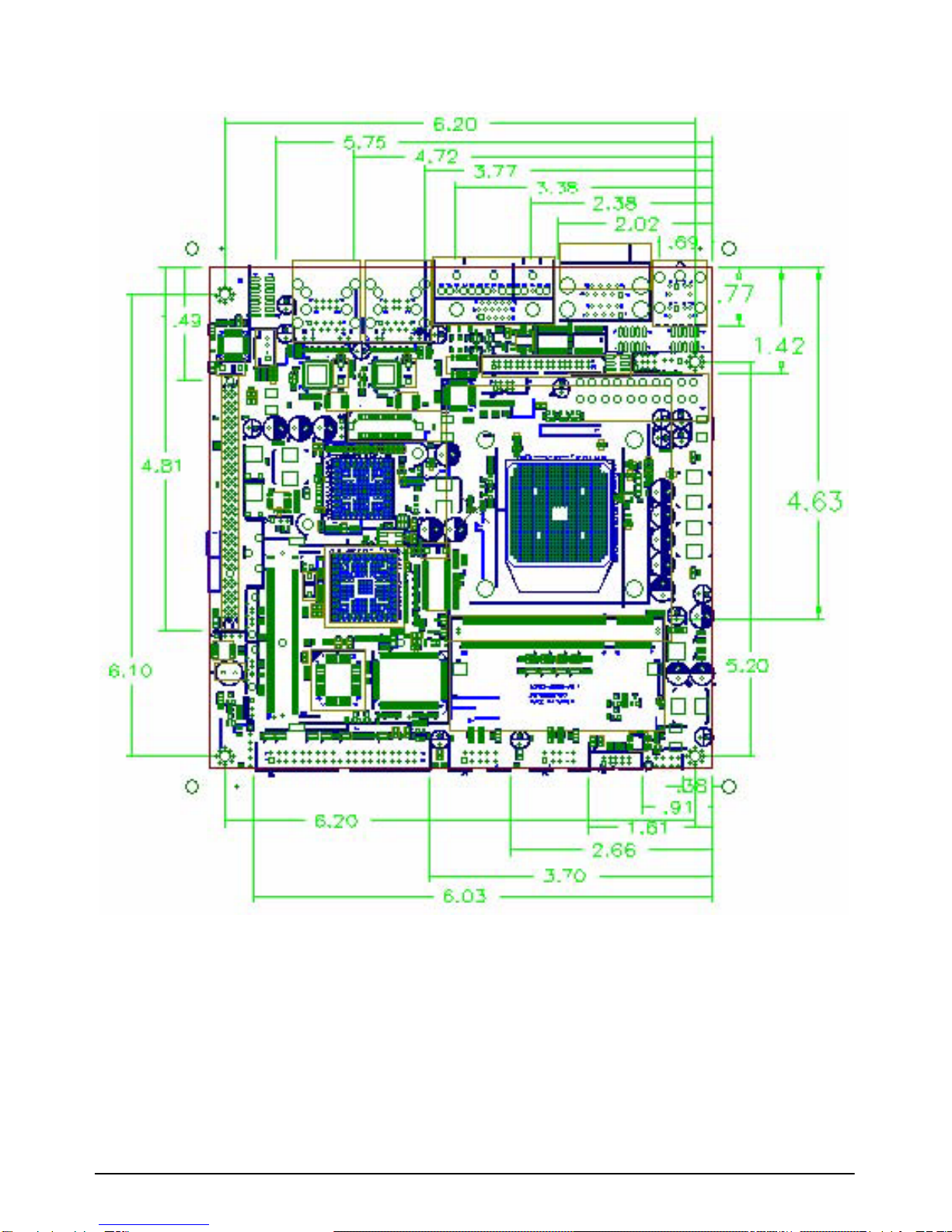

1.4 <Mechanical Drawing >
