Commell LE-37DJIP Bedienungsanleitung

LE-37D

3.5 inch Motherboard

User’s Manual

Edition 1.66

2015/06/26

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular

purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

Packing List:

Please check the package content before you starting using the board.

Hardware:

LE-37D 3.5 inch Miniboard x 1 (include Cooler Fan)

Cable Kit:

SATA Cable x 1

(OALSATA3-L)/(1040529)

COM Port Cable x 1

(OALES-BKU1NB)/ (1040086)

Cooler: HeatSink:

(OHSF-5) / (2181010016) (OHS-7) / (2181110009)

Printed Matters:

Driver CD (Including User’s Manual) x 1

1 to 3 power output cable x 1

(OAL4P-2)/ (1040051) SATA Power Cable x 1

(OAL4P-S2)/ (1040054)

DC Power Cable x 1

(OALDC-A)/ (1040433) Audio Cable x 1

(OALPJ-HDUNB)/ (1040123)

PS/2 Keyboard & Mouse Cable x 1

(OALPS2/KM)/ (1040131)

USB2.0 Cable x 1

(OALUSBA-3)/ (1040173)

CRT cable without bracket x 1

(OALVGA-SNB-7)/ (1040557)

LE-37DJIP, LE-37DJX2,

LE-37DEIP, LE-37DEX2

LE-37DNIP, LE-37DNX2

Index

Chapter 1 <Introduction> ..............................................................................5

1.1 <Product Overview>.....................................................................................5

1.2 <Product Specification>................................................................................6

1.3 <Mechanical Drawing>.................................................................................8

1.4 <Block Diagram>..........................................................................................9

Chapter 2 <Hardware Setup>......................................................................10

2.1 <Connector Location>................................................................................10

2.2 <Jumper Location & Reference>................................................................10

2.3 <Connector Reference>............................................................................. 11

2.3.1 <Internal Connectors> ................................................................... 11

2.3.2 <External Connectors>.................................................................. 11

2.4 <Memory and CFAST Setup> .................................................................... 11

2.4.1 < Memory Setup > ......................................................................... 11

2.4.2 < CFAST Setup >...........................................................................12

2.5 <CMOS & ATX Setup>...............................................................................13

2.6 <Serial ATA Interface>................................................................................14

2.7 <Ethernet Interface>...................................................................................14

2.8 <Onboard Display Interface>......................................................................14

2.8.1 <External Display>.........................................................................14

2.8.2 <Internal Display>..........................................................................14

2.9 <Integrated Audio Interface>......................................................................19

2.10 <USB Interface>.......................................................................................19

2.11 <Serial Port>.............................................................................................22

2.12 <PCIe Mini Card and SIM Interface>........................................................24

2.12.1 <SIM Setup>................................................................................25

2.13 <GPIO and SMBUS Interface>.................................................................27

2.14 <Power Supply and Fan Interface >.........................................................28

2.14.1 <Power Input>..............................................................................28

2.14.2 <Power Output>...........................................................................28

2.14.3 <Fan connector>..........................................................................29

2.15 <Switch and Indicator>.............................................................................30

Chapter 3 <System Setup> .........................................................................30

3.1 <Audio Configuration>................................................................................30

3.2 <Display Properties Setting>......................................................................31

3.3 <SATA configuration>.................................................................................33

Chapter 4 <BIOS Setup> .............................................................................34

Appendix A <I/O Port Pin Assignment>.....................................................35

A.1 <Serial ATA Port>.......................................................................................35

A.2 <LAN Port>................................................................................................35

A.3 <LPC Port>................................................................................................35

Appendix B <Flash BIOS> ..........................................................................36

B.1 <Flash Tool> ..............................................................................................36

B.2 <Flash BIOS Procedure>...........................................................................36

Appendix C <Programming GPIO’s> .........................................................37

Appendix D < Programming Watchdog Timer > .......................................38

Contact Information.....................................................................................39

Chapter 1 <Introduction>

1.1 <Product Overview>

The LE-37D motherboard is design based on Intel® Celeron® Processor J1900 / N2930

and Intel® Atom Processor E3845, delivering outstanding compute, graphical, and

media performance while operating in an extended range of thermal conditions. The

SoC bases on the Silvermont microarchitecture, utilizing Intel’s industry-leading 22nm

process technology with 3-D Tri-Gate transistors, which deliver significant

improvements in computational performance and energy efficiency.

New features for Intel® Celeron® and Atom Processor

The Intel® Celeron® Processor J1900 / N2930 and Intel® Atom E3845 Processor

supports graphics, media performance, flexibility and more enhanced security that is

suitable for a variety of intelligent systems the ideal choice.

Outstanding integration of I/O interfaces

Supports display interfaces with graphics processing, camera interfaces with image

processing, audio with digital signal processing, multiple storage types, and legacy

embedded I/O. Provides interface expansion capabilities through industry-standard

high-bandwidth interfaces such as PCI Express* Gen 2.0, Hi-speed USB 2.0, and USB

3.0 connectivity.

All in One multimedia solution

Based on Intel® J1900 / N2920 /E3845 SoC, the board provides high performance

onboard graphics, CRT, 24-bit dual channel LVDS interface, Display Port, DVI and 2

channels High Definition Audio, to meet the very requirement of the multimedia

application.

Flexible Extension Interface

The board provides two PCIe mini slot and one SIM slot.

1.2 <Product Specification>

General Specification

Form Factor 3.5 inch motherboard

CPU Intel® Processor J1900/N2930/E3845, package type FCBGA1170

Memory 1 x DDR3L (support 1.35V) 1066/1333 SO-DIMM up to 8GB

Real Time Clock Chipset integrated RTC with onboard lithium battery

Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s

Power

Management

Supports ACPI 5.0 compliant

Serial ATA(SATA)

Interface

1 x serial ATA interface with 300MB/s(3Gb/s) transfer rate

VGA Interface Intel® Clear Video integrated HD Graphics Technology

DVI Interface Onboard DVI connector.

(DVI and LVDS1 can’t be enabled simultaneously)

Display port

Interface

Onboard Display port connector.

(Display port and LVDS2 can’t be enabled simultaneously)

LVDS Interface 2 x Onboard 24-bit dual channel LVDS connector with

+3.3V/+5V/+12V supply

Audio Interface Realtek ALC262 High Definition Audio Codec

LAN Interface 2 x Intel® I210-AT Gigabit LAN

GPIO Interface Onboard programmable 8-bit Digital I/O interface.

Extended

Interface

2 x PCIE Mini card(1 x mSATA option), 1 x SIM socket, 1x CFast

(CFast and mSATA can’t be enabled simultaneously)

Internal I/O Port 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio connector, 1 x

SMBUS connector, 1 x CRT, 2 x LVDS, 1 x LPC, 4 x USB 2.0(XHCI)

and 1 x SATAII

External I/O Port 1 x RS232, 1 x DVI port, 1 x Display port, 2 x RJ45 LAN ports, 1 x

USB 3.0(XHCI)/2.0(EHCI) port, 1 x USB 2.0 ports(EHCI).

Power

Requirement

6~27V full range DC Input

Dimension 146mm x 101mm

Temperature Operating within 0~60 centigrade(forLE-37DJ andLE-37DN serial)

Storage within -20~85 centigrade. (forLE-37DJ andLE-37DN serial)

Operating within -40~85 centigrade(for LE-37DE serial)

Storage within -40~85 centigrade.(for LE-37DE serial)

Ordering Code

LE-37DJIP Intel Celeron Processor J1900 (2M Cache, 2.42GHz), DVI, Display Port,

CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini

card, SMBUS, GPIO, SIM, LPC, mSATA

,CFast

LE-37DNIP Intel Celeron Processor N2930 (2M Cache, 2.16GHz), DVI, Display Port,

CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini

card, SMBUS, GPIO, SIM, LPC, mSATA, CFast

LE-37DEIP Intel Atom Processor E3845 (2M Cache, 1.91GHz), DVI, Display Port,

CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini

card, SMBUS, GPIO, SIM, LPC, mSATA, CFast

LE-37DJX2 Intel Celeron Processor J1900 (2M Cache, 2.42GHz), 2 x LVDS, CRT,

Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card,

SMBUS, GPIO, SIM, LPC, mSATA, CFast

LE-37DNX2 Intel Celeron Processor N2930 (2M Cache, 2.16GHz), 2 x LVDS, CRT,

Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card,

SMBUS, GPIO, SIM, LPC, mSATA, CFast

LE-37DEX2 Intel Atom Processor E3845 (2M Cache, 1.91GHz), 2 x LVDS, CRT,

Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card,

SMBUS, GPIO, SIM, LPC, mSATA, CFast

The specifications may be different as the actual production.

For further product information please visit the website at http://www.commell.com.tw

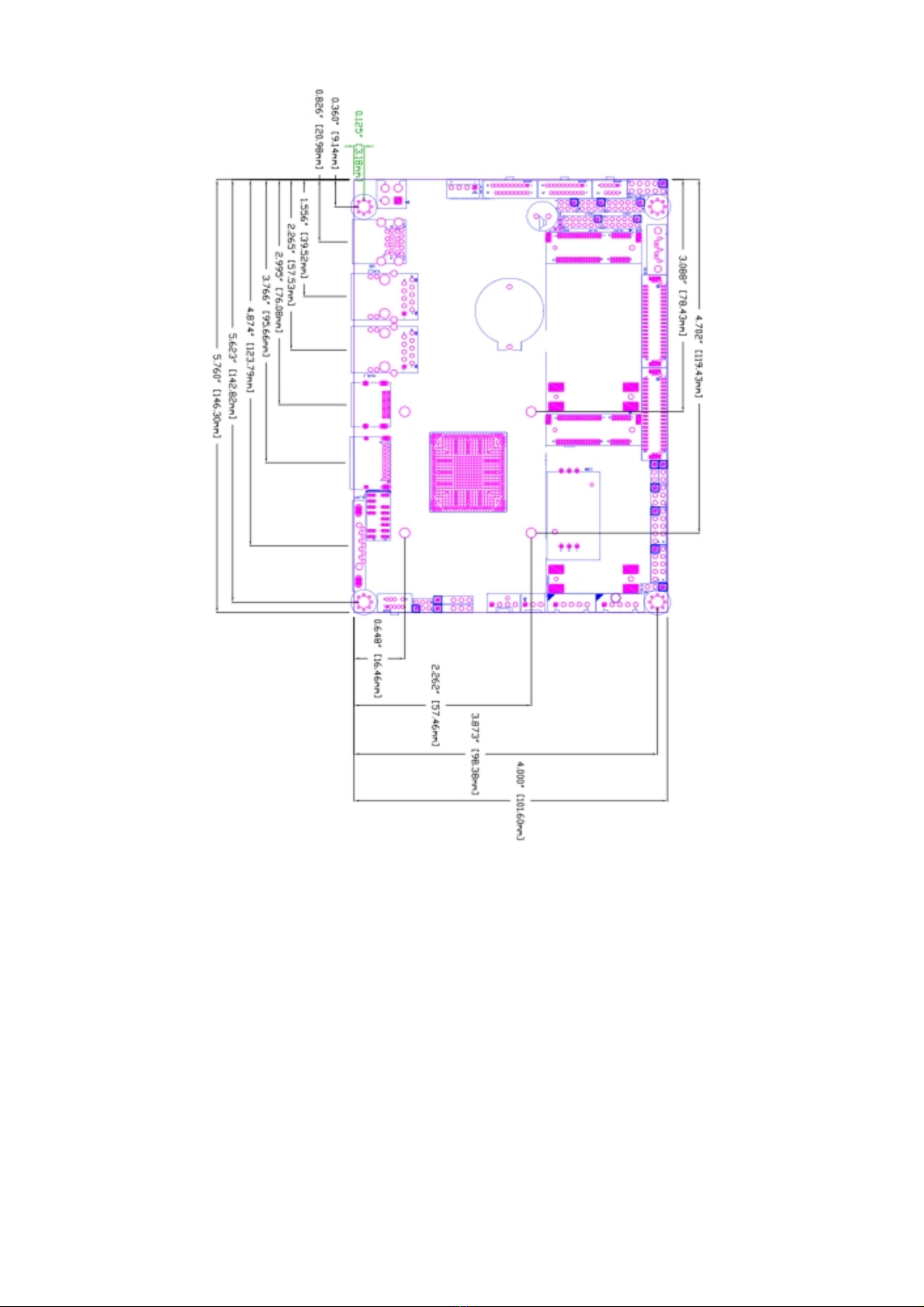

1.3 <Mechanical Drawing>

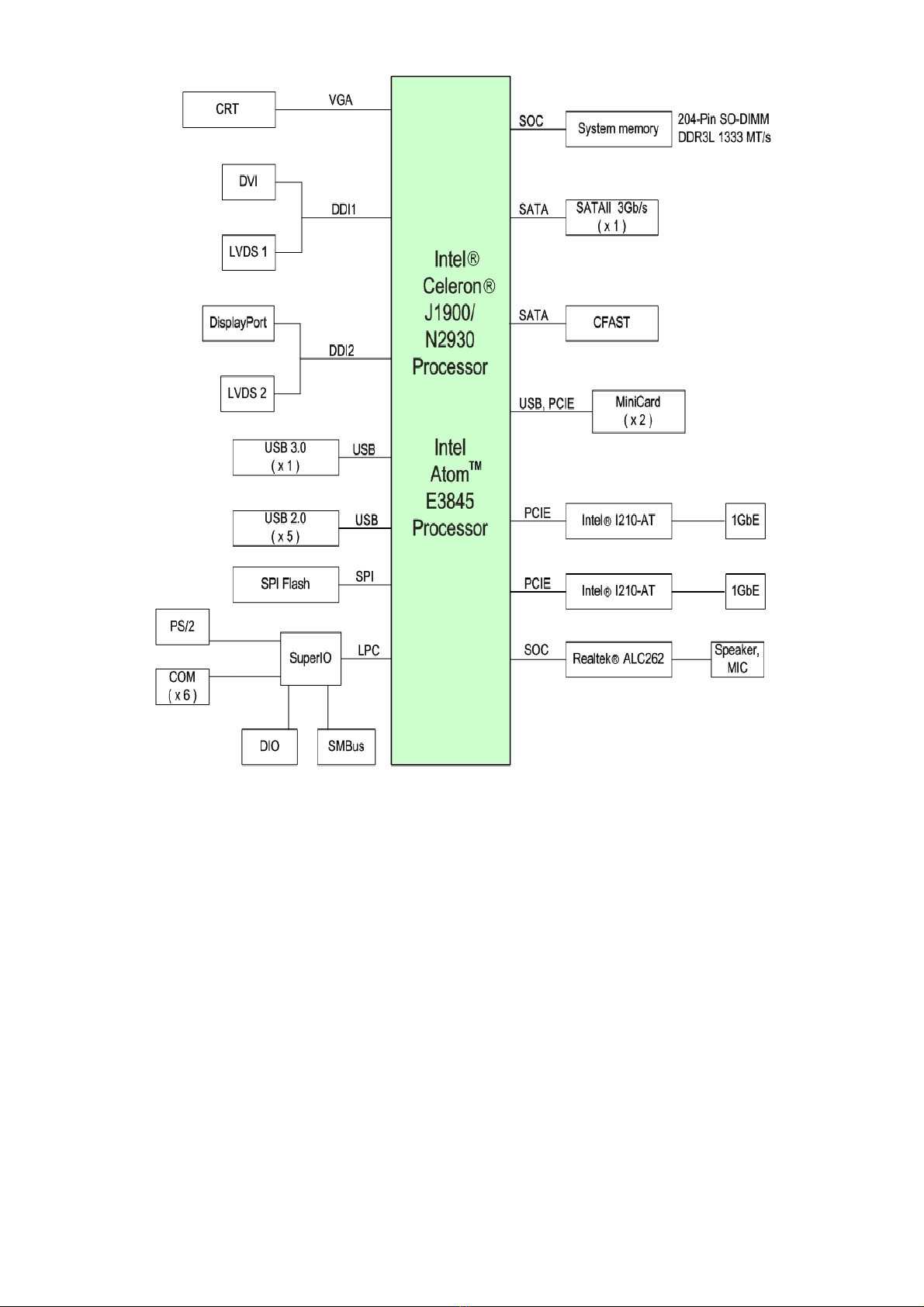

1.4 <Block Diagram>

Chapter 2 <Hardware Setup>

2.1 <Connector Location>

2.2 <Jumper Location & Reference>

Jumper Function

JRTC CMOS Operating/Clear Setting

JVLCD Panel Voltage Setting

JAT Power mode select

JP1 Com1 Voltage Setting (For Pin 9)

JP2 Com2 Voltage Setting (For Pin 9)

JCSEL1

JCSEL2 CN_COM2 RS-232 RS422 RS485 Setting

CN_IR Setting

JVUSB1 USB Voltage Setting

JMSATA Mini Card1 mSATA Setting (Mini PCIe)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Commell Hauptplatine Handbücher

Commell

Commell LE-37F Bedienungsanleitung

Commell

Commell LV-67S Bedienungsanleitung

Commell

Commell LV-67F Bedienungsanleitung

Commell

Commell LS-371E Bedienungsanleitung

Commell

Commell LV-678 Bedienungsanleitung

Commell

Commell LV-673 Serial Bedienungsanleitung

Commell

Commell LV-66A Bedienungsanleitung

Commell

Commell LE-37C Bedienungsanleitung

Commell

Commell P3WMA Series Bedienungsanleitung

Commell

Commell LV-67K Bedienungsanleitung

Commell

Commell LV-67C Bedienungsanleitung

Commell

Commell LV-674E Bedienungsanleitung

Commell

Commell LS-37B Bedienungsanleitung

Commell

Commell FS-A70 Bedienungsanleitung

Commell

Commell LV-67N Bedienungsanleitung

Commell

Commell LE-37M7 Bedienungsanleitung

Commell

Commell LS-378 Bedienungsanleitung

Commell

Commell LV-67S Bedienungsanleitung

Commell

Commell LE-37I7S Bedienungsanleitung

Commell

Commell LE-370 Bedienungsanleitung

Commell

Commell Mini-ITX Motherboard LV-671 Bedienungsanleitung

Commell

Commell Pico-ITX LP-171 Bedienungsanleitung

Commell

Commell K7TA Series Bedienungsanleitung

Commell

Commell LV-667 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
