Commell LN-D70 Bedienungsanleitung

LN-D70

Nano-ITX Motherboard

User’s Manual

Edition 1.14

2015/04/02

LN-D70 User’s Manual

-2-

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular

purpose.

The company has the right to revise the manual or include changes in the

specifications of the product described within it at any time without notice and without

obligation to notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

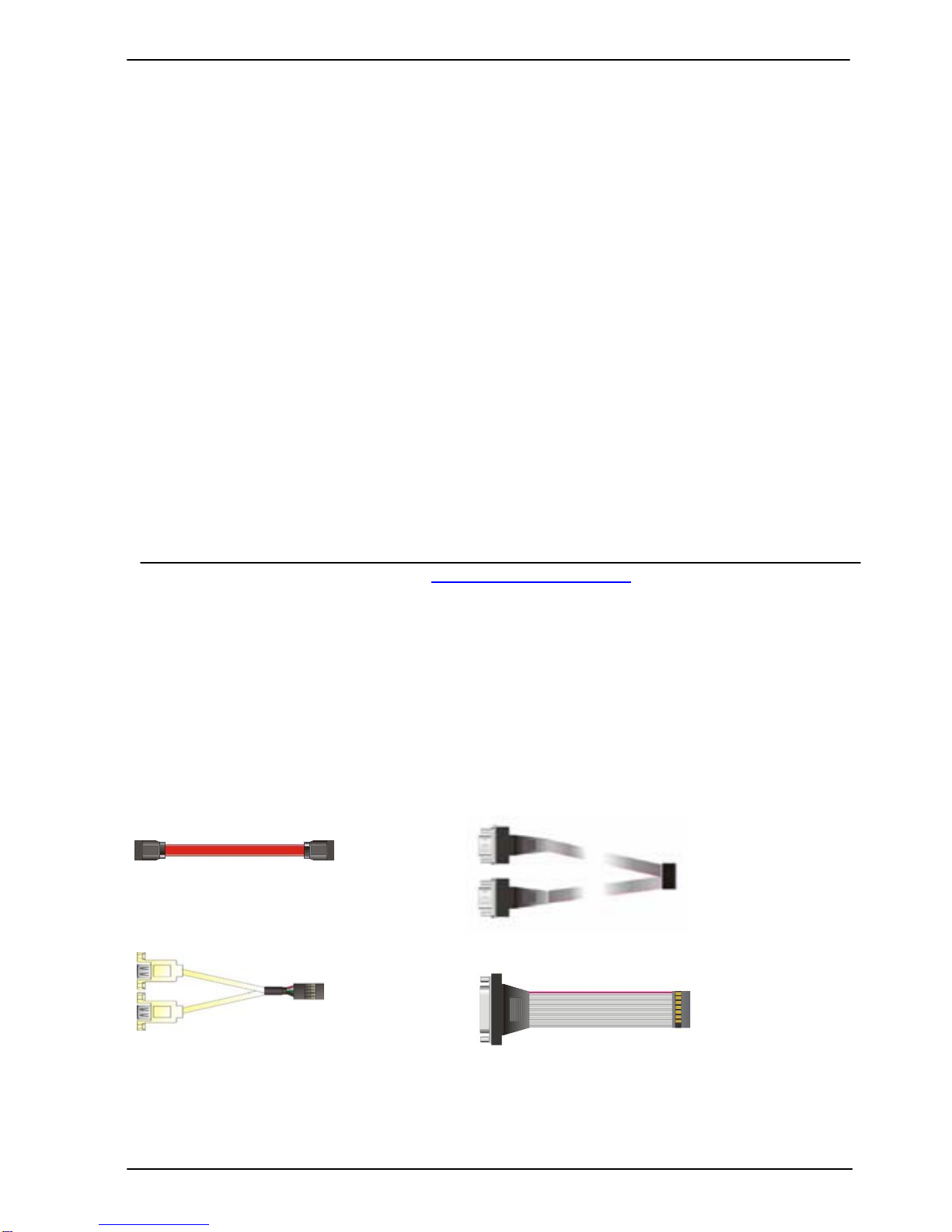

Packing List:

Please check the package content before you starting using the board.

Hardware:

LN-D70 Mini-ITX Motherborad x 1

Cable Kit:

SATA Cable x 2

OALSATA3-L / (1040529)

Dual COM PORT Cable x 1

OALES-BKU2NB / (1040090)

USB2.0 Cable x 1

OALUSBA-3/ (1040173) (Option) CRT cable without bracket x 1

(OALVGA-SNB-7)/ (1040557)

LN-D70 User’s Manual

-3-

Printed Matters:

Driver CD (Including User’s Manual) x 1

Cooler: HeatSink:

(OHSF-6) / (2181010018)

(OHS-8) / (2181110010)

LN-D70JIP, LV-D70JX2

LN-D70EIP, LV-D70EX2

LN-D70NIP, LN-D70NX2

1 to 3 power output cable x 1

(OAL4P-2)/ (1040051) SATA Power Cable x 1

(OAL4P-S2)/ (1040054)

DC Power Cable x 1

(OALDC-A)/ (1040433) Audio Cable x 1

(OALPJ-HD-NB)/ (1040121)

LN-D70 User’s Manual

-4-

Index

Chapter 1 <Introduction> ..............................................................................5

1.1 <Product Overview>.....................................................................................5

1.2 <Product Specification>................................................................................6

1.3 <Mechanical Drawing>.................................................................................8

1.4 <Block Diagram>..........................................................................................9

Chapter 2 <Hardware Setup>........................................................................9

2.1 <Connector Location>..................................................................................9

2.2 <Jumper Location & Reference>................................................................10

2.3 <Connector Reference>............................................................................. 11

2.3.1 <Internal Connectors> ................................................................... 11

2.4 < Memory Setup >......................................................................................12

2.5 <CMOS & ATX Setup>...............................................................................13

2.6 <Ethernet Interface>...................................................................................14

2.7 <Onboard Display Interface> .....................................................................14

2.7.1 <Display>.......................................................................................14

2.7.2 <LVDS> .........................................................................................15

2.7.3 <VGA Interface>............................................................................18

2.8 <Integrated Audio Interface>......................................................................19

2.9 <USB Interface>.........................................................................................21

2.9.1 < USB 3.0 eXtensible Host Controller Driver install >....................21

2.10 <Serial Port> ............................................................................................25

2.11 <PCIE Mini Card and SIM Interface> .......................................................27

2.12 <GPIO and SMBUS Interface>.................................................................30

2.13 <Power Supply and Fan Interface >.........................................................31

2.13.1 <Power Input> .............................................................................31

2.13.2 < Power Output >.........................................................................32

2.13.3 <Fan connector>..........................................................................32

2.14 <Switch and Indicator>.............................................................................33

Chapter 3 <System Setup> .........................................................................35

LN-D70 User’s Manual

-5-

3.1 <Audio Configuration>................................................................................35

3.2 <Display Properties Setting>......................................................................35

3.3 <SATA configuration>.................................................................................37

Chapter 4 <BIOS Setup> .............................................................................38

Appendix A <I/O Port Pin Assignment>.....................................................39

A.1 <Serial ATA Port>.......................................................................................39

A.2 <LAN Port>................................................................................................39

A.3 <LPC Port>................................................................................................39

Appendix B <Flash BIOS> ..........................................................................40

B.1 <Flash Tool> ..............................................................................................40

B.2 <Flash BIOS Procedure>...........................................................................40

Appendix C <Programming GPIO’s> .........................................................41

Appendix D <Programming Watchdog Timer > ........................................42

Contact Information.....................................................................................43

Chapter 1 <Introduction>

1.1 <Product Overview>

LN-D70 is the system-on-chip (SoC) designed for intelligent systems, delivering

outstanding compute, graphical, and media performance while operating in an extended

range of thermal conditions. These SoCs are based on the Silvermont microarchitecture,

utilizing Intel’s industry-leading 22nm process technology with 3-D Tri-Gate transistors,

which deliver significant improvements in computational performance and energy

efficiency.

New features for Intel® Celeron® and Atom Processor

The Intel® Celeron® Processor J1900 / N2930 and Intel® Atom E3845 Processor

supports, graphics, media performance, flexibility and more enhanced security that is

suitable for a variety of intelligent systems the ideal choice.

Outstanding integration of I/O interfaces

Supports display interfaces with graphics processing, camera interfaces with image

LN-D70 User’s Manual

-6-

processing, audio with digital signal processing, multiple storage types, and legacy

embedded I/O. Provides interface expansion capabilities through industry-standard

high-bandwidth interfaces such as PCI Express* Gen 2.0, Hi-speed USB 2.0, and USB

3.0 connectivity.

All in One multimedia solution

Based on Intel® J1900 / N2920 / E3845 SoC, the board provides high performance

onboard graphics, CRT, 24-bit dual channel LVDS interface, Display Port, DVI and two

channels High Definition Audio, to meet the very requirement of the multimedia

application.

Flexible Extension Interface

The board provides one PCIe mini slot and one SIM slot.

1.2 <Product Specification>

General Specification

Form Factor Nano-ITX motherboard.

CPU Bay Trail Intel® Celeron™ J1900 /N2930 and Atom™ E3845 Mobile

Processor.

Package Type: FCBGA1170.

Memory 1 x DDR3L (support 1.35V) 1066/1333 SO-DIMM up to 8GB.

Real Time Clock Chipset integrated RTC with onboard lithium battery.

Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s.

Power Management Supports ACPI 5.0 compliant.

Serial ATA Interface 2 x SATAII(3Gb/s), 2 x SATAIII(6Gb/s).

VGA Interface Intel® Clear Video integrated HD Graphics Technology.

DVI Interface Onboard DVI connector. (DVI and LVDS1 can’t be enabled simultaneously)

LVDS Interface 2 x Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V

supply.

Display port Interface Onboard Display port connector.

(Display port and LVDS2 can’t be enabled simultaneously)

Audio Interface Realtek ALC262 High Definition Audio Codec.

LAN Interface 1 x Intel® I210 Gigabit LAN.

GPIO interface Onboard programmable 8-bit Digital I/O interface.

Extended Interface 1 x PCIE Mini card or mSATA, 1 x SIM socket.

LN-D70 User’s Manual

-7-

Internal I/O Port 4 x RS232, 1 x GPIO, 1 x Audio connector, 1 x SMBUS connector, 1 x CRT, 2

x LVDS, 1 x LPC, 2 x USB 2.0 and 2 x SATAII, 2 x SATAIII.

External I/O Port 1 x PS/2 Keyboard/Mouse Port, 1 x RS232, 1 x RS232/422/485, 1 x DVI port,

1 x Display port, 1 x RJ45 LAN ports, 1 x USB 3.0(XHCI) port, 1 x USB 2.0

port.

Power Requirement 6~27V full range DC Input.

Dimension 120mm x 120mm. (L x W)

Temperature Operating within 0~60 ℃.(for LN-D70J and LN-D70N serial)

Operating within -40~75 ℃.(for LN-D70E serial)

Ordering Code

LN-70DJIP Intel Celeron Processor J1900 (2M Cache, 2.42GHz), DVI, Display Port, CRT,

Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini

card, , SMBUS, GPIO, SIM, LPC, mSATA.

LN-70DEIP Intel Atom Processor E3845 (2M Cache, 1.91GHz), DVI, Display Port, CRT,

Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini

card, SMBUS, GPIO, SIM, LPC, mSATA.

LN-70DNIP Intel Celeron Processor N2930 (2M Cache, 2.16GHz), DVI, Display Port,

CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE

Mini card, SMBUS, GPIO, SIM, LPC, mSATA.

LN-70DJX2 Intel Celeron Processor J1900 (2M Cache, 2.42GHz), 2 x LVDS, CRT, Gigabit

LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card,

SMBUS, GPIO, SIM, LPC, mSATA.

LN-70DEX2 Intel Atom Processor E3845 (2M Cache, 1.91GHz), 2 x LVDS, CRT, Gigabit

LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card,

SMBUS, GPIO, SIM, LPC, mSATA.

LN-70DNX2 Intel Celeron Processor N2930 (2M Cache, 2.16GHz), 2 x LVDS, CRT,

Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini

card, SMBUS, GPIO, SIM, LPC, mSATA.

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

LN-D70 User’s Manual

-8-

1.3 <Mechanical Drawing>

LN-D70 User’s Manual

-9-

1.4 <Block Diagram>

Chapter 2 <Hardware Setup>

2.1 <Connector Location>

LN-D70 User’s Manual

-10-

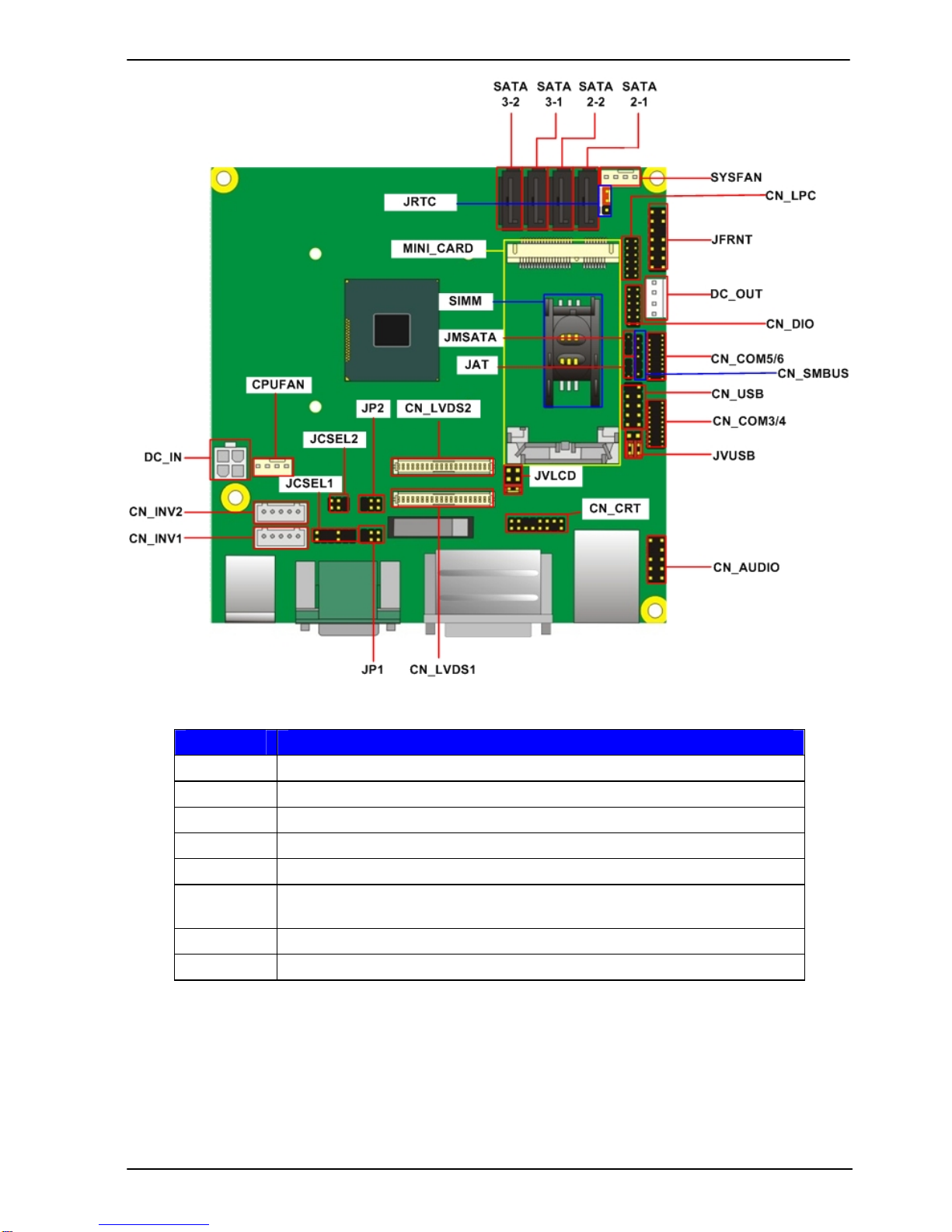

2.2 <Jumper Location & Reference>

Jumper Function

JRTC CMOS Operating/Clear Setting

JVLCD Panel1、2 Voltage Setting

JAT Power mode select

JP1 Com1 Voltage Setting (For Pin 9)

JP2 Com2 Voltage Setting (For Pin 9)

JCSEL1

JCSEL2 COM2 RS-232 RS422 RS485 Setting

JMSATA Mini Card mSATA Setting

JVUSB USB Voltage Setting
