Commell LV-67B Bedienungsanleitung

LV-67B

Mini-ITX Motherboard

User’s Manual

Edition 1.5

2010/4/16

LV-67B User’s Manual

-1-

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

LV-67B User’s Manual

-2-

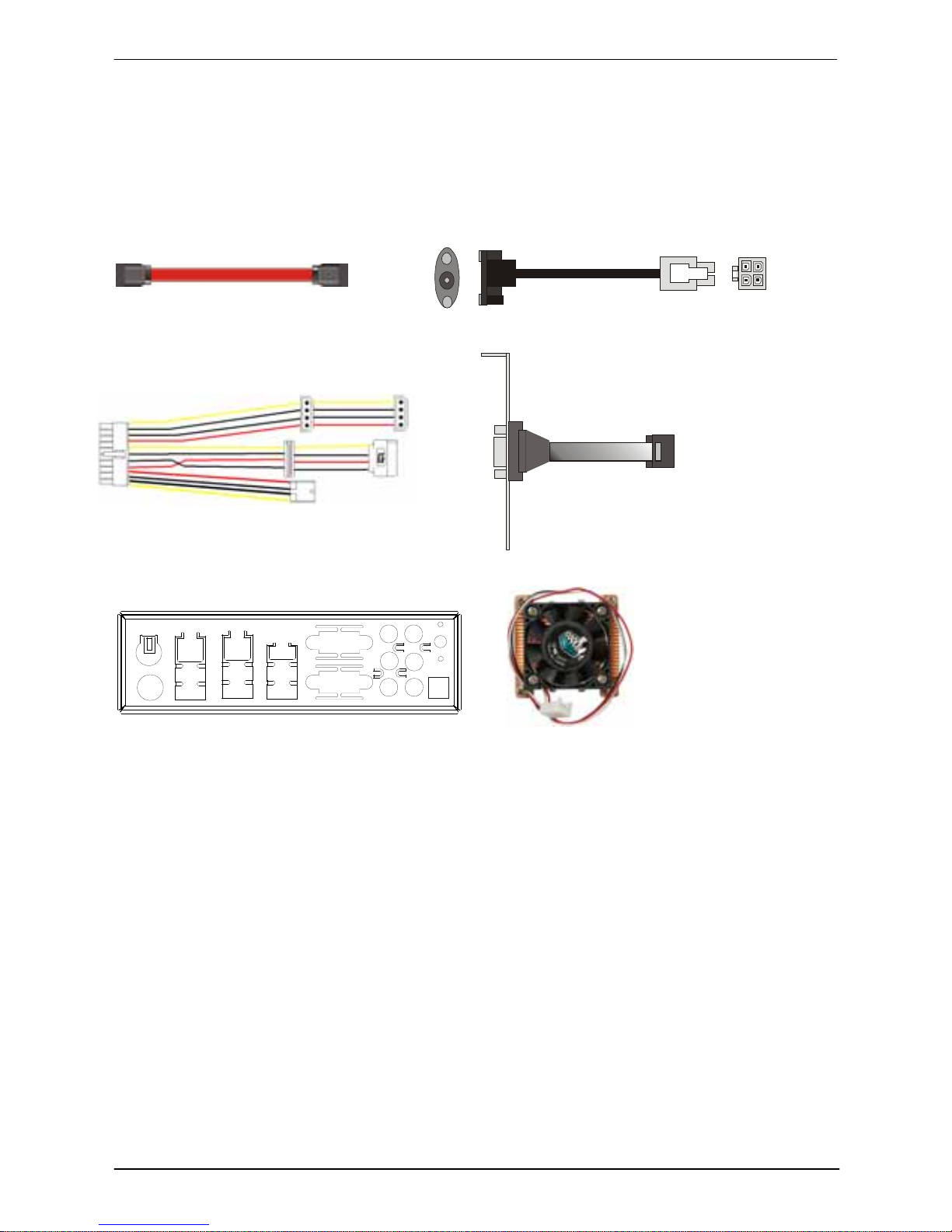

Packing List:

Please check the package content before you starting using the board.

Hardware:

LV-67B Mini-ITX Motherborad x 1

Cable Kit:

SATACable x 2

(OALSATA-L)

COM Port Cable x 1

(OAL1S)

DC Power Cable x 1

(OALDC-)

I/O Shield x 1

(OALATE-LV67B)

Power Cable

(OALATX-P3S2)

Printed Matters:

Driver CD (Including User’s Manual) x 1

CPU Cooler x 1

(OHS-P-M-3)

LV-67B User’s Manual

-3-

Index

Chapter 1 <Introduction>..........................................................................................6

1.1 <Product Overview>.....................................................................................6

1.2 <Product Specification>................................................................................7

1.3 <Mechanical Drawing>.................................................................................8

1.4 <Block Diagram>..........................................................................................9

Chapter 2 <Hardware Setup>..................................................................................10

2.1 <Connector Location>................................................................................10

2.2 <Jumper Location & Reference>................................................................12

2.3 <Connector Reference>.............................................................................14

2.3.1 <Internal Connectors> ...................................................................14

2.3.2 <External Connectors>..................................................................14

2.4 <CPU and Memory Setup> ........................................................................15

2.4.1 <CPU Setup>.................................................................................15

2.4.2 <Memory Setup> ...........................................................................16

2.5 <CMOS Setup>..........................................................................................17

2.6 <Serial ATA Interface>................................................................................18

2.7 <Ethernet Interface>...................................................................................18

2.8 <Onboard Display Interface> .....................................................................19

2.8.1 <Analog Display>...........................................................................19

2.8.2 <Digital Display>............................................................................20

2.8.3 <HDTV Interface>..........................................................................24

2.9 <Integrated Audio Interface>......................................................................25

2.10 <GPIO and SMBUS Interface>.................................................................27

2.11 <Power Supply>.......................................................................................28

2.11.1 <Power Input>..............................................................................28

2.11.2 <Power Output>...........................................................................29

2.12 <Switch and Indicator>.............................................................................30

Chapter 3 <System Setup> .....................................................................................31

LV-67B User’s Manual

-4-

3.1 <Audio Configuration>................................................................................31

3.2 <Display Properties Setting> ......................................................................32

Chapter 4 <BIOS Setup>..........................................................................................34

Appendix A <I/O Port Pin Assignment>..................................................................36

A.1 <Serial ATA Port> .......................................................................................36

A.2 <IrDA Port>.................................................................................................36

A.3 <Serial Port 1> ...........................................................................................36

A.4 <Serial Port 2> ..........................................................................................36

A.5 <VGA Port>................................................................................................37

A.6 <LAN Port>.................................................................................................37

A.7 < USB Interface >.......................................................................................37

Appendix B <Flash BIOS>.......................................................................................38

B.1 <Flash Tool>...............................................................................................38

B.2 <Flash BIOS Procedure> ...........................................................................38

Appendix C <System Resources>..........................................................................39

C.1 <I/O Port Address Map>.............................................................................39

C.2 <Memory Address Map>............................................................................41

C.3 <System DMA& IRQ Resources> .............................................................43

Appendix D <Programming GPIO’s>......................................................................44

Appendix E <Programming Watchdog Timer >.....................................................45

Appendix F <How to setting RS-232/RS-422/RS-485>...........................................46

Contact Information .................................................................................................47

LV-67B User’s Manual

-5-

(This page is left for blank)

LV-67B User’s Manual

-6-

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-67B, the new generation of the Mini-ITX motherboard, supports Intel Penryn

Processors for 667/800/1066 MHz front side bus and features Intel GM45 and ICH9M

chipset, integrated GMA 4500MHD graphics, DDR3 memory, REALTEK High Definition

Audio, Serial ATA and two Intel Gigabit LAN.

Intel Penryn Processor

The board supports Intel Penryn Processors with 667/800/1066 MHz front side bus,

6MB L2 cache, to provide more powerful performance than before.

New features for Intel GM45 chipset

The board integrates Intel GM45 and ICH9M chipset, to provide new generation of the

mobile solution, supports Intel GMA 4500MHD graphics, DDR3 800/1066 Mhz memory,

built-in high speed mass storage interface of serial ATA, High Definition Audio with 7.1

channels surrounding sound.

All in One multimedia solution

Based on Intel GM45 and ICH9M chipset, the board provides high performance onboard

graphics, 24-bit dual channel LVDS interface, HDTV and 7.1 channels High Definition

Audio, to meet the very requirement of the multimedia application.

Flexible Extension Interface

The board provides one SD socket, one mini-PCIE socket, one mini-PCI socket and one

PCIE X16 slot.

LV-67B User’s Manual

-7-

1.2 <Product Specification>

General Specification

Form Factor Mini-ITX motherboard

CPU Support Intel Penryn Processor

Package type: Micro-FCPGA478 (Socket-P)

Front side bus: 667/800/1066 MHz

Memory 2 x DDRIII SO-DIMM 800/1066 MHz up to 8GB

Chipset Intel GM45 & ICH9M

Real Time Clock Chipset integrated RTC with onboard lithium battery

Watchdog Timer Generates a system reset with internal timer for 1min/s ~255min/s

Power Management ACPI 2.0 compliant, supports power saving mode

Serial ATA Interface 4 x serial ATAII interface with 300MB/s transfer rate

VGA Interface Intel integrated extreme GMA 4500MHD (Graphic Media Accelerator)

Technology

LVDS interface Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V

supply

Audio Interface Intel integrated ICH9M with Realtek ALC888 HD Audio

LAN Interface 2 x Intel 82573L Gigabit LAN

GPIO interface Onboard programmable 8-bit Digital I/O interface

Extended Interface 1 x PCIE x16 slot, 1 x Mini PCIE socket, 1 x SD socket, 1 x Mini PCI

socket to support Mini PCI Type IIIA

Internal I/O Port 1 x RS232/422/485, 1 x SMBUS, 1 x GPIO port, 1 x HDTV, 4 x USB

ports, 1 x IrDA, 4 x Serial ATA, 1x LVDS, 1x LCD inverter connector, 1

x Audio connector and 1 x CDIN connector

External I/O Port 1 x PS/2 Keyboard/Mouse Port, 2 x RJ45 LAN ports, 1 x DB15 VGA port,

6 x USB2.0 ports, 1 x IEEE 1394 port, 1 x RS232 port, 7.1 Channel Audio,

1 x SPDIF connector

Power Requirement Standard 20-Pin ATX power supply or 9~24V full range DC Input

(8~30V is operative)

Note: It won’t support PCIE x16 graphic card if use DC input mode

Dimension 170mm x 170mm

Temperature Operating within 0~60 centigrade

Storage within –20~85 centigrade

Ordering Code

LV-67B Onboard VGA, LVDS, LAN, USB2.0, HD Audio, SATA, HDTV,

SMBUS, IEEE1394, SD, PCIE x16, Mini PCI and PCIE mini card

MPX-574D PCI Express mini card supports single Giga LAN

MPX-574D2 PCI Express mini card supports dual Giga LAN

ADP-L2T 18-bit LVDS to TTL module

For further product information please visit the website at TUhttp://www.commell.com.twUT

LV-67B User’s Manual

-8-

1.3 <Mechanical Drawing>

“

LV-67B User’s Manual

-9-

1.4 <Block Diagram>

ICH9-M

W25X80 SPI

1 x Mini-PCI

2 x Intel 82573L

1 x RS422/485/232

1 x COM & GPIO & IrDA

Intel Penryn Processor

VGA Interface

Intel GMA4500MHD

1 x PCI Express x16 2 x 204-pin DDR3

SO-DIMM

800/1066 MHz up to

8GB

IO W83627DHG

ALC888 HD Audio

1 x LVDS & HDTV

4 x Serial ATA

GM45

10 x USB 2.0

1 x IEEE 1394

& SD Card

1 x PCI Express mini card

RICOH

R5C833
