Commell MX-7794 Bedienungsanleitung

MX-7794

Mini-ITX motherboard

User’s Manual

Edition: 1.00

2005/09/30

MX-7794 User’sManual

reserved. The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Anyquestions please visit our website at http://www.ipchammer.com

MX-7794 User’sManual PackingList

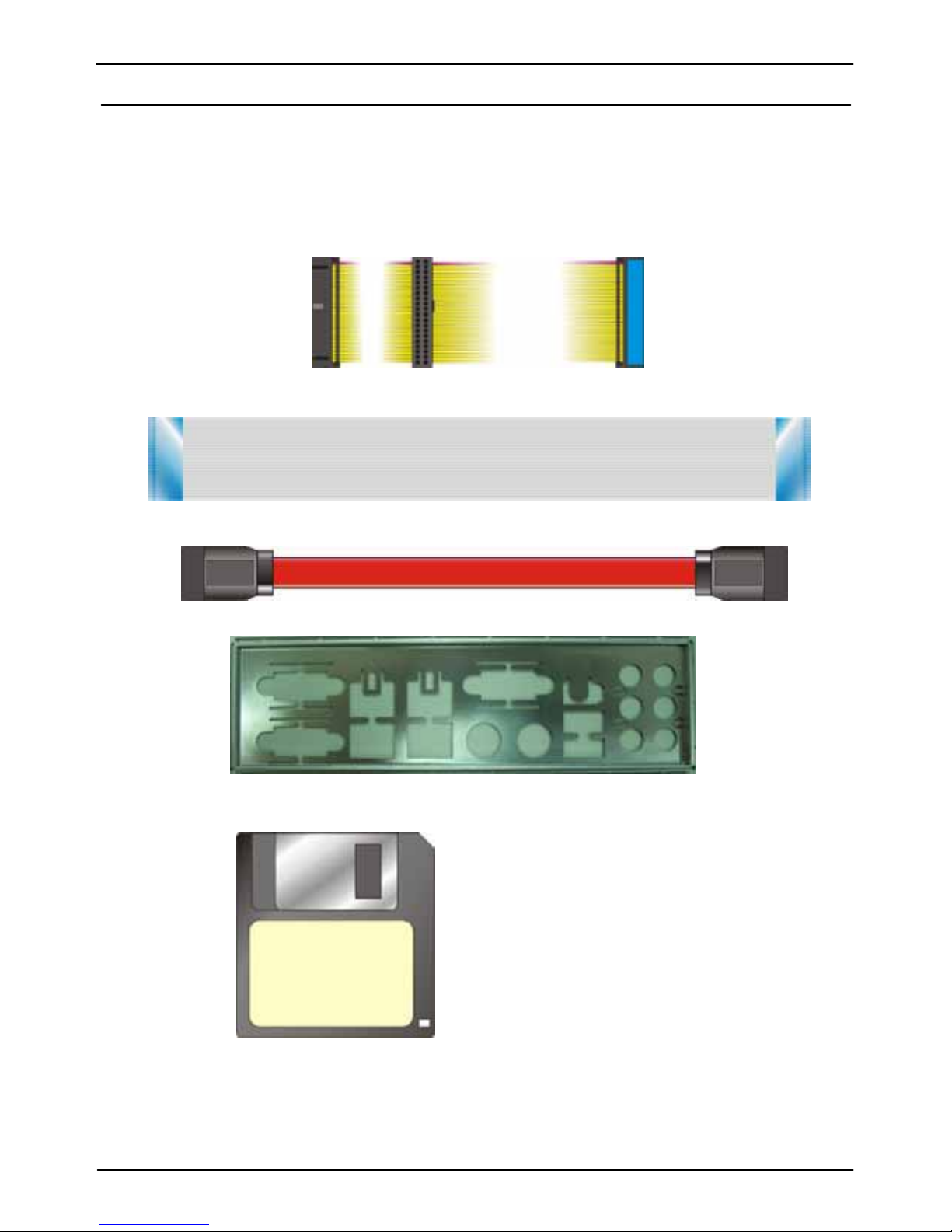

Packing List

Please check package component before you use our products.

Hardware:

MX-7794 Mini-ITXmotherboard x 1

Cable Kit:

40-pin ATA100 IDE flat cable x 1

26-pin slim type floppy cable x 1

Serial ATA ribbon cable x 2

I/O Shield x 1

RAID drivers Disc for Windows 2000,

Windows XP and Windows Server 2003

Other Accessories:

Divers CD (including User’s Manual) x 1

User’s Manual x 1

MX-7794 User’sManual Index

Index

Chapter1 <Introduction>......................................................................................7

1.1 <Product Overview>................................................................................. 7

1.2 <Product Specification> ........................................................................... 8

1.3 <Component Placement> ...................................................................... 10

1.4 <Block Diagram>.................................................................................... 11

1.5<Mechanial Drawing>………………………………………….......12

Chapter 2 <Hardware Setup>.............................................................................13

2.1 <Connector Location>............................................................................ 13

2.2 <Jumper Reference> ............................................................................. 14

2.3 <Connector Reference>......................................................................... 15

2.3.1 <Internal Connectors>................................................................ 15

2.3.2 <External Connectors>............................................................... 15

2.4 <CPU and Memory Setup>.................................................................... 16

2.4.1 <CPU installation>...................................................................... 16

2.4.2 <Memory installation> ................................................................ 17

2.5 <CMOS Setup>...................................................................................... 18

2.6 <Enhanced IDE interface>..................................................................... 19

2.7 <Serial ATA installation>......................................................................... 20

2.8 <Floppy Installation> .............................................................................. 21

2.9 <LAN installation> .................................................................................. 22

2.10 <Audio Installation>.............................................................................. 23

2.11 <Display Installation> ........................................................................... 25

2.12 <IEEE1394 and USB Installation> ....................................................... 26

2.13 <Power and Fan Installation> .............................................................. 28

2.14 <GPIO interface> ................................................................................. 30

2.15 <Serial Port> ........................................................................................ 31

2.16 <Switch and Indicator>......................................................................... 32

MX-7794 User’sManual Index

2.17 <Expansion Interface> ......................................................................... 33

Chapter 3 <System Configuration>...................................................................35

3.1 <SATA configuration>............................................................................. 35

3.2 <SATA RAID Configuration> .................................................................. 38

3.3 <Audio Configuration> ........................................................................... 42

3.4 <Video Memory Setup> ......................................................................... 43

3.5 <Display Properties Setting>.................................................................. 45

3.6 <PCI-Express interface setting> ............................................................ 47

Chapter 4 <BIOS Setup> ....................................................................................48

Appendix A <I/O Port Pin Assignment>............................................................50

A.1 IDE Port ................................................................................................. 50

A.2 <Serial ATA Port>................................................................................... 50

A.3 <Floppy Port> ........................................................................................ 51

A.4 <IrDA Port> ............................................................................................ 51

A.5 <Serial Port>.......................................................................................... 52

A.6 <VGA Port>............................................................................................ 52

A.7 <LAN Port> ............................................................................................ 52

A.8<IEEE 1394 Port>……………………………………………….53

A.9<LAN LED>…………………………………………………….53

A.10<SMBus>………………………………………………………53

Appendix B <System Resources>……………………………………………………54

B.1 I/O Port Address Map......................................................................56

B.2 Memory Address Map.....................................................................57

B.3 System IRQ&DMA Resources…………………………………..…….57

Appendix C <Flash BIOS>.................................................................................58

Appendix D <Programming GPIO's>………………………………………………59

Contact Information…………………………………………………………………..60

MX-7794 User’sManual

(This Page is Left for Blank)

MX-7794 User’sManual Introduction

Product Overview7

Chapter1 <Introduction>

1.1 <Product Overview>

MX-7794 is the motherboard withlast Intel desktop technologywith Mini-ITXform factor.

Based on Intel®945G and ICH7R, the board integrates a newPentium 4processor 775-pin

socket, DDR2 memorysocket, Intel®Graphic Media Accelerator 950 technology, PCI

express interface and SerialATAII with RAID function for a powerful desktop system.

Intel®LGA775 processor

The Intel®Pentium 4 processor nowcomeswith a new form factor with 775-pin PLGA

package, for 533/800/1066MHz front-side-bus, 1MB L2 cache, and for 90nm manufacturing

technology, the PLGA processorwithout pin header on solder side can makeuser installing

the processor on the socket easier.

Intel®945G and ICH7R chipset

The Intel 945G integrates DDR2 400/533/667MHz for memory, and Graphic Media

Accelerator (GMA) 950 technologyfor newgraphic engine. It can provideup to 224MB of

frame buffer when you install over 256MB of system memory.The ICH7R integrates with up

to 4 USB2.0 interfaces (4 ports for MX-7794), and serial ATAII interface with RAID function.

Four Marvell E8053

Four Gigabit LAN with Marvell E8053, MX-7794 comeswitha powerful network function for

the system that requires large transfer data of NAS system or Server platform.

PCI-Express interface

MX-7794 integrates a x16 PCI-Express interface, it can provide up to 8GB/s of bandwidth,

which AGP 8xcan onlyprovide up to 2GB/s.

Multimedia interfaces

MX-7794 also integrates 7.1 channel AC97 audio, mini-PCI interface and IEEE1394 port, for

these flexible function, system integrator can built more powerful systems for many

applications.

MX-7794 User’sManual Introduction

Product Specification8

1.2 <Product Specification>

General Specification

Form Factor Mini-ITX motherboard

CPU Intel®Pentium 4 / Pentium D/ Celeron D processor with

LGA775 socket

Package type: 775 pin PLGA

Front side bus: 533/800/1066MT/s (133/200/266MHz x 4)

Intel®Hyper-Threading Technology and Dual code supported

Memory 2 x 240-pin DDR2 400/533/667MHz SDRAM up to 2GB

Up to 8GB/s of bandwidth with dual-channel interleaved mode

Dual-Channel technology supported

Unbufferred, none-ECC memory supported only

Chipset Intel®945G (Northbridge) and ICH7R (Southbridge)

BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Intel®ICH7R built-in RTC with lithium battery

Enhanced IDE Enhanced IDE interface supports dual channels and up to 2

ATAPI devices at Ultra DMA100

One 40-pin IDE port onboard

Serial ATAII Intel®ICH7R integrates 4 Serial ATA II interface

RAID 0, 1,5,10 Intel Matrix Storage Technology supported

Multi-I/O Port

Chipset Intel®82801GR ICH7R with Winbond®W83627THF controller

Serial Port Two external RS-232 serial ports

USB Port Four Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Parallel Port None

Floppy Port One slim type Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface

Smart Fan One CPU fan connectors for fan speed controllable

VGA Display Interface

Chipset Intel®945G GMCH (Graphic Memory Controller Hub)

Core Frequency 400MHz

Memory Intel®DVMT 3.0 with up to 224MB shared with system memory

Display Type CRT, LCD monitor with analog display

Connector External DB15 female connector on rear I/O panel

MX-7794 User’sManual Introduction

Product Specification 9

Ethernet Interface

Chipset100/1000MT LAN interface with Marvell E8053

Type 10Base-T / 100Base-TX/1000Base-T,

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector Four External RJ45 connectors with LED on rear I/O panel

AudioInterface

Chipset Intel®ICH7R withRealtek®ALC880 codec

Intel High Definition Audio compliance

Interface 7.1 channels sound output

Connector External Audio phone jack for Line-out, Line-in, MIC-in, Surround,

Center and Backsurround

Onboard audio connector withpin header (built-in amplifier for

speaker out)

Onboard CD-IN connector

Expansive Interface

PCI-Express One x16 PCI-Express slot (compatible with x1 slot)

Up to 8GB/s of transfer bandwidth

Power supply: +3.3V, +12V

PCI One Mini-PCI socket TYPE III (32-bit, 33MHz)

Power supply:+3.3V, +5V

IEEE1394 AGERE FW323-06 controller integrated

IEEE1394A supported

Up to 400Mb/s of transferring rate

Power and Environment

Power

Requirement

Standard ATX24-pin(20-pinis compatible) power supply

Additional +12V 8-pin powerconnector

Dimension170 (L) x 170 (H) mm

Temperature Operatingwithin 0 ~ 60oC (32 ~ 140oF)

Storage within -20 ~ 85oC (-4 ~ 185oF)

Ordering Code

MX-7794 Intel®Pentium4 platform with Mini-ITXform factor

LGA775 socket, DDR2, onboard GMA950 VGA, 7.1CH Audio,

SATAII, USB2.0, PCI-Express 16x slot, Mini-PCI, IEEE1394

four Gigabit LAN.

PCIE-SDVOD PCI-Express add-on card for single DVI interface

PCIE-SDVOX PCI-Express add-on card for 18-bit/24-bits Dual channel LVDS

module.

The specifications may be different as the actual production.

For further product informationplease visit the website at http://www.ipchammer.com

MX-7794 User’sManual Introduction

Component Placement10

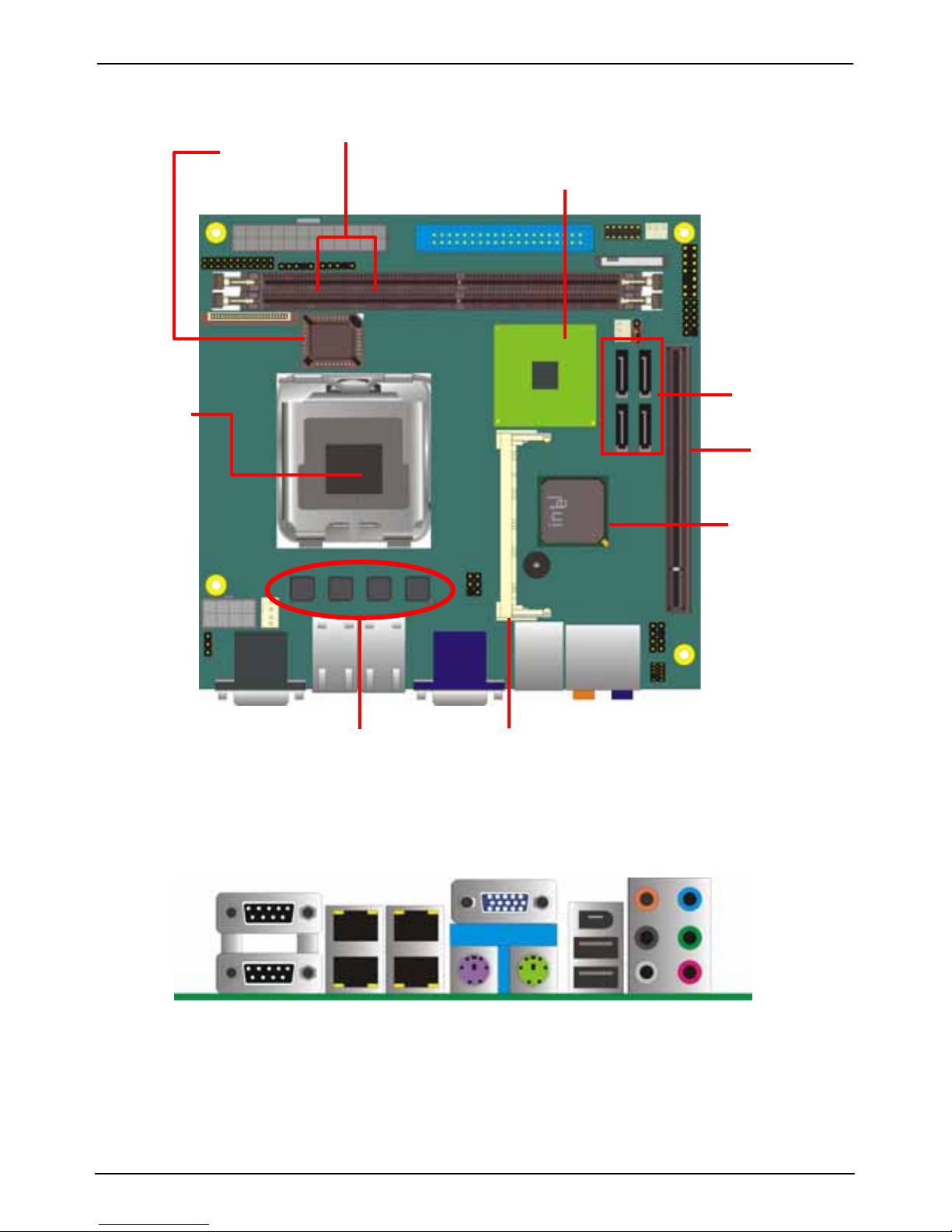

1.3 <Component Placement>

240-pin DDR2 Memory DIMM

BIOS

LGA 775

Intel 945G

ICH7R

Serial SATA

PCI Express

Marvell E8053 MiniPCI

Audio

VGA

COM2 LAN

KB/Mouse USB&1394

COM1

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Commell Hauptplatine Handbücher

Commell

Commell LE-370 Bedienungsanleitung

Commell

Commell LV-674E Bedienungsanleitung

Commell

Commell LE-37R Bedienungsanleitung

Commell

Commell LP-177 Bedienungsanleitung

Commell

Commell P3WMA Series Bedienungsanleitung

Commell

Commell LV-678 Bedienungsanleitung

Commell

Commell HE-B72 Bedienungsanleitung

Commell

Commell P4BWA Bedienungsanleitung

Commell

Commell Mini-ITX Motherboard LV-671 Bedienungsanleitung

Commell

Commell LV-669 Bedienungsanleitung

Commell

Commell Mini-ITX Motherboard LV-671 Bedienungsanleitung

Commell

Commell LE-565 Bedienungsanleitung

Commell

Commell LV-67A Bedienungsanleitung

Commell

Commell LV-67Z7 Bedienungsanleitung

Commell

Commell LV-679 Bedienungsanleitung

Commell

Commell LV-67T Bedienungsanleitung

Commell

Commell LV-674 Bedienungsanleitung

Commell

Commell AS-C74 Full size ATX motherboard Bedienungsanleitung

Commell

Commell AS-C7A Bedienungsanleitung

Commell

Commell LE-37I7S Bedienungsanleitung

Commell

Commell LV-677 Bedienungsanleitung

Commell

Commell LE-37C Bedienungsanleitung

Commell

Commell LE-370 Bedienungsanleitung

Commell

Commell LE-374 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
