Commell LE-37I7S Bedienungsanleitung

LE-37I

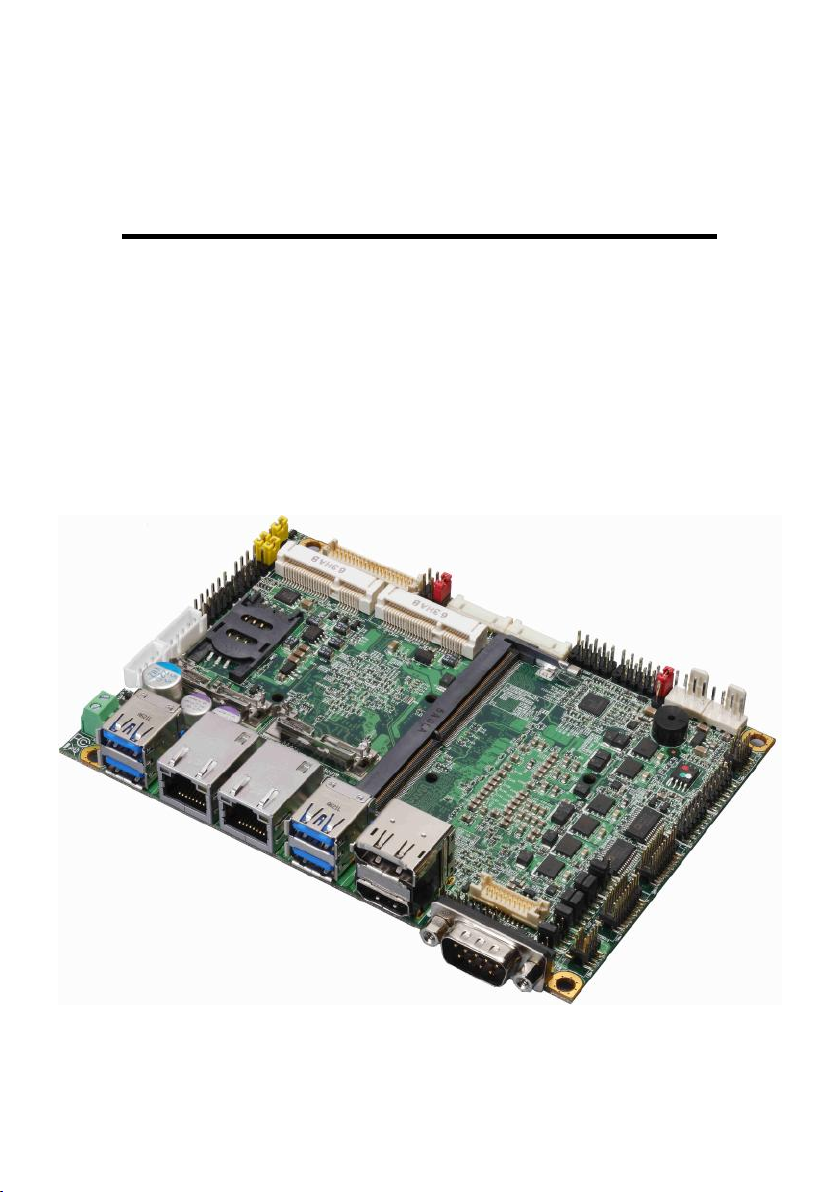

3.5 inch Motherboard

User’s Manual

Edition 1.0

2016/10/11

LE-37I User’s Manual

-1-

The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

LE-37I User’s Manual

-2-

1 x VGA Cable

(OALVGA-SNB-7) / (1040557)

Packing List:

Please check the package content before you starting using the board.

Printed Matters:

Driver CD (Including User’s Manual) x 1

1 x LE-37I Motherboard

(Include Heat spreader for LE-37IS series)

(Include Fan for LE-37IF series)

1 x DVI module with bracket

(BADPDVIP_A & OALDVI-DF13)

(4120008021 & 1040483)

2 x SATA CABLE

(OALSATA3-H10-L35 / 1040523)

1 x Audio cable

(OALPJ-HDUNB / 1040123)

1 x SATA Power Cable

(OALSATA15-2PJ / 1040613)

1 x COM Cable

(OALES-BKU1NB / 1040086)

1 x PS/2 Keyboard & Mouse cable

(OALPS2/KM / 1040131)

1 xUSB2.0 cable

(OALUSBA-3 / 1040173)

(Optional)

1 xDC Input Power Cable

(OALDC-B / 1040513)

1 x Dual COM cable

(OALES-BKU2NB / 1040090)

(Optional)

LE-37I User’s Manual

-3-

Index

Chapter 1 <Introduction>............................................................... 4

1.1 <Product Overview>............................................................4

1.2 <Product Specification> ...................................................... 5

1.3 <Block Diagram>.................................................................6

Chapter 2 <Hardware setup>......................................................... 7

2.1 <Connector Location and Reference> ................................7

2.1.1 <Internal connectors list> ..........................................8

2.1.2 <External connectors list>.........................................8

2.2 <Memory Setup>.................................................................9

2.3 <Jumper Location and Reference> ...................................10

2.3.1 <Jumper list> .......................................................... 10

2.3.2 <Clear CMOS and Power on type selection>.......... 11

2.4 <I/O interface> .................................................................. 11

2.4.1 <Serial ATA interface>............................................. 11

2.4.2 <Ethernet interface>................................................12

2.4.3 <Display interface> .................................................12

2.4.4 <Serial Port interface> ............................................15

2.4.5 <USB interface>......................................................18

2.4.6 <Audio interface>....................................................19

2.4.7 <Expansion slot>.....................................................20

2.4.8 <Front panel switch and indicator> ......................... 21

2.4.9 <GPIO and Other interface> ...................................21

2.5 <Power supply> ................................................................23

2.5.1 <Power input>.........................................................23

2.5.2 <Power output>.......................................................24

Appendix A <Flash BIOS> ........................................................... 25

Appendix B <LCD Panel Type select> ........................................ 25

Appendix C <Programmable Watch Dog Timer> ....................... 27

Appendix D <Hardware monitor > ..............................................28

Appendix E <Programmable GPIO > .......................................... 29

Appendix F <RAID Setting>......................................................... 30

Contact information .....................................................................31

LE-37I User’s Manual

-4-

Chapter 1 <Introduction>

1.1 <Product Overview>

LE-37I is 3.5 inch Motherboard which supports 6th Generation Intel® Core™ i7, i5, i3,

H-series Processor with Intel® QM170 Chipset, integrated HD Graphics 530, DDR4

memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3

Intel Skylake-H Processor with Intel® QM170 Chipset PCH-H

The 6th Generation Intel® Core™ H-series processor family is new generation and

multi-core processor built on 14 nanometer process.

Skylake provide new HD Graphics 530 support triple displays at the same time, maximum

supported is up to 16GB of DDR4, better performance, flexibility and more enhanced

security that is suitable for a variety of intelligent systems the ideal choice.

All in One multimedia solution

LE-37I provides high performance onboard graphics, 18/24-bit single/dual channel LVDS

interface, DisplayPort, DVI, CRT and High Definition Audio, to meet the requirement of the

multimedia application.

Flexible Expansion Interface

It includes two minicard slot, 6 x COM port, 4 x USB3.0, and 4 x USB2.0.

Skylake remove EHCI

When you install WIN7 with USB device(CDROM, Keyboard, Mouse...), Windows7 can not

identify your usb device. You can use SATA CD-ROM and PS/2 to install Windows7.

LE-37I User’s Manual

-5-

1.2 <Product Specification>

System

Processor

Intel® Skylake Core™ i7, i5, i3 H-seriesProcessor, FCLGA1440 package

Chipset

Intel® QM170 PCH-H

Memory

1 x DDR4 SO-DIMM 2133 MHz up to 16GB,

Support Non-ECC, unbuffered memory only

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Real Time Clock

Chipset integrated RTC with lithium battery

Expansion

2 x MiniPCIe (support mSATA)

1 x Sim slot

Graphics

Chipset

Intel® 9th Gen integrated HD Graphics

Display Interface

1 x DVI, 1 x HDMI, 1 x DisplayPort, 1 x LVDS, 1 x CRT

LAN

Chip

1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT11.0)

1 x Intel® I210-AT Gigabit LAN

I/O

Serial ATA

2 x SATA3

Audio

Realtek ALC262 HD Audio

Internal I/O

2 x SATA3, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x PS/2

1 x LCD inverter, 1 x GPIO , 1 x Audio, 1 x SMBUS, 1 x CRT, 1 x DVI

1 x RS232/422/485

Rear I/O

1 x HDMI , 1 x DisplayPort,4 x USB3.0, 2 x LAN, 1 x RS232

Mechanical & Environmental

Power Requirement

DC 9~24V

Size & Thickness

146mm x 101mm (L x W), 1.6mm

Temperature

Operating within 0°C~60°C (32°F~140°F)

Storage within -20°C~80°C (-4°F~176°F)

Relative Humidity

10%~90%, non-condensing

LE-37I User’s Manual

-6-

1.3 <Block Diagram>

CPU

6th

Gen Processor

QM170

PCH-H

1 x DisplayPort

1 x HDMI

DDI

PTN3460

1 x LVDS

eDP

2 x SATA3

SATA3

4 x USB3.0

4 x USB2.0

USB3.0

USB2.0

SPI Flash

SPI

I219-LM

HDA

HD Audio

LPC

1 x LPC

ALC262

1 x SMBUS

SMBus

DDI

Channel A

DDR4 SO-DIMM 1.2V

SIO

NCT6106D

5 x RS232

1 x RS232/RS422/RS485

1 x GPIO

1 x PS/2

MiniPCIe

/ mSATA

PCIe

PTN3355

DMI GEN3

PCIe

I210-AT

1 x CRT

1 x DVI

DDI

MiniPCIe

/ mSATA

SATA3

PCIe

SATA3

PCIe

LE-37I User’s Manual

-7-

Chapter 2 <Hardware setup>

2.1 <Connector Location and Reference>

CN_USB2-2 CN_USB2-1 SYSFAN CPUFAN

CN_PS2

JFRNT

CN_CRT CN_DVI

CN_AUDIO

CN_LPC

CN_DIO

CN_COM5/6

CN_COM3/4

CN_COM2

MINICARD2

MINICARD1

SIMM

DDR4

CN_BAT CN_SMBUS

I219

I210

COM1

USB3.0

HDMI

Display Port

LE-37I User’s Manual

-8-

2.1.1 <Internal connectors list>

Connector

Function

DDR4

260-pin DDR4 SO-DIMM slot

SATA3-1/2

10-pin Serial ATA3 connector

CN_AUDIO

5 x 2-pin audio pin header

CN_LPC

6 x 2-pin LPC pin header

CN_LVDS

20 x 2-pin LVDS connector

CN_INV

5-pin LCD inverter connector

CN_SMBUS

5-pin SMBus connector

CN_COM2

20-pin RS232/485/422 for COM2

CN_COM3/4 / 5/6

20-pin RS232 connector

CN_USB 2-1 / 2-2

5 x 2-pin USB2.0 pin header

CN_DIO

6 x 2-pin digital I/O connector

CN_CRT

16-pin VGA connector

CN_BAT

2-pin Battery connector

CN_DVI

10 x 2-pin DVI connector

CPUFAN

4-pin CPU fan connector

SYSFAN

4-pin system fan connector

JFRNT

10-pin front panel switch/indicator connector

MINI_CARD1

52-pin MiniPCIe card slot (support MSATA by JMSATA1)

MINI_CARD2

52-pin MiniPCIe card slot (support MSATA by JMSATA2)

DC_IN

2-pin power input Terminal Block

SIMM

6-pin socket

2.1.2 <External connectors list>

Connector

Function

DisplayPort

DisplayPort connector

HDMI

HDMI connector

RJ45-1/2

RJ45 connector

USB3.0 1/2

USB3.0 connector

COM1

DB9 Serial port connector

LE-37I User’s Manual

-9-

2.2 <Memory Setup>

In the process, the board must be powered off.

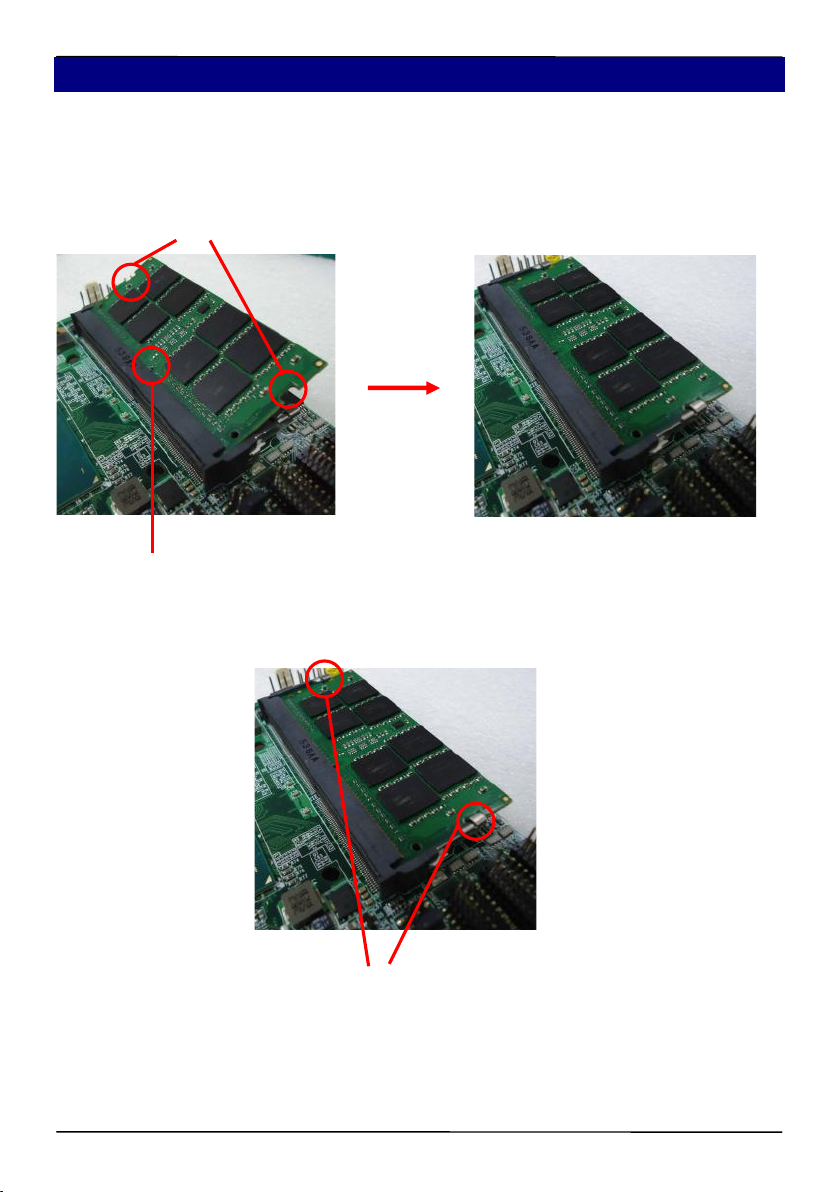

1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.

2. Then press down till lock into the mounting notch.

3. To remove the memory, push outward on both sides of the latch.

Press down

Mounting notch

KEY

LATCH
