Compaq V50 Bedienungsanleitung

. . . . . . . . . . . . . . . . . . . . . . . . .

STRM

Part Number 264154-001 - - Writer: Marianne Silvetti - Saved by Troy Witte - Saved date: 09/18/97 4:14 PM

File Name T:\docs\codename\partnumber\NOTIC.DOC

Notice

The information in this guide is subject to change without notice.

COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE

FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS

CONTAINED HEREIN; NOR FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE

FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.

This guide contains information protected by copyright. No part of this

guide may be photocopied or reproduced in any form without prior written

consent from Compaq Computer Corporation.

1996 Compaq Computer Corporation.

Compaq, Deskpro, QVision, ProLinea

Registered U. S. Patent and Trademark Office.

The software described in this guide is furnished under a license

agreement or nondisclosure agreement. The software may be used or

copied only in accordance with the terms of the agreement.

Product names mentioned herein may be trademarks and/or registered

trademarks of their respective companies.

User’s Guide

Compaq V50 Color Monitor

Second Edition (October 1996)

Part Number 264154-002

Compaq Computer Corporation

. . . . . . . . . . . . . . . . . . . . . . . . .

Contents ix

Part Number 264154-001 - - Writer: Marianne Silvetti - Saved by Troy Witte - Saved date: 09/19/97 9:44 AM

File Name T:\docs\codename\partnumber\TOC.DOC

CONTENTS

Chapter 1

INTRODUCTION

Product Features 1-1

Installing the Monitor 1-2

Chapter 2

OPERATING THE MONITOR

Front Control Panel 2-1

Display Resolutions 2-3

Energy Saver Feature 2-3

Chapter 3

CARE AND MAINTENANCE

Protecting the Monitor 3-1

Cleaning the Monitor 3-2

Shipping the Monitor 3-2

Adjusting Picture Quality 3-3

Optimizing Contrast 3-3

Optimizing Focus 3-3

. . . . . . . . . . . . . . . . . . . . . . . . .

xContents

Part Number 264154-001 - - Writer: Marianne Silvetti - Saved by Troy Witte - Saved date: 09/19/97 9:44 AM

File Name T:\docs\codename\partnumber\TOC.DOC

Appendix A

SPECIFICATIONS

Specifications Table A-1

Connector Pin Assignment A-2

Appendix B

POWER CORD SET REQUIREMENTS

General Information B-1

U.S. and Canada B-1

Japan B-2

Other Countries B-2

Appendix C

ELECTROSTATIC DISCHARGE

Preventing Electrostatic Discharge C-1

Methods of Grounding C-1

. . . . . . . . . . . . . . . . . . . . . . . . .

Part Number 264154-001 - - Writer: Marianne Silvetti - Saved by Marianne Silvetti - Saved date:

04/26/96 11:30 AM

File Name T:\docs\codename\partnumber\FCC.DOC

Regulatory Notices

Federal Communications

Commission Notice

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

■Reorient or relocate the receiving antenna.

■Increase the separation between the equipment and the receiver.

■Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

■Consult the dealer or an experienced radio or television technician

for help.

Modifications

The FCC requires the user to be notified that any changes or modifications

made to this device that are not expressly approved by Compaq Computer

Corporation may void the user’s authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic

RFI/EMI connector hoods to maintain compliance with FCC Rules and

Regulations.

. . . . . . . . . . . . . . . . . . . . . . . . .

Part Number 264154-001 - - Writer: Marianne Silvetti - Saved by Marianne Silvetti - Saved date:

04/26/96 11:30 AM

File Name T:\docs\codename\partnumber\FCC.DOC

Canadian Notice

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les exigences du

Règlement sur les matériel brouilleur du Canada.

German Ergonomics Notice

Compaq computers, when tested with the Compaq 610, 610A, and 610T

Series Monitors, were evaluated and found compliant to the requirements

of ZH1/618 (German Safety Regulations for Display Work Places in the

Office Sector) in the Text Mode (720 x 400) using MS-DOS Version 3.31

(or higher) and BASICA as published by Compaq Computer Corporation.

EPA Energy Star

Monitors that are marked with the Energy Star Logo meet the requirements

of the EPA Energy Star program. As an Energy Star Partner, Compaq

Computer Corporation has determined that this product meets the Energy

Star guidelines for energy efficiency. Specific details on using the Energy

Saving features can be found in the energy saver or power management

section of your computer manual.

European Notice

Products with the CE Marking comply with both the EMC Directive

(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the

Commission of the European Community.

Compliance with these directives implies conformity to the following

European Norms:

■EN55022 (CISPR 22) - Radio Frequency Interference

■EN50082-1 (IEC801-2, IEC801-3, IEC801-4) Electromagnetic

Immunity

■EN60950 (IEC950) - Product Safety

. . . . . . . . . . . . . . . . . . . . . . . . .

vii

Part Number 264154-001 - - Writer: Marianne Silvetti - Saved by Marianne Silvetti - Saved date:

04/26/96 11:30 AM

File Name T:\docs\codename\partnumber\FCC.DOC

Japanese Notice

. . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 1

Introduction 1-1

Part Number 264154-002 - - Writer: Marianne Silvetti - Saved by Marianne Silvetti

Saved date: 05/15/96 9:52 AM - File Name T:\docs\codename\partnumber\CH1.DOC

Introduction

The Compaq V50 Color Monitor is a microprocessor-based,

intelligent scanning monitor that automatically locks in on the most

common display modes.

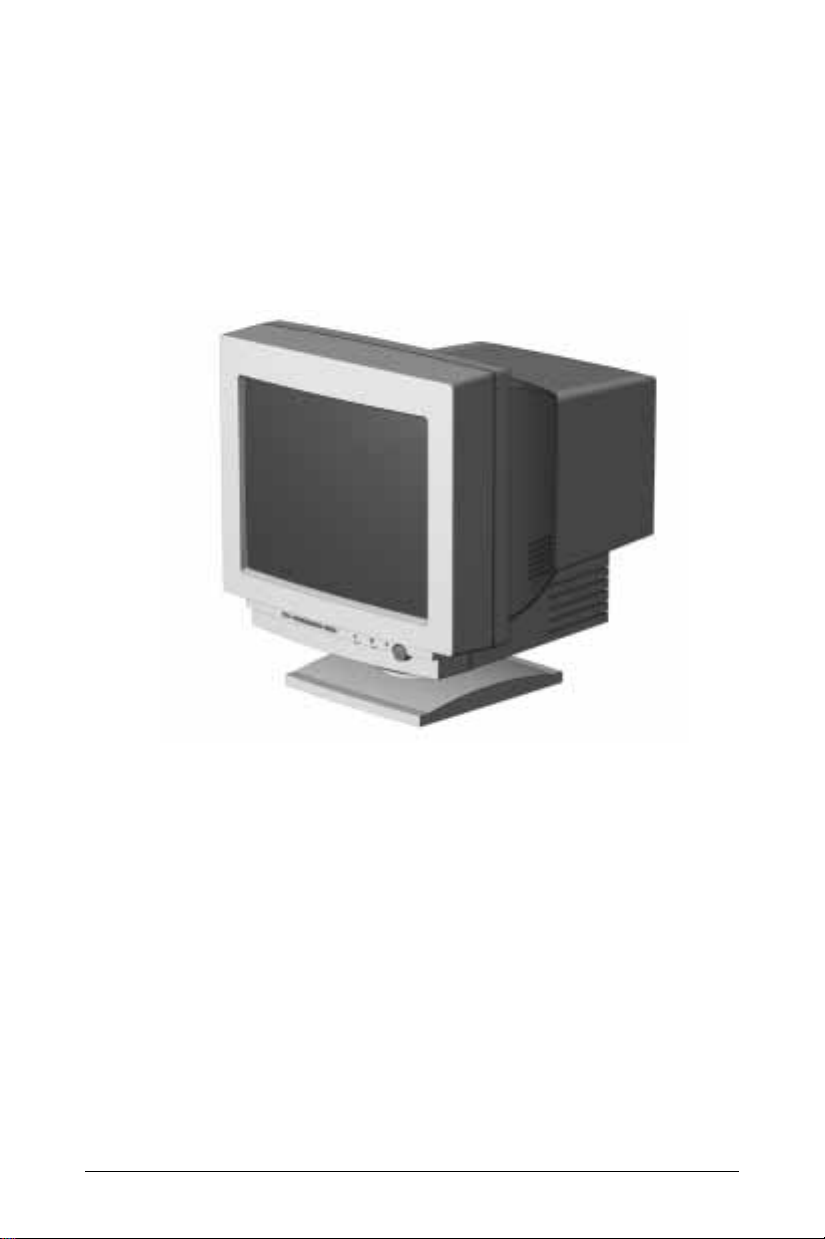

Compaq V50 Color Monitor

Product Features

The monitor features include the following:

■15-inch CRT with a 13.77-inch (35.0 cm) diagonal viewable

image size

■Easy-to-access front panel controls

■Plug and Play capability if supported by your system

■Tilt control (image rotation) functionality

■Automatically scans all horizontal frequencies between 31.5 and

60 kHz and vertical frequencies between 50 and 100 Hz

■Supports VGA, Super VGA, and 1024 × 768 resolutions

. . . . . . . . . . . . . . . . . . . . . . . . .

1-2 Introduction

Part Number 264154-002 - - Writer: Marianne Silvetti - Saved by Marianne Silvetti

Saved date: 05/15/96 9:52 AM - File Name T:\docs\codename\partnumber\CH1.DOC

■Energy Saver feature, when activated, results in a power savings

of greater than 90 percent

■Compliant with the following regulated specifications:

- EPA Energy Star

- European Union CE Directives

- Swedish MPR II 1990

- Swedish TCO 1995 on certain models

Installing the Monitor

To install the monitor, ensure that the power to the monitor,

computer system, and other attached devices is turned off, then

follow these steps:

1. Place the monitor in a convenient, well-ventilated location near

your computer.

2. Connect the monitor signal cable ➊to the 15-pin connector on

the rear panel of the computer and tighten the screws.

IMPORTANT: Be sure the signal cable aligns with the 15-pin

connector. Do not force the cable onto the connector or you may

damage the signal cable.

. . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 1-3

Part Number 264154-002 - - Writer: Marianne Silvetti - Saved by Marianne Silvetti

Saved date: 05/15/96 9:52 AM - File Name T:\docs\codename\partnumber\CH1.DOC

3. Connect the monitor power cord ➋to the rear panel of the

monitor, then plug the other end of the cord into an electrical

outlet that is easily accessible and close to the monitor.

!WARNING: This equipment is designed forconnection to a

grounded (earthed) outlet. The grounding type plug is an

important safety feature. To avoid risk of electric shock or

damage to yourequipment, do not disable this feature.

. . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 2

Operating the Monitor 2-1

Part Number 264154-001 - - Writer: Marianne Silvetti - Saved by Troy Witte - Saved date: 08/29/97

2:11 PM

File Name T:\docs\codename\partnumber\CH2.DOC

Operating the Monitor

Front Control Panel

No./Icon Control Function

1Shift button Selects anddeselects secondary controls.

2Mode Indicator Indicator lights up when secondary controls

are active.

3Horizontal

Position/ Moves the screen left or right.

Trapezoid Corrects trapezoid distortion. Adjusts the width

of the upper side ofthe image to equal the

lower side.

4Horizontal Size/ Adjusts the horizontal screen width.

Pincushion Straightens the vertical lines ifthe picture has

pincushion or barrel distortion. Continued
