User Manual

Connected AirWits CO2

R5.2

AirWits CO2

Connected AirWits CO2 is a connected

carbon dioxide (CO2), temperature, and

humidity metering device

Last updated August 2020

Contents

Using this manual

Read me ﬁrst

About the device

Function

Assembling and Installation

Uplink: Payload description

Downlink

Downlink: Payload description

Downlink: Measurement Interval

Troubleshooting

Technical Speciﬁcation

Thank you for choosing this Connected

Inventions device. This device will provide you

high-quality IoT with Connected Inventions’

exceptional technology and high standards.

This manual has been specially designed to

guide you through the functions and features

of your device.

Using this manual

• Before using your device, read the entire

manual and all safety instructions to

ensure safe and proper use.

• The descriptions in this manual are based

on the default settings of your device.

• The images used in this manual may diﬀer

from the actual product.

• The contents of this manual may diﬀer

from software provided by service

providers or carriers, and are subject to

change without prior notice.

• Access the Connected Inventions website

(www.connectedinventions.com) for the

latest version of the manual.

• Available features and additional services

may vary by service provider.

Read me first

• Applications on this device may perform

diﬀerently from comparable applications

and may not include all functions available

(by ie. downlink messaging features)

• Connected Inventions is not liable for

performance issues caused by third-party

applications or improper installation.

• Please keep this manual for future

reference.

• In case of malfunction, deliver the device to

the supplier. Do not open the cover.

• Do not remove packing material and do not

repack the device unless necessary.

Contact the shipping agent before

transportation. Inside the device there is a

battery which contains approximately 3.0 g

of lithium.

• Return the device to a disposal station

which collects electronics waste and

batteries.

• Protect the device from moisture, water,

and dirt.

Malfunction

Transportation

Disposal

Operation

Connected Inventions AirWits CO2 is a

wireless air quality metering device with

ultra long battery life. This intelligent and

small device measures and sends the

CO2, temperature and humidity data

sequentially from 10 min to 24 hours

using the world-wide Sigfox IoT-network

connectivity for data transmission,

enabling very low lifetime cost. The

installation of the device is extremely

simple procedure and requires neither

special tools nor conﬁguration operation.

The device is maintenance free, and thus a

great solution especially for long term

indoor air quality metering providing

accurate data for energy savings and

comfortable living conditions which can

be monitored remotely. By default, the

device calibrates itself every 48 hours yet

it oﬀers diﬀerent calibration features for

advanced use, when needed.

About

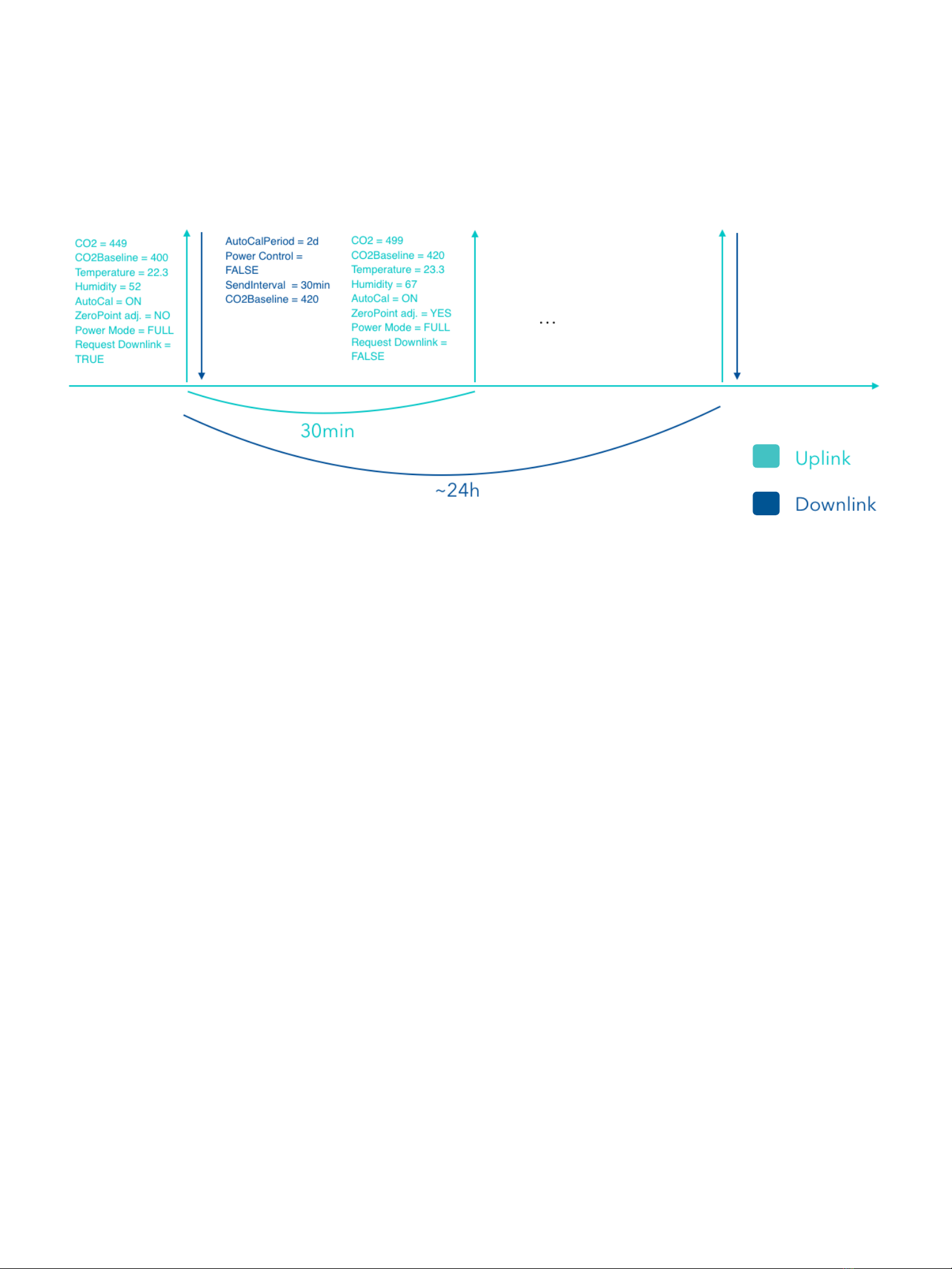

The basic functionality procedure example:!

Function

When the device is powered on, it will do initial CO2 measurement calibration within 30

minutes. For this time, place the sensor in fresh air environment clear from any human,

gas or petrol operated devices, stoves, burning objects or animals as the initial

calibration target is 400ppm CO2. After calibration is ready, the device will send the

initial measurements and ask downlink message from the network. The CO2 Baseline,

transmission interval time and adaptive power control function can be set through

downlink message. In case the downlink message is not in use, the device continues to

send a measurement message every 30 minutes and request downlink message every

24 hours.

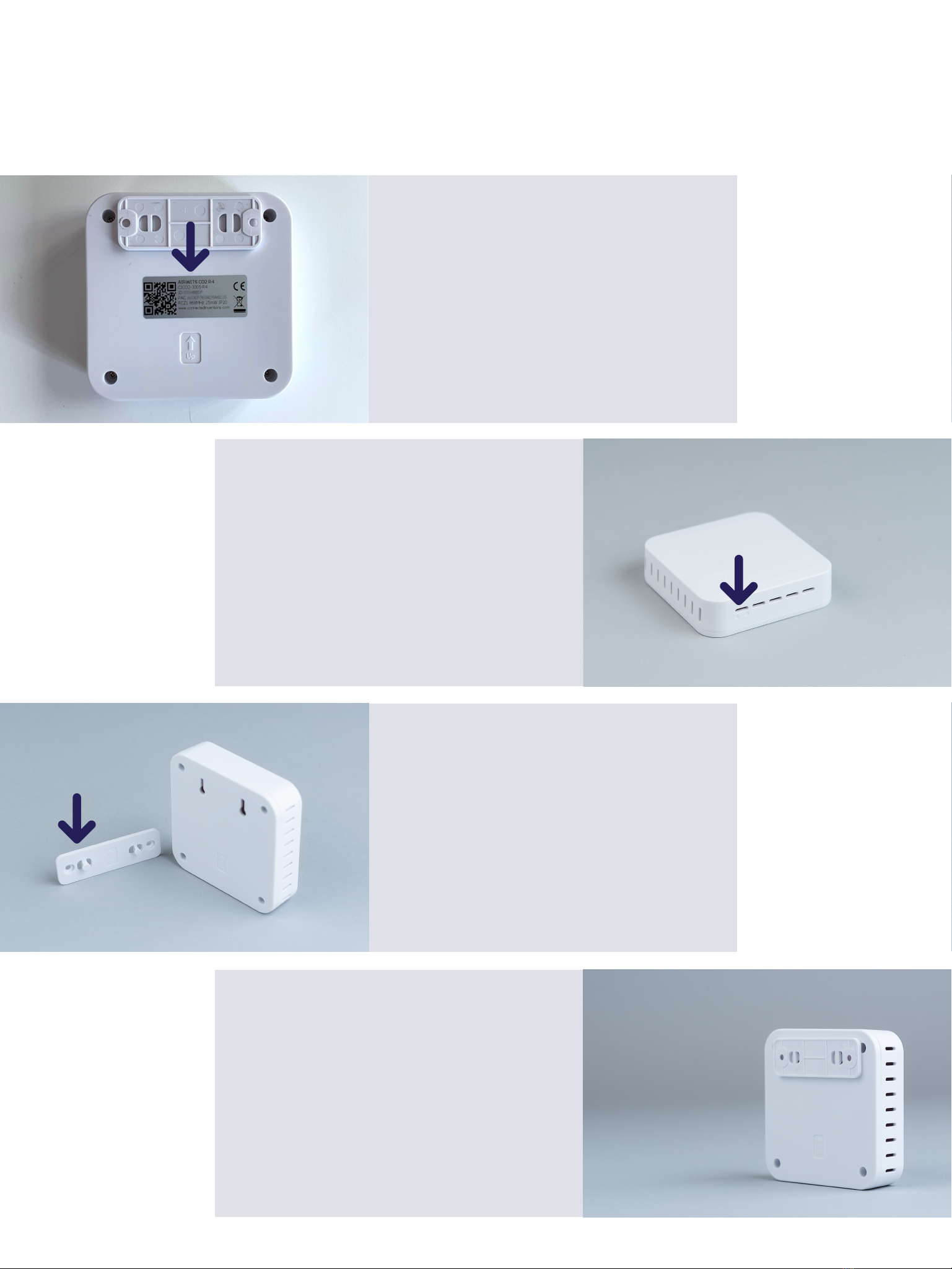

Assembly & Installation

Save the identiﬁer and the key

of the device. The identiﬁer

and the PAC key is on the label

on the bottom of the device.

Yo u c a n a l s o r e a d t h e

identiﬁer and the PAC key

using the QR code.

Move the device to fresh air

location and switch the device

on by sliding the power switch

to position “1”

Install the wall plate to the

wall using screws suitable for

the wall material. Please

note the orientation!

Attach the device to the wall

having the pins meeting

installation holes in the

device. Please note the

orientation!

The device needs to be calibrated.

During the ﬁrst 24 hours of initialisation

the device needs minimum of 1 hour of

fresh air in order to work properly. This

means that the device needs a

minimum of 1 hour after initialisation in

an environment without any CO2

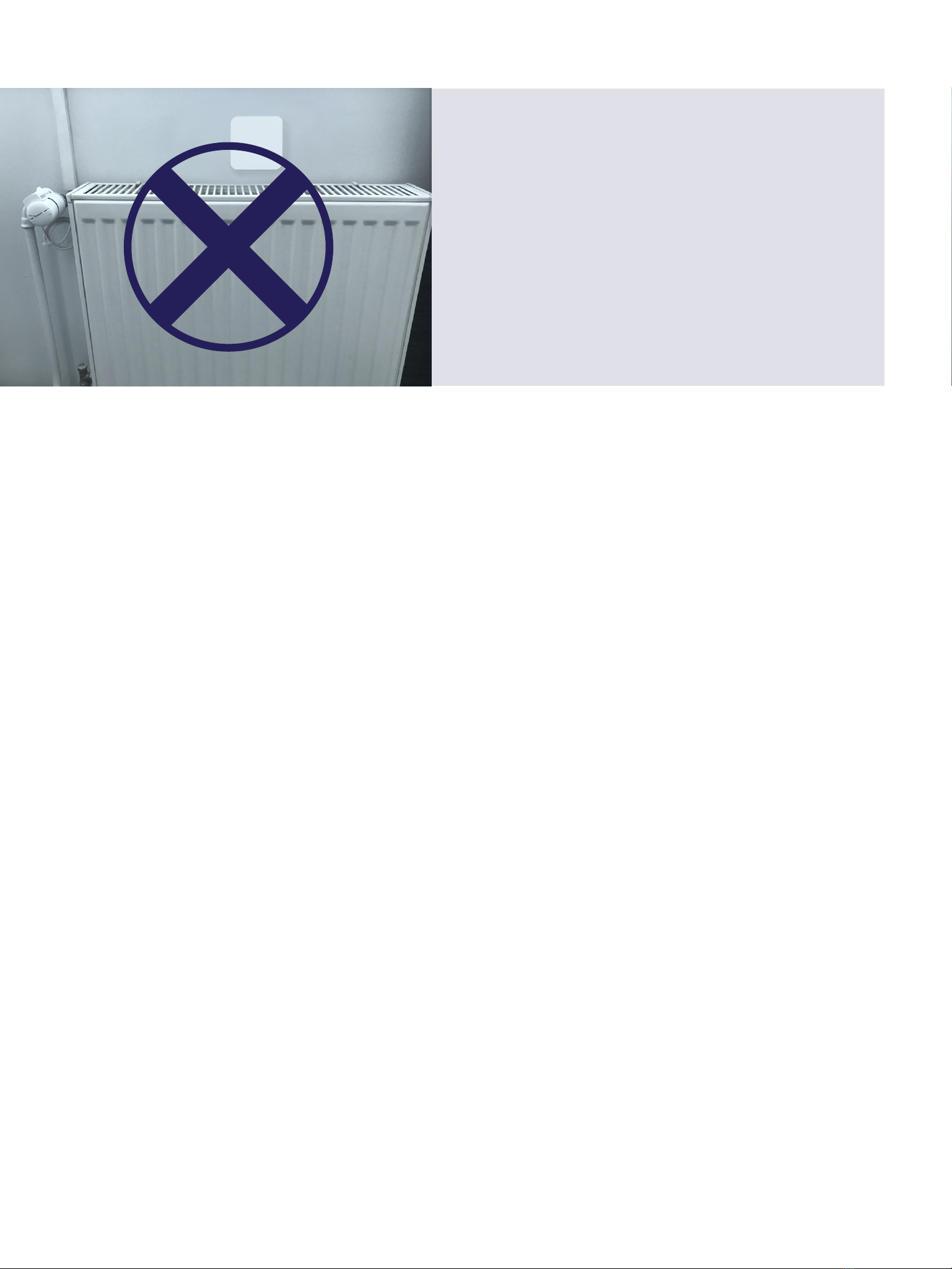

Please note! Avoid placing device

closer than 15cm on any metal or

magnetic object, electric cables,

electric devices or selective glass

as this will dramatically reduce

radio performance as well as

battery life of the device.!

Replacing batteries

The device battery pack is proprietary made. Once device runs out of battery, please

contact your local partner or Connected Inventions for support the battery pack

replacement. Do not try to replace the battery pack with other brands available as there

is a risk of breaking the device. The battery pack lasts years in normal use so in case of

no messages received from the device, please check ﬁrst the power is switched on and

the Sigfox radio coverage is available at the location.

Indexing: bytes are in big-endian order and bits in standard 76543210 "little endian" order.

BYTE

BIT

TYPE

NAME

DESCRIPTION

Boolean

Auto Calibration

FALSE = oﬀ, TRUE = on

Boolean

Zero Point Adjusted

1= TRUE, 0 = FALSE

Boolean

Transmit power

FALSE = Low, TRUE = Full

Boolean

Power Control

Active power control. TRUE= On, FALSE = OFF

4-7

UInt4

FW version

1-2

0-15

UInt16

Temperature

(Value /10) - 40 = Temperature [°C]

(Value /18) - 8 = Temperature [°F]

0-7

UInt8

Humidity

Humidity [%]

4-5

0-15

UInt16

CO2

CO2 concentration [ppm]

0-7

UInt8

CO2 Baseline

Baseline = (N*10)ppm, if N=0 then Baseline =

400ppm

Boolean

Auto Calibration

FALSE = oﬀ, TRUE = on

Uplink: Payload Description

Example: UL Messages

1C000000010028

• Firmware: 1

• Power control: On

• TX power: Full

• Zero Point Adjusted: FALSE

• Auto Calibration: Oﬀ

• Temperature: -40.0’C

• Humidity: 0%

•CO2: 256ppm

• CO2 Baseline: 400ppm

18000000010028

• Firmware: 1

• Power control: on

• TX power: Low

• Zero Point Adjusted: FALSE

• Auto Calibration: Oﬀ

• Temperature: -40.0’C

• Humidity: 0%

•CO2: 256ppm

• CO2 Baseline: 400ppm

0x026F = 623Dec

(623/10)-40 = 22,3

24024D09019840

• Firmware: 2

• Power control: Oﬀ

• TX power: Full

• Zero Point Adjusted: FALSE

• Auto Calibration: Oﬀ

• Temperature: 18.9’C

• Humidity: 9%

•CO2: 408ppm

• CO Baseline: 640ppm

27024D09019840

• Firmware: 2

• Power control: Oﬀ

• TX power: Full

• Zero Point Adjusted: TRUE

• Auto Calibration: On

• Temperature: 18.9’C

• Humidity: 9%

•CO2: 408ppm

• CO Baseline: 640ppm

25024D09019840

• Firmware: 2

• Power control: Oﬀ

• TX power: Full

• Zero Point Adjusted: FALSE

• Auto Calibration: On

• Temperature: 18.9’C

• Humidity: 9%

•CO2: 408ppm

• CO Baseline: 640ppm
