Cornelius VANGUARD 245 Bedienungsanleitung

October 28, 1997

EIMI Cornelius Inc; 1997 569030007

IMI CORNELIUS INC.

One Cornelius Place

Anoka, MN. 55303-6234

Telephone (612) 421–6120

Facsimile (612) 422–3232

ADDENDUM TO INSTALLATION/SERVICE MANUAL

IMI CORNELIUS INSTALLATION/SERVICE MANUAL (P/N 569000203)

FOR

VANGUARD 245 POST-MIX OVERCOUNTER DISPENSER

(Mc DONALD’SRAPPLICATIONS)

The purpose of this Addendum is to document additional information about the Vanguard 245 Post-Mix Overcounter

Dispenser (P/N 497306660WS) not documented in manual (P/N 569000203) provided with this Dispenser. This Dis-

penser is equipped with a plain water dispensing spout located between No. 5 and No. 6 dispensing valves that when

activated, will dispense chilled plain water.

NOTE: A CO2“OUT” Light Kit (P/N 1983) and a Dispenser Leg Kit (P/N 560000126) are available for all of

the Vanguard 245 Dispensers.

INSTALLATION

INSTALLING DISPENSER ON COUNTERTOP

Select location and install Dispenser on countertop as instructed in manual provided with the Dispenser.

CONNECTING PLAIN WATER LINE TO DISPENSER PLAIN WATER DISPENSING

SYSTEM

(see Figure 1)

Plain water connected to the Dispenser plain water solenoid valve, located on top of the refrigeration deck, pro-

vides chilled plain water to be dispensed from the plain water dispensing spout. Proceed as follows to connect

plain water to the plain water solenoid valve.

1. Remove Dispenser hood for access to the plain water solenoid valve on top of the refrigeration deck (see

Figure 1).

2. Route plain water line from filtered plain water source up to the Dispenser.

3. Route plain water line up under Dispenser, up behind Dispenser front access panel, and on to plain water

solenoid valve on top of the refrigeration deck.

4. Connect plain water line to inlet of the plain water solenoid valve.

COMPLETING INSTALLATION OF THE DISPENSER

IMPORTANT: Before installing Dispenser front access panel, make sure the two-wire electrical wiring

harness with spade clip terminals on it’s end (intended for connection to the push-button plain water

dispense switch on the drip tray support) is hanging down out bottom of the Dispenser. This wiring

harness must be connected to the plain water dispense switch before installing the drip tray in the drip

tray support.

Complete installation of Dispenser as instructed in manual provided with your Dispenser.

2569030007

OPERATION

Place cup or glass under plain water spout between No. 5 and No. 6 dispensing valves. Press plain water dis-

pense switch on side of the drip tray support until cup or glass is full of chilled water, then release dispense

switch.

SCREW

HOOD

PLAIN WATER

SOLENOID VALVE

FRONT ACCESS

PANEL

SCREW

CUP REST

DRIP TRAY

TWO-WIRE ELECTRICAL

WIRING HARNESS

PLAIN WATER

DISPENSE SWITCH

DRIP TRAY SUPPORT

WATER DISPENSING

SPOUT

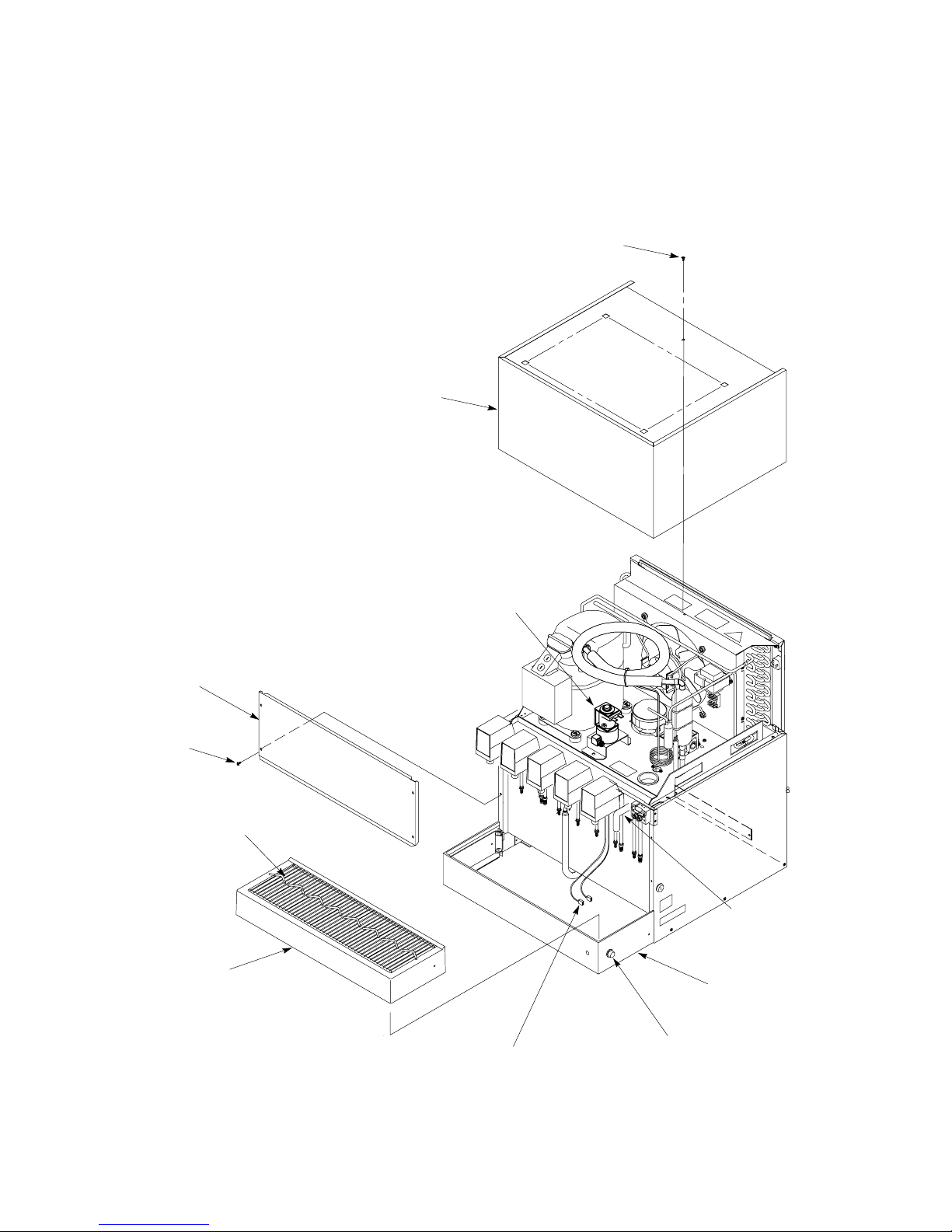

FIGURE 1. INSTALLATION

5690300073

CO2WATER 1

SYRUP 1

CO2WATER 2

SYRUP 2

CO2/PLAIN WATER

SYRUP 4

CO2WATER 4-5

SYRUP 5

SYRUP 6

DUAL CARB WATER

COOLING COILS (5)

SYRUP COOLING

COIL (6)

PLAIN WATER

COOLING COIL STILL

(NON-CARB)

OR CARBDRINK

DISPENSING

VALVE (6)

SYRUP 3

CO2WATER 6

CARB DRINK

PLAIN WATER

COOLING COIL

SOLENOID

VALVE

WATER SPOUT

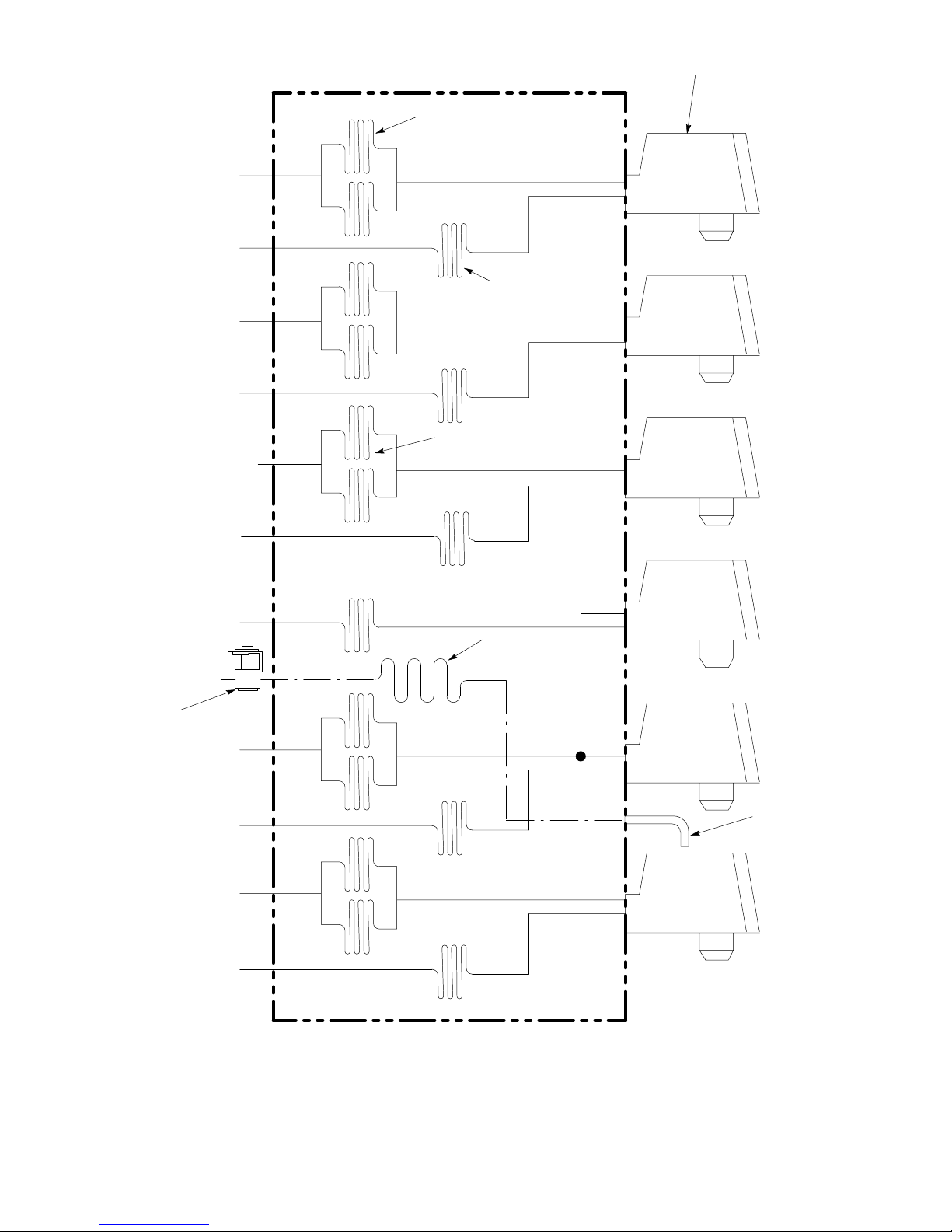

FIGURE 2. FLOW DIAGRAM (DISPENSER P/N 497306660WS)

569030007

FIGURE 3. WIRING DIAGRAM (DISPENSER P/N 497306660WS)

PUSH BUTTON

SWITCH

SOLENOID

UNIT WITH WATER

SPOUT ONLY
