Cornelius IDC PRO
Cleaning Instructions
& Trouble Shooting
NOZZLES AND DIFFUSERS - DAILY CLEANING
Remove the nozzles from the dispenser by turning each
nozzle to the left and pulling down.
Remove the inner diffusers by pulling down; separate the
clear gasket from the diffuser.
Note orientation of gasket for reinstallation (shown on
page 4)
NOZZLES AND DIFFUSERS - DAILY CLEANING
Clean the diffusers, nozzles and gaskets thoroughly
with the nylon bristle brush and soapy water. Rinse
them with water.
Put the nozzles, gaskets and the diffusers in
sanitizer solution for one minute. Don’t over soak
or they will dry out.
Remove the nozzles, gaskets and diffusers from the
solution and allow them to air dry.
NOZZLES AND DIFFUSERS –DAILY CLEANING
Install the gasket into the diffuser. Line
up the two notches on the inner circle
of both the gasket and diffuser.
Push the silicone gasket into the
diffuser.
Make sure that the raised side of the
clear gasket is face-up when re-
inserting the diffuser.
Note: If the clear gasket is upside
down, the notches will not line up
right.
4
NOZZLES AND DIFFUSERS - DAILY CLEANING
Brush the diffuser area under the machine
thoroughly with a nylon bristled brush.
Wipe under side of valves with sanitizer
cloth.
Allow to air dry.
NOZZLES AND DIFFUSERS –DAILY CLEANING
Re-install the inner Diffuser and Gasket into nozzle
base by rotating slightly while pushing up.
Re-install outer nozzle and twist to lock in place

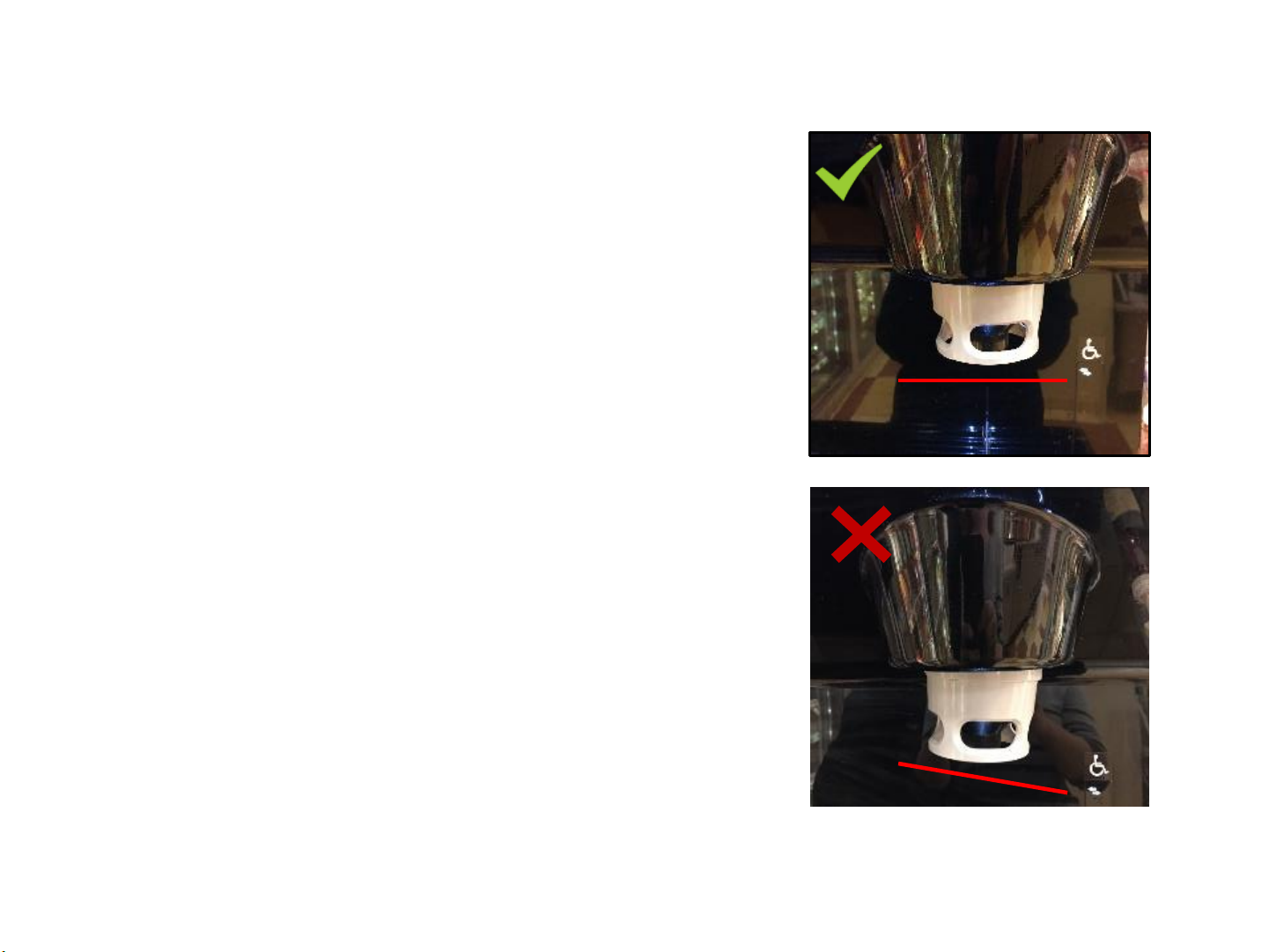

NOTE: Ensure the outer nozzle is on STRAIGHT when
locking.
Make sure nozzle locks. Purge valve to remove any
remnant sanitizer by running a water cycle for 10-15
seconds.

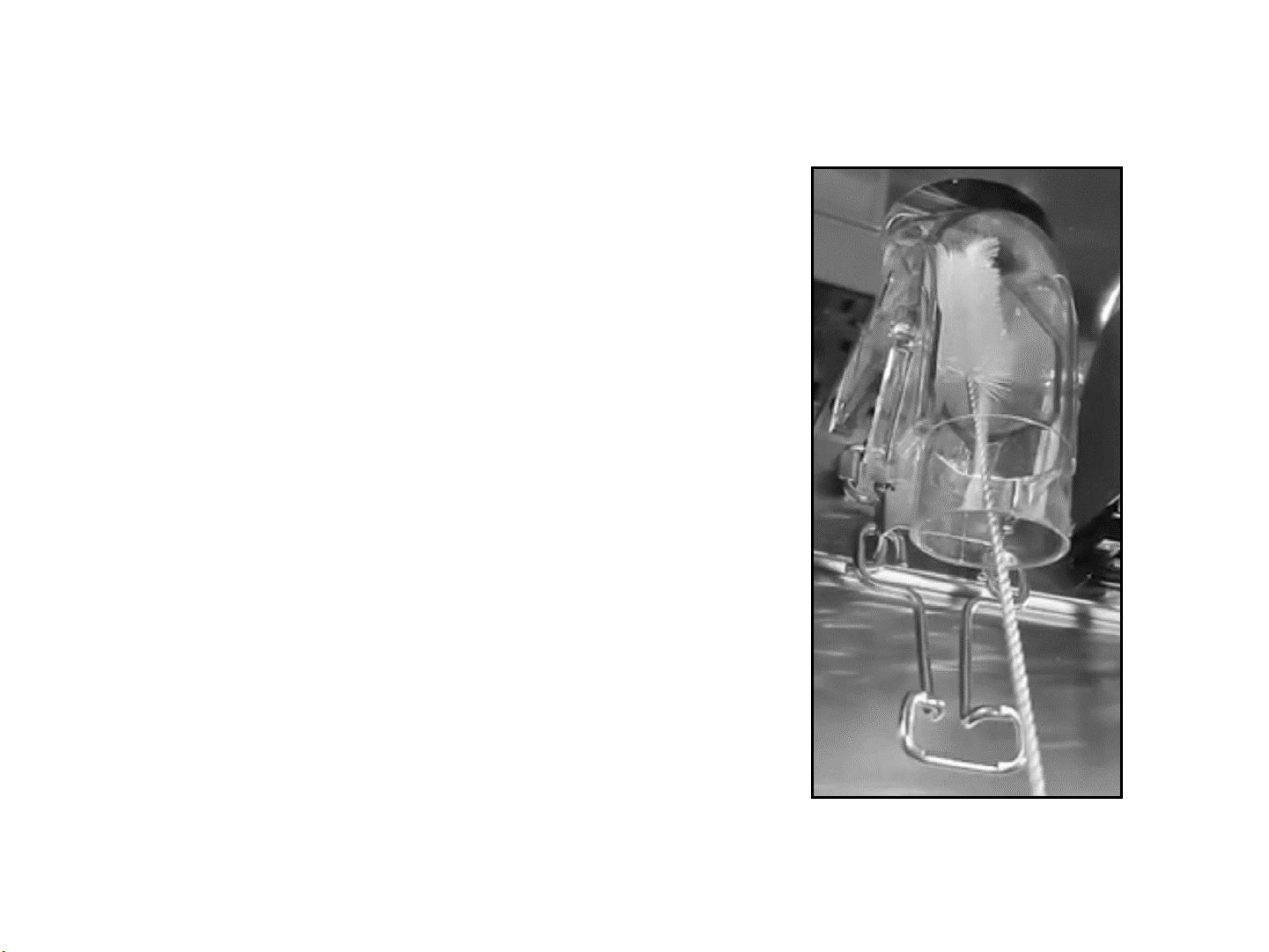

CLEANING ICE CHUTE
Clean the interior of the ice chute using the
brush provided with the unit.
Use warm soapy water, rinse with clear (not
soapy), water using brush, then do a final rinse
using the brush with sanitizer water.
Let air dry.
7
CLEANING THE SCREEN, MACHINE &
DRAIN
Clean the screen using a sanitized towel, then
wipe face with dry towel. Refer to page 11 on
how to lock screen during cleaning.
8
Clean the remainder of the machine using a
sanitized towel. Clean drip tray grate in sink.
Clean the drain WEEKLY using a bucket filled
with 1-2 gallons of warm water and a capful
of bleach.
ACCESSING THE MENU’S

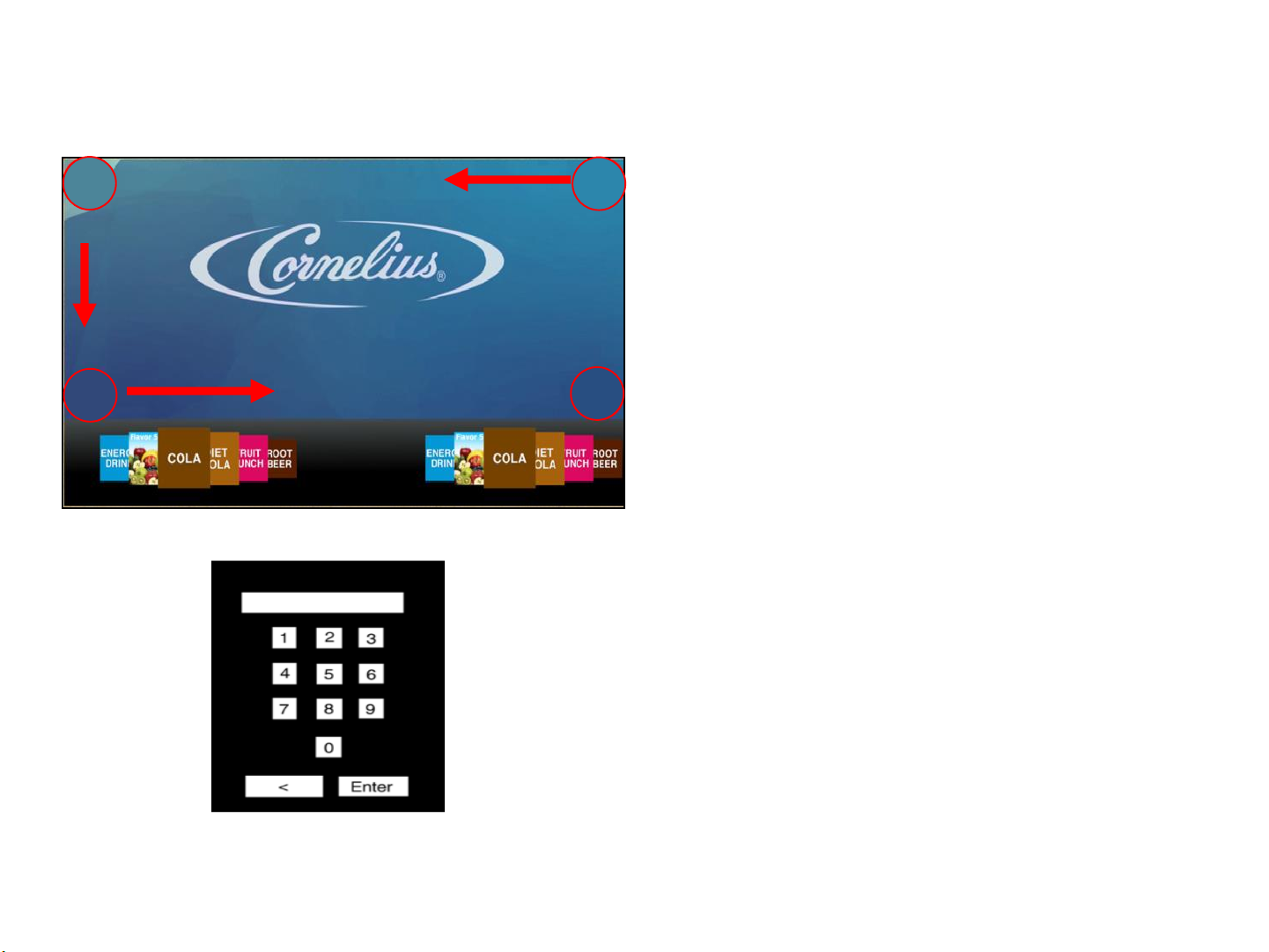

Display the keypad screen by tapping
each corner of the video screen
starting in the upper right corner and
continuing to tap each corner in a
counter clockwise direction, in the
form of a “C”.
This will display the Key pad screen.
Once each corner is tapped, type in the
password “1111” then press Enter to access the
Operator menu.
9
1
2
4
3
SCREEN CLEANING LOCKOUT
The screen cleaning lockout screen allows you to clean the digital merchandiser
without dispensing product.
Touch inside the circle to activate the 20 second lockout.
Select Screen Cleaning Lockout Screen Cleaning 20sec Lockout Screen
10
