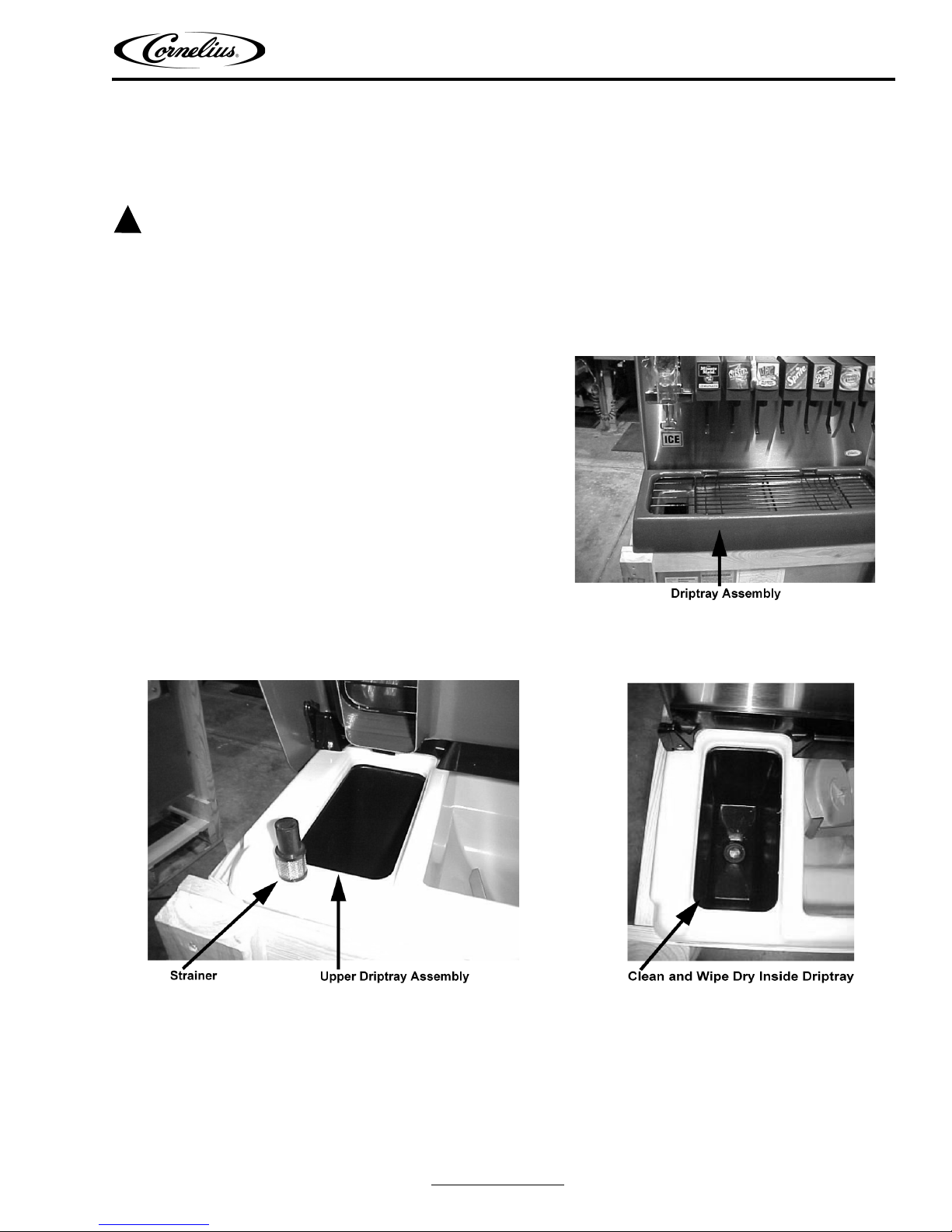

PR150/300 and IP150 Separate Drain for Upper Drip Tray Installation Instructions
Publication Number: 629088497INS - 2 - © 2004-2010, IMI Cornelius Inc.
3. Remove insulation from driptray drain line assembly (see
Figure 4).
Figure 4.
4. Cut PVC drain as shown in Figure 5. BE CAREFUL TO
SECURELY HOLD DRAIN LINE TO AVOID DAMAGE TO
UPPER DRIPTRAY!!!
Figure 5.
5. Deburr edge of PVC and re-plumb and clamp with new
flexible tube/clamp supplied in kit (see Figure 6). MAKE
SURE THAT THE INSULATION COVERS ALL
EXPOSED TUBING/CLAMP!
Figure 6.
6. Re-route new drain tube to floor drain. MAKE SURE THAT THERE ARE NO KINKS IN NEW DRAIN LINE!
7. Re-install driptray strainer if applicable.
8. Check driptray, fittings, and lines for leaks.
9. Lower upper driptray assembly.
