Corsair 750D Bedienungsanleitung

750D

OBSIDIAN SERIES®

Obsidian Series 750D Full-Tower PC Case

INSTALLATION GUIDE

CONGRATULATIONS!

Thank you for purchasing

an Obsidian Series®750D

Full-Tower PC case.

The 750D has a clean, elegant exterior

that dispenses with arbitrary plastic

add-ons in exchange for the beauty

of brushed aluminum and solid steel.

This rigid, rugged exterior surrounds

a frame that has ample room for

high-performance components and the

sophisticated cooling you’ll need if you’re

going to push those components to their

limits. And, it incorporates a host of clever

builder-focused features, because we

know that building a system should be

straightforward, trouble-free and even fun.

mm mm

mm

MaximumGPUlength

Topslots mm

Lowerslots mm

MaximumCPU

coolerheight

mm

Obsidian Series® 750D

Full-Tower PC Case

with one AF140L rear

exhaust fan and two

AF140L front intake

fans

Installation Guide

Accessory Kit

OBSIDIAN SERIES®

750D

CONTENTS

x x x x

MBD/HDD screws Long fan screws Short fan screws SSD/ODD screws

x x xx

Motherboard

standos

SSD pan

head screws

HDD tray screws Cable ties

OBSIDIAN SERIES®750D FULL-TOWER PC CASE OBSIDIAN SERIES®750D FULL-TOWER PC CASE

(x3) Corsair AF140L fans included

Top triple 120mm or dual 140mm fan mounts

compatible with 240/280/360mm radiators

Rear 120/140mm fan mounts compatible

with 120/140mm radiators

Front dual 120/140mm fan mounts

compatible with 240/280mm radiators

(x2) USB 3.0, (x2) USB 2.0, Headphone/Mic, Power/Reset

Full windowed side panel

CPU backplate cutout

OBSIDIAN SERIES®750D FULL-TOWER PC CASE OBSIDIAN SERIES®750D FULL-TOWER PC CASE

Built-in cable routing cutouts with grommets

(x3) Tool-free removable optical drive bays

Tool-free 3.5" hard drive cages with 2.5" compatibility

(x4) Tool-free 2.5" SSD removable caddies

(x9) Expansion slots for GPUs

Removable front and bottom low restriction dust ﬁlters

Bottom dual 120mm fan mounts

compatible with 240mm radiators















> Install your motherboard's I/O shield

(see your motherboard’s manual for guidance).

> Align the motherboard with the standos in the case.

> Secure with the included screws (MBD/HDD screws).

Installing the motherboardRemoving the side panels

> Remove the thumbscrews and slide the side panel back and out.

Note: Corsair recommends removing both side panels and setting

them aside when building your system to avoid accidental damages.









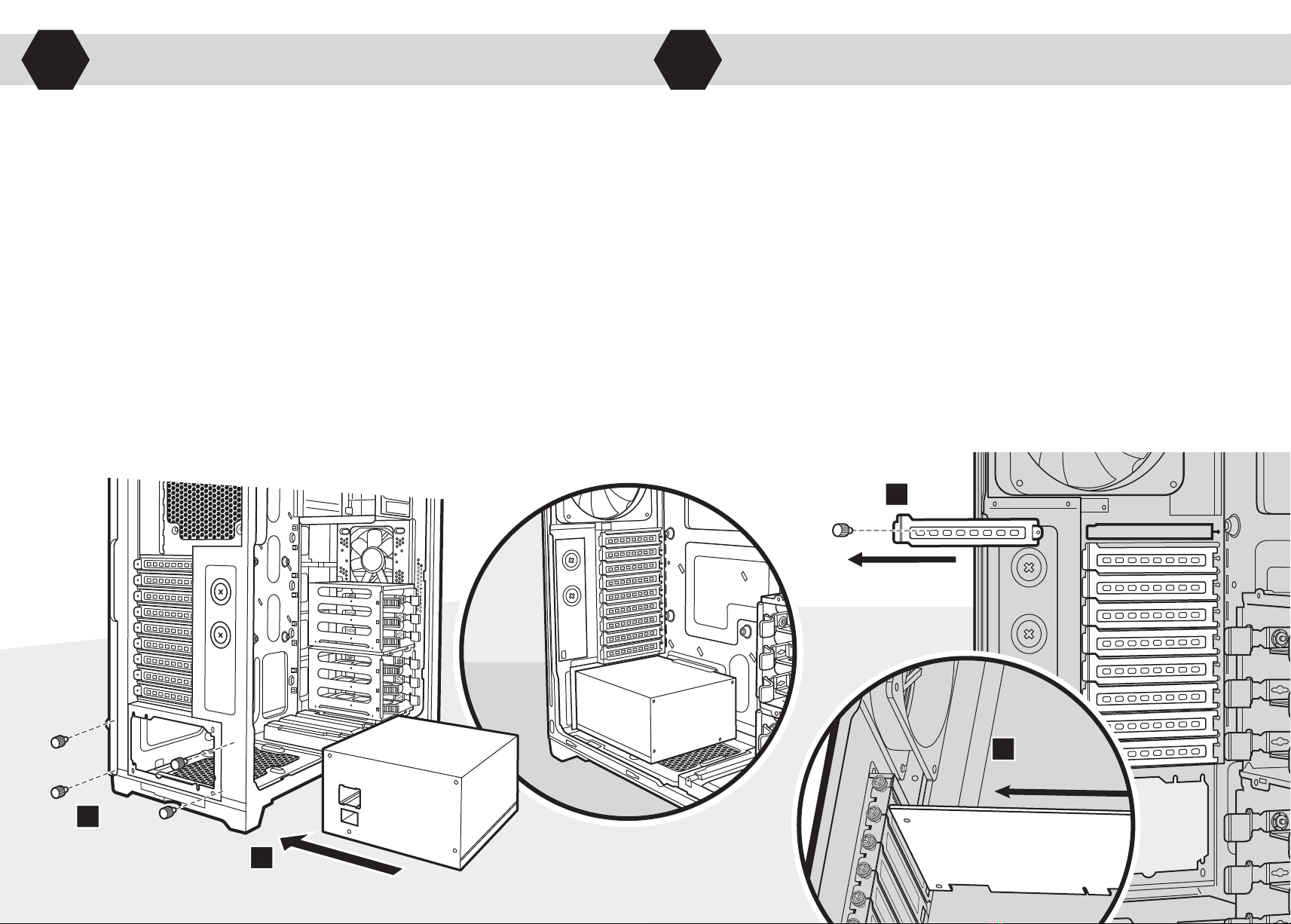

> Remove thumbscrews and corresponding slot cover(s).

> Install the add-on card and secure with thumbscrews.

Installing the PCI-E/PCI cardsInstalling the power supply (PSU)

> Seat the PSU on the bottom of the case.

> Align holes and secure the PSU with screws.

Note: PSU can be installed in either fan up or fan down orientations.









Installing a 5.25" drive/devices (ODD)

> Remove the front panel 5.25" drive bay cover.

> Insert the ODD into the drive bay until the tool-free

latch clicks, securing the drive.

> To remove, push the tool-free tab to release

the ODD drive and remove.





A B



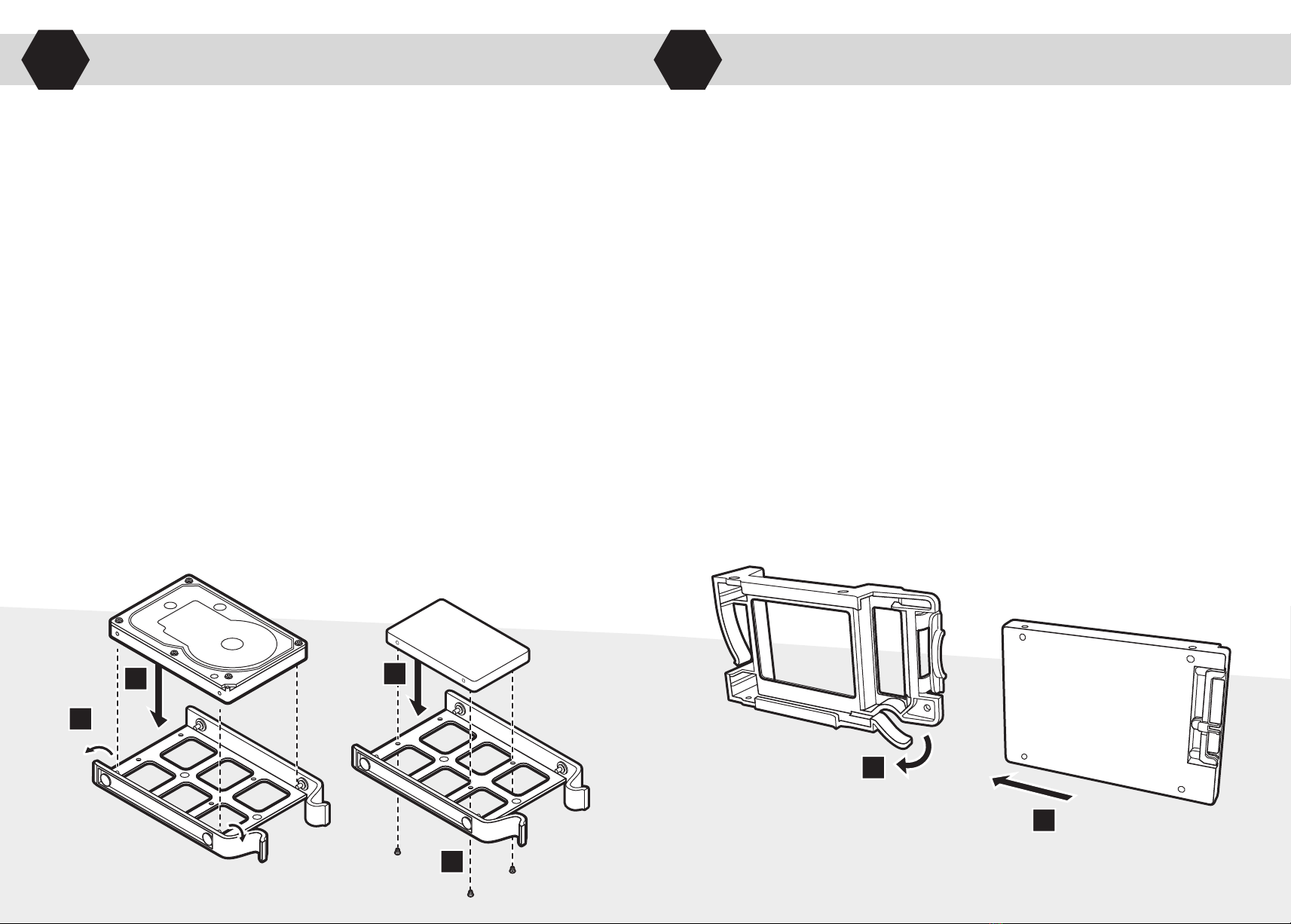

Installing a 2.5" SSD into tool-free expandable SSD cage

> Pull down the tab and place the SSD into

the tool-free cage until you feel it secure.

> To remove the SSD, pull the tab down to release.



> Remove the tool-free 3.5" HDD tray.

> Insert the HDD into the HDD tray.

> Align the HDD holes with the tray pins to secure.

Note: To mount a 2.5" drive in this tray, it is necessary to remove one

of the side pins and secure the drive from underneath with screws.

Installing a 3.5" HDD/ 2.5" SSD

A

B









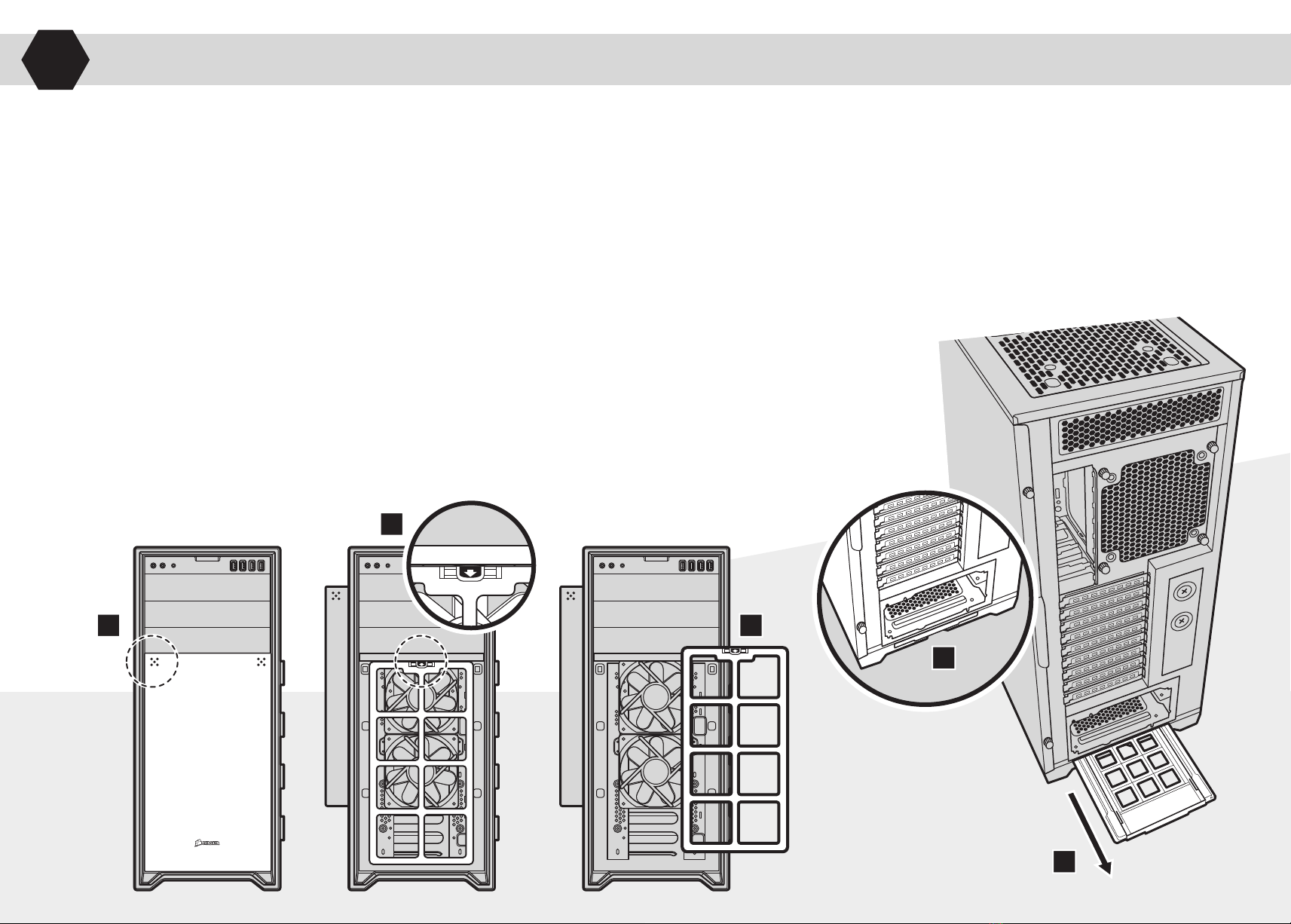

> To remove the front panel dust ﬁlter, ﬁrst remove the

solid front panel by pushing the top corners of the aluminum cover.

> The front solid panel will pop out for access to the front dust ﬁlter.

> Remove the front dust ﬁlter by pressing the arrowed tab located on the top center.

> To remove the bottom dust ﬁlter, ﬁrst locate the pull out tab underneath the PSU, then

pull the bottom dust ﬁlter out.

Removing the front and bottom dust ﬁlters

USB 3.0

HD AUDIO

USB 2.0

RESET SW POWER LED +

POWER LED –POWER SW HDD LED





> See your motherboard’s manual for front panel header locations and pin-outs.

Installing the front I/O connectorsAttach case fan cables to motherboard headers

> See your motherboard’s manual for fan header locations.
