Creality ENDER-3 V2 Bedienungsanleitung

USER MANUAL

CREALITY ENDER-3 V2 3D PRINTER

V1.0 Jul 2020

Contents

I. Welcome

II. NOTICES

III. Printer Components

IV. Parts Identification

V. ASSEMBLY

VI. CONTROLING THE PRINTER

VII. PREPARING FOR USE

VIII. PRINTING YOUR OWN MODELS - SLICERS

IX. MAINTENANCE

X. PROBLEM SOLVING

......................................................................................................................................

.....................................................................................................................................

................................................................................................................

................................................................................................................................

...............................................................................................

..........................................................................................................

...................................................................

.......................................................................................................................

...............................................................................................................

.................................................................................................................

I. Welcome

Thank you for purchasing the Creality Ender 3 V2 3D Printer from SainSmart.

This Ender-3 V2 3D Printer User Guide is designed to aid Ender-3 V2 users in the assembly and use of their new printer and to help

in getting started with 3D Printing. Even if you are familiar with 3D printing technology, we still recommend that you read through this

user manual, as there is a lot of important information about the Ender-3 V2 for you to get a better 3D printing experience.

Support:

● Documentation like this user manual, help guide etc. can be found on https://docs.sainsmart.com/

● For technical support, please email us at [email protected].

● Help and support is also available from our Facebook group. (SainSmart 3D Printing User Group)

Scan QR code

to join the group

Basic Specifications

Model

Print Size

Printing Method

Number of Nozzles

Recommended Layer Thickness

Stock Nozzle Diameter

XY Axis Precision

Filament Diameter

File Format

Connectivity

Compatible Slicers

Power Speciﬁcation

Total Power

Build Plate Temperature

Nozzle Temperature

Resume Printing

Filament Sensor

Dual Z-axis Screws

Language

Operating System

Print Speed

Ender-3 V2

220 x 220 x 250mm. (Build Plate size 235 x 235mm)

FDM (Fused Deposition Modelling)

0.1mm - 0.4mm

0.4mm

±0.2mm

Φ1.75mm

.gcode (see your slicer software for supported model formats)

Micro SD Card / USB

Cura, 3D Creator Slicer, Repetier-Host, Simplify3D and more

Input: AC 115/230V 50/60Hz Output: DC 24V

350W

≤100°C

≤250°C

Yes after Manual pause or Power failure

English / Chinese

Marlin. Slicers are available for Windows XP/Vista/7/10/Mac OS/Linux

≤180mm/s, Normally operation is 30-60mm/s.

II. NOTICES

Please read all the instructions in the manual and familiarize yourself with the Ender-3 V2 3D Printer User Manual before setting-up

and using your 3D printer

PLEASE FOLLOW ALL THE SAFETY WARNINGS AND NOTICES.

Failure to comply with the warnings and instructions may result in individual injury, inferior results and printer damage.

1. Work Environment and Safety

Keep your workplace tidy. Do not operate the 3D Printer in the presence of flammable liquids, gas or dust.

The printer should be placed out of the reach of children or pets.

Only operate your 3D printer in room temperatures of 5-30℃ with an ambient humidity between 20%-70%

2. Electrical Safety

● Always use a properly grounded outlet and the cable provided to prevent damage to your printer.

● Please unplug the 3D Printer if it will not be in use for a while.

● Do not use outdoors, indoor use only.

● Always keep the printer in a dry environment and out of direct sunlight.

● Do not use the 3D Printer during thunderstorms.

3. Personal Safety

● Do keep your hair, clothing and gloves away from moving parts.

● Do not operate the 3D Printer while you are tired or under the influence of drugs, alcohol or medication.

● Parts of the 3D printer will get very hot during use, Do not touch the nozzle, hot end assembly or the build plate when the printer

is warming up, printing or cooling down.

● Ensure you keep others, especially children and pets away from the printer.

4. CAUTION!

● Do not leave the 3D Printer unattended.

● Do not make any modifications to the printer other than any approved SainSmart upgrades.

● When removing a model be careful not to use excessive force.

● The 3D printer must only be operated in a well ventilated area, noxious gasses can be released.

● Do not exceed the maximum print temperature of your printer or the filament you are using.

● When loading or unloading filament make sure the printer nozzle is well clear of the build plate (>50mm).

5. Filament and storage

● Follow any recommendations of your filament manufacturer.

● Do not use your printer to make anything that will come into contact with food unless specifically allowed by the filament manufacturer.

● Filament should be stored in clean and dry conditions. Filaments will absorb moisture and degrade over time if not kept dry.

● Do not open the filament from it’s sealed package until it is needed.

III. Printer Components

15 16

X and E-axis Assembly

X-axis Limit Switch

Printing Platform with Glass Bed and clips.

Y-axis belt Tensioner

Tool Box

Nozzle Assembly

Filament Spool Holder

Z-axis Roller Bracket Assembly

X-axis belt Tensioner

Screen

Rotary and press Switch

Machine Base

Power Supply

Voltage Selector

Y-axis Limit Switch

Y-axis Motor

Extruder Knob

E-axis Motor

X-axis Motor

Coupling

Z-axis Limit Switch

Z-axis Motor

Power Switch and Socket

IV. Parts Identification

1234

5 6 7 8

Printer Base x 1 Display Assembly x 1 Nozzle Assembly x 1

910 11

Z-axis Proﬁle

(left) x 1

Z-axis Proﬁle

(right) x 1 Gantry Profile x 1 12 X-axis Profile x 1 13 Lead Screw x 1

Z-axis Roller Bracket

Assembly

X-axis Tensioner x 1 Z-axis Motor Assembly x 1 Z-axis Limit Switch

Assembly x 1 XE-axis Assembly x 1

14 Filament Holder

Upright x 1 15 Filament Holder

Pipe and Nut x 1 16 2020 Proﬁle

Cover x 2 17 Drive Belt x 1

18 Metal

Scraper x 1 19 Diagonal

Cutters x 1 20 Cable Tie x 1 21 Needle x 1

22 SD Card and

Card Reader x 1 23 Bowden Tube

Connector x 2 24 Power

Cable x 1

34 Extruder

Knob x 1 35

Hexagon Socket

Countersunk Head

Screw (black)

M4X14 x 1 36 Nozzle x 1

25 Wrenches and

Screwdrivers x 1

30 M5T Nut x 2 31

Hexagon Socket

Head Spring Washer

Combination Screw

M5X45 x 5 32

Hexagon Socket

Flat Round Head

Spring Washer

Combination 33 Filament x 1

26 Joint Claw x 2 27

Hexagon Socket

Flat Round Head

Screw M5X8 x 2

Hexagon Socket

Countersunk Head

Screw M4X18 x 2 29 Hexagon Socket

Head Spring Washer

Combination Screw

Please make sure all the above parts are included. If you are missing any part or have any questions, please email us at

[email protected].

V. ASSEMBLY

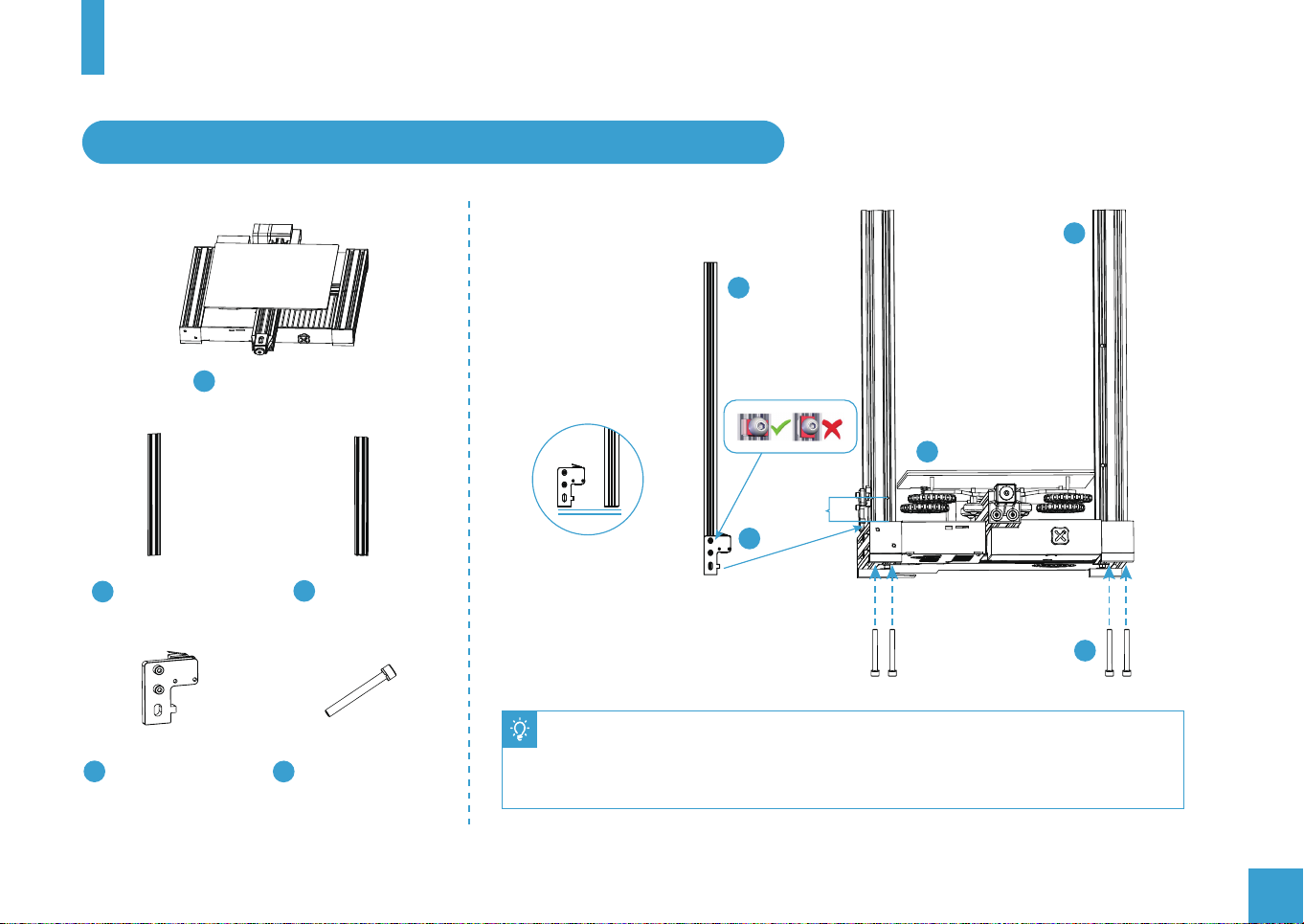

1. Install Z-axis Limit Switch Assembly and Z-axis Profiles

Short

Printer Base x 1

Z-axis Proﬁle

(left) x 1

Z-axis Proﬁle

(right) x 1

Hexagon Socket

Head Spring Washer

Combination Screw

M5X45 x 5

Z-axis Limit Switch

Assembly x 1

● Slide the Z axis limit switch onto the Z-axis Profile (left) as in the picture above and

loosely tighten. Then use four M5X45 screw to ﬁx the Z-axis profiles to the base.

● Slide the Z axis limit switch down until it touches the base profile and tighten the bolts.
