User Manual for Wrist Oximeter

Instructions to User

PC-68B Wrist Oximeter is a precision measuring device,

please read the manual very carefully before using this

device. Failure to follow these instructions may cause

measuring abnormality or damage to the oximeter.

No part of this manual may be photocopied, reproduced or

translated into another language without the prior written

consent. Shenzhen Creative Industry Co., Ltd. reserves the

right to improve and amend it at any time without prior

notice.

Version of This Manual: Ver 1.4

Revised date: July 26, 2012

3502-2290033

User Manual for Wrist Oximeter

Notes:

The contents contained in this manual are subject to

change without prior notice.

Information furnished by Creative is believed to be

accurate and reliable. However, no responsibility is

assumed by us for its use, or any infringements of

patents or other rights of third parties that may result

from its use.

Instructions for Safe Operations

Check the device to make sure that there is no

visible damage that may affect user’s safety and

measurement performance. When there is obvious

damage, stop using the device.

Necessary servicing must be performed by

qualified service engineers ONLY. Users are not

permitted to maintain it by themselves.

The oximeter cannot be used together with the

devices not specified in User Manual.

Cautions

Explosive hazard—DO NOT use the oximeter in

environment with inflammable gas such as some

ignitable anesthetic agents.

DO NOT use the oximeter while the testee is under

MRI or CT scanning.

User Manual for Wrist Oximeter

III

Warnings

For individual patients, there should be a more

prudent inspecting in the placing process. The

device can not be clipped on the edema and tender

tissue.

The light (the infrared light is invisible) emitted

from the sensor is harmful to the eyes, so the user or

even the service engineer should not stare at the

light emitting components.

To dispose the device, the local law should be

followed.

Attentions

Keep the oximeter away from dust, vibration,

corrosive substances, explosive materials, high

temperature and moisture.

The device should be kept out of the reach of

children.

If the oximeter gets wet, please stop operating it.

When it is carried from cold environment to warm

and humid environment, please do not use it

immediately.

DO NOT operate the button on front panel with

sharp materials.

User Manual for Wrist Oximeter

High temperature or high pressure steam

disinfection to the oximeter is not permitted. Refer

to related chapter for instructions of cleaning and

disinfection.

Declaration of Conformity:

The manufacturer hereby declares that this device complies

with the following standards:

IEC 60601-1

ISO 9919

and follows the provisions of the council directive

MDD93/42/EEC.

User Manual for Wrist Oximeter

Table of Contents

1 OVERVIEW..................................................................1

1.1 Appearance ..............................................................1

1.2 Name and Model......................................................2

1.3 Conformation...........................................................3

1.4 Features....................................................................3

1.5 Intended Use............................................................4

1.6 Key of Symbols ........................................................5

2 BATTERY INSTALLATION........................................6

3 OPERATION.................................................................7

3.1 Measuring Operation..............................................7

3.2 Menu Operation ....................................................15

3.3 Upload Data...........................................................21

3.4 Low Battery Indication.........................................22

4 ADDITIONALADVICE FOR OPERATION............23

5 TECHNICAL SPECIFICATIONS.............................24

6 ACCESSORIES...........................................................27

7 REPAIR AND MAINTENANCE ...............................28

7.1 Maintenance...........................................................28

7.2 Cleaning and Disinfecting Instruction..................29

8 TROUBLESHOOTING..............................................30

9 APPENDIX..................................................................32

A Common Knowledge for SpO2Measurement........32

B Wristband Installation and Disassembly................36

User Manual for Wrist Oximeter

-1-

1 Overview

1.1 Appearance

Figure 1 Front View

1. LCD screen

2. Set key: shift display modes, confirm the

operation etc.

3. Scroll key: short press: move display cursor, modify

parameter values etc.

Longtime press: choose display always on or not

which will be effective during measuring.

User Manual for Wrist Oximeter

-2-

Figure 2 Frontal Side View

4. Buzzer

5. Data interface

6. Wristband Underlay

Figure 3 Right Side View

7. SpO2probe receptacle

1.2 Name and Model

Name: Wrist Oximeter

Model: PC-68B

User Manual for Wrist Oximeter

-3-

1.3 Conformation

It comprises the main unit and SpO2probe.

1.4 Features

Wrist Oximeter can be used to monitor pulse oxygen

saturation (SpO2) and pulse rate accurately. Simply put

your finger into sensor, SpO2value and pulse rate value

will be displayed on screen and stored in the device.

It is lightweight, small in size and easy to carry;

Color OLED display;

Perfusion index (PI) display is available;

Automatic starts to measure SpO2and Pulse

Rate(PR);

Real-time clock display and set;

Audible & visible over-limit indication, high & low

limits are adjustable;

It is convenient for you to monitor SpO2in long-term

while sleeping or at other daily activity.

Record interval can be selected, up to 480 hours data

memory;

Applicable for longtime continuous monitoring;

User Manual for Wrist Oximeter

-4-

PR trend curve and SpO2trend curve view;

Data storage and transmission to PC for view and

analysis(Optional);

Smart battery power management with low battery

indication;

1.5 Intended Use

This Wrist Oximeter is intended for measuring the pulse

rate and functional oxygen saturation (SpO2). It is

applicable for long-term measurement of adult’s SpO2and

pulse rate in home and clinics.

User Manual for Wrist Oximeter

-5-

1.6 Key of Symbols

Symbol

Description

%SpO2

Pulse Oxygen Saturation

PI%

Perfusion Index

Pulse Rate

Pulse rate symbol

Low battery voltage

Symbol for display always on

Memory full.

Serial number

Date of manufacture

Authorised representative in the

European community

Manufacturer (including address)

With Type BF applied part

Warning

─

See User Manual

Disposal of this device according to

WEEE regulations

Inhaltsverzeichnis

Andere Creative Medizinische Geräte Handbücher

Creative

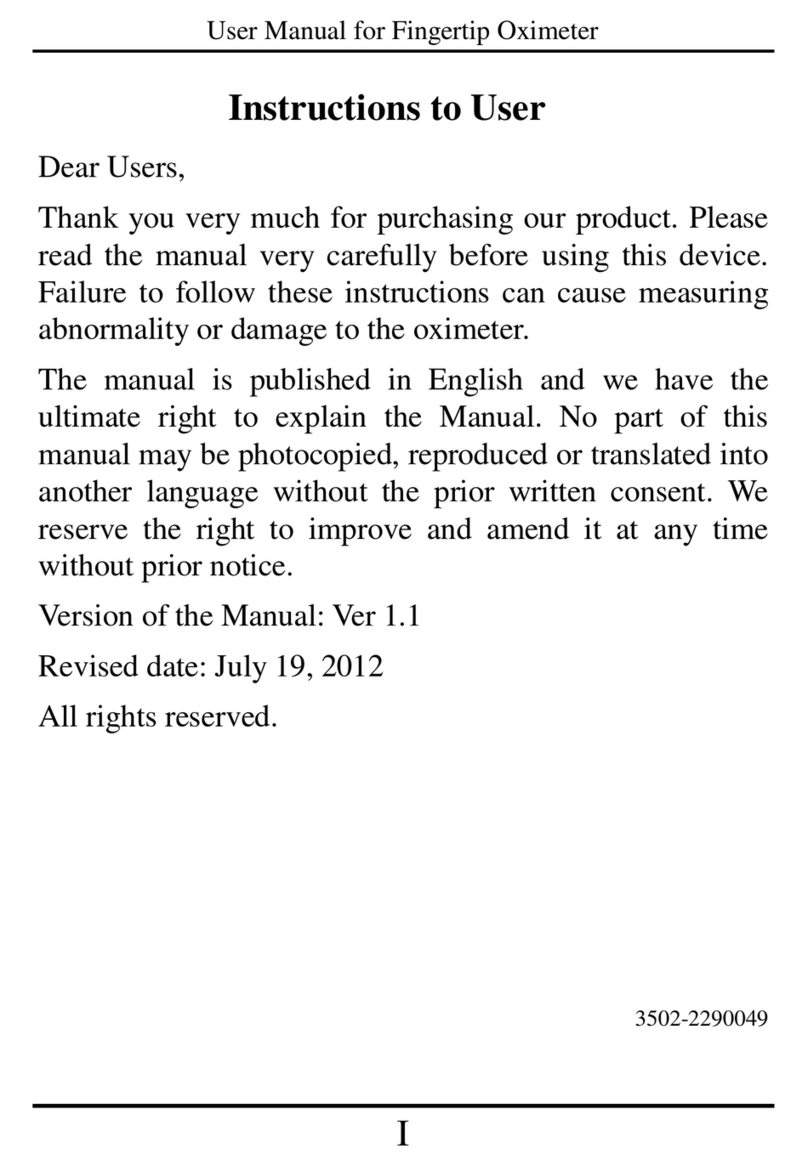

Creative PC-60N Bedienungsanleitung
