Crestron QM-FTCMK Bedienungsanleitung
Crestron QM-FTCMK
FlipTop Cable Management Kit
Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2005 Crestron Electronics, Inc.
Crestron QM-FTCMK FlipTop Cable Management Kit
Contents
FlipTop Cable Management Kit: QM-FTCMK 1
Introduction......................................................................................1
Installation........................................................................................3
Problem Solving...............................................................................6
Further Inquiries ....................................................................6
Future Updates.......................................................................6
Return and Warranty Policies ..........................................................7
Merchandise Returns / Repair Service ..................................7
CRESTRON Limited Warranty ............................................7
Installation Guide - DOC. 6314A Contents •i
Crestron QM-FTCMK FlipTop Cable Management Kit
FlipTop Cable Management Kit:
QM-FTCMK
Introduction
The FlipTop Cable Management Kit provides a means of organizing and
storing connecting cables for the QuickMedia™ FlipTop boxes, part of
the Crestron MediaManager™ line of network devices, room control
systems and signal routing solutions.
Functional Summary
• Organizes cables
• Provides storage of cables
• Eliminates the need to furnish patch cables
Two kits are available, one for domestic FlipTop boxes (QM-FTMCK),
and a larger one that accommodates the international version of the
FlipTop boxes (QMI-FTCMK). Refer to the following table for a list of
applicable kits and models.
Installation Guide - DOC. 6314A FlipTop Cable Management Kit: QM-FTCMK •1
FlipTop Cable Management kit Crestron QM-FTCMK
The optional FlipTop Cable Management kits can be added to the
following FlipTop models.
FlipTop Cable Management Kits
FLIPTOP CABLE
MANAGEMENT KIT
APPLICABLE MODELS
QM-FTCMK QM-FTDC-B
QM-FTDC-NB-B
QM-FTDC-BALUM
QM-FTDC-NB-BALUM
QM-FTCC-B
QM-FTCC-NB-B
QM-FTCC-BALUM
QM-FTCC-NB-BALUM
QM-FTMC-B
QM-FTMC-NB-B
QM-FTMC-BALUM
QM-FTMC-NB-BALUM
QMI-FTCMK QMI-FTDC-B
QMI-FTDC-BALUM
QMI-FTCC-B
QMI-FTCC-BALUM
QMI-FTMC-B
QMI-FTMC-BALUM
NOTE: The suffix ‘-B’, and ‘-BALUM’, respectively denotes color,
i.e., -B is a black unit, and -BALUM has a brushed aluminum finish. The
suffix ‘-NB’ denotes a no button model.
2 •FlipTop Cable Management Kit: QM-FTCMK Installation Guide – DOC. 6314A
Crestron QM-FTCMK FlipTop Cable Management Kit
Installation
The QM-FTDC, QMI-FTDC, QM-FTCC, QMI-FTCC, QM-FTMC and
QMI-FTMC are shipped with a blank bottom plate. The FlipTop Cable
Management Kit provides a six-hole plate for user access, and two 6-foot
cables (computer and computer audio).
Parts Supplied with Optional Cable Management Kit
PART DESCRIPTION QUANTITY
Small Cable Bushing, 5/16 inch ID,
0.5 inch OD
4
Large cable Bushing, 0.55 inch ID,
0.80 inch OD
2
Cable Support Plate 1
Tie Wrap 3
Computer RGB Cable, VGA to VGA,
6 ft long
1
Computer Audio Cable, 3.5 mm Stereo,
6 ft long
1
Tools Required
• Phillips screwdriver
• Small flat-blade screwdriver (for connecting the VGA cable)
The cable support plate should be installed before mounting the FlipTop
box to a surface. The cables are looped through the cable support plate.
1. Remove the blank bottom plate and retain the four #4 x ¼ LG black
mounting screws.
2. Place the bushings on the cables (six bushings supplied). Use the
large bushing for the VGA cable.
3. Thread the cables through the appropriate slots on the plate.
4. Snap the bushings into the plate slots.
5. Feed all the excess cable through the opening.
6. Attach the plate using the four #4 x ¼ LG black screws retained in
step 1.
Installation Guide - DOC. 6314A FlipTop Cable Management Kit: QM-FTCMK •3
FlipTop Cable Management kit Crestron QM-FTCMK
7. Connect the cables to the appropriate connector on the front of the
FlipTop box.
8. The cables may be secured to the bottom bar using the supplied tie
wraps.

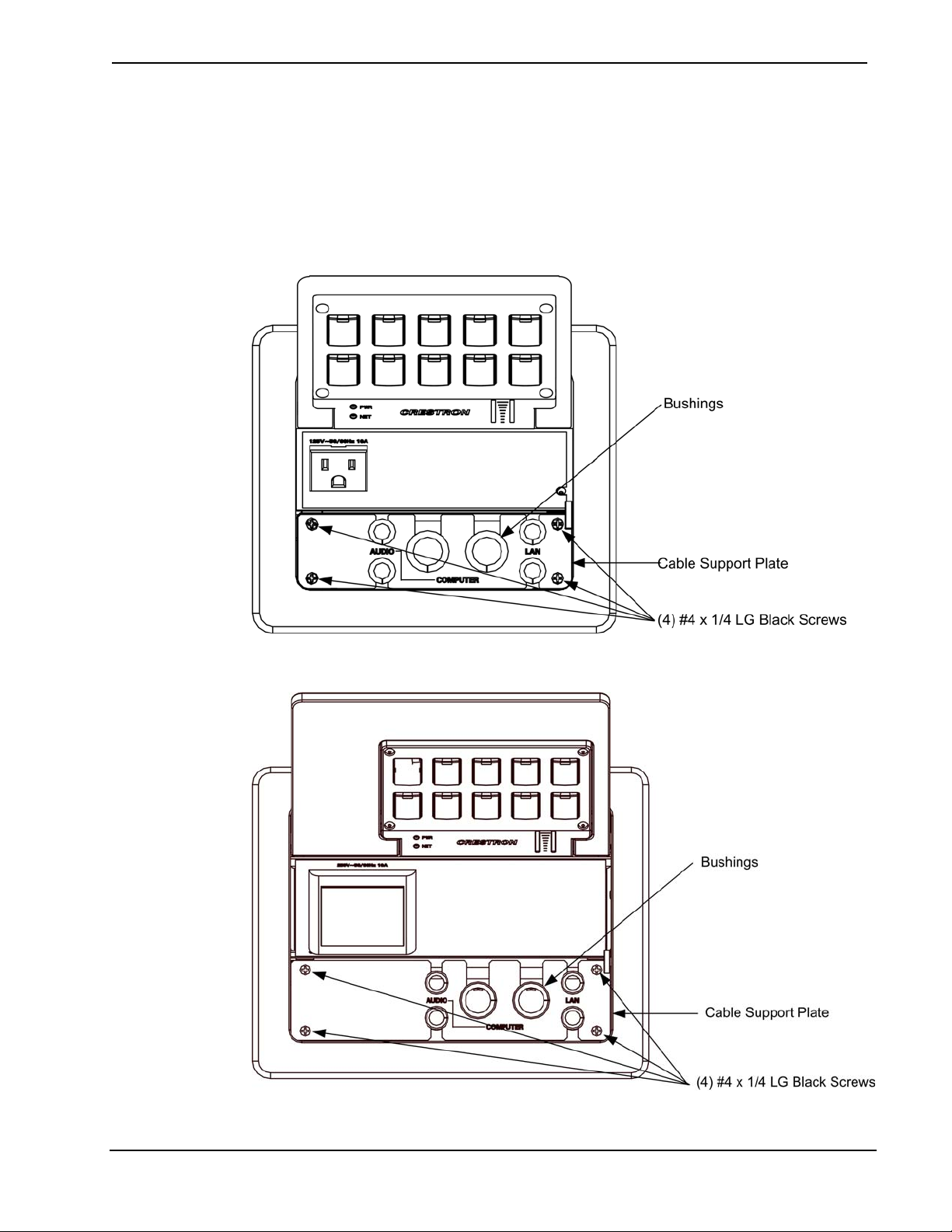

Cable Management Kit Installation – Domestic FlipTop Boxes
Cable Management Kit Installation – International FlipTop Boxes
4 •FlipTop Cable Management Kit: QM-FTCMK Installation Guide – DOC. 6314A
Crestron QM-FTCMK FlipTop Cable Management Kit

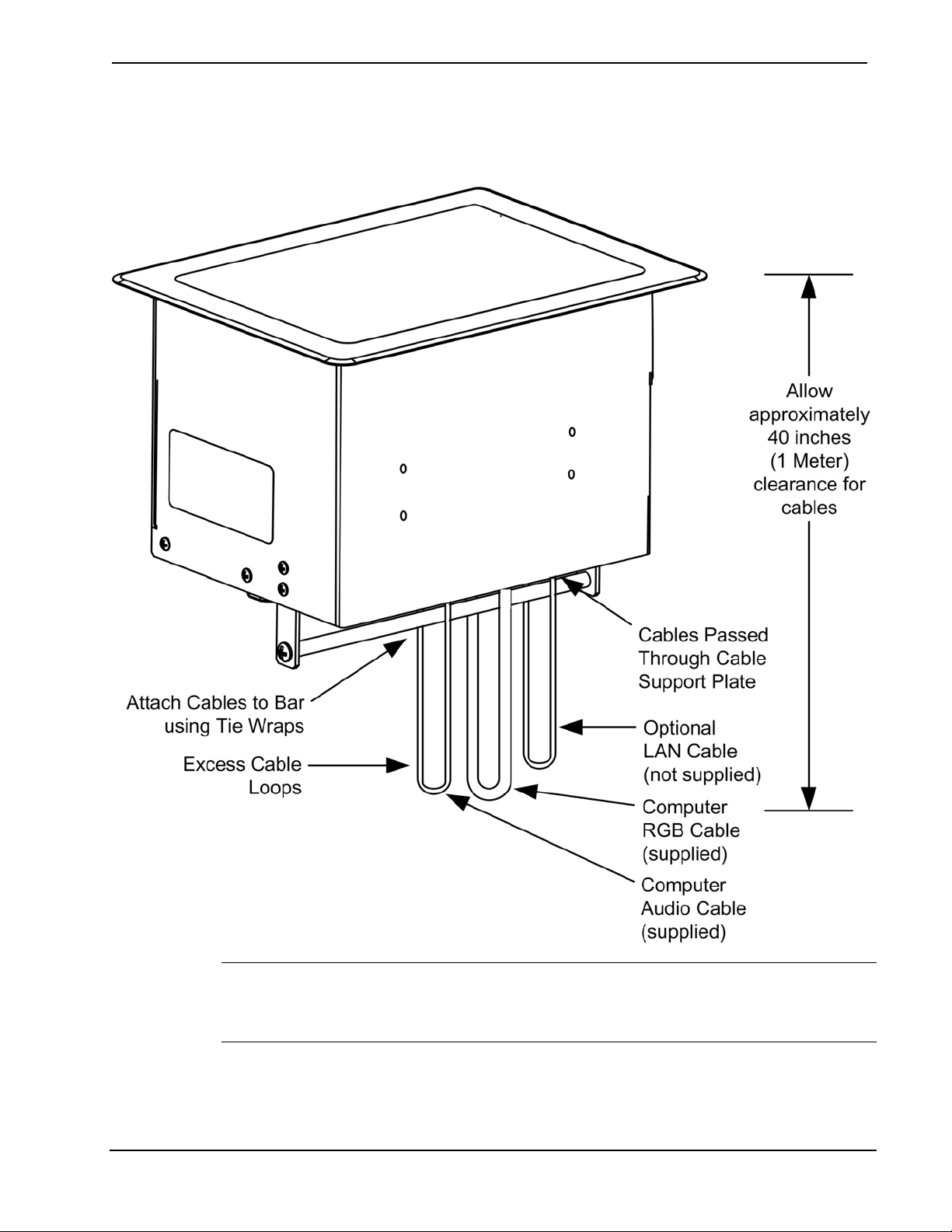

Cable Loops Through the Cable Plate
NOTE: Ensure that the cables have sufficient clearance to enable smooth
movement. Allow approximately 40 inches (1 meter) from the top surface
of the FlipTop box.
Installation Guide - DOC. 6314A FlipTop Cable Management Kit: QM-FTCMK •5
FlipTop Cable Management kit Crestron QM-FTCMK
Problem Solving
Further Inquiries
If you cannot locate specific information or have questions after reviewing
this guide, please take advantage of Crestron's award winning customer
service team by calling the Crestron corporate headquarters at
1-888-CRESTRON [1-888-273-7876]. For assistance in your local time
zone, refer to the Crestron website (www.crestron.com) for a listing of
Crestron worldwide offices.
You can also log onto the online help section of the Crestron website to
ask questions about Crestron products. First-time users will need to
establish a user account to fully benefit from all available features.
Future Updates
As Crestron improves functions, adds new features, and extends the
capabilities of this product, additional information may be made available
as manual updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete technical
documentation revision.
Check the Crestron website periodically for manual update availability
and its relevance. Updates are identified as an “Addendum” in the
Download column.
