Crestron 4 Series Bedienungsanleitung

The Crestron® PRO4 is a secure, high-performance control processor

with a powerful 4-Series™ control engine. The PRO4 is designed to

integrate and automate technology within any modern networked

home, commercial building, or government facility. Isolated Control

Subnet ports provide a Gigabit Ethernet LANdedicated to Crestron

devices.

In the Box

1 PRO4, 4-Series™ Control System

Additional Items

2 Bracket, Rack Ear (2032678)

4 Foot, Rubber (2002389)

4 Connector, 3-Pin (2003575)

1 Connector, 4-Pin (2003576)

2 Connector, 5-Pin (2003577)

4 Connector, 8-Pin (2003580)

1 Connector, 9-Pin (2003581)

1 Power Cord, 6 ft, 7 in. (2.01 m) (2001134)

Install the Control System

The control system may be mounted into a rack or placed onto a flat

surface.

Rack Mounting

The control systemoccupies 2Uof rack space.

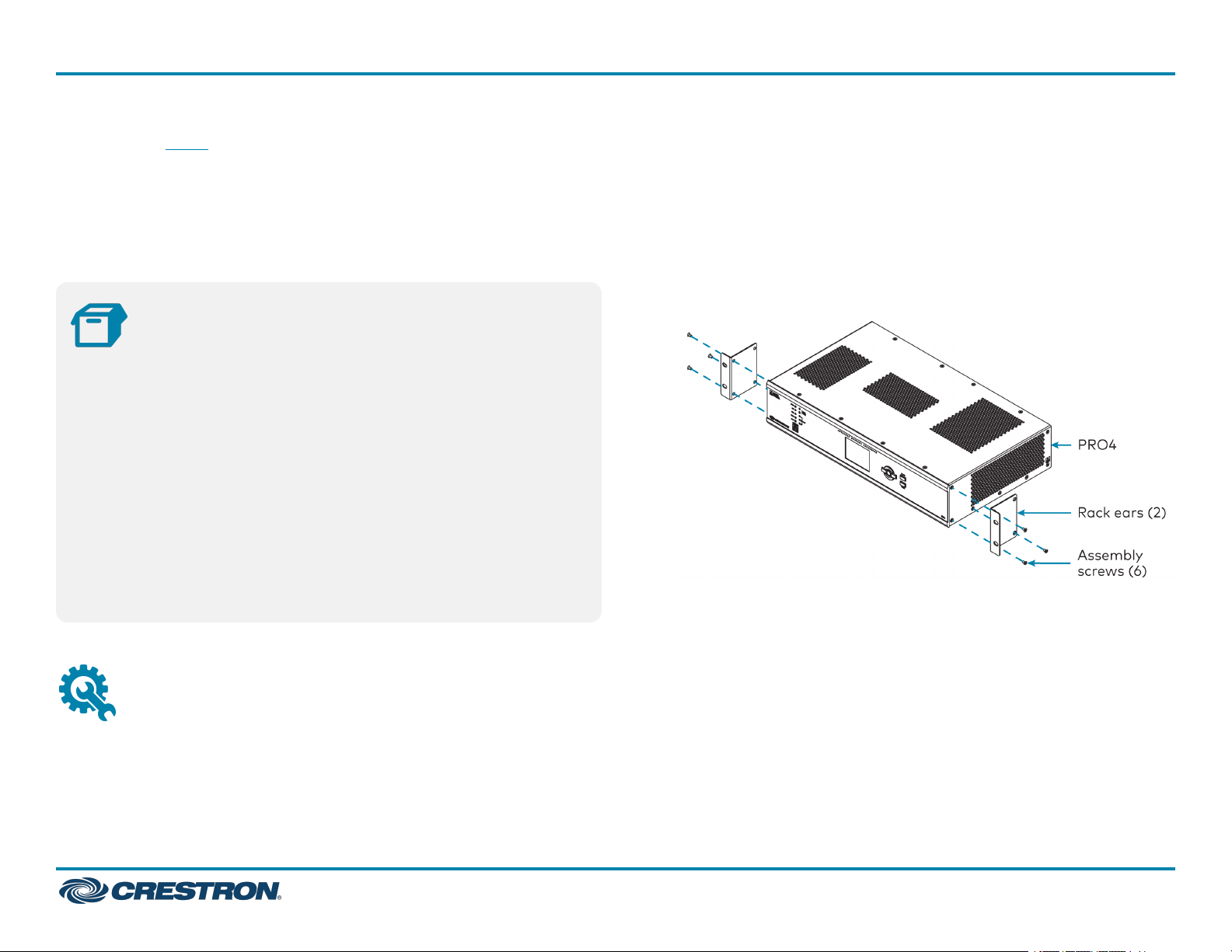

1. Use a #1 Phillips screwdriver to remove the six assembly screws

shown in the illustration below from the control system assembly.

2. Attach the two included rack ears with the removed assembly

screws.

3. Mount the control system into the rack with four mounting screws

(not included).

Surface Placement

1. Attach the four adhesive rubber feet near the corners on the

underside of the control system.

2. Place onto a flat surface or stack with other equipment.

PRO4

4-Series™ Control System

Connect the Control System

Make all necessary connections to the control system as shown below.

PRO4 QuickStart

4-Series™ Control System

Observe the following when connecting the control system:

lUse Crestron power supplies for Crestron equipment.

lThe CONTROL SUBNET ports are PoE+ PSE ports. Enabling PoE+

power sourcing requires connection of the PoE+ INPUT POWER port

to an external Crestron power supply (PW-5430DUS, sold

separately). Wiring that connects to a PoE+ PSE is designed for

intrabuilding use only.

lIf PoE+will be used, the PoE+ power supply must be connected to the

control system before it is powered on.

lThe S1,S2, and S3 slots are designed to house Crestron control cards.

lConnect the chassis ground lug to a known earth ground circuit (such

as building steel) to ensure that the control system is grounded

properly.

lApply power after all connections have been made.

COM1–2 Connections

Port RS-232 RS-4221RS-485

GGND GND GND2

TX TX(from PRO4) TX- (from PRO4) TX-/RX-

RX RX(to PRO4) RX+(to PRO4) Not used

RTS RTS(from PRO4) TX+(from PRO4) TX+/RX+

CTS CTS(to PRO4) RX- (to PRO4) Not used

1. RS-422 transmit and receive are balanced signals that require two lines plus a ground

in each direction. RXD+ and TXD+ should idle high (going low at start of data

transmission). RXD- and TXD- should idle low (going high at start of data

transmission). If necessary, RXD+/RXD- and TXD+/TXD- may be swapped to maintain

correct signal levels.

2. A ground terminal connection is recommended but not required.

Connect the Control Subnet

The PRO4 has a dedicated Control Subnet that is used for

communication between the control system and Crestron Ethernet

devices without interference from other traffic on the network.

CAUTION:Do not connect the CONTROL SUBNET ports to the LAN.

The CONTROL SUBNET ports must only be connected to Crestron

Ethernet devices.

For more information on using the Control Subnet, refer to the

4-Series™ Control System Reference Guide.

Configure the Control System

The control system may be configured using the provided web

configuration interface. The interface can be accessed using the control

system IP address or the XiOCloud® service. The control system may

also be configured via the front panel navigation pad and LCDdisplay.

Configuration via IP Address

To access the web configuration interface using the control system

IPaddress:

NOTE:The control system ships with DHCPenabled. A DHCPserver is

required to access the web configuration interface via the control

system IPaddress.

1. Connect the control system to the network.

2. Use the Device Discovery tool in Crestron Toolbox™ software to

discover the control system and its IP address on the network.

3. Enter the control system IPaddress into a web browser.

PRO4 QuickStart

4-Series™ Control System

Configuration via XiOCloud

The XiOCloud®service allows supported devices across an enterprise to

be managed and configured from one central and secure location in the

cloud. Supported Crestron® devices are configured to connect to the

service out of the box.

Use of the service requires a registered XiOCloud account. To register

for an XiOCloud account, refer to

www.crestron.com/Support/Tools/Licensing-Registration/XiO-Cloud-

Registration-Room-Licenses.

NOTE:The device may be disconnected from the XiOCloud service by

navigating to the Cloud Services tab in CrestronToolbox™software

(Functions >Device Info >Cloud Services). For details, refer to the

CrestronToolbox help file.

To connect the device to the XiOCloud service:

1. Record the MAC address and serial number that are labeled on the

shipping box or the device. The MAC address and serial number are

required to add the device to the XiOCloud service.

NOTE:If the device has multiple MAC addresses, use the MAC

address that is providing the primary connection back to the

network. For most devices, the Ethernet MAC address should be

used. However, if your device is connecting to the network over a

different protocol (such as Wi-Fi® communications), use the

MAC address for that protocol instead.

2. Log in to your XiOCloud account at portal.crestron.io.

3. Claim the device to the XiOCloud service as described in the

XiOCloudUserGuide.

Select the device from the cloud interface to view its status and

settings. The device may now also be managed and assigned to a group

or room. For more information, refer to the XiOCloudUserGuide.

NOTE:For XiOCloud accounts with room-based licenses, the device

must be added to a licensed room before its status and settings can be

viewed.

Configuration via the Front Panel

Use the front panel navigation pad and LCD display to configure and

monitor the PRO4.

Create an Admin Account

The first time the web configuration interface is accessed, a page is

displayed asking the user to create an admin account. A similar message

is displayed when connecting to the control system in Crestron Toolbox

software if an admin account has not already been created.

To create an admin account:

1. Enter a username and password for the admin account in the

appropriate text fields.

CAUTION:Do not lose the username and password for the admin

account, as the control system must be reset to factory settings to

regain access.

2. Click OK to create the admin account. The web configuration

interface refreshes to show the standard login page.

3. Reenter the credentials created in step 1 and click Sign In.

NOTE:The username and password must also be entered when

connecting from CrestronToolbox or XPanel.

PRO4 QuickStart

4-Series™ Control System

Set the Time Zone

The time zone must be set on the control system to ensure that the

correct time settings are pushed to controlled devices.

To set the time zone:

1. Access the web configuration interface using either the device

IPaddress or the XiOCloud service.

2. Navigate to Settings >System Setup.

3. Select the time zone where the control system is used from the Time

Zone drop-down menu.

4. Click Save Changes on the top right of the screen.

Pair with Apple HomeKit

The control system can be paired with Apple® HomeKit® technology to

enable communication between the control system and Apple HomeKit

devices and accessories.

For pairing instructions and to locate the unique QRcode required for

pairing, refer to the PRO4Product Information document

(Doc.8540)that shipped with your control system.

Turn on .AVFramework Software

The control system provides native support for the .AVFramework™

software program. .AV Framework software is a web-based

management solution that is used to deploy scalable Crestron®

enterprise room solutions without requiring any programming. For more

information on the capabilities supported by .AV Framework, visit

www.crestron.com/avframework.

To turn on the .AVFramework software program for the control system:

1. Open the web configuration interface for the control system.

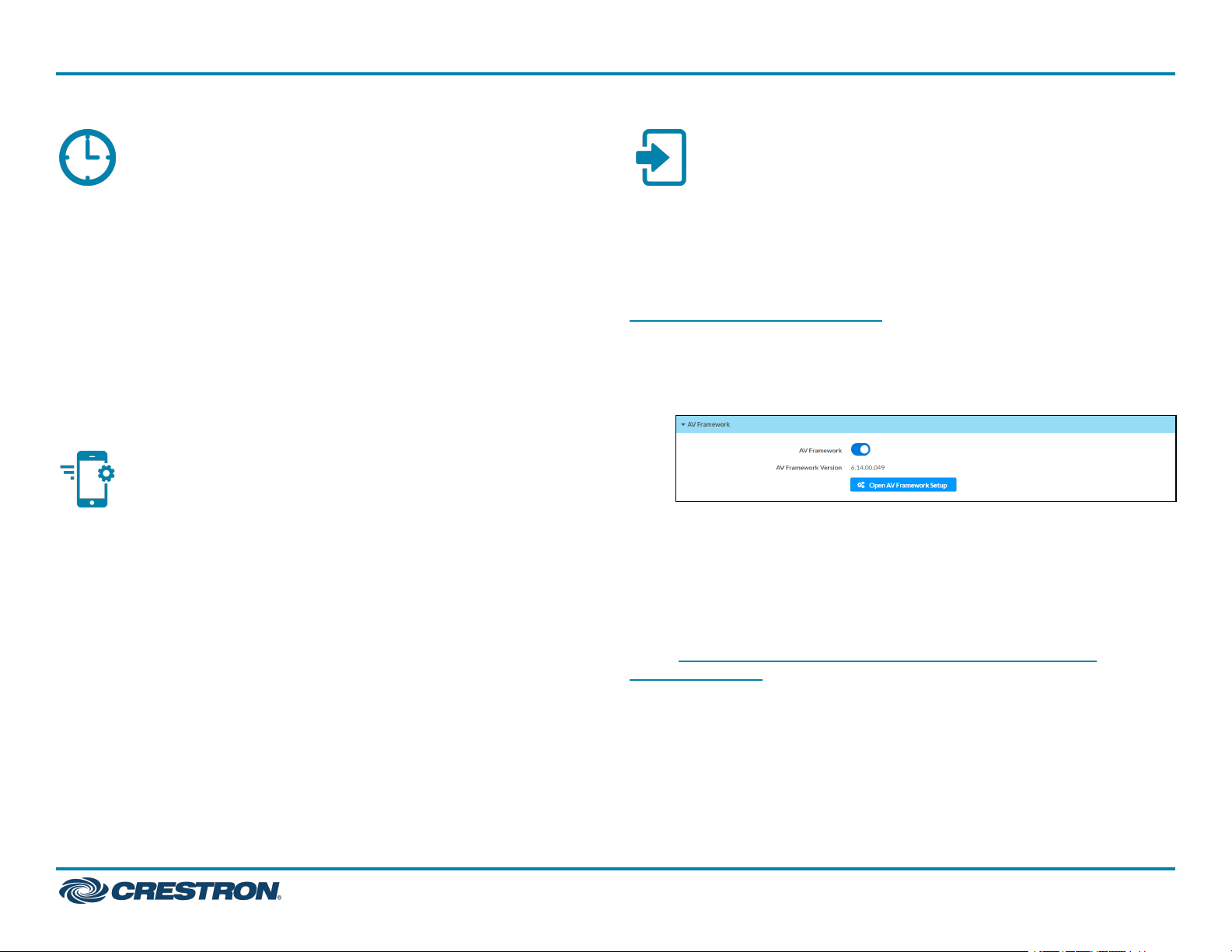

2. Navigate to Settings >AVFramework.

3. Turn on the AVFramework toggle.

4. Save the configuration. The control system will reboot with the native

.AVFramework software program turned on.

After the control system reboots, click Open AVFramework Setup to

launch the .AVFramework web configuration utility. For more

information on configuring .AVFramework for the control system, refer

to the .AVFramework Software for 4-Series Control Systems

Operations Guide.

PRO4 QuickStart

4-Series™ Control System

Visit the Product Page

Scan the QR code to visit the product page.

PRO4

www.crestron.com/model/6512050

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Regulatory Model: M201921001

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, 3-Series, 4-Series, .AVFramework, Cresnet, Crestron

Toolbox, and XiOCloud are either trademarks or registered trademarks of Crestron

Electronics, Inc. in the United States and/or other countries. Apple and HomeKit are

either trademarks or registered trademarks of Apple, Inc. in the United States and/or

other countries. Other trademarks, registered trademarks, and trade names may be

used in this document to refer to either the entities claiming the marks and names or

their products. Crestron disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or photography.

Doc. 8515B

12/22/21

PRO4 QuickStart

4-Series™ Control System

Andere Handbücher für 4 Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Crestron Computerhardware Handbücher

Crestron

Crestron C2N-IO Bedienungsanleitung

Crestron

Crestron CNX-PAD8 Bedienungsanleitung

Crestron

Crestron DGE-100 Maßzeichnung

Crestron

Crestron CNXRY-8 Bedienungsanleitung

Crestron

Crestron UPX-2 Bedienungsanleitung

Crestron

Crestron CLS-EXP-DIMU Bedienungsanleitung

Crestron

Crestron C2IR-8 Anleitung zur Verwendung

Crestron

Crestron UPX-2 Bedienungsanleitung

Crestron

Crestron C2VEQ-4 Bedienungsanleitung

Crestron

Crestron CNXCOM-2 Bedienungsanleitung

Crestron

Crestron DIN-AP3MEX Original Betriebsanleitung

Crestron

Crestron CNXVTC-3 Bedienungsanleitung

Crestron

Crestron DIN Rail Control Processor DIN-AP2 Anleitung zur Verwendung

Crestron

Crestron 3 Series Bedienungsanleitung

Crestron

Crestron C2VEQ-4 Anleitung zur Verwendung

Crestron

Crestron TPS-GA-TPI Bedienungsanleitung

Crestron

Crestron DGE-100 Bedienungsanleitung

Crestron

Crestron CNXIR-8 Bedienungsanleitung

Crestron

Crestron IRP2 Bedienungsanleitung

Crestron

Crestron CNXIO-16 Bedienungsanleitung

Crestron

Crestron 3 Series Bedienungsanleitung

Crestron

Crestron ST-CP Bedienungsanleitung

Crestron

Crestron CNXENET+ Anleitung zur Verwendung

Crestron

Crestron DIN-AP3 Original Betriebsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
