Crestron Flex UC-MM30-Z Bedienungsanleitung

The UC-MM30-Z and UC-MM30-Z-I Crestron Flex tabletop conference

systems provide small room video conference solutions for use with

Zoom Rooms™ software. They support a single video display and feature

a Crestron Flex tabletop conference device, UC Bracket Assembly, and

Huddly IQ™ Lite camera.

Minimum Requirements

lA video display, connected to the UC Engine.

lA Zoom Rooms account or activation code

In the Box

Tabletop Conference Device

1 Flex MM Tabletop Conference Device, Zoom Rooms software

(6511615 or 6511616)

1 PoE+ Injector (2055605)

2 Cable, CAT5e, RJ-45 - RJ-45, 11.8 ft (3.6 m) (2056204)

1 Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m) (2055579)

UC Bracket Assembly

1 UC Bracket Assembly with UC Engine and HDMI® content

ingest (6511479)

1 Power cord (2053985)

Mounting hardware

Additional Items

1 Huddly IQ™ Lite collaboration camera (6511463)

1 Camera wall mount kit (6510998)

1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)

1 Cable, HDMI, 20 ft (6.1 m) (6503567)

1 Cable, HDMI, 6 ft (1.8 m) (6503565)

1 Cable, USB 3.0, Right angle USB-C® - A, 6 ft (1.8 m) (6511591)

1 Cable, USB Extension, USB Type A Male-to-Female, 15 ft

(4.6m) (6508260)

1 EDID passthrough (2055728)

Connect

To make system connections:

1. Remove the connector cover prior to making connections on the

bracket assembly.

UC-MM30-Z and UC-MM30-Z-I QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms™ Systems

2. Make system connections as shown below.

UC-MM30-Z and UC-MM30-Z-I QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms™ Systems

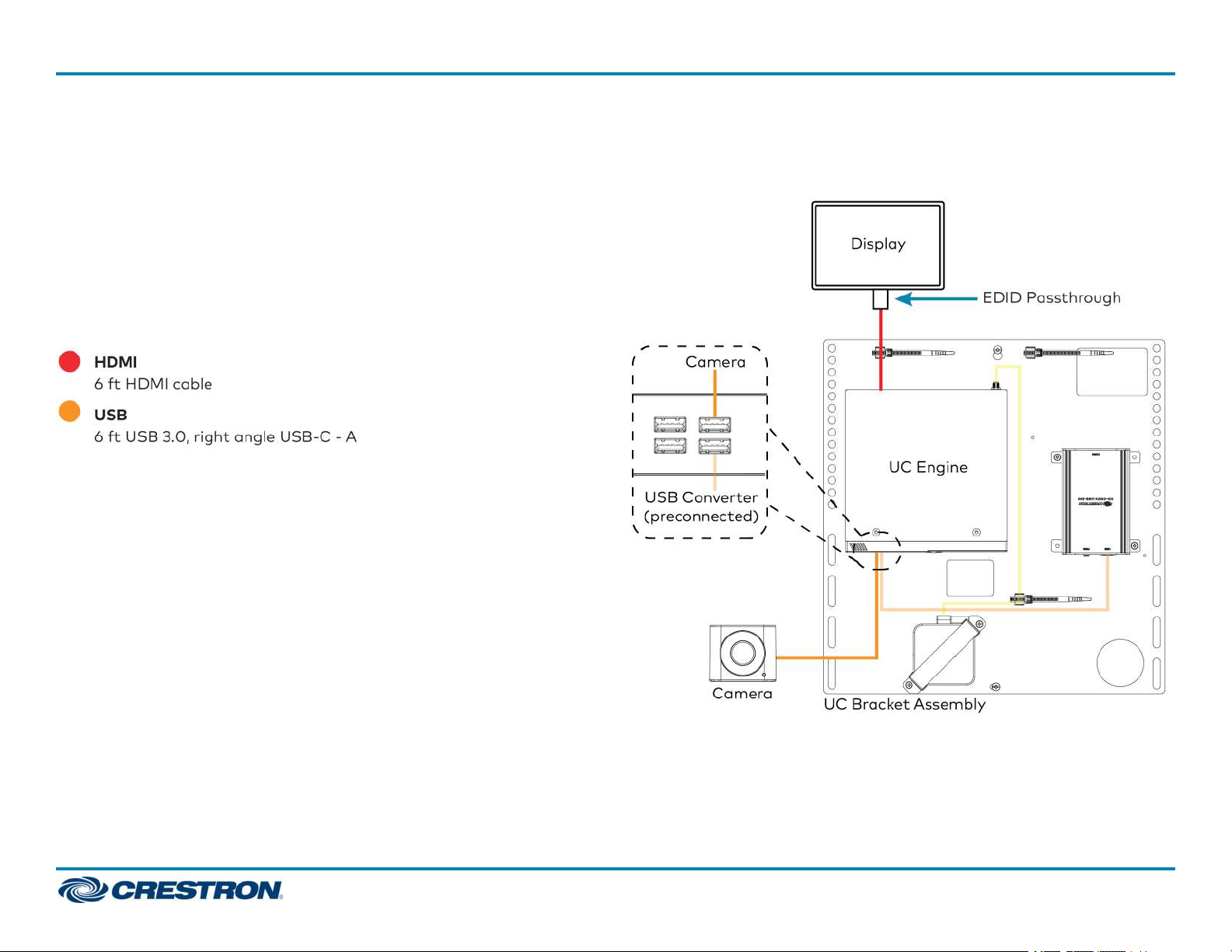

3. Make the remaining system connections as shown below.

UC-MM30-Z and UC-MM30-Z-I QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms™ Systems

4. Bundle the cables with the integrated cable tie wraps. The cable tie

wraps are reusable.

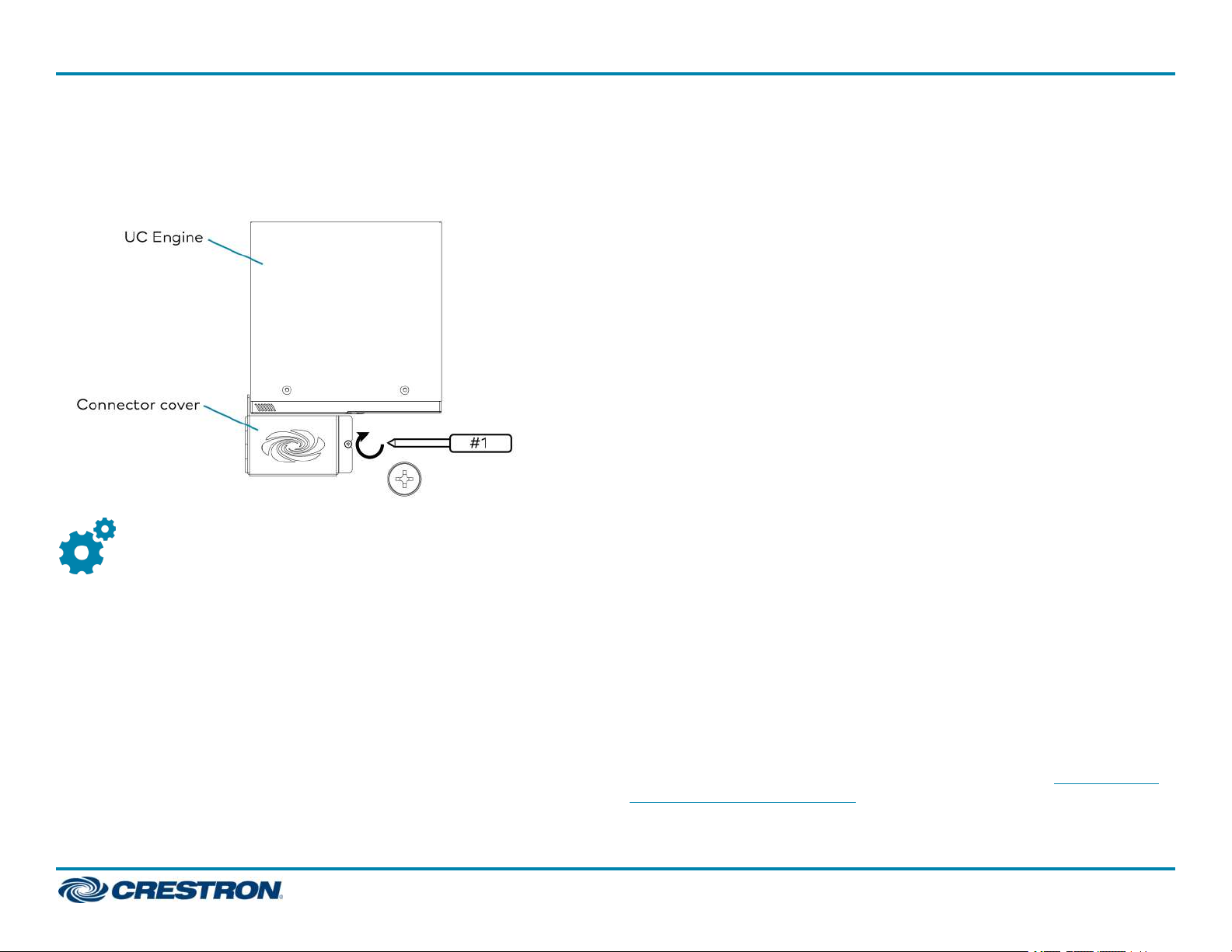

5. After completing the connections, secure the connector cover using a

#1 Phillips head screwdriver to replace the screw.

Configure

Apply Power

Press the power button on the bottom of the UC Engine and apply power

to all of the other devices in the system. The connected display device will

show a pairing code. The conference device will show a prompt to enter a

pairing code.

Use the conference device to sign in to the Zoom Rooms service using an

activation code or a Zoom Room Sign-In.

1. Tap Zoom and then tap OK. The device will reboot.

2. Enter the pairing code shown on the display to pair the device with the

UC Engine. The Zoom Rooms controller app is displayed.

3. Log in to the Zoom Rooms service with an activation code or Zoom

Rooms Credentials (email and password).

lActivation Code:

a. Tap Enter Activation Code.

b. Enter the 16-digit activation code provided by the administrator

to activate the Zoom Room that is assigned to the activation

code. The Zoom Rooms Conference Room screen is shown on

the display.

lSign In:

a. Tap Sign In.

b. Enter the Zoom Room credentials and tap Sign In.

c. Select the conference room name from the list and tapNext.

The Zoom Rooms Conference Room screen is shown on the

display.

4. Tap Settings. If a password is required, enter the password (the

default password is "1234"). The Settings screen is displayed.

5. Tap Microphone and select the conference device as the source.

6. Tap Speaker and select the conference device as the source.

7. Tap Meet Now to exit.

Configure the System

Connect a USB keyboard and mouse (sold separately) to a USB port on

the UC Engine to configure system features. Refer to the Crestron Flex

UC Video Conference Systems (Doc. 8360) for more information.

UC-MM30-Z and UC-MM30-Z-I QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms™ Systems

Factory Reset

A factory reset may be performed when troubleshooting.

To perform a factory reset on the conference device:

1. Power cycle the device by disconnecting and reapplying power.

2. When the device powers on and the LEDs flash green, tap the home

button below the Crestron® logo 10 times.

3. When prompted, confirm the factory reset. Use the mute buttons to

move the selector to Yes. Press the home button to confirm.

4. The device will reboot. Configure the device as described in Configure.

Visit the Product Page

Scan the QR code to visit the product page.

UC-MM30-Z

www.crestron.com/model/6511341

UC-MM30-Z-I

www.crestron.com/model/6511342

UC-MM30-Z and UC-MM30-Z-I QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms™ Systems

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, and XiO Cloud are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries.

HDMI is either a trademark or registered trademark of HDMI Licensing LLC in the

United States and/or other countries. Huddly IQ is either a trademark or registered

trademark of Huddly AS in the United States and/or other countries. USB-C is either a

trademark or registered trademark of USB Implementers Forum, Inc. in the United

States and/or other countries. DisplayPort is either a trademark or registered

trademark of Video Electronics Standards Association in the United States and/or other

countries. Zoom Rooms is either a trademark or registered trademark of Zoom Video

Communications, Inc. in the United States and/or other countries. Other trademarks,

registered trademarks, and trade names may be used in this document to refer to either

the entities claiming the marks and names or their products. Crestron disclaims any

proprietary interest in the marks and names of others. Crestron is not responsible for

errors in typography or photography.

Doc. 8837A

08/26/20

UC-MM30-Z and UC-MM30-Z-I QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Zoom Rooms™ Systems
