Crestron DM-RMC-4K-100-C-1G Bedienungsanleitung

The Crestron® DM-RMC-4K-100-C-1G is a DigitalMedia 8G+® wall plate

receiver and room controller that provides a simple, cost-effective

interface solution for a single display device as part of a complete

Crestron® DigitalMedia™ system.

In the Box

1 DM-RMC-4K-100-C-1G Wall Plate DigitalMedia 8G+®

Receiver and Room Controller 100

Additional Items

1 Bracket, Surface Mount (2016054)

2 Connector, 2-Pin (2003574)

1 Connector, 3-Pin (2003575)

2 Screw, 6-32 x 1/4 in., Pan Head, SEMS (2007218)

2 Screw, 6-32 x 3/4 in., Truss Head, Combo (2009211)

Install the Receiver

Mount the device into an electrical box, onto a flat surface, or onto a rack

rail. Connect the rear of the receiver before mounting it into an electrical

box. If the receiver is to be mounted onto a flat surface or rack rail,

connect the rear of the unit after it is mounted.

Connecting the Rear of the Receiver

NOTE: The DM IN port is a PoDM (Power over DM) powered device

(PD) port and is also compatible with HDBaseT® PoE:

lIn order for the DM IN port to receive PoDM, the port must be

connected to a DigitalMedia switcher or other DigitalMedia

equipment that has a PoDM power sourcing equipment (PSE) port.

lIn order for the DM IN port to receive HDBaseT PoE, the port must

be connected to equipment that has an HDBaseT PoE PSE port.

Wiring that connects to a PoDM or HDBaseT PoE port is designed for

intrabuilding use only.

PoDM, HDBaseT PoE, or the optional PW-2407WUL power pack (sold

separately) can be used to power the receiver.

DM-RMC-4K-100-C-1G QuickStart

Wall Plate 4K DigitalMedia 8G+® Receiver and Room Controller 100

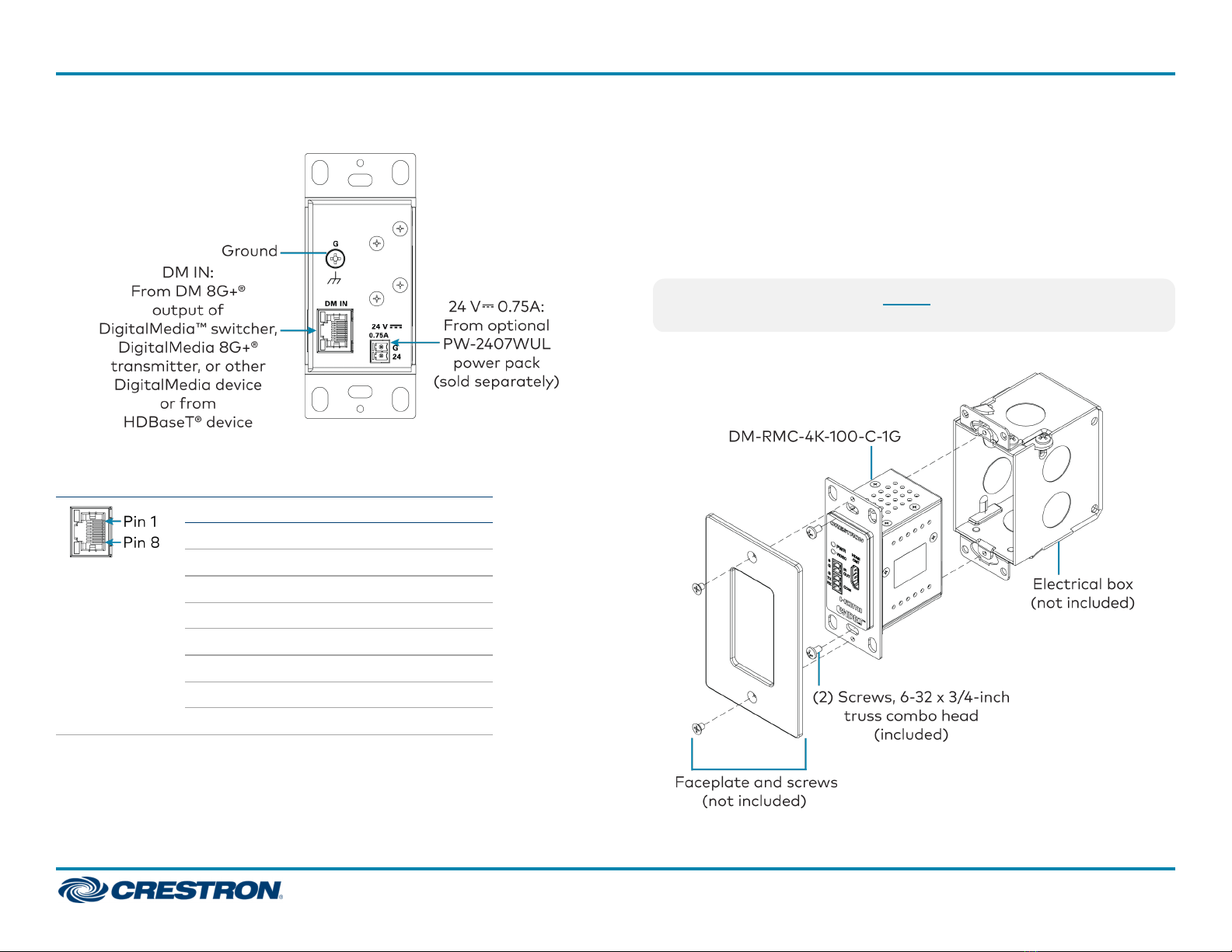

Connections to Rear of Receiver

Refer to the following table for DM IN wiring information.

DM IN Wiring

Pin Number Wire Color

1 Orange/White

2 Orange

3 Green/White

4 Blue

5 Blue/White

6 Green

7 Brown/White

8 Brown

Mounting into an Electrical Box

Mount the receiver into a 1-gang electrical box (not included).

1. Using a Phillips screwdriver and the two included 6-32 x 3/4-inch truss

combo head screws, attach the receiver to the electrical box.

2. Attach a decorator style faceplate (not included) to the receiver using

two screws (not included).

NOTE: The optional Crestron FP-G1 Series faceplate assembly is

sold separately.

Mounting into an Electrical Box

DM-RMC-4K-100-C-1G QuickStart

Wall Plate 4K DigitalMedia 8G+® Receiver and Room Controller 100

Mounting onto a Flat Surface

Mount the receiver onto a suitable flat surface such as the underside of a

table.

1. Using a Phillips screwdriver and the two included 6-32 x 1/4-inch

SEMS screws, attach the included surface-mount bracket to the

receiver.

2. Attach the bracket to the flat surface using the two surface-mount

screw slots and two mounting screws (not included).

Mounting onto a Flat Surface

Mounting onto a Rack Rail

Mount the transmitter onto the front or rear rail of a rack.

1. Position the receiver horizontally so that the holes in the left or right

mounting flange align with the holes in the rack rail.

2. Secure the unit to the rack rail using two mounting screws

(notincluded).

Mounting onto a Rack Rail

DM-RMC-4K-100-C-1G QuickStart

Wall Plate 4K DigitalMedia 8G+® Receiver and Room Controller 100

Connecting the Front of the Receiver

Connect the front of the receiver as required for the application.

NOTES:

lThe IR OUT and COM (RS-232) ports are enabled only when the

receiver is connected to an Ethernet-enabled DigitalMedia switcher

or transmitter that is addressable from a Crestron control system.

lPass-through mode for CEC is supported when the DM-RMC-4K-

100-C-1G is connected directly to a DigitalMedia transmitter.

Fullmanagement of CEC is supported between the locally

connected HDMI® device and a control system when connected to

an Ethernet-enabled 4K DigitalMedia transmitter or switcher that

supports CEC over the HDBaseT connection.

Connections to Front of Receiver

Visit the Product Page

Scan the QR code to visit the product page.

DM-RMC-4K-100-C-1G-B

www.crestron.com/model/6505627

DM-RMC-4K-100-C-1G-W

www.crestron.com/model/6505628

DM-RMC-4K-100-C-1G QuickStart

Wall Plate 4K DigitalMedia 8G+® Receiver and Room Controller 100

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, DigitalMedia, DigitalMedia 8G+, and DM 8G+ are either

trademarks or registered trademarks of Crestron Electronics, Inc. in the United States

and/or other countries. HDBaseT and the HDBaseT Alliance logo are either trademarks

or registered trademarks of the HDBaseT Alliance in the United States and/or other

countries. HDMI and the HDMI logo are either trademarks or registered trademarks of

HDMI Licensing LLC in the United States and/or other countries. Other trademarks,

registered trademarks, and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products. Crestron disclaims

any proprietary interest in the marks and names of others. Crestron is not responsible

for errors in typography or photography.

Doc. 7707F

04/22/20

DM-RMC-4K-100-C-1G QuickStart
