Crestron DM-NVX-E760 Bedienungsanleitung

DM-NVX-E760 and DM-NVX-E760C

DM NVX® 4K60 4:4:4 HDR Network AV

Encoder with DM® Input

Product Manual

Crestron Electronics, Inc.

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Regulatory Model: M201910003

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a

limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating

system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement.

Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_

agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Toolbox, DM, DM 8G+, DM Lite, DM NAX, DM NVX, DM NVX Director, DigitalMedia,

and XiO Cloud are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or

other countries. Dolby and Dolby Atmos are either trademarks or registered trademarks of Dolby Laboratories in the

United States and/or other countries. DTS HD and DTS:X are either trademarks or registered trademarks of DTS, Inc. in

the United States and/or other countries. HDBaseT is either a trademark or registered trademark of the HDBaseT

Alliance in the United States and/or other countries. HDMI is either a trademark or registered trademark of HDMI

Licensing LLC in the United States and/or other countries. Active Directory is either a trademark or registered trademark

of Microsoft Corporation in the United States and/or other countries. Other trademarks, registered trademarks, and

trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in

typography or photography.

Contents

Introduction 1

Physical Description 2

DM-NVX-E760 2

Front Panel 2

Rear Panel 4

DM-NVX-E760C 5

Status and Configuration 7

DMF-CI-8 Chassis Details 8

Using the Web Interface 8

Using SIMPL Windows 8

DM NVX Director Virtual Switching Appliance 9

IGMP Snooping 10

Crestron XiO Cloud Service Connection 13

Automatic Point-to-Point Connectivity 14

Using the Web Interface 14

Using SIMPL Windows 15

Stream Statistics 15

Using the Web Interface 15

Using SIMPL Windows 16

Image Preview 17

Using the Web Interface 18

Using SIMPL Windows 20

Multicast TTL (Time-to-Live) 20

Using the Web Interface 20

Using SIMPL Windows 21

Differentiated Services Code Point (DSCP) 22

Adaptive Bit Rate 24

Using the Web Interface 24

Using SIMPL Windows 25

DM NAX Audio over IP (AES67) 25

Using the Web Interface 26

Using SIMPL Windows 29

7.1 Surround Sound Audio 29

DM Input 30

Using the Web Interface 30

Using SIMPL Windows 32

Still Image Detection 32

Network Port Selection 33

Test Pattern Generator 35

Product Manual — Doc. 8918B Contents • i

Using the Web Interface 35

Using SIMPL Windows 39

Enterprise-Grade Security 39

Authentication Management 39

IEEE 802.1X Authentication 40

Automatic Firmware Update 41

Troubleshooting 43

Appendix: Device Discovery 45

ii • Contents Product Manual — Doc. 8918B

Product Manual — Doc. 8918B DM-NVX-E760 and DM-NVX-E760C • 1

Introduction

Crestron® DM NVX® network AV encoders/decoders transport ultra high-definition 4K video with

60 Hz frame rates and 4:4:4 color sampling over standard Gigabit Ethernet. Using Pixel Perfect

Processing technology, a video signal is encoded and then decoded to achieve imperceptible end-

to-end latency of less than 1 frame.

The DM-NVX-E760 and DM-NVX-E760C are designed to function as encoders only. The devices

include a DM® input for interoperability with DM 8G+® output devices and DM Lite® transmitters.

Certified using HDBaseT® technology, the DM input is also compatible with third-party HDBaseT

products. The DM-NVX-E760 and DM-NVX-E760C enable AV signals from the DM input to be

transmitted over the network to one or many DM NVX decoders.

The DM-NVX-E760 is a surface-mountable endpoint designed to mount onto a flat surface or

rack rail. The DM-NVX-E760C is designed for installation into a card slot of a DMF-CI-8 card

chassis.

This manual provides information about the following:

lPhysical Description (on the next page)

lStatus and Configuration (on page7)

lTroubleshooting (on page43)

In addition, information about device discovery of a DM NVX device using Crestron Toolbox™

software is provided in the appendix of this manual. For installation information, refer to the

DM-NVX-E760 Quick Start (Doc. 8211) or DM-NVX-E760C Quick Start (Doc. 8346) as

appropriate. Forinformation about designing a DM NVX system, refer to the

DM NVX System Design Guide (Doc. 7977).

2 • DM-NVX-E760 and DM-NVX-E760C Product Manual — Doc. 8918B

Physical Description

The following sections provide information about the connectors, controls, and indicators that

are available on the DM-NVX-E760 (below) and DM-NVX-E760C (on page5) encoders.

DM-NVX-E760

This section provides information about the front and rear panels of the DM-NVX-E760.

Front Panel

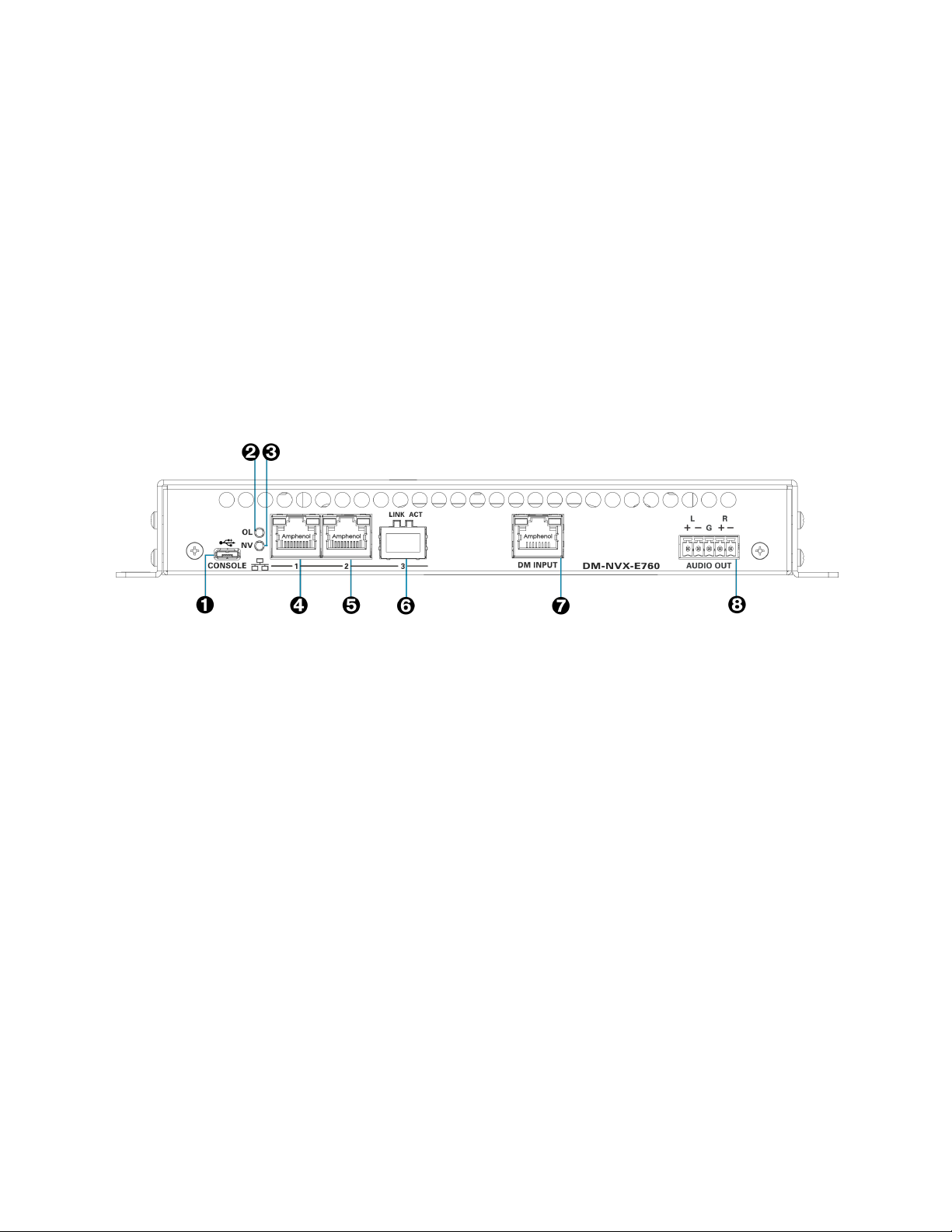

The following illustration shows the front panel of the DM-NVX-E760.

DM-NVX-E760 Front Panel

ÊCONSOLE: (1) Micro USB connector, female;

USB 2.0 computer console port (for setup)

ËOL: (1) LED, green indicates an online connection to a control system via Ethernet

ÌNV: (1) LED, green indicates unit is encoding (transmitting) network video

ÍEthernet 1: (1) 8-pin RJ-45 connector, female;

100BASE-TX/1000BASE-T Ethernet port;

PoE++ and UPOE PD (powered device) port,

IEEE 802.3bt Type 3 Class 5 (60 W/4 pair) compliant

(2) LEDs, green indicates Ethernet link status, amber indicates Ethernet activity

ÎEthernet 2: (1) 8-pin RJ-45 connector, female;

100BASE-TX/1000BASE-T Ethernet port

(2) LEDs, green indicates Ethernet link status, amber indicates Ethernet activity

ÏEthernet 3: (1) SFP port;

Accepts one Crestron SFP-1G Series transceiver module (sold separately)

(1) LINK LED, green indicates Ethernet link status

(1) ACT LED, green indicates Ethernet activity

Product Manual — Doc. 8918B DM-NVX-E760 and DM-NVX-E760C • 3

ÐDM INPUT: (1) 8-pin RJ-45 connector, female, shielded;

DM 8G+ (HDBaseT standard compliant) or DM Lite input;

PoDM+ (HDBaseT PoE+ compatible) PSE (power sourcing equipment) port or DM

Lite power port;

Connects to the DM 8G+ output of a DM® switcher, transmitter or other DM

device; to the DM Lite port of a DM Lite transmitter; or to an HDBaseT device via

CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable

(2) LEDs, green indicates DM link status, amber indicates video and HDCP signal

presence

Refer to DM Input (on page30) for information about configuring the DM INPUT

port.

ÑAUDIO OUT: (1) 5-pin 3.5 mm detachable terminal block;

Balanced/unbalanced stereo line-level audio output, functional only when the

device is receiving a 2-channel stereo input signal;

Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;

Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced

4 • DM-NVX-E760 and DM-NVX-E760C Product Manual — Doc. 8918B

Rear Panel

The following illustration shows the rear panel of the DM-NVX-E760.

DM-NVX-E760 Rear Panel

ÊPWR: (1) LED, indicates operating power supplied via PoE++, UPOE, or the included

power pack; illuminates amber while booting and green when operating

ËSETUP: (1) Red LED and (1) push button for on-screen IP address display

NOTES:

lIf the DM-NVX-E760 encoder is connected to a DM-NVX-D30(C), DM-NVX-D80-

IOAV, or DM-NVX-36x(C) decoder, pressing the SETUP button on the DM-NVX-

E760 for less than 10 seconds displays the encoder and decoder IP addresses on

the display connected to the decoder.

lIf the DM-NVX-E760 encoder is connected to a DM-NVX-35x(C) decoder,

pressing the SETUP button on the DM-NVX-E760 for less than 10 seconds

displays the IP address of the decoder on the display connected to the decoder.

ÌRESET: (1) Recessed push button for hardware reset

Í24VDC 2.5A: (1) 2.1 x 5.5 mm DC power connector;

24 VDC power input;

PW-2420RU power pack (included)

ÎG: 6-32 screw;

Chassis ground lug

Product Manual — Doc. 8918B DM-NVX-E760 and DM-NVX-E760C • 5

DM-NVX-E760C

This section provides information about the connectors and indicators on the DM-NVX-E760C.

DM-NVX-E760C

ÊCONSOLE: (1) Micro USB connector, female;

USB 2.0 computer console port (for setup)

ËOL: (1) LED, green indicates an online connection to a control system via

Ethernet

ÌNV: (1) LED, green indicates unit is encoding (transmitting) network video

ÍEthernet 1: (1) 8-pin RJ-45 connector, female;

100BASE-TX/1000BASE-T Ethernet port

(2) LEDs, green indicates Ethernet link status, amber indicates Ethernet activity

ÎEthernet 2: (1) 8-pin RJ-45 connector, female;

100BASE-TX/1000BASE-T Ethernet port

(2) LEDs, green indicates Ethernet link status, amber indicates Ethernet activity

ÏEthernet 3: (1) SFP port;

Accepts one Crestron SFP-1G Series transceiver module (sold separately)

(1) LINK LED, green indicates Ethernet link status

(1) ACT LED, green indicates Ethernet activity

ÐDM INPUT: (1) 8-pin RJ-45 connector, female, shielded;

DM 8G+ (HDBaseT standard compliant) or DM Lite input;

PoDM+ (HDBaseT PoE+ compatible) PSE (power sourcing equipment) port or

DM Lite power port;

Connects to the DM 8G+ output of a DM switcher, transmitter or other DM

device; to the DM Lite port of a DM Lite transmitter; or to an HDBaseT device

via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable

(2) LEDs, green indicates DM link status, amber indicates video and HDCP

signal presence

Refer to DM Input (on page30) for information about configuring the DM

INPUT port.

6 • DM-NVX-E760 and DM-NVX-E760C Product Manual — Doc. 8918B

ÑAUDIO OUT: (1) 5-pin 3.5 mm detachable terminal block;

Balanced/unbalanced stereo line-level audio output, functional only when the

device is receiving a 2-channel stereo input signal;

Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;

Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced
