Infrared Learner

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron CNXLIR Infrared Learner

Contents

Infrared Learner: CNXLIR..............................................................................1

Introduction ...............................................................................................................................1

Features & Functions................................................................................................... 1

Specifications ..............................................................................................................2

Physical Description....................................................................................................2

Industry Compliance ...................................................................................................4

Setup ..........................................................................................................................................5

Hardware Hookup ....................................................................................................... 5

DEAL for Windows .................................................................................................... 6

Problem Solving ........................................................................................................................6

Troubleshooting........................................................................................................... 6

Further Inquiries ..........................................................................................................8

Future Updates ............................................................................................................ 8

Software License Agreement..................................................................................................... 9

Return and Warranty Policies ..................................................................................................11

Merchandise Returns / Repair Service ...................................................................... 11

CRESTRON Limited Warranty.................................................................................11

Operations Guide - DOC. 8131B Contents •i

Crestron CNXLIR Infrared Learner

Infrared Learner: CNXLIR

Introduction

Features & Functions

The CNXLIR is an IR Learner used to "learn" the IR codes that control a piece of

equipment.

Functional Summary

• Able to learn codes from advanced / higher data-rate IR devices

using built-in IR receiver

• Automatically learns multi-function remote codes

• Capable of learning codes from devices using higher IR frequencies

• Digitizes IR codes for processing by DEAL for Windows®software

• Test learned codes using built-in IR output with included STIRP

Infrared Probe

The CNXLIR learns the IR/serial codes that control a piece of equipment and stores

them to a PC-based database for use in programming a control system with SIMPL

Windows programming software. The CNXLIR is used in conjunction with the

Crestron DEAL (Driver Editor And Learner) for Windows software to learn these

codes and allow the programmer to create a custom IR device driver file for use in a

control system program.

The codes learned by the CNXLIR are pulses of infrared (IR) light issued from a

hand-held remote control. The CNXLIR digitizes the IR codes so they can be

processed by the DEAL for Windows software.

Once the codes are learned, the software can convert them into a custom IR device

driver file. This device driver file can then be incorporated into a Crestron®control

system program. The Crestron control system will control equipment by emitting the

same IR codes as a remote control or other IR device. DEAL for Windows can also

use the CNXLIR to transmit the learned IR codes for testing purposes.

Crestron's DEAL for Windows software operates the CNXLIR. DEAL's friendly

Windows®environment guides users quickly through the learning and testing

functions. DEAL for Windows, version 3.0 is recommended for users who want to

take full advantage of the CNXLIR's capabilities. Previous versions of DEAL for

Windows will interface with the CNXLIR, but with limited capabilities.

Additionally, DEAL for Windows interacts with the Crestron Database that contains

over 1600 device driver files.

Operations Guide - DOC. 8131B Infrared Learner: CNXLIR •1

Infrared Learner Crestron CNXLIR

Specifications

Specifications for the CNXLIR are listed in the following table.

CNXLIR Specifications

SPECIFICATION DETAILS

Required Power Supply

Domestic AC Adapter

International AC Adapter

12 VDC, 0.5 A, 120 VAC Input (p/n PW-1205)

12 VDC, 1.0 A, 230 VAC Input (p/n PWI-1210)

Communications RS-232 (software handshaking enabled)

DEAL for Windows Version 1.0 or later1,2

Dimensions and Weight Height: 1.78 in (4.53 cm)

Width: 7.07 in (17.95 cm)

Depth: 6.33 in (16.06 cm)

Weight 2.0 lb (0.9 kg)

1. DEAL for Windows version 1.0 operates the CNXLIR with limited capabilities Version 2.0 requires

the Crestron Database version 11.7.206 or later. Version 3.0 or later requires the Crestron Database

version 15.xx or later.

2. The latest software versions can be obtained from the Crestron website. Refer to the NOTE

following these footnotes.

NOTE: Crestron software and any files on the website are for Authorized Crestron

dealers and Crestron Authorized Independent Programmers (CAIP) only. New users

may be required to register to obtain access to certain areas of the site (including the

FTP site).

Physical Description

The CNXLIR is housed in a black enclosure with labeling on the front and rear

panels. The front of the unit has six LEDs indicating the unit’s current status. An IR

receiving window is located on the front of the unit. Make sure the receiving window

is positioned to avoid interference from direct sunlight and high frequency

fluorescent light.

All connections are made from the back of the unit. The four rubber feet on the base

of the unit are for stability and to prevent slippage. Refer to the physical views in the

following diagrams for the LED and connection port locations.

CNXLIR Physical Views

2 •Infrared Learner: CNXLIR Operations Guide - DOC. 8131B

Crestron CNXLIR Infrared Learner

CNXLIR Physical Views

6.32 in

(16.05 cm)

1.78 in

(4.53 cm)

7.07 in

(17.95 cm)

Ports

All connections to the CNXLIR are made through the ports on the rear panel. Refer

to the illustrations and descriptions that follow.

COMPUTER / RS-232

The nine-pin female serial port connector communicates with a PC when "learning"

codes via a standard DB9 F-M “straight through” serial cable.

12 VDC 0.5 A

The DC power connector provides external power via the Crestron 0.5 A power

pack, Crestron P/N PW-1205 or equivalent (1.0 A power pack for international

configurations, Crestron P/N PWI-1210 or equivalent).

Operations Guide - DOC. 8131B Infrared Learner: CNXLIR •3

Infrared Learner Crestron CNXLIR

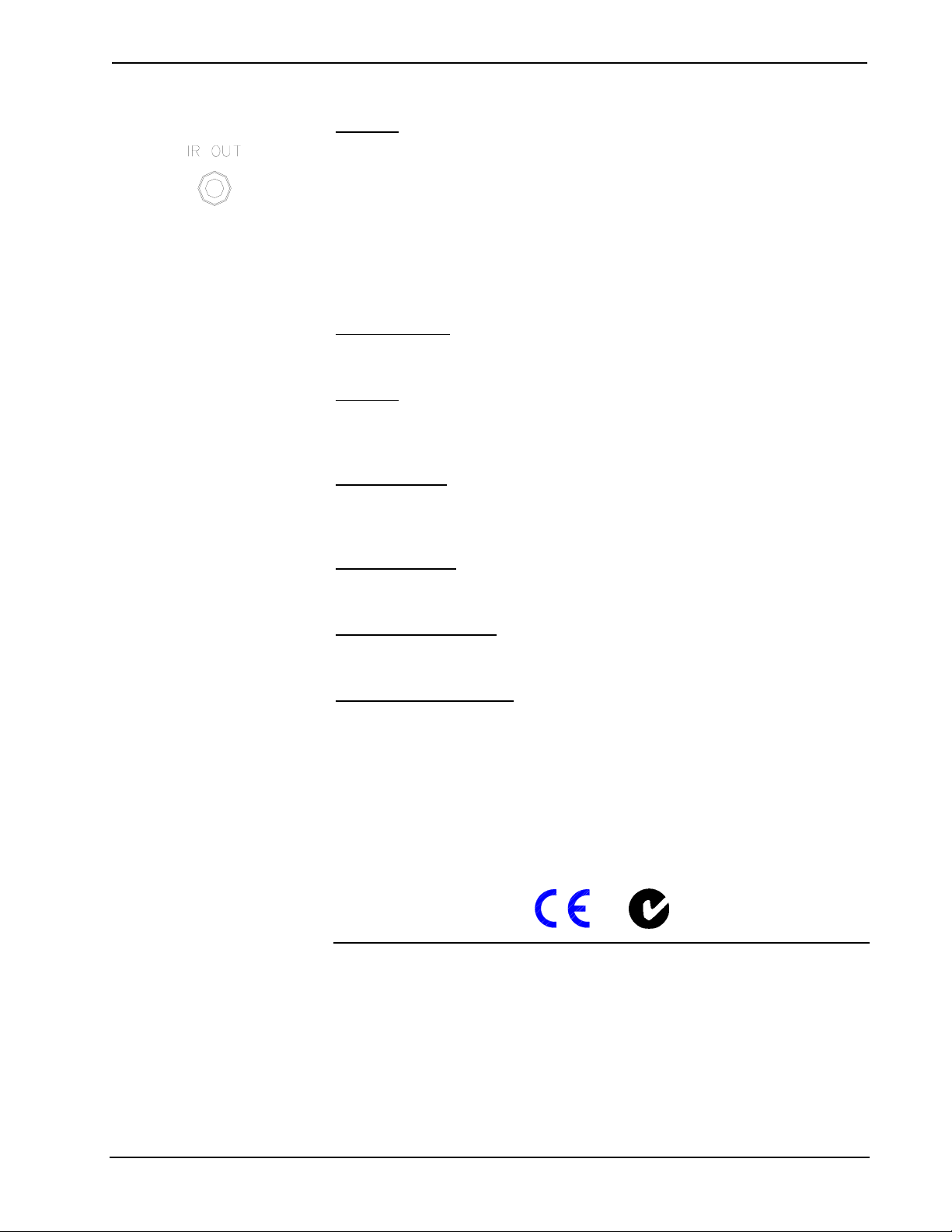

IR OUT

The 3.5 mm connector attaches to the Crestron STIRP Infrared IR Probe (included)

and is used to test learned drivers. The probe end of the STIRP is placed over a

device's IR window while the other end is plugged into the IR OUT port on the

CNXLIR.

Indicators

The CNXLIRs indicators, which appear on the front panel are described in the

following paragraphs.

PWR (Power)

This LED illuminates when power is supplied to the unit.

IR OUT

Indicates activity on the IR OUT port of the unit. This is a visual confirmation that

an IR signal is being sent from the CNXLIR.

RDY (Ready)

Indicates that the CNXLIR is waiting for an IR signal. When the CNXLIR receives

an IR signal, the RDY LED goes out.

SGNL (Signal)

Indicates that the CNXLIR is receiving an IR signal.

CMPLT (Complete)

Indicates that the processing or "learning" is complete.

OVRDRV (Overdrive)

Indicates that an IR signal is too strong. When the signal is too strong, the CNXLIR

does not accept the signal and the "learning" process for that particular function must

be restarted.

Industry Compliance

As of the date of manufacture, the CNXLIR has been tested and found to comply

with specifications for CE marking and standards per EMC and

Radiocommunications Compliance Labelling.

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

4 •Infrared Learner: CNXLIR Operations Guide - DOC. 8131B

Crestron CNXLIR Infrared Learner

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Setup

Hardware Hookup

Refer to the following hookup diagram and, aside from attaching power last,

complete the connections in any order.

Hardware Connections for the CNXLIR

POWER:

FROM POWER

PACK

(12 VDC, 0.5 A)

RS-232:

TO PC SERIAL

PORT

IR OUT:

TO STIRP

INFRARED IR

PROBE

IR RECEIVER

Operations Guide - DOC. 8131B Infrared Learner: CNXLIR •5

Infrared Learner Crestron CNXLIR

DEAL for Windows

Have a question or comment about Crestron software?

Answers to frequently asked questions (FAQs) can be viewed in the Online Help

section of the Crestron website. To post your own question or view questions you

have submitted to Crestron’s True Blue Support, log in at

http://support.crestron.com. First-time users will need to establish a user account.

DEAL for Windows is available from the Crestron Programming Tools CD. The

latest version can be obtained from the Crestron website.

NOTE: Please refer to the DEAL for Windows HELP file for step-by-step IR

learning, verifying and testing procedures.

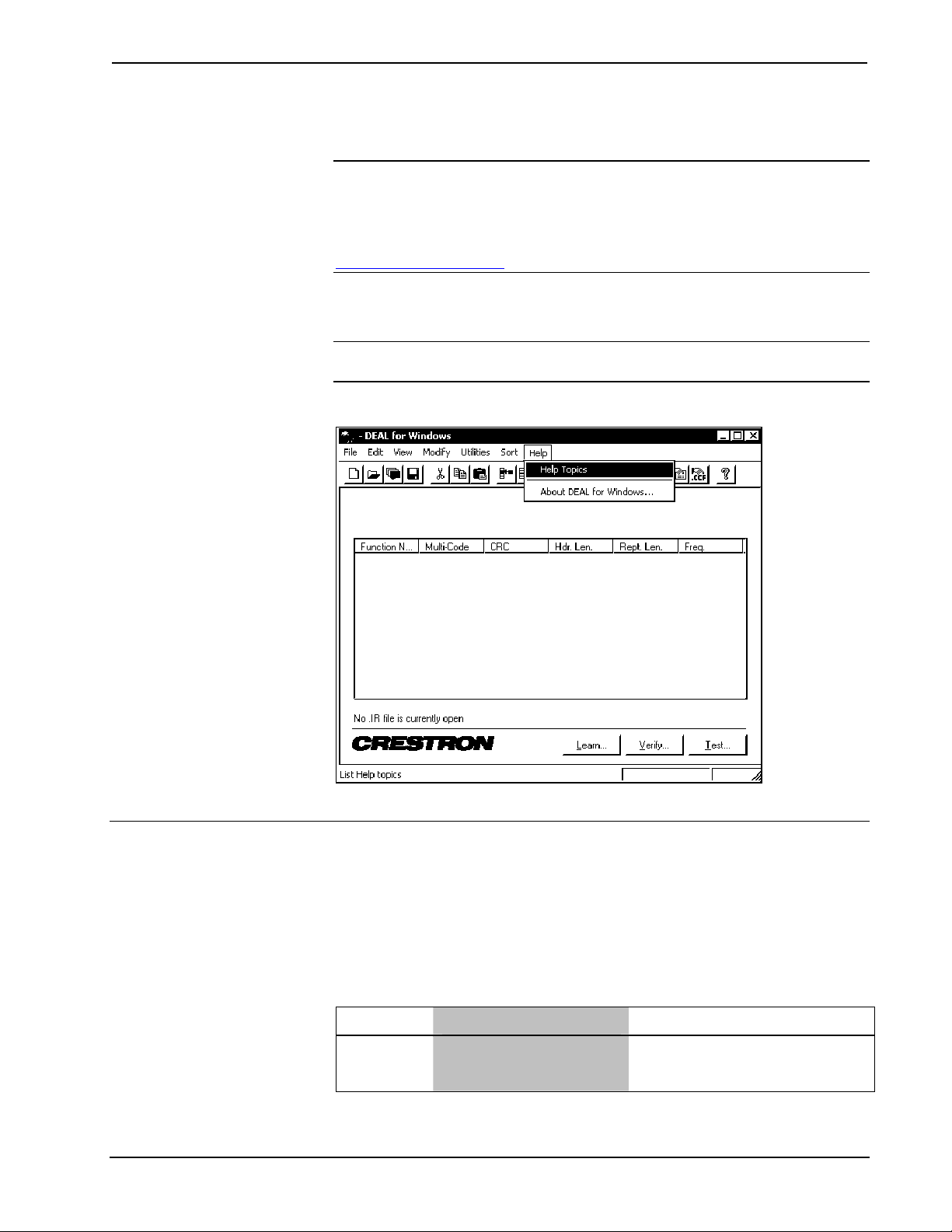

Accessing DEAL for Windows Help

Problem Solving

Troubleshooting

The following table provides corrective action for possible trouble situations. If

further assistance is required, please contact a Crestron customer service

representative.

CNXLIR Troubleshooting

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

PWR LED

does not

illuminate.

12 V power supply not

connected properly.

Make sure the power supply cord is

securely installed in the 12 V power

port and plugged into an outlet.

(continued on following page)

6 •Infrared Learner: CNXLIR Operations Guide - DOC. 8131B

Inhaltsverzeichnis

Andere Crestron Netzwerk-Hardware Handbücher

Crestron

Crestron Zum ZUMMESH-NETBRIDGE Bedienungsanleitung

Crestron

Crestron CNXIRP Bedienungsanleitung

Crestron

Crestron ST-MB Bedienungsanleitung

Crestron

Crestron UC-CAM-UPGRD-300 Bedienungsanleitung

Crestron

Crestron QM-FTMC Kurzanleitung

Crestron

Crestron 8 Channel Dimmer Module CLX-2DIM8 Bedienungsanleitung

Crestron

Crestron C2N-NPA8 Bedienungsanleitung

Crestron

Crestron CEN-IO Bedienungsanleitung

Crestron

Crestron QM-WMC Kurzanleitung

Crestron

Crestron QM-WMIC Kurzanleitung

Crestron

Crestron HZA-PWR-15A Bedienungsanleitung

Crestron

Crestron C2N-HBLOCK Bedienungsanleitung

Crestron

Crestron SP-MB Bedienungsanleitung

Crestron

Crestron ST-COM Bedienungsanleitung

Crestron

Crestron DMC-C Bedienungsanleitung

Crestron

Crestron C2N-NPA8 Bedienungsanleitung

Crestron

Crestron CAEN-CK-7x1 Bedienungsanleitung

Crestron

Crestron 4 Channel Dimmer Module CLX-1DIM4 Bedienungsanleitung

Crestron

Crestron STIRP Bedienungsanleitung

Crestron

Crestron AV2 Bedienungsanleitung

Crestron

Crestron QM-IEM Bedienungsanleitung

Crestron

Crestron RS-232/42 Bedienungsanleitung

Crestron

Crestron 4 Channel Fan Speed Control Module CLX-1FAN4 Bedienungsanleitung

Crestron

Crestron RACK2 Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
