Crestron BB-6X-DSW
Pre-Construction Wall Mount Back Box
for TPS-6X-DSW
Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2008 Crestron Electronics, Inc.
Crestron BB-6X-DSW Pre-Construction Wall Mount Back Box
Contents
Pre-Construction Wall Mount Back Box: BB-6X-DSW 1
Description.................................................................................................................................1
Setup ..........................................................................................................................................5
Assembly.....................................................................................................................5
Mounting .....................................................................................................................5
Installation...................................................................................................................7
Other Mounting Option Accessories ...........................................................................8
Resources...................................................................................................................................9
Industry Compliance ...................................................................................................9
Reference Documents..................................................................................................9
Further Inquiries .......................................................................................................... 9
Future Updates ............................................................................................................ 9
Return and Warranty Policies ..................................................................................................10
Merchandise Returns / Repair Service ...................................................................... 10
CRESTRON Limited Warranty.................................................................................10
Installation Guide – DOC. 6728A Contents •i
Crestron BB-6X-DSW Pre-Construction Wall Mount Back Box
Pre-Construction Wall Mount
Back Box: BB-6X-DSW
Description
The Crestron®BB-6X-DSW back box provides a UL®-listed, recess-mounted steel
enclosure for the TPS-6X-DSW Wall Mount Docking Station. Designed for pre-
construction applications, the BB-6X-DSW permits fastening to the left or right side
of a stud in a framed wall prior to installation of sheet rock. Conduit knockouts are
provided on the top and bottom to accommodate a variety of fittings and a blank
cover plate is included.
NOTE: If mounting into a material other than drywall (for example, wood lectern,
concrete or rock) use the cutout template, available in the post-construction kit
MMK-6X-DSW or TMK-6X-DSW.
NOTE: For concrete and rock mounting material, allow for proper ventilation
before mounting the TPS-6X-DSW.
The table below lists all parts included with the BB-6X-DSW.
Supplied Hardware for the BB-6X-DSW
DESCRIPTION PART NUMBER QUANTITY
Assembly, Wall Mount, Back Box 4507462 1
Metal, Plate, Blank, Cover 2022825 1
Screw, #06-32 x 1-½”, Pan, Phil 2007254 4
Screw, #08-8B, ¼”, Pan, Phil 2007277 1
Installation Guide – DOC. 6728A Pre-Construction Wall Mount Back Box: BB-6X-DSW •1
Pre-Construction Wall Mount Back Box Crestron BB-6X-DSW
The mounted view of the BB-6X-DSW is shown in the following illustration.
BB-6X-DSW Mounted View (Optional Cover Plate Attached)
2 •Pre-Construction Wall Mount Back Box: BB-6X-DSW Installation Guide – DOC. 6728A
Crestron BB-6X-DSW Pre-Construction Wall Mount Back Box
The dimensions of the BB-6X-DSW are shown in the following illustration.
BB-6X-DSW Overall Dimensions (Front View)
12.00 in
(30.46 cm)
6.35 in
(16.13 cm)
8.88 in
(22.54 cm)
9.06 in
(23.01 cm)
8.00 in
(20.32 cm)
5 in
(127 mm)
9 in
(227 mm)
7 3/4 in
(197 mm)
6 3/4 in
(171 mm)
6 in
(152 mm)
5 7/8 in
(148 mm)
6 3/16 in
(155 mm)
6 1/4 in
158 mm)
Installation Guide – DOC. 6728A Pre-Construction Wall Mount Back Box: BB-6X-DSW •3
Pre-Construction Wall Mount Back Box Crestron BB-6X-DSW

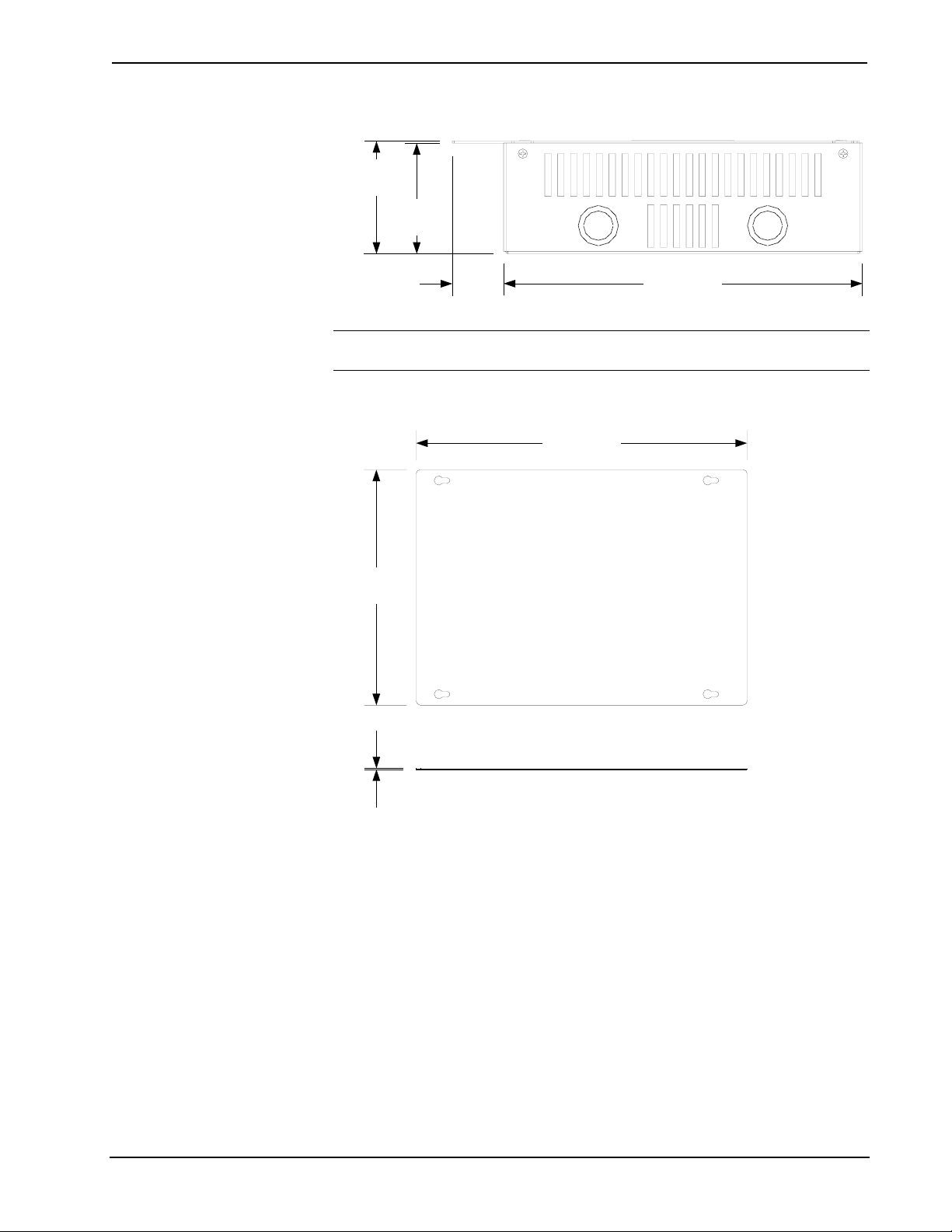

BB-6X-DSW Overall Dimensions (Bottom View)
3.25 in
(8.25 cm)
10.50 in
(26.65 cm)
3.31 in
(8.41 cm)
1.50 in
(3.81 cm)
NOTE: Knockout holes are intended for Class 2 wiring only and are ½” and ¾”
diameter.
BB-6X-DSW Overall Dimensions (Cover Plate)
0.03 in
(0.08 cm)
7.00 in
(17.78 cm)
9.85 in
(25.02 cm)
4 •Pre-Construction Wall Mount Back Box: BB-6X-DSW Installation Guide – DOC. 6728A
Crestron BB-6X-DSW Pre-Construction Wall Mount Back Box
Setup
Assembly
Required Tools:
• #2 Phillips tip screwdriver
The back box mounting enclosure comes fully assembled except for a grounding
screw. To prepare for mounting, complete the following procedure:
1. Remove knockouts as required.
2. Attach the supplied #08-8B self-tapping screw to back box mounting
enclosure assembly for grounding.
NOTE: The #08-8B self-tapping screw (2007277), supplied for grounding
purposes, is installed in the rear of the back box mounting enclosure assembly.
Mounting
Required Tools and Materials:
• #2 Phillips tip screwdriver
• Level
• Standard drywall screws or nails (not included)
CAUTION: Allow an air gap of a least 12 inches (30.48 cm) in the wall cavity
above and below the TPS-6X-DSW for heat dissipation.
NOTE: If your installation is not on wooden studs, be sure to consider the needs of
your particular situation. For example, screw type may vary for steel studs, etc.
To mount the back box, complete the following procedure (refer to illustration on the
following page).
1. Position the back box against the stud so the extended edge of the attached
mounting plate covers the front edge of the stud. Be sure the side of the
back box is also against the side of the stud.
2. Use the level and verify the back box is horizontal. Leveling must be done
before proceeding.
3. Attach the back box to the left or right side of the stud with standard
drywall screws or nails (not included). If mounting to the left side of a stud,
the back box must be turned over so the extended edge of the attached
mounting plate is on the right side.
4. Feed cables through the knockout holes.
NOTE: This assembly should use Class 2 wiring only.
Installation Guide – DOC. 6728A Pre-Construction Wall Mount Back Box: BB-6X-DSW •5
Pre-Construction Wall Mount Back Box Crestron BB-6X-DSW
Mounting the Back Box
ENSURE THESE
SURFACES
ARE FLUSH BACK BOX MOUNTING
ENCLOSURE ASSEMBLY
(4507462)
NOTE: BE SURE THE
ASSEMBLY IS LEVEL
WHEN MOUNTED.
SCREW (1) #08-8B x ¼"
SELF-TAPPING
FOR GROUNDING
(2007277)
6 •Pre-Construction Wall Mount Back Box: BB-6X-DSW Installation Guide – DOC. 6728A
