Crestron CCS-TS-6500-MCK Mobile Cart Mount for 65” Display

Installation Guide – DOC. 7512A Contents •i

Contents

Mobile Cart Mount for 65” Display: CCS-TS-6500-MCK 1

Introduction ............................................................................................................................... 1

Setup .......................................................................................................................................... 2

Supplied Hardware ......................................................................................................2

Installation ................................................................................................................... 2

Resources...................................................................................................................................6

Further Inquiries .......................................................................................................... 6

Future Updates ............................................................................................................ 6

Return and Warranty Policies ....................................................................................................7

Merchandise Returns / Repair Service ........................................................................ 7

Crestron Limited Warranty.......................................................................................... 7

Crestron CCS-TS-6500-MCK Mobile Cart Mount for 65” Display

Installation Guide – DOC. 7512A Mobile Cart Mount for 65” Display: CCS-TS-6500-MCK •1

Mobile Cart Mount

for 65” Display:

CCS-TS-6500-MCK

Introduction

The CCS-TS-6500-MCK Mobile Cart Mount from Crestron®is designed to support

flat panel displays with up to 65” screens.

CCS-TS-6500-MCK Overall Dimensions

7.58 in

(193 mm)

27.98 in

(711 mm)

67.10 in

(1705 mm)

4.50 in

(115 mm)

4.50 in

(115 mm)

28.42 in

(722 mm)

30.09 in

(765 mm)

Mobile Cart Mount for 65” Display Crestron CCS-TS-6500-MCK

2•Mobile Cart Mount for 65” Display: CCS-TS-6500-MCK Installation Guide – DOC. 7512A

Setup

Supplied Hardware

The hardware supplied with the CCS-TS-6500-MCK is listed in the following table.

Supplied Hardware for the CCS-TS-6500-MCK

DESCRIPTION QUANTITY

Base 1

3” Casters (locking) 2

3” Casters (non-locking) 2

Support Tubes 2

Screw, M10 x 12 mm, Hex 4

Display Adapter 1

Screw, M8 x 10 mm, Set 6

Flat Washer, M10 4

Caster Wrench, 21 mm 1

Allen Wrench, M5 1

Allen Wrench, 5/32” 1

Installation

This section provides installation procedures for the base casters, support tubes and

display adapter. Be sure to review each procedure before starting.

WARNING: The floor structure must be capable of supporting at least 250 lb (114

kg). If not, the floor structure must be reinforced. Proper installation procedure by a

qualified service technician, as outlined in the installation instructions, must be

followed. Failure to do so could result in serious personal injury.

WARNING: Do not attach equipment weighing more than 75 lb (34 kg) above the

60” (~1.5 meter) marked line on the support poles. Doing so may cause the cart to tip

over, resulting in property damage and personal injury.

CAUTION: Do not install on a structure that is prone to vibration, movement or

chance of impact. Doing so could result in damage to the display or damage to the

mounting surface.

CAUTION: Do not install near heater, fireplace, direct sunlight, air conditioning or

any other source of heat. Doing so may result in damage to the display and could

increase the risk of fire.

CAUTION: When used in conjunction with a wall mount used to support a flat

panel display, such as the CCS-TS-6500-WMK, be certain to attach the display

adapter to the center mounting position of the wall mount. It is important to

distribute the weight of the display evenly to avoid damage to the display or damage

to the wall mount.

Crestron CCS-TS-6500-MCK Mobile Cart Mount for 65” Display

Installation Guide – DOC. 7512A Mobile Cart Mount for 65” Display: CCS-TS-6500-MCK •3

Base Caster Installation

To install the base casters:

1. Select the desired location for the CCS-TS-6500-MCK and place the base

on a flat surface.

NOTE: Ensure the two locking casters are attached to the rear legs of the

cart.

2. Insert each caster into the threaded mounting point located on the underside

of the base (refer to the following illustration). Turn each caster clockwise

to tighten. Ensure all four casters are tightened all the way until flush with

the base. Then tighten using the included 21 mm caster wrench.

Base Caster Installation

Locking Caster

Non-Locking Caster

Support Tube Installation

To install the support tubes:

1. Place the base on a flat surface.

2. Slide the support tubes over the mounting clamps on the cart (refer to the

following illustration).

NOTE: To perform the following step, ensure the access holes located at

the ends of the support tubes line up with the set screw holes in the

mounting clamps. The upper holes are used for cable management once the

display has been mounted on the support tubes.

3. Insert the set screws into each hole and tighten with the included M5 Allen

wrench.

Mobile Cart Mount for 65” Display Crestron CCS-TS-6500-MCK

4•Mobile Cart Mount for 65” Display: CCS-TS-6500-MCK Installation Guide – DOC. 7512A

Support Tube Installation

Support Tubes

Base

Allen Wrench, M5

Screws, M10 x 35 mm, Set

Mounting Clamps

Access Holes

Display Adapter Installation

To install the display adapter:

1. Slide the display adapter onto the support tubes.

2. Once the desired height has been determined, secure the display adapter by

tightening the four M8 x 10 mm set screws using the included 5/32” Allen

wrench.

Display Adapter Installation

Display Adapter

Support Tubes

Allen Wrench, 5/32”

Crestron CCS-TS-6500-MCK Mobile Cart Mount for 65” Display

Installation Guide – DOC. 7512A Mobile Cart Mount for 65” Display: CCS-TS-6500-MCK •5

Wall Plate Installation

To attach a wall plate, such as the CCS-TS-6500-WMK, to the display adapter:

1. Install the display adapter as described on the previous page.

2. Attach the wall plate to the display adapter using the four supplied

M10 x 12 mm hex screws in the four holes at the center position of the wall

plate, as shown.

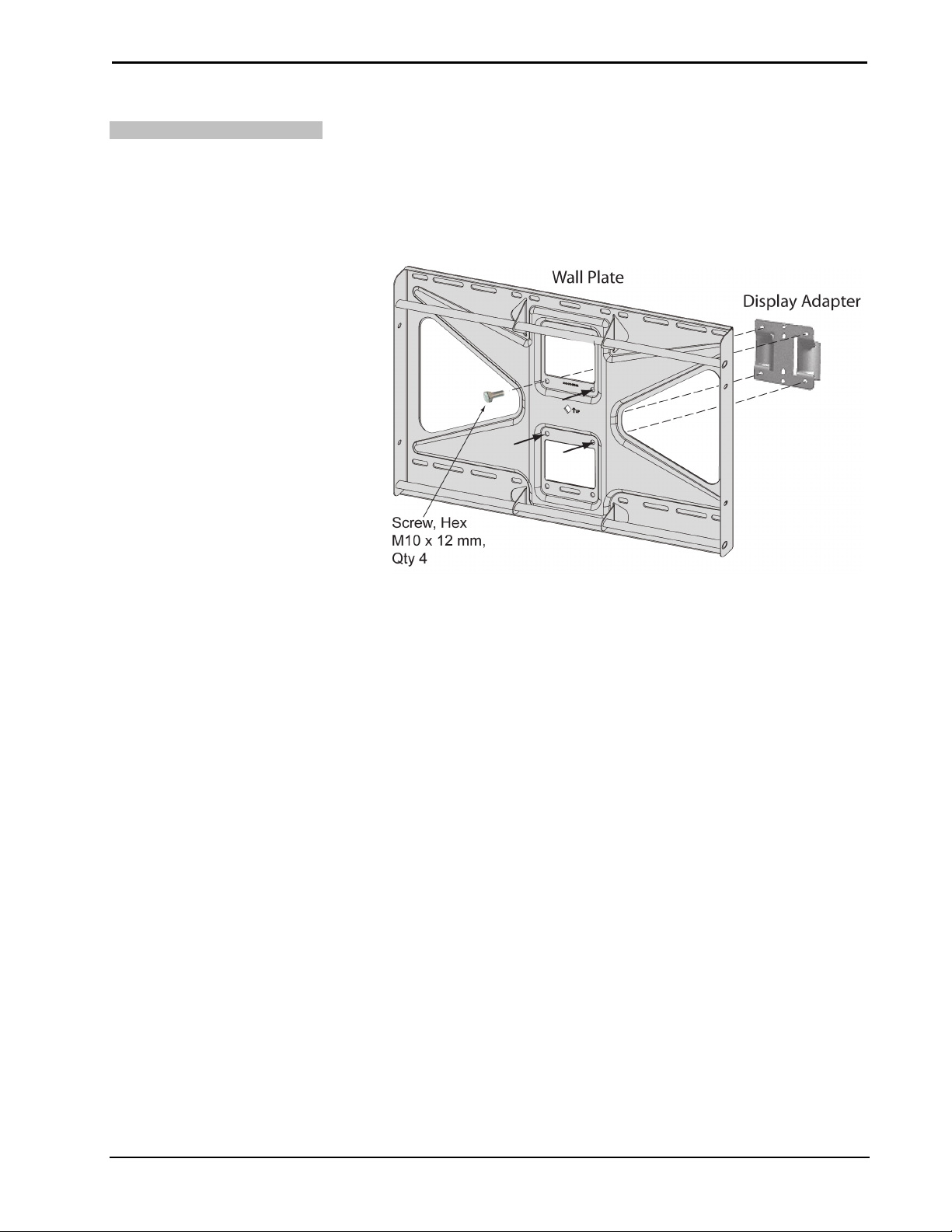

Wall Plate Installation

Mobile Cart Mount for 65” Display Crestron CCS-TS-6500-MCK

6•Mobile Cart Mount for 65” Display: CCS-TS-6500-MCK Installation Guide – DOC. 7512A

Resources

Further Inquiries

To locate specific information or resolve questions after reviewing this guide,

contact Crestron's True Blue Support at 1-888-CRESTRON [1-888-273-7876] or

refer to the listing of Crestron worldwide offices on the Crestron Web site

(www.crestron.com/offices) for assistance within a particular geographic region.

To post a question about Crestron products, log onto the Online Help section of the

Crestron Web site (www.crestron.com/onlinehelp). First-time users must establish a

user account to fully benefit from all available features.

Future Updates

As Crestron improves functions, adds new features and extends the capabilities of

the CCS-TS-6500-MCK, additional information may be made available as manual

updates. These updates are solely electronic and serve as intermediary supplements

prior to the release of a complete technical documentation revision.

Check the Crestron Web site periodically for manual update availability and its

relevance. Updates are identified as an “Addendum” in the Download column.
