Crestron TMK-4L & WMKT-4L

Trim Ring Mount Kits

Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron TMK-4L & WMKT-4L Trim Ring Mount Kits

Contents

Trim Ring Mount Kits: TMK-4L & WMKT-4L 1

Description.................................................................................................................................1

Setup ..........................................................................................................................................2

Supplied Hardware ......................................................................................................2

Installation...................................................................................................................4

Resources.................................................................................................................................10

Industry Compliance ................................................................................................. 10

Reference Documents................................................................................................10

Further Inquiries ........................................................................................................10

Future Updates .......................................................................................................... 10

Return and Warranty Policies .................................................................................................. 11

Merchandise Returns / Repair Service ...................................................................... 11

CRESTRON Limited Warranty.................................................................................11

Installation Guide – DOC. 6390A Contents •i

Crestron TMK-4L & WMKT-4L Trim Ring Mount Kits

Trim Ring Mount Kits:

TMK-4L & WMKT-4L

Description

Trim Ring Mount Kits are the preferred method of mounting the Crestron Isys®

TPS-4L wall mounted touchpanel when a finished appearance within a neatly

trimmed cutout is required. This application is perfect for wallpapering.

NOTE: If mounting into a material other than drywall (for example, wood lectern,

concrete, or rock) use the cutout template, available in the post-construction kit

WMKT-4L. For concrete and rock mounting material, allow for proper ventilation

before mounting the touchpanel.

There are two Trim Ring Mount Kits. The TMK-4L is a pre-construction accessory.

Pre-construction refers to framed walls prior to hanging drywall. This accessory

must be used with either the Pre-Construction Mount Kit (PMK-4L) or Back Box Kit

(BB-4L).

The WMKT-4L is a post-construction kit. Post-construction refers to framed walls

with drywall hung. This accessory is designed with a mounting plate so that it can be

placed anywhere on a wall without the support of a stud. The mounting plate is also

ideal for installing the touchpanel in a lectern.

NOTE: If necessary, consult the latest revision of the TPS-4L Installation and

Operations Guide (Doc. 6449) for a complete list of mounting options. The

document is available from the Crestron website (http://www.crestron.com/manuals).

Installation Guide – DOC. 6390A Trim Ring Mount Kits: TMK-4L & WMKT-4L •1

Trim Ring Mount Kits Crestron TMK-4L & WMKT-4L

Setup

Supplied Hardware

The TMK-4L consists of a metal trim ring that attaches to the BB-4L or PMK-4L.

The WMKT-4L consists of the trim ring found in the TMK-4L as well as a mounting

plate.

The mounting plate provides the necessary support for post-construction

applications. Two overlay cutout templates (4007975) are supplied. One is in the

shape of the required opening; the other is similar to a frame, with the inner area of

the frame the shape of the required opening. (Refer to the illustrations on pages 3 and

4.) Use the template that is most convenient.

Supplied Hardware for the TMK-4L and WMKT-4L

DESCRIPTION PART NUMBER QUANTITY

Metal, Plate, Trim Ring 2013241 1

Metal, Plate, Mounting

(WMKT-4L only) 2013242 1

Screw, #04-40 x 2”, Pan, Phil

(WMKT-4L Only) 2018793 4

Overlay, Template, Wall Cutout

(WMKT-4L Only) 4007975 1

The dimensions of the TMK-4L/WMKT-4L are shown below and on the next page.

Dimensional Drawing – Trim Ring

3.91 in

(9.93 cm)

5.88 in

(14.94 cm)

0.05 in

(1.27 cm)

2.21 in

(5.61 cm)

2 •Trim Ring Mount Kits: TMK-4L & WMKT-4L Installation Guide – DOC. 6390A

Crestron TMK-4L & WMKT-4L Trim Ring Mount Kits

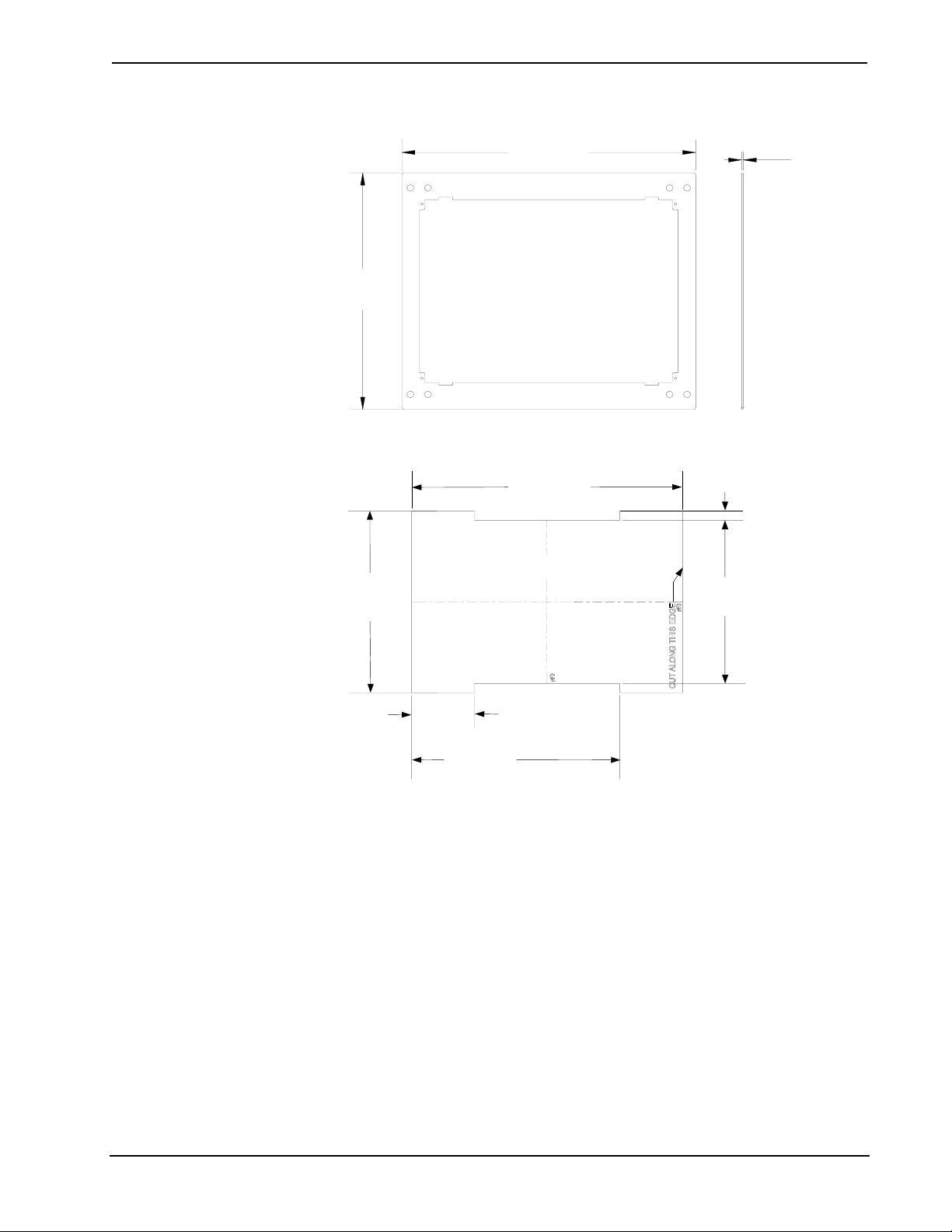

Dimensional Drawing – Mounting Plate

0.06 in

(0..15 cm)

5.55 in

(1 4 .1 0 c m)

6.75 in

(17.15 cm)

Drywall Cutout Template and Dimensions (supplied with WMKT-4L only), 1 of 2

TEMPLATE – OV40086

FOR WMKM-4L OR WMKT-4L ONLY

1 OF 2

1/4 in

(5 mm)

3 13/16 in

(97 mm)

4 1/16 in

(103 mm)

5 5/8 in

(143 mm)

4 5/16 in

(110 mm)

1 5/16 in

(33 mm)

Installation Guide – DOC. 6390A Trim Ring Mount Kits: TMK-4L & WMKT-4L •3

Trim Ring Mount Kits Crestron TMK-4L & WMKT-4L

Drywall Cutout Template and Dimensions (supplied with WMKT-4L only), 2 of 2

6 3/4 in

(172 mm)

TEMPLATE – OV40086

FOR WMKM-4L OR WMKT-4L ONLY

2 OF 2

3/4 in

(19 mm)

4 1/16 in

(103 mm)

3 13/16 in

(97 mm)

1/4 in

(5 mm)

5 9/16 in

(141 mm)

9/16 in

(14 mm)

5 5/8 in

(143 mm)

4 5/16 in

(110 mm)

1 5/16 in

(33 mm)

Installation

This section provides an installation procedure for each Trim Ring Mount Kit. The

“TMK-4L Procedure” starts below and the “WMKT-4L Procedure” starts on page 6.

Be sure to review each procedure before starting.

TMK-4L Procedure

This section provides the necessary steps for the assembly of the TMK-4L with

either the BB-4L or PMK-4L. It is assumed that the BB-4L or PMK-4L has been

secured to the stud according to the instructions in the latest revisions of their

Installation Guides (Doc. 6387 and Doc. 6388 respectively). It is also assumed that

drywall is in place and a rectangular cutout for the touchpanel is made in the drywall.

Complete the steps in the order provided. The only tool required and not supplied is

a level.

CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity

above and below the touchpanel for heat dissipation.

NOTE: When installing into the PMK-4L, verify that the 18 AWG bus wire

securing the cables for the touchpanel remains attached.

1. Verify that the rectangular cutout in the drywall is as level as possible.

2. Insert the symmetrical trim ring into the opening, as shown in the

illustration on the following page.

4 •Trim Ring Mount Kits: TMK-4L & WMKT-4L Installation Guide – DOC. 6390A

Crestron TMK-4L & WMKT-4L Trim Ring Mount Kits

Insert Trim Ring into Opening

TRIM RING (2013241)

IMPORTANT

MAKE DRYWALL CUTOUT AS LEVEL AS

POSSIBLE. MOUNTING PLATE ALLOWS

ONLY MINOR ADJUSTMENT OF THE

TOUCHPANEL.

NOTE: The required PMK-4L or BB-4L is not shown.

3. When the trim ring is in position, bend the top two flanges of the ring

upward and the bottom two flanges downward.

• If mounting into the PMK-4L, bend the flanges approximately 90

degrees.

• If mounting into the BB-4L, bend the flanges back as far as they can

go.

4. Run the necessary cables for the touchpanel and secure them behind the

drywall.

5. The TPS-4L can be installed using the four tapped holes in the PMK-4L or

BB-4L. Refer to the latest revision of the TPS-4L Operations and

Installation Guide (Doc. 6449) for details. Refer also to the comprehensive

illustration on the following page.

Installation Guide – DOC. 6390A Trim Ring Mount Kits: TMK-4L & WMKT-4L •5

Trim Ring Mount Kits Crestron TMK-4L & WMKT-4L

Touchpanel Mounting Using TMK-4L – Exploded View

DRYWALL

TRIM RING

(2013241)

TPS-4L

PMK-4L

TPS-4L

MOUNTING SCREWS (4) #04-40 X 2"

(2018793)

WMKT-4L Procedure

This section provides the necessary steps for the assembly and installation of the

WMKT-4L into a wall. Review the procedure and complete the steps in the order

provided. The only tools or materials required and not supplied are a drywall saw or

equivalent and a level.

CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity

above and below the touchpanel for heat dissipation.

1. Locate an area on the wall that is free of miscellaneous wiring and studs.

2. Make a small hole near the middle of the designated site; verify that the

location is suitable.

NOTE: Make the cutout as level and smooth as possible. The mounting plate allows

for only minor leveling adjustments. If a larger cutout is made accidentally, consider

purchasing the Crestron Mud Mount Kit, MMK-4L. Together with the mounting

plate supplied with the WMKT-4L, it provide a cost-effective means of correction.

Essentially, the combination of these two kits makes up the Crestron Mud Mount Kit

for the wall, WMKM-4L. Simply follow the “WMKM-4L Procedure” in the latest

revision of the Mud Mount Kits Installation Guide (Doc. 6389).

3. Use the drywall saw or equivalent to produce a level, rectangular cutout in

the drywall as shown on page 3 or 4.

6 •Trim Ring Mount Kits: TMK-4L & WMKT-4L Installation Guide – DOC. 6390A
