Crestron Adagio ABVR-1 Bedienungsanleitung

CrestronABVR-1

Adagio®BalancedVideoReceiver

Operations Guide

Adagio®Balanced Video Receiver Crestron ABVR-1

Contents

Adagio®Balanced Video Receiver: ABVR-1 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................1

Applications.................................................................................................................2

Specifications ..............................................................................................................2

Physical Description....................................................................................................3

Industry Compliance ...................................................................................................7

Setup..........................................................................................................................................8

CAT5 Wiring...............................................................................................................8

Installation...................................................................................................................8

Hardware Hookup .......................................................................................................8

Problem Solving ......................................................................................................................11

Troubleshooting.........................................................................................................11

Reference Documents................................................................................................12

Further Inquiries........................................................................................................12

Future Updates ..........................................................................................................12

Return and Warranty Policies..................................................................................................13

Merchandise Returns / Repair Service ......................................................................13

CRESTRON Limited Warranty.................................................................................13

All brand names, product names and trademarks are the property of their respective owners.

i •Contents Operations Guide – DOC. 6792A

Crestron ABVR-1 Adagio®Balanced Video Receiver

Adagio®Balanced Video

Receiver: ABVR-1

Introduction

The ABVR-1 is an active balanced-to-unbalanced video converter

designed to enable the connection of any Crestron Home®CAT5

balanced video source to a conventional RCA input. Connected at the

input of an Adagio Media System or CNX-PVID8 Video Distribution

Switcher, the ABVR-1 allows a CEN-IDOCV Interface for Apple®

iPod®, CEN-ISERVER Crestron iServer™ Network Audio Server,

CEN-IDOCV-DSW Wall Mount Interface for Apple iPod or other

Crestron Home CAT5 balanced video source to be installed up to 500

feet (152 m) from the central equipment location.

Features and Functions

•Converts Category 5 (CAT5) balanced video to RCA

unbalanced video (Component (YPbPr), S-video (Y/C), or

composite video

•Small compact size

Operations Guide – DOC. 6792A Adagio®Balanced Video Receiver: ABVR-1 •1

Adagio®Balanced Video Receiver Crestron ABVR-1

Applications

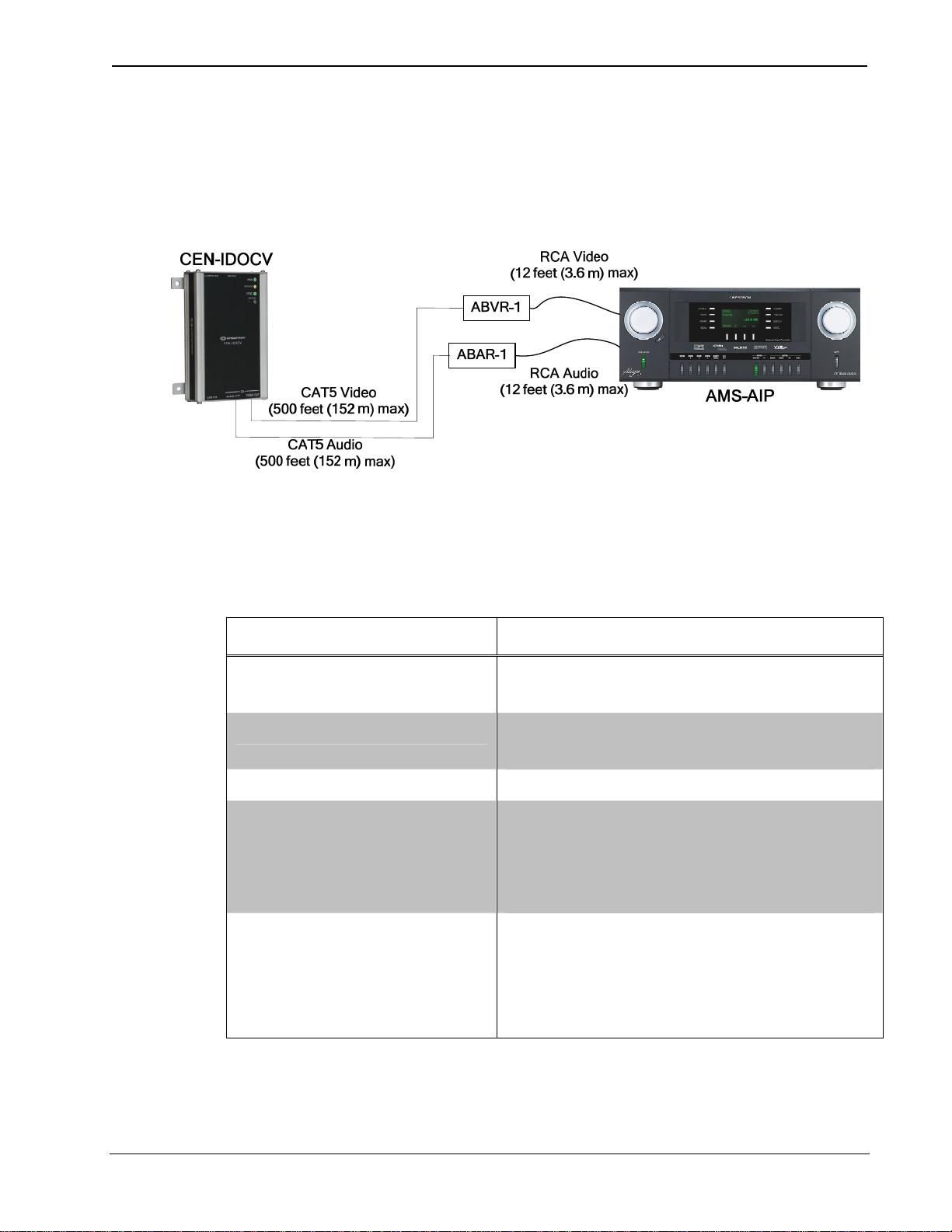

The following diagram shows an ABVR-1 and an ABAR-1 in a

residential application.

ABVR-1 and ABAR-1 in a Residential Application

Specifications

Specifications for the ABVR-1 are listed in the following table.

ABVR-1 Specifications

SPECIFICATION DETAILS

Signal Types Component (YPbPr), S-video (Y/C), or

composite video; digital audio*

Video/HDTV Formats 480i (NTSC), 576i (PAL), 480p, 576p,

720p, 1080i*

Digital Audio Format S/PDIF coaxial*

Power Requirements 3 Watts (0.13 Amps) @ 24 Volts DC

May be powered by Cresnet or

dedicated power supply (not

included)

Environmental

Temperature

Humidity

Heat Dissipation

41° to 104°F (5° to 40°C)

10% to 90% RH (non-condensing)

10 BTU/Hr

(Continued on following page)

2 •Adagio®Balanced Video Receiver: ABVR-1 Operations Guide – DOC. 6792A

Crestron ABVR-1 Adagio®Balanced Video Receiver

ABVR-1 Specifications (Continued)

SPECIFICATION DETAILS

Enclosure Metal with label overlay, freestanding

or surface mount with (4) integral

mounting flanges

Dimensions

Height

Width

Depth

1.43 in (3.64 cm)

3.91 in (9.94 cm)

4.52 in (11.47 cm)

Weight 10 oz (284 g)

* Actual output signals dependent upon the output capabilities of the CH source

device.

Physical Description

This section provides information on the connections, controls and

indicators available on your ABVR-1.

ABVR-1 Physical View

Operations Guide – DOC. 6792A Adagio®Balanced Video Receiver: ABVR-1 •3

Adagio®Balanced Video Receiver Crestron ABVR-1

ABVR-1 Overall Dimensions

3.50 in

(8.89 cm)

3.50 in

(8.89 cm)

4.52 in

(11.47 cm)

1.43 in

(3.64 cm)

3.91 in

(9.94 cm)

Connectors, Controls & Indicators

# CONNECTORS1,

CONTROLS &

INDICATORS

DESCRIPTION

1 24VDC

(1) 2-pin 3.5 mm detachable

terminal block

24 Volt DC power input (power

supply not included)

(Continued on following page)

4 •Adagio®Balanced Video Receiver: ABVR-1 Operations Guide – DOC. 6792A

Crestron ABVR-1 Adagio®Balanced Video Receiver

Connectors, Controls & Indicators (Continued)

# CONNECTORS1,

CONTROLS &

INDICATORS

DESCRIPTION

2 VIDEO IN2

1PIN

(1) 8-pin RJ-45 female,

shielded

CAT5 balanced video input port

Input Impedance: 100 ohms per

pair

Connect to any “CH” CAT5

video output port

Maximum Cable Length: 500 ft

(152 m)3

3 VIDEO ADJUST

(1) rotary potentiometer for

adjustment of CAT5 video input

compensation

4 PWR LED (1) green LED, indicates 24

Volts DC power supplied from

Cresnet or power supply

5 VIDEO OUT

(3) RCA female comprising (1)

component/S-video/composite

video output4

Output Impedance: 75 ohms

Output Level: 1 Vp-p nominal

6 SPDIF

(1) RCA female comprising (1)

coaxial digital audio output4

Output Impedance: 75 ohms

Output Level: 0.5 Vp-p nominal

1. Interface connector for the 24VDC port is provided with the unit.

Operations Guide – DOC. 6792A Adagio®Balanced Video Receiver: ABVR-1 •5

Adagio®Balanced Video Receiver Crestron ABVR-1

2. This eight-pin RJ-45 port provides connectivity to a device with a CH input port

or a Crestron device with a CAT5 video input. This port provides component or

composite balanced output over CAT5 wiring. Refer to the following table for

connector pinouts.

RJ-45 PIN

NUMBER WIRE COLORS

(568B) COMPOSITE COMPONENT

1 WHITE/ORANGE + Composite + Y

2 ORANGE - Composite - Y

3 WHITE/GREEN N/A + Pb

4 BLUE N/A + Pr

5 WHITE/BLUE N/A - Pr

6 GREEN N/A - Pb

7 WHITE/BROWN + SPDIF + SPDIF

8 BROWN - SPDIF - SPDIF

3. Maximum cable length for CAT5 video is 500 feet (152 m) using CresCAT®IM

or quality CAT5e cable.

4. Actual output signals dependent upon the output capabilities of the CH source

device.

6 •Adagio®Balanced Video Receiver: ABVR-1 Operations Guide – DOC. 6792A

Crestron ABVR-1 Adagio®Balanced Video Receiver

Industry Compliance

As of the date of manufacture, the ABVR-1 has been tested and found to

comply with specifications for CE marking and standards per EMC and

Radiocommunications Compliance Labelling.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference and (2) this device must accept any interference received,

including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the

manufacturer responsible for compliance could void the user’s authority

to operate the equipment.

NOTE: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and if not installed

and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of

the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Operations Guide – DOC. 6792A Adagio®Balanced Video Receiver: ABVR-1 •7

Adagio®Balanced Video Receiver Crestron ABVR-1

Setup

CAT5 Wiring

Category 5 (CAT5) wiring is a twisted pair cable designed for Ethernet

networks. These networks operate at speeds of up to 100 Megabits per

second (Mbps) using the 100BASE-T standard. Crestron takes advantage

of this specification for a variety of audio and video applications.

Crestron recommends using CresCAT-IM (or D) wire for transmitting

video signals from the CH port.

When using a Crestron wiring solution, the CresCAT-IM (or D) wire can

carry video signals up to 500 feet (152 meters) (observe distance

limitations based upon power consumption for the device in use).

For more information, refer to the latest version of the Crestron CAT5

Wiring Reference Guide (Doc. 6137), which is available for download

from the Crestron website (www.crestron.com/manuals).

Installation

The ABVR-1 can be mounted in a rack or to any surface using the

integral mounting flanges. Mounting hardware is not provided.

Hardware Hookup

Connect the

Device Make the necessary connections as called out in the illustration that

follows this paragraph. Apply power after all connections have been

made.

When making connections to the ABVR-1, use Crestron power supplies

for Crestron equipment.

8 •Adagio®Balanced Video Receiver: ABVR-1 Operations Guide – DOC. 6792A
