The Crestron® TSS-770 and TSS-1070 are wall mount touch screens

designed specifically for room scheduling applications. The touch screens

install near the entrance of a meeting room or huddle space to provide a

clear indication of the room availability and schedule, and they integrate

seamlessly with a variety of popular scheduling services.

NOTE:The TSS-770 and TSS-1070 are functionally similar. For

simplicity within this guide, the term "touch screen"is used except

where otherwise noted. The TSS-770-T-LB and TSS-1070-T-LBkits

provide a version of the touch screen designed to run the Microsoft

Teams® Panels scheduling application exclusively.

In the Box

1 TSS-770 or TSS-1070*, Room Scheduling Touch Screens

Additional Items

1 Bracket, Mounting (2055453)

4 Screw, 6-32 x 3/4 in., Undercut Head, Phillips (2033247)

4 Screw, M3 x 16 mm, Flat Head,Phillips (2013788)

2 Screw, M3.5 x 25 mm, Flat Head,Phillips (2023756)

4 Anchor, #6-8, Self-Drilling (2035879)

4 Screw, 6-AB x 1 in., Flat Head, Phillips (2056874)

1 Bracket, Security (2055451)

2 Screw, M2 x 4 mm, Security (2055454)

1 Key, Security BracketRelease (2055452)

*Refer to the TSS-770-B-S and TSS-1070-B-S product pages at www.crestron.com for a

complete list of color variations.

Install the Mounting Bracket

The TSS-770 and TSS-1070 install over a standard 2-gang or 3-gang

U.S. electrical box, a 2-gang European electrical box, or a 2-gang U.K.

electrical box. The touch screen also installs into drywall.

NOTES:

lAdditional mounting options are possible using the following

mounting accessories. For more information, refer to the product

pages at www.crestron.com.

oTSW-UMB-70 universal mounting bracket

oTSW-UMB-70-PMK preconstruction mounting kit

oTSW-UMB-70-BBI wall mount back box

oTSW-770/1070-MSMK series multisurface mounting kits

oTSW-770/1070-MUMK mullion mounting kit

oTSW-770/1070-RMB series retrofit mounting brackets

oTSW-770/1070-RMK series rack mount kits

lInstalling the mounting bracket to an electrical box is required only

if one of the mounting solutions above is not used. Refer to the

documentation for your chosen mounting solution at

www.crestron.com/manuals.

Electrical Box Mounting

To mount the touch screen into an electrical box, use the appropriate

screws (four 6-32x 3/4in. screws, four M3x16mm screws, or two

M3.5x25 mm screws) to attach the mounting bracket to the electrical

box as shown in the following illustrations:

NOTE:For U.S. installations, use a #2 Phillips screwdriver. For

European or U.K. installations, use a #1 Phillips screwdriver.

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

lFor U.S. installations, use the four 6-32x 3/4in. screws.

lFor European installations, use the four M3x16mm screws.

lFor U.K. installations(not pictured), use the two M3.5x25 mm

screws to attach the mounting bracket to the electrical box. Insert

the screws through the center openings in the left and right sides of

the mounting bracket.

Drywall Mounting

Mounting hardware is provided with the touch screen for drywall

installations without an electrical box. Using this hardware will ensure

that the bracket is completely flush with the touch screen to provide

maximum magnetic force.

To install the mounting bracket into drywall:

1. Using the inside of the mounting bracket as a template, cut a

2–1/8 x 3-5/8 in. (54 x 92 mm)hole into the drywall. Ensure the

template is level prior to cutting the hole.

2. Align the mounting bracket with the cutout and ensure it is level.

3. Use one of the anchors to make a center mark in the drywall through

the four 2-gang openings in the template. Refer to the image below

for the required mounting holes.

4. Screw the four anchors into the drywall using the center marks as a

reference.

5. Attach the mounting bracket to the anchors using the four 6-ABx

1in. screws as shown in the image below.

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

Install the Security Bracket

(Optional)

The included security bracket may be attached to the touch screen to

prevent unauthorized removal after installation. The security bracket

snaps into place behind the mounting bracket so that the touch screen

cannot be removed without using the included release key.

Use the two M2 x 4 mm screws to attach the security bracket to the

touch screen rear housing as shown in the following illustration.

To remove the touch screen after installation, use the included release

key to push down on the security bracket release tabs as shown in the

following illustration while gently pulling the touch screen away from the

mounting bracket.

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

Connect the Touch Screen

Route all necessary cables through the rear of the mounting bracket,

and then make connections to the side of the touch screen rear housing.

Observe the following when connecting the touch screen:

lPower and data connection is provided to the touch screen by a single

Ethernet cable. A Crestron PoE (Power over Ethernet) power supply,

such as the PWE-4803RU, or a PoE-capable network switch is

recommended (neither included).

lThe USB ports are used to connect compatible Crestron LED

accessories to the touch screen.

NOTE: The TSS-770 may use either PoE or PoE+ to supply power to

compatible LED accessories over USB; the TSS-1070 requires at

minimum PoE+ to supply power to LED accessories over USB.

lApply power after all connections have been made.

Mount the Touch Screen

After all connections have been made, push the touch screen gently into

the mounting bracket so that its rear housing is secured within the

center opening of the mounting bracket.

If the touch screen is not level after installation, pull it out of the

mounting bracket and loosen the screws holding the bracket into place.

This procedure allows the mounting bracket to be rotated slightly.

Once the mounting bracket has been repositioned, retighten the screws,

reinstall the touch screen into the bracket, and ensure that the touch

screen is now level.

NOTE:To clean or disinfect a touch screen display, use a soft, clean,

damp (not wet) cloth with any commercially available non-ammonia

glass cleaner or disinfectant cleaner. Bezels do not provide a complete

watertight seal, so apply cleaning solution to the cloth rather than the

surface of the touch screen. Wipe the touch screen clean and avoid

ingress of moisture beneath the bezels.

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

Configure the Touch Screen

When power is applied for the first time, the touch screen boots with the

Crestron room scheduling application selected by default. The touch

screen may take up to two minutes to boot.

Device settings for the touch screen may be configured using the built-in

setup screens or the web configuration interface. For more information

on configuring the touch screen, refer to the TSS-770 and TSS-1070

Product Manual.

NOTE:The touch screen included in the TSS-770-T-LBor

TSS-1070-T-LB kitsboots to the Microsoft Teams Panels scheduling

application setup screen by default. To access the device setup screens,

refer to Access the Device Setup Screens on the adjacent column. To

configure the application, refer to Configure Microsoft Teams Panels.

Access the Device Setup Screens

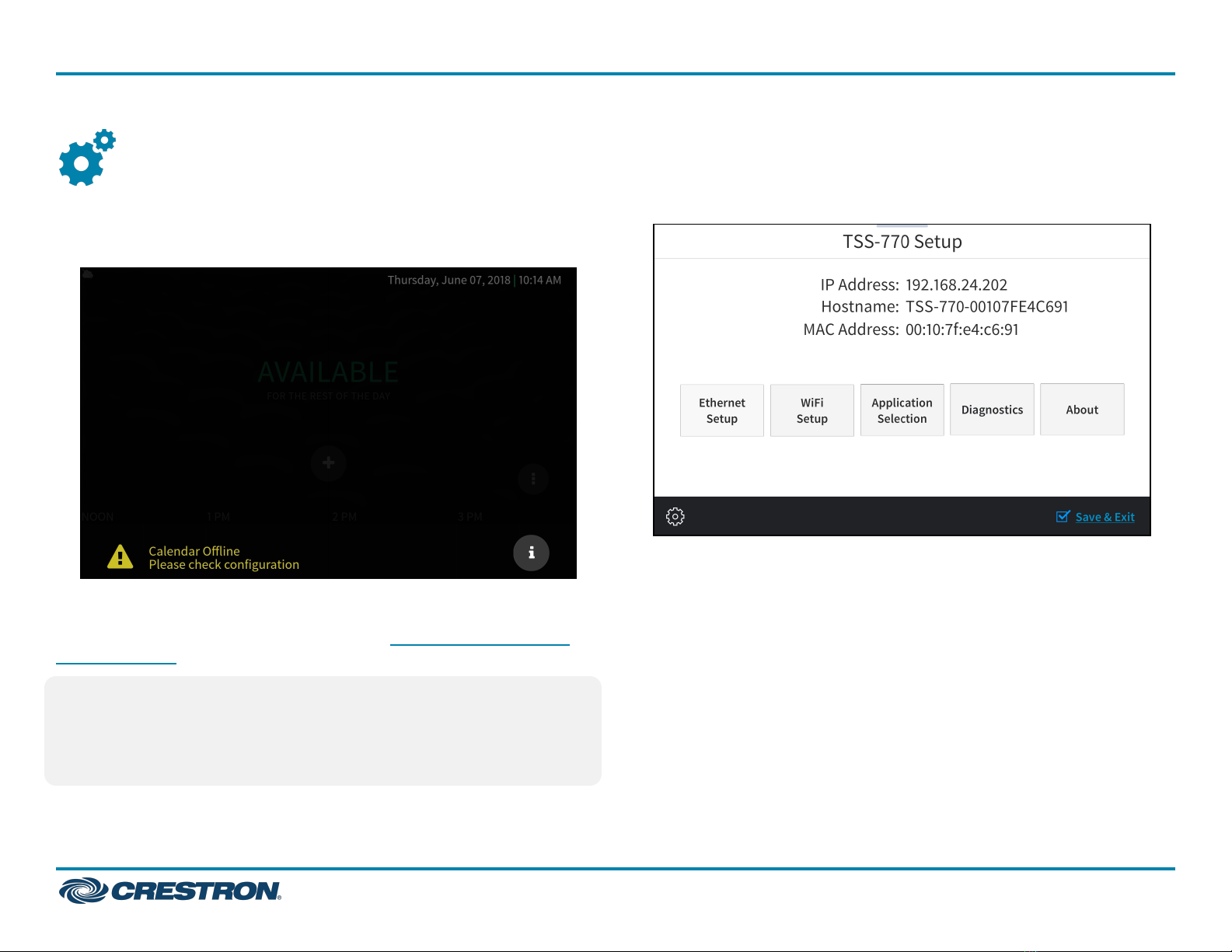

To access the built-in setup screens, place five fingers on the display and

hold for 15 seconds. The main Setup screen is displayed (TSS-770

shown).

Use the setup screens to configure various settings for the touch screen,

including Ethernet setup, scheduling application selection, Wi-Fi network

setup, and diagnostics.

Access the WebConfiguration Interface

The touch screen provides a web configuration interface that is used to

view and configure various touch screen settings and to select a

scheduling application. The interface can be accessed using the touch

screen IP address or the XiO Cloud® service.

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

Touch Screen IPAddress

To access the web configuration interface using the touch screen IP

address:

1. Ensure that the touch screen is connected to the network.

2. Use the Device Discovery tool in Crestron Toolbox™ software to

discover the touch screen and its IP address on the network.

3. Enter the touch screen IPaddress into a web browser.

XiOCloud Service

The XiOCloud®service allows supported devices across an enterprise to

be managed and configured from one central and secure location in the

cloud. Supported Crestron® devices are configured to connect to the

service out of the box.

Use of the service requires a registered XiOCloud account. To register

for an XiOCloud account, refer to

www.crestron.com/Support/Tools/Licensing-Registration/XiO-Cloud-

Registration-Room-Licenses.

NOTE:The device may be disconnected from the XiOCloud service by

navigating to the Cloud Services tab in CrestronToolbox™software

(Functions >Device Info >Cloud Services). For details, refer to the

CrestronToolbox help file.

To connect the device to the XiOCloud service:

1. Record the MAC address and serial number that are labeled on the

shipping box or the device. The MAC address and serial number are

required to add the device to the XiOCloud service.

NOTE:If the device has multiple MAC addresses, use the MAC

address that is providing the primary connection back to the

network. For most devices, the Ethernet MAC address should be

used. However, if your device is connecting to the network over a

different protocol (such as Wi-Fi® communications), use the

MAC address for that protocol instead.

2. Log in to your XiOCloud account at portal.crestron.io.

3. Claim the device to the XiOCloud service as described in the

XiOCloudUserGuide.

Select the device from the cloud interface to view its status and

settings. The device may now also be managed and assigned to a group

or room. For more information, refer to the XiOCloudUserGuide.

NOTE:For XiOCloud accounts with room-based licenses, the device

must be added to a licensed room before its status and settings can be

viewed.

Set the Time Zone

The time zone must be set on the touch screen prior to selecting a

scheduling application.

To set the time zone:

1. Access the web configuration interface using either the touch screen

IP address or the XiO Cloud service.

2. Select the Settings tab.

3. Navigate to System Setup >Time/Date.

4. Select the time zone where the touch screen will be used from the

Time Zone drop-down menu.

5. Click Save Changes on the top right of the screen.

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

Create an AdminAccount

The first time the web configuration interface is accessed, a dialog box is

displayed asking the user to create an admin account. A similar message

is displayed when connecting to the device in Crestron Toolbox software

if an admin account has not already been created.

To create an admin account:

1. Enter a username and password for the admin account in the

appropriate text fields.

CAUTION:Do not lose the username and password for the admin

account, as the device must be reset to factory settings to regain

access.

2. Click OK. A dialog box is displayed stating that enabling

authentication will restart the web session.

3. Click Yes to confirm and restart. The username and password

created in step 1 must be entered to regain access to the web

configuration interface.

Select an Application

The touch screen ships with various built-in scheduling applications. An

application may be selected from the web configuration interface.

The touch screen included in the TSS-770-T-LBor TSS-1070-T-LB kits

runs the Microsoft Teams Panels scheduling application only. No other

application can be selected on these models.

NOTE:Applications can be selected and configured from the device

setup screens or from the web configuration interface at any time. For

more information, refer to the TSS-770 and TSS-1070 Product

Manual.

To select a touch screen application:

1. Enter the touch screen IP address into a web browser to access the

web configuration interface.

2. Navigate to Settings >Applications.

3. Select the desired scheduling provider from the Application Mode

drop-down menu.

4. If necessary, enter any additional information (such as a registration

URL) that is required for connecting to the scheduling provider.

5. Click Save Changes on the top right of the screen.

6. When prompted, reboot the touch screen. The touch screen reboots

into the selected scheduling mode.

An application may also be selected using the Application Selection

function on the main device Setup screen.

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

Configure Microsoft Teams Panels

The touch screen included in the TSS-770-T-LBor TSS-1070-T-LB kits

ships with the Microsoft Teams Panels scheduling application running

out of the box, with the Language Selection screen displayed upon initial

boot. The application must be configured prior to use.

NOTE:A Microsoft Teams account is required for configuration. Refer

to your ITadministrator for assistance.

To set up the Microsoft Teams Panels scheduling application on the

touch screen:

1. Select a language for the application on the Language Selection

screen.

2. Tap Next. The Time Zone Selection screen is displayed.

3. Select the time zone that will be used by the application on the Time

Zone Selection screen.

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

4. Tap Next. AMicrosoft Teams sign in screen is displayed.

5. Tap Sign In.

6. Enter your Microsoft Teams username and password when

prompted.

7. If two-factor authentication is enabled by your organization, follow

the prompts provided to authenticate with the application.

Upon successful sign in, the scheduling calendar for your organization is

displayed.

For more information on using Microsoft Teams, refer to

https://support.microsoft.com/en-us/teams.

Visit the Product Pages

Scan the QR code to visit the product page.

TSS-770

www.crestron.com/model/6511329

TSS-1070

www.crestron.com/model/6511331

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Regulatory Models:M201923002, M201923003

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Toolbox, Rava, Smart Graphics, and XiOCloud are

either trademarks or registered trademarks of Crestron Electronics, Inc. in the United

States and/or other countries. Bluetooth is either a trademark or registered trademark

of Bluetooth SIG, Inc. in the United States and/or other countries. Microsoft Teams is

either a trademark or a registered trademark of Microsoft Corporation in the United

States and/or other countries. Wi-Fi is either a trademark or registered trademark of

Wi-Fi Alliance in the United States and/or other countries. Other trademarks, registered

trademarks, and trade names may be used in this document to refer to either the

entities claiming the marks and names or their products. Crestron disclaims any

proprietary interest in the marks and names of others. Crestron is not responsible for

errors in typography or photography.

Doc ID 8743E

08/25/21

TSS-770 and TSS-1070 QuickStart

7 in. and 10.1 in. Room Scheduling Touch Screens

Andere Handbücher für TSS-770

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Crestron Touchscreen Handbücher

Crestron

Crestron TSW-560 Bedienungsanleitung

Crestron

Crestron Isys TPMC-4SM Anleitung zur Verwendung

Crestron

Crestron TS-1542 Bedienungsanleitung

Crestron

Crestron TPMC-V12 & TPMC-V15 Bedienungsanleitung

Crestron

Crestron SmarTouch STX-1700CXP Bedienungsanleitung

Crestron

Crestron Isys TPS-5000 Bedienungsanleitung

Crestron

Crestron TSW-770-GV Bedienungsanleitung

Crestron

Crestron Smart Touch C2N-IRGW Bedienungsanleitung

Crestron

Crestron TPMC-3X Series Bedienungsanleitung

Crestron

Crestron DualTouch DTT-17 Bedienungsanleitung

Crestron

Crestron Isys TPS-6L Anleitung zur Verwendung

Crestron

Crestron TS-770-GV Bedienungsanleitung

Crestron

Crestron QM-FTCC Anleitung zur Verwendung

Crestron

Crestron TPS-FPAR5000L Bedienungsanleitung

Crestron

Crestron TPMC-9 Bedienungsanleitung

Crestron

Crestron TPS-4500IMPC Bedienungsanleitung

Crestron

Crestron CT-1550 Bedienungsanleitung

Crestron

Crestron TSW-550-TTK Maßzeichnung

Crestron

Crestron Isys TPS-3000 Bedienungsanleitung

Crestron

Crestron CT-3500 Bedienungsanleitung

Crestron

Crestron Isys TPS-4500 Bedienungsanleitung

Crestron

Crestron ST-1550 Bedienungsanleitung

Crestron

Crestron TS-770 Bedienungsanleitung

Crestron

Crestron Isys TPS-15G-QM Bedienungsanleitung

Beliebte Touchscreen Handbücher anderer Marken

FlowLine

FlowLine Data loop Bedienungsanleitung

ALPEX

ALPEX AEx-8 P Series Bedienungsanleitung

Ltech

Ltech E5S Bedienungsanleitung

Harman

Harman AMX MODERO S MSD-701-L2 Bedienungsanleitung

Acnodes

Acnodes PC 1150 Bedienungsanleitung

AIS

AIS IP10IA99 series Bedienungsanleitung

IBASE Technology

IBASE Technology ASTUT-152-RE1S Bedienungsanleitung

YASKAWA

YASKAWA TP 610C Bedienungsanleitung

B&R

B&R Power Panel C Series Bedienungsanleitung

Beijer Electronics

Beijer Electronics X2 control Bedienungsanleitung

AXIOMTEK

AXIOMTEK GOT321W-521 Bedienungsanleitung

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Bedienungsanleitung

Qomo

Qomo QIT1386 Bedienungsanleitung

DFI

DFI KS104-CD Bedienungsanleitung

AMX

AMX AXP-PPC Leitfaden

Sartorius

Sartorius X3 PR 5410 Bedienungsanleitung

AMX

AMX Modero X Series Bedienungsanleitung

Advantech

Advantech TPC-30 Series Bedienungsanleitung
