Crooza DBX - 4x4 Bedienungsanleitung
OPERATION MANUAL
BATTERY-POWERED ELECTRIC VEHICLE
MODEL: DBX - 4x4 OFF-ROADER
www.crooza.de
The vehicle must be operated only under adult supervision.
This vehicle is not allowed to be used as a means of transportation and
mustn’t be operated in public streets.
WARNING: Never leave charging unattended!
Read this manual carefully before the operation.
- 1 -
ELECTRIC SHOCK
WARNING
•Unfixed batteries may fall off the overturned vehicle and cause injuries. Ensure that the batteries have been fixed
carefully.
•FIRE PREVENTION
- The electric system of the vehicle is not allowed to be altered. Alterations may lead to fire, black-out of the
electric systems and serious injuries.
- Using wrong batteries and chargers may lead to fire, explosion and serious injuries.
- Only adults are allowed to handle batteries. The batteries, which are quite heavy, are filled with electrolyte.
Leaking batteries may lead to serious injuries.
- Do not let your children to charge the batteries. Only adults are allowed to charge the batteries. Children may get
injured by an electric shock.
- Please check the batteries, cable connections and the connector of the charger before charging the batteries. If
you find any defects, do not charge them until they are repaired by an expert.
- The motors produce HEAT! Be careful during the contact with the motors.
SAFE DRIVING
WARNING
PREVENTING INJURIES
•The vehicle must be operated only under adult supervision!
•Never use the vehicle in darkness!
•Operation only on safe grounds!
E.g: In areas
- without swimming pools or ponds. Risk of drowning!
- without slopes.
- far from stairs, ramps, slopes, streets and boulevards.
•Operating Directives
Ensure that the following rules are followed for a safe operation:
- Always sitting properly on the seat.
- No driving without sturdy shoes.
NOTICE
•Small items are included in the package at delivery status. Assembling must be conducted under adult
supervision. Children may swallow the small items. Risk of choking.
- 2 -
WARNING
The charger must be used only in a dry environment.
- If the fuse blows out, it must be replaced with a charger having the same quality. In order to avoid repeated
operational disruptions, ensure that the vehicle doesn’t carry more than 50 kg. Avoid unfavorable conditions such
as slopes or solid objects like walls. Otherwise, the wheels may stand still and the motors may get overcharged.
Teach your child to keep the vehicle still before changing the direction.
- If the fuse doesn’t comply with the normal operational conditions, contact your service.
- Before the first operation, the batteries must be charged at least 8-10 hours once.
- The charging time mustn’t exceed 15 hours once.
- While being charged, the batteries must stand vertical.
- The charger is not a toy and not suitable for children.
- The batteries mustn’t be short-circuited.
- Charging through contaminated socket can lead to short-circuit and other defects. Therefore, it must be
refrained.
- The charging process must be carried out safely, FAR from easily inflammable materials. Look out excessive
smoke and heat generation.
- The charging process must be conducted continuously under adult supervision! Never leave the vehicle
unattended while being charged. If you park it, turn off the main switch.
SECURITY CHECK BEFORE THE FIRST OPERATION
Pay attention to unusual sounds like loose parts or broken components during the operation. If you are
unsure, please consult an experienced mechanic.
!THIS OPERATION MANUAL CONTAINS IMPORTANT INSTRUCTIONS FOR A SAFE OPERATION OF THE
VEHİCLE.
IMPORTANT MESSAGE FOR PARENTS: READ THE WHOLE MANUAL CAREFULLY BEFORE
OPERATING THE VEHICLE AND FOLLOW THE INSTRUCTIONS.
The guarantee for a safe operation lies behind the parents’ responsibility. Parents must ensure that
they have read all the warnings and security instructions, which will be then explained to children so
as to follow. Parents are also responsible for whether the child is ready mentally and physically to
operate the vehicle according to the conditions. It is recommended to go through the operating
instructions periodically together with the young drivers and to examine the vehicle for possible
defects and to carry out the regular maintenances.
Whether a child is ready to operate this vehicle depends on different factors like body height,
intellectual standard, build etc. If the child has problems with operating the vehicle, do not let him drive
it.
- 3 -
Technical Data
Item no DBX-4x4
Age properly 5-9 years old
Vehicle Size (L)1228 x (B)850 x (H)920 mm
Net weight 27.7 kg
Load capacity 50 kg
Environment temperature 0-40 °C
Speed Approx. 4-8 km/h
Battery 2 x 6V12Ah
Charger Input: AC220V~240V/50Hz~60Hz, Output: DC12V 1000mAh
Motor 4 x 30Watt Motors with high motor torque
Charging lifetime approx. 300
Charging time Less than 20 hours once
Package Content
1. Main body 1
2. Wind shield 1
3. Deflector 1
4. Steering wheel 1
5. Rear lamps 2
6. Front axle 1
7. Rear axle 1
8. Gearbox with motors 4
9. Batteries 2
10. Wheels 4
11. Seat 1
12. Charger 1
13. Operation manual 1
14. Fuse 1
15. Wheel cap 4
16. Remote control 1
WARNING!
The vehicle must be assembled only by an adult.
IMPORTANT: At delivery status, the positive pole (red cable) is in bulk for safety reasons. Please attach it and
put it under the seat carefully.
- 4 -
COMPONENTS
1 Unit 1 Unit 1 Unit for Each 1 Set
1 Set 4 Units 4 Units for Each 4 Units for Each
1 Set 4 Units 1 Unit
Maintenance Instructions
Check if all the screws, nuts and caps are set correctly and firmly. Ensure that none of the plastic parts are
damaged and broken.
In snowy or rainy weather, keep the vehicle in a dry room which has a ceiling. Even if the vehicle won’t be used,
charge the batteries at least once a month.
The vehicle can be cleaned with a wet cloth. Avoid any contact of water with the electric system of the vehicle.
Contact of water with motor and electric components can lead to corrosion and damage on the motor and the
electric components/switches.
Do not use the vehicle on the sand. Sand in the motor, gearbox or electric components causes blockades and
blackouts of the related parts.
In order to restore the original gleam of the vehicle, you can work on the plastic parts of the vehicle with a wax free
furniture polish. NEVER use a car polish.
For a safe operation, it is recommended that the vehicle is checked regularly by an authorised service point.
- 5 -
GENERAL WARNINGS
The operation of the vehicle can lead to dangerous situations. Electrically powered vehicles can move
automatically, which may cause dangerous situations. Therefore, it’s possible that the control of the vehicle may
be lost during the operation, and this may lead to injuries or even death.
LIKE EVERY MOBILE PRODUCT, THE OPERATION OF THE VEHICLE CAN LEAD TO INJURIES OR DEATH
EVEN IF ALL THE SAFETY RULES ARE OBEYED AND SAFETY EQUIPMENTS ARE APPLIED. THE
OPERATION OF THE VEHICLE IS AT USER’S OWN RISK AND PURSUANT TO COMMON SENSE!
Please follow the local laws and regulations. The vehicle is not a means of transportation and is not allowed to be
operated in public streets and on pavements. It is important that no skaters, bycyclists, other children, animals etc.
cross the vehicle way. The rights of others using a specific area must be taken into account and respected.
The vehicle has been designed to be operated on straight, clean, dry and flat surfaces, and shows the best
performance when the given conditions are fulfilled. The operation on uneven, rough and slippery surfaces can
lead to the loss of traction control or undesirable high speeds (at inclinations) and consequently dangerous
situations. High speeds like downhill driving must be refrained.
Functional measures such as wearing safety helmets, knee and elbow protectors are significant precautions to
prevent injuries.
The vehicle mustn’t be loaded with more than 50 kg.
No stunts or tricks must be performed with the vehicle. Improper uses like jumping, sliding etc. must be refrained.
Operations against the common sense or ignoring warnings can lead to injuries or even death.
OPERATION IS AT USER’S RISK. PARENTS ARE RESPONSIBLE FOR THEIR CHILDREN.
- 6 -

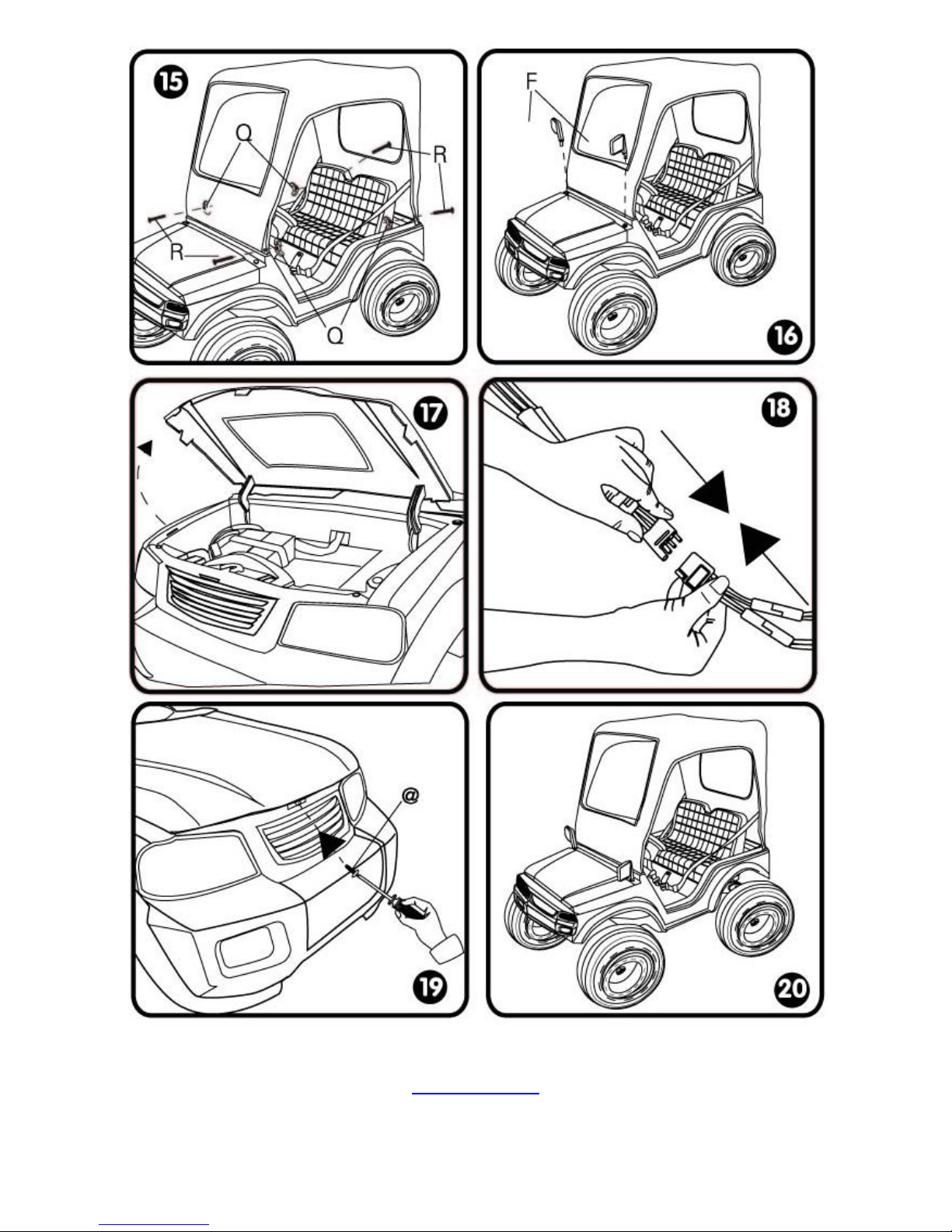

Assembly Instructions:
INFO: For a more detailed, step by step manual, visit our Website
www.crooza.de
- 7 -
INFO: For a more detailed, step by step manual, visit our Website
www.crooza.de
- 8 -
INFO: For a more detailed, step by step manual, visit our Website
www.crooza.de
- 9 -
INFO: For a more detailed, step by step manual, visit our Website
www.crooza.de
