ENC116
SDI to composite or Y/C encoder
Crystal Vision ENC116 User Manual V4.2
29/09/06ENC116V4 Operational Manual V4_2 1
Contents
1 Introduction 3
Frame packing density 4
2 Statesman PC control 5
2.1 Installing Statesman 5
2.2 Statesman operation 6
Timing and status 7
Setting burst and Chroma phase 8
Adjusting levels 9
Adjusting VBI and test pattern options 10
3 Using the active control panel 11
Selecting the ENC116 12
Navigating the display 13
Updating the display 13
3.1 The ENC116 menu structure 14
Menu numbering scheme 14
3.2 Adjusting signal timing 15
3.3 Setting Chroma and burst phase 16
3.4 Adjusting signal gains and offsets 17
Adjusting Y/C gain 18
3.5 Setting advanced options 19
Setting advanced options - more 20
4 Card edge operation 21
4.1 Card edge controls 21
4.2 Setting control mode options 21
Crystal Vision ENC116 User Manual V4.2
29/09/06ENC116V4 Operational Manual V4_2 2
4.3 Display software version and node address 22
4.4 Adjusting signal timing 22
4.5 Adjusting signal gain and offsets 22
4.6 Recalling factory gain settings 23
4.7 Recalling all factory settings 23
4.8 Setting output options 23
4.9 Setting reference options 24
4.10 Setting VBI options 24
4.11 Checking TBC operation 24
5 Hardware installation 25
5.1 Universal rear connectors 25
RM18 Connections 25
RM01 connections 26
RM23 connections 26
RM02 connections 27
5.2 External remote control connections 28
Remote control configuration 29
5.3 Output configuration and sync termination 31
5.4 Selecting the SDI timing reference signal 32
5.5 Factory adjustments 32
6 Problem solving 33
Card edge status LEDs 33
Active Control Panel status messages 34
Basic fault finding guide 34
7 Specification 36
Crystal Vision Introduction
29/09/06ENC116V4 Operational Manual V4_2 3ENC116 User Manual V4.2
1 Introduction
The ENC116 is a 10-bit broadcast quality Serial Digital to Analogue Composite
converter. It accepts either 625 or 525 line input, with automatic detection.
There is one reclocked serial digital output and six analogue PAL/NTSC outputs. The
available outputs depend on the rear module used. Normal single height rear modules
allow access to three of the analogue outputs, whilst an extra three analogue outputs and
one analogue reference loop-through are available in certain frames with alternative rear
modules. On-board links allow the selection of all composite outputs, or a mixture of
composite and Y/C outputs.
Remote control is possible from a front panel control and a remote panel using RS-422 or
RS-232.
The main features are as follows:
•compact single height module
•converts SDI signals to composite and Y/C
•genlock and free-run modes
•4.9 line time-base corrector
•automatic or manual PAL/NTSC standard selection
•adjustable timing, gains and levels
•card edge, Statesman and active panel control
Digital
encoder
and
D to A
Output
select
(links)
Level
adjust
SDI input
Reclocked
loop out
Genlock
+Stable
clock
generator
Y or Composite
Y or Composite
C or Composite
C or Composite
Composite
Composite
0-4.9
line
FIFO
0-4.9
line
delay
B&B
reference
Reference
loop
Genlock
data
10 character
alphanumeric display
Remote/local
control

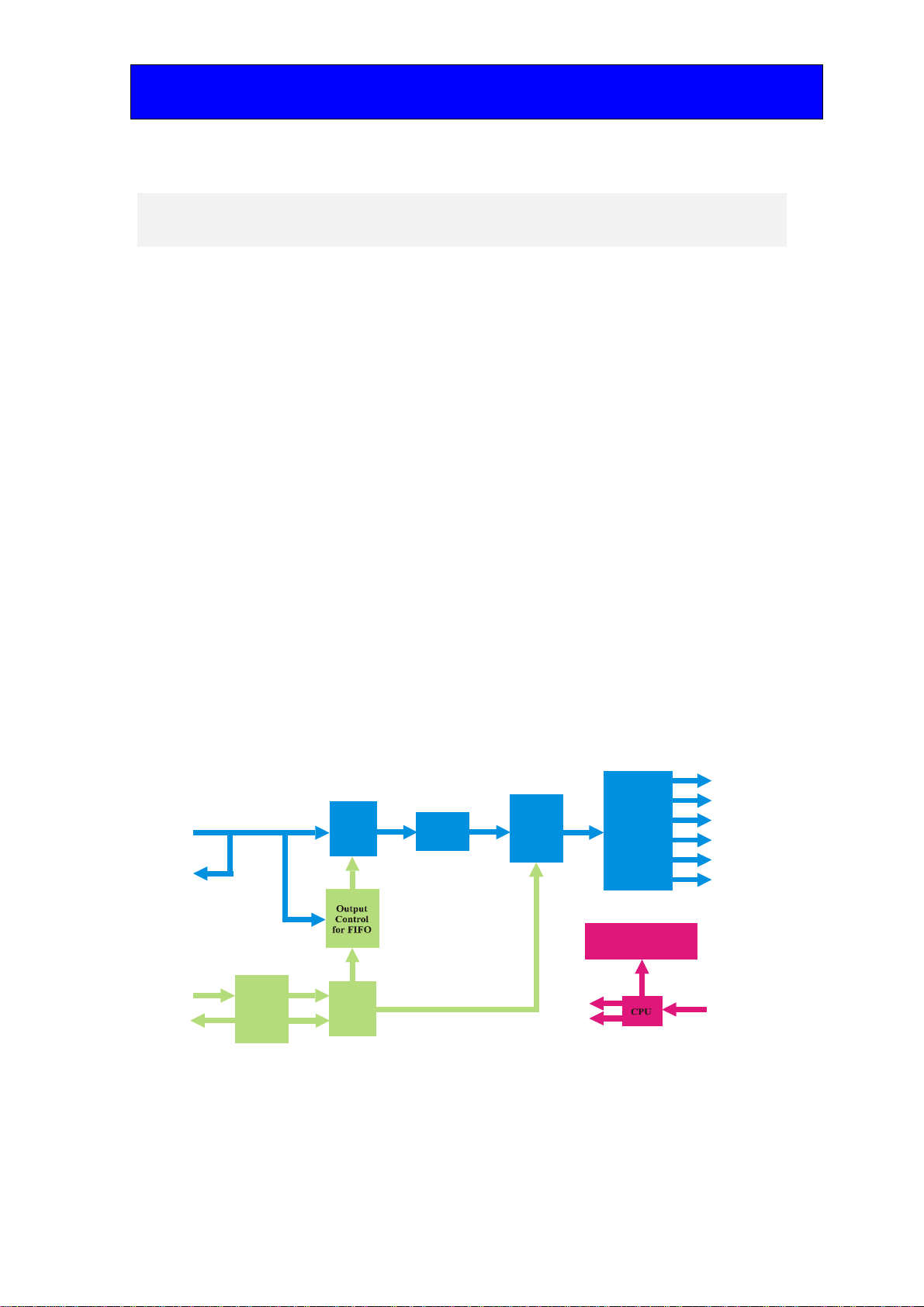

The ENC116 10-bit SDI converter
Crystal Vision Introduction
29/09/06ENC116V4 Operational Manual V4_2 4ENC116 User Manual V4.2
A 4.9 line time-base corrector is included on both reference & video paths, which allows
serial digital video which has been delayed through prior processing to be re-timed
without the use of external delays or a multi-output SPG.
Two main operational modes are available: genlock mode and free-run mode. In genlock
mode, the composite output is time-base corrected & phase-locked to reference. In free-
run mode, the composite output is locked to the syncs embedded in the serial digital data
stream with phase reset every 8 fields.
If the reference is removed, the encoder switches to freerun mode and output timing
continues as if the reference were still present. If the reference returns, the encoder
genlocks after 1.5 seconds.
If the serial input is removed, the encoder outputs black & burst or one of 3 test patterns
selectable from the local/remote menu. PAL/NTSC standard selected by DIL switch 3.
Note: There may be some picture disturbance as the encoder switches modes or after a change of
standard as the encoder re-acquires genlock.
Output timing can be set to be the same as the analogue reference, or it can be offset to be
between 4µs earlier than the reference and 4.9 lines later. The SDI video input must be
earlier than the required output by a minimum of 4.3µs and a maximum of 4.9 lines. If the
input is outside this window, a valid composite output will still be created, but the picture
content will be vertically offset.
Frame packing density
The ENC116 is a 100mm x 266mm module, which fits in the three standard frames and
can be integrated with any boards from the company’s full product range. It may be used
with the single slot RM01 and RM23 rear connectors, the double slot RM18 rear
connector and the quadruple slot RM02 rear connector.
The RM01 and RM23 single slot rear connectors allows up to 12 modules in a 2U frame,
6 modules in a 1U frame and 2 modules in a desktop box. The RM18 double slot rear
connector accommodates one module but provides access to all ENC116 I/O connections.
The quadruple slot RM02 rear connector accommodates three modules and provides a
mix between packing density and I/O access. It can only be used in 2U frames.
Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 5ENC116 User Manual V4.2
2 Statesman PC control
The Crystal Vision Statesman PC control software is designed to control a range of
Crystal Vision modules via serial control from a PC. Statesman provides a user friendly
means of configuring and operating Crystal Vision modules with the benefit of see-at-a-
glance status monitoring. Most functions can be accessed from Statesman menus.
The main Statesman application communicates with each module in a frame through an
active or Statesman enabled control panel. Statesman control is not possible with only a
passive panel.
Minimum pre-requisites:
•A PC running either Windows 2000 or Windows XP is recommended
•A parallel port dongle for Statesman PCs with attached Crystal Vision frames
•An RS422 serial connection from the host PC to the Control/422 RJ45 or
Remote/RMT 2 connector on Crystal Vision frames
•An active or Statesman enabled control panel MUST be fitted to the frame with
version 1.63 or above firmware – if it is an Indigo frame the firmware must be
V1.04 or above
•An optional RS422 to RS232 converter if the PC has no RS422 ports
2.1 Installing Statesman
•Refer to the readme and/or help file on the CD before proceeding
•To view all application windows, set graphics resolution to at least 1024 x 768
•Remove any previous version of the Statesman software using the Add/Remove
Programs application in the Windows Control Panel
•Ensure that the Statesman dongle is fitted to the parallel port of the host PC
•Insert the Statesman CD and the installation should start immediately – if it
does not, run the setup.exe file on the CD
•Obey any installation program prompts and restart the PC when prompted
Running Statesman for the first time
The Statesman PC Control System may be run from the Crystal Vision programs folder
via the Start menu or by double-clicking on the Crystal Vision.exe file in the installed
program directory.
When the program runs it will require licence information and an administrator name and
password. It will also need to know which computer port is being used to connect to a
Crystal Vision frame(s).
Note: For further details of Statesman configuration please refer to the Statesman manual.
Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 6ENC116 User Manual V4.2
2.2 Statesman operation
Once Statesman is configured it should automatically detect any statesman compatible
modules in the connected frame or frames and display them in the main application left
hand explorer-style window.
Open any frame by clicking on the ‘+’ sign or by double clicking on a frame. Installed
modules should be shown with module icons. Frame and module icons can be named as
desired by right clicking or using the edit menu and choosing rename.
To aid user recognition of module and frame status quickly, the following colour and size
coding is used:
•A module is shown present by full colour and absent by greyed colour
•A module is shown open by large icon size and closed by small icon
•A module is the source of an active alarm if red and not alarmed if green
Double-clicking on a module will enable the display of the main application menus.

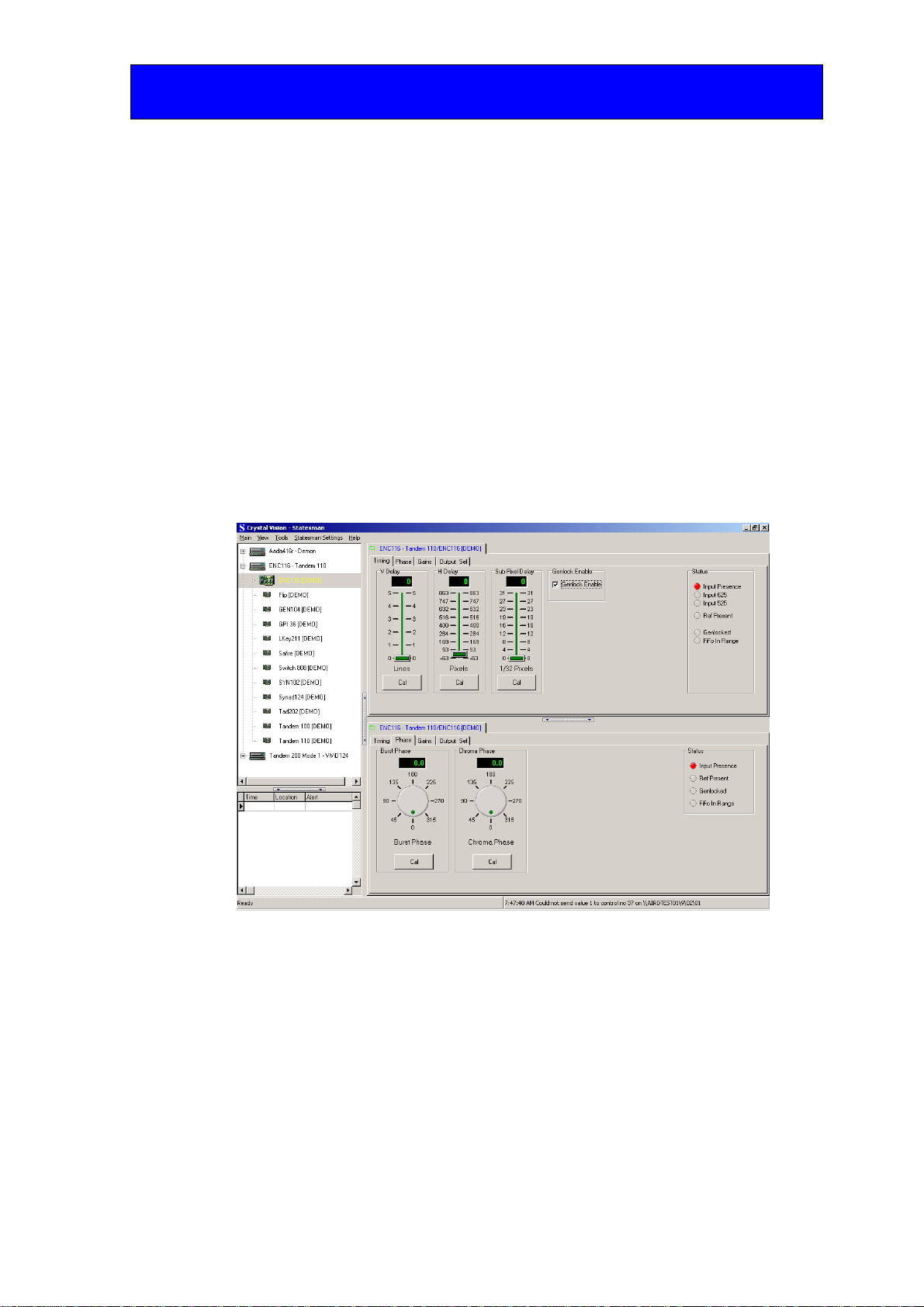

Statesman main application window
The two large control panes shown in the upper and lower halves of the window may
display different menus for the same card, or controls for different cards. Click on the
horizontal button-bar between the two panes to close the lower plane or drag the button to
vary the size of the panes.
Warning: Always ensure that the active front panel (if fitted) is in STATESMAN mode. If the front
panel is active, control via Statesman will be subject to high latency and the response to
changes will be slow.
Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 7ENC116 User Manual V4.2
Timing and status
The timing tab provides access to the following
•Vertical delay in lines
•Horizontal delay in pixels
•Fine horizontal delay in 1/32 pixel steps
•Genlock enable
•Status

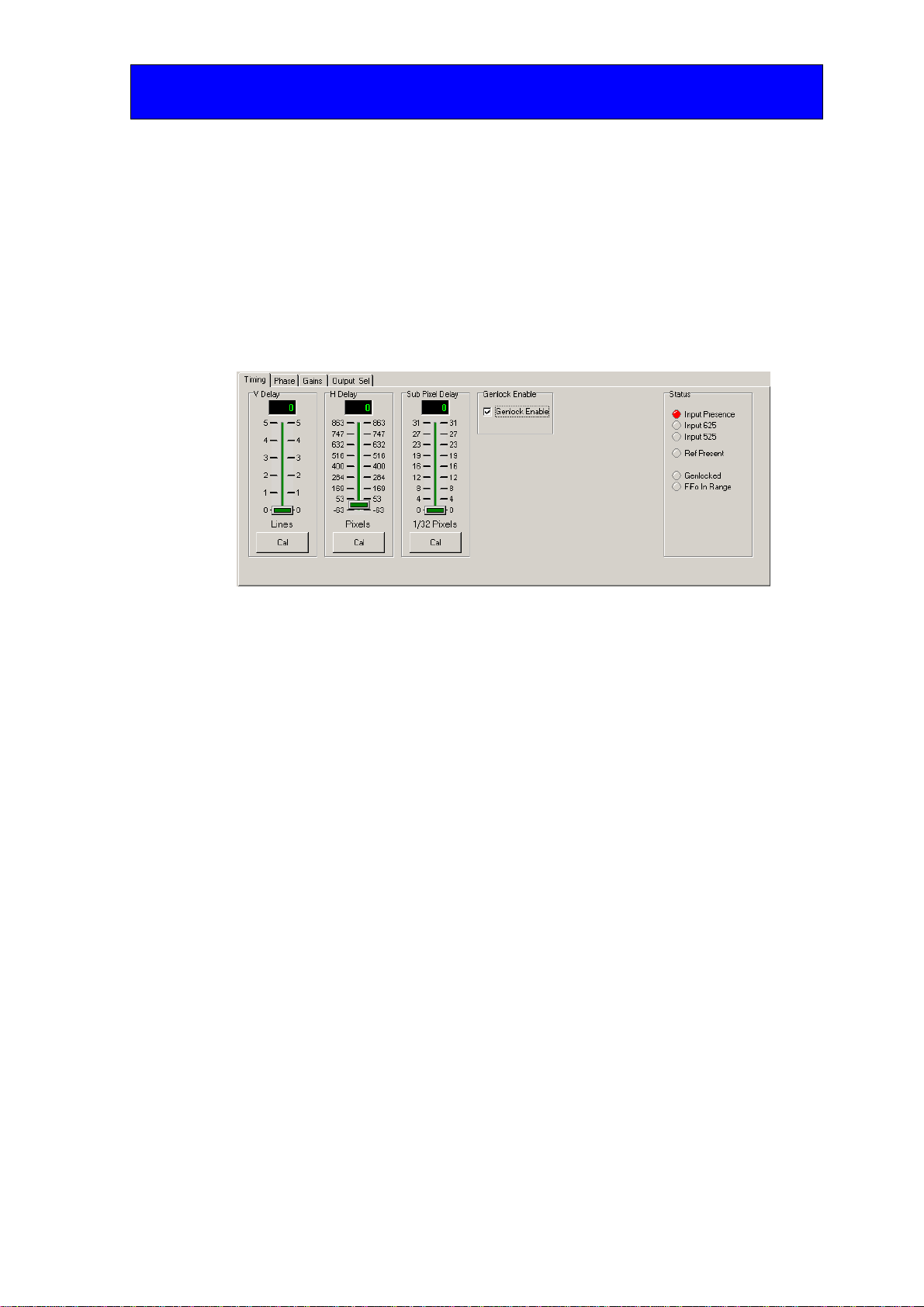

Timing tab
Vertical delay
Slider adjusts delay from 0 to 5 lines in one-line steps. CAL button zeros the current
setting.
Horizontal delay
Slider adjusts delay from –4µs to 1 line in 7 pixel (approx. 0.5 µsec) steps. CAL button
minimises the current setting.
Sub-pixel delay
Slider adjusts delay from 0 to 1 pixels in 1/32 pixel (2ns) steps. CAL button zeros the
current setting.
Genlock enable
Place a tick by Genlock Enable to ensure that the output is sync and burst locked to the
supplied reference. Remove the tick and the output will be sync-locked to the serial
digital input.
If Genlock is ticked but the reference input is absent, the output will be sync-locked to
serial digital input. If there are no SDI or reference inputs the output will be black & burst
(or test patterns if selected).
Status
Input, reference presence and standard are shown along with FIFO and Genlock status.
Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 8ENC116 User Manual V4.2
Setting burst and Chroma phase
The Phase tab provides access to the following:
•Burst phase
•Chroma phase
•Status

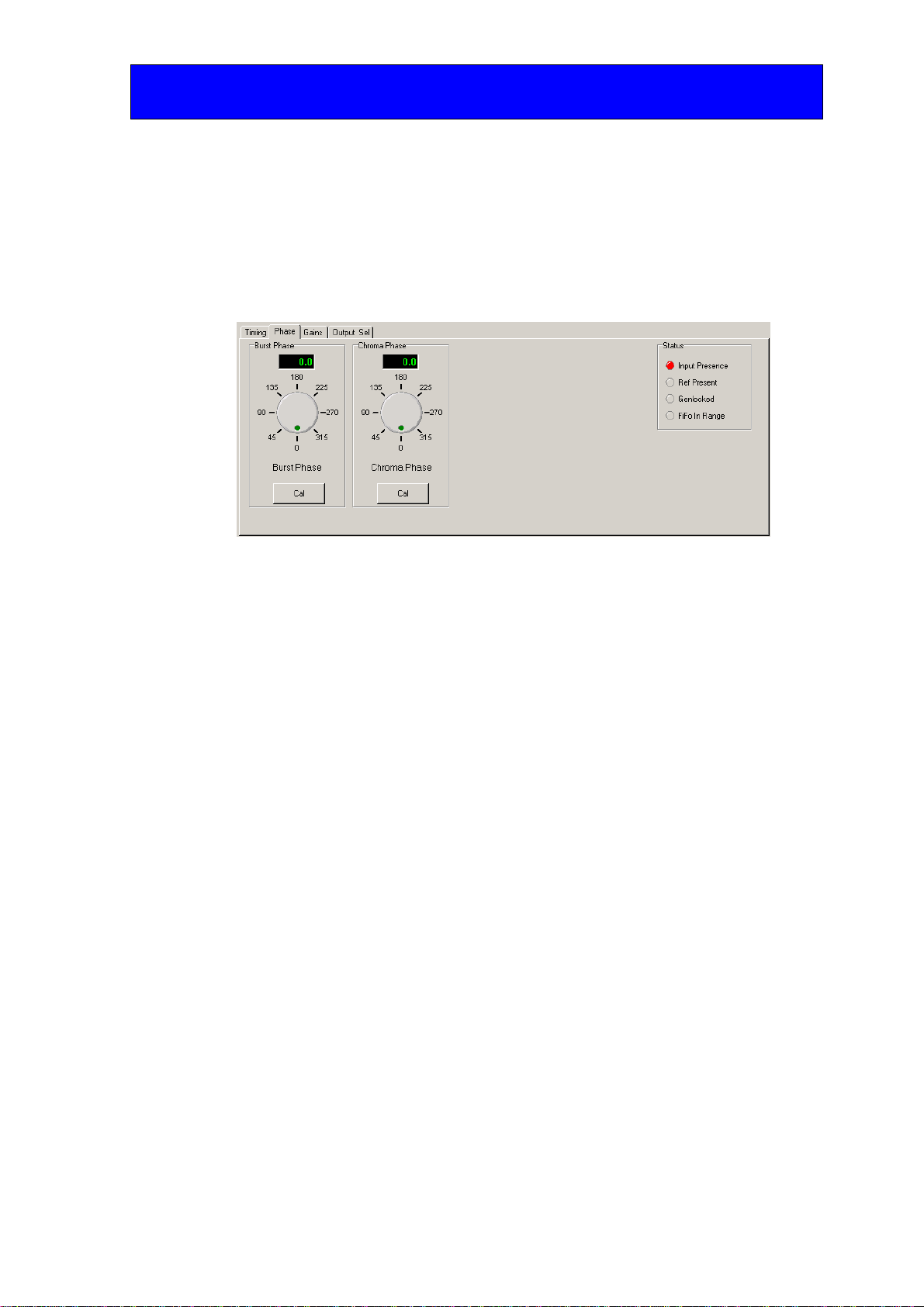

Setting Burst and Chroma phase
Burst phase
Knob adds ScH phase offset from 0° to 360° in 1/16° steps. CAL button zeros the current
setting.
Chroma Phase
In NTSC, Chroma knob adds ScH to Chroma phase offset from 0° to 360° in 1/16° steps.
In PAL this control provides a ± 2° ScH to Chroma phase offset.
CAL button zeros the current setting.
Status
Input and reference presence is shown along with FIFO and Genlock status.
Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 9ENC116 User Manual V4.2
Adjusting levels
The Gain tab provides access to the following:
•Luma gain
•U Gain/V Gain
•Burst Gain
•Setup Level/ Setup enable
•Status

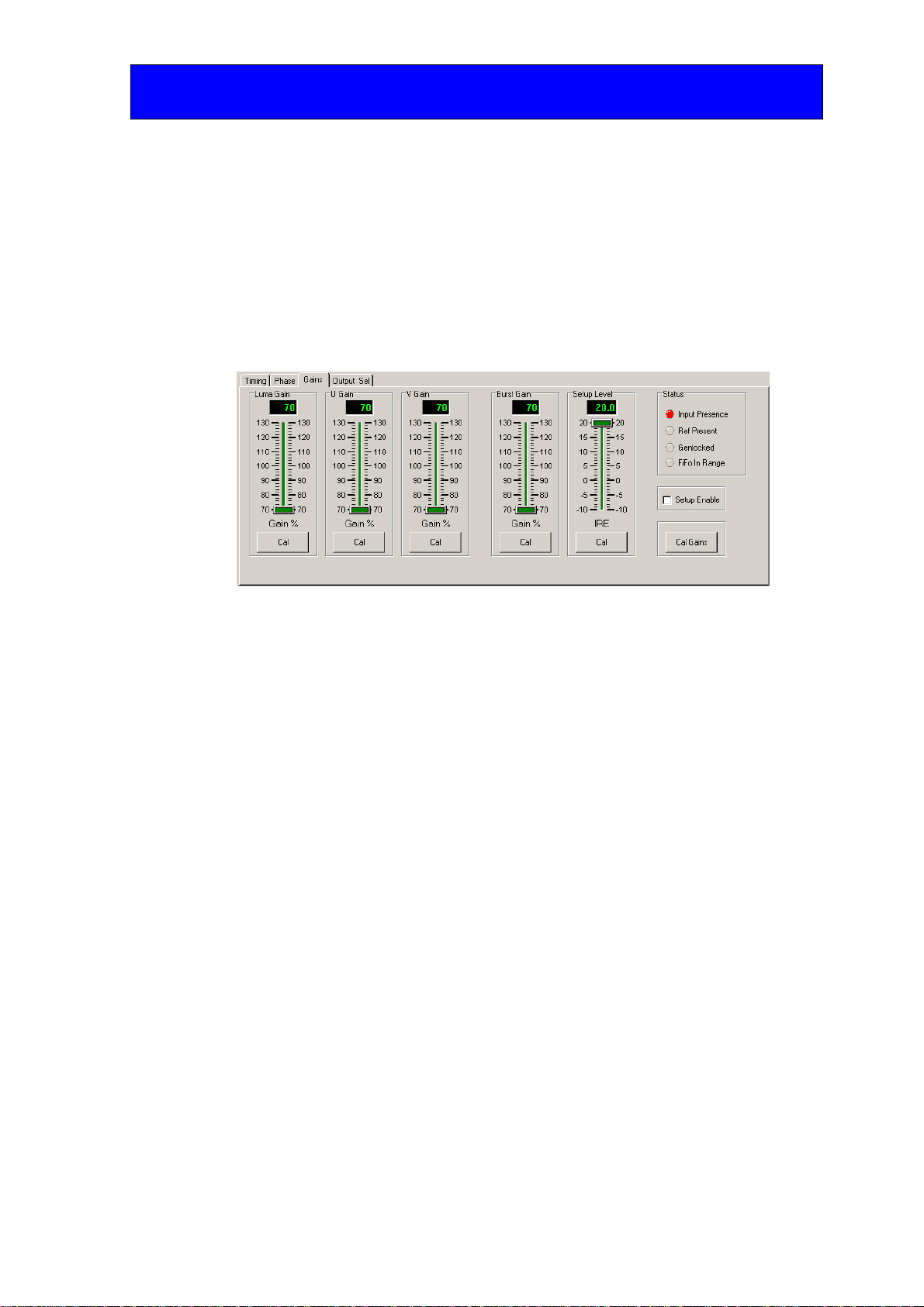

Gain settings
Luma gain
Slider varies Y gain from 70% to 130% in 0.1% steps. CAL button clears the current
setting to 100%.
U/V gain
U slider varies Cb gain from 70% to 130% in 0.1% steps. V slider varies Cr gain from
70% to 130% in 0.1% steps. CAL button clears the current setting to 100%.
Setup gain (NTSC only)
When NTSC Setup is enabled (place tick in Setup Enable box, the IRE slider varies
NTSC Setup in 0.3 IRE steps from –10 IRE to +20 IRE. CAL button clears the current
setting to 0 IRE.
Burst gain
Slider varies burst gain in 0.1% steps from 70 to 130% of nominal. CAL button clears the
current setting to 100%.
Status
Input and reference presence is shown along with FIFO and Genlock status.
Cal Gains
All sliders are returned to their default positions.
Inhaltsverzeichnis
Andere Crystal Vision Medienkonverter Handbücher
Crystal Vision
Crystal Vision Indigo ADDEC-210 Bedienungsanleitung
Crystal Vision
Crystal Vision ADDEC-310 Bedienungsanleitung
Crystal Vision
Crystal Vision Indigo Q-Down-AG 3G Bedienungsanleitung
Crystal Vision
Crystal Vision ADDEC-200 Bedienungsanleitung
Crystal Vision
Crystal Vision Up-Down 3G Series Bedienungsanleitung
Crystal Vision
Crystal Vision UP-DOWN-VF Series Bedienungsanleitung
Crystal Vision
Crystal Vision ARC-10MC Bedienungsanleitung
Crystal Vision
Crystal Vision DDAA132 Bedienungsanleitung
Crystal Vision
Crystal Vision Indigo Q-Down Mini Bedienungsanleitung
Crystal Vision
Crystal Vision Up-and-down Bedienungsanleitung
Crystal Vision
Crystal Vision Up-and-down-S Bedienungsanleitung
Crystal Vision
Crystal Vision DEC105S Bedienungsanleitung
Crystal Vision
Crystal Vision Vision 3 Bedienungsanleitung
Crystal Vision
Crystal Vision DDAA132P Bedienungsanleitung
Crystal Vision
Crystal Vision Indigo Wallbox Q-Down Bedienungsanleitung
Crystal Vision
Crystal Vision Indigo ALLDAC Bedienungsanleitung
Crystal Vision
Crystal Vision Indigo DACA214 Bedienungsanleitung
Crystal Vision
Crystal Vision Q-Down-A-AFD Bedienungsanleitung
Crystal Vision
Crystal Vision DEC103S Bedienungsanleitung
Crystal Vision
Crystal Vision ADDEC-100 Bedienungsanleitung
