CTC Union ET100A Bedienungsanleitung

ET100A [ver2]

Synchronous WAN Ethernet Bridge

10/100Base-TX Ethernet over

V.35, X.21, RS-232/530/449



CTC Union Technologies Co., Ltd.

NeihuTechnologyPark

ViennaTechnologyCenter

8F,No.60ZhouziSt.

Neihu,Taipei,114

Taiwan



ET100AEthernetWANBridge,UserManual

Version2.0March21,2014Release



Thismanualsupportsthefollowingmodels:

ET100AEthernetWANBridge

(manufacturedafterMarch2014)



Allspecificationssubjecttochangewithoutnotice.



Table of Contents

i



OVERVIEW........................................................................................................ 7

FEATURES ......................................................................................................... 7

SPECIFICATIONS ................................................................................................ 8

THEORYOFOPERATION .................................................................................. 13

DIPSWITCHSETTINGTABLES:.......................................................................... 16

WANPORTPINASSIGNMENT.......................................................................... 20

CABLEPINASSIGNMENTS: .............................................................................. 24

RS‐530CABLE,25CONDUCTORROUND,1TO1,1M....................................................24

V.35CABLE,MULTI‐CONDUCTORROUND,1M..............................................................25

RS‐449CABLES,MULTI‐CONDUCTORROUND,1M........................................................26

X.21CABLES,MULTI‐CONDUCTORROUND,1M............................................................27

APPLICATIONEXAMPLES................................................................................. 28



Table of Contents

ii



Thispageleftblankintentionally.



ET100A LAN-WAN Bridge

7

Overview

TheET100ANetworkBridgeisahighperformance,remote,

self‐learningEthernetbridge.Itscompactsizeandlowcostmakeitideal

forcost‐sensitivebridgingapplications,orasaLANextenderorsegmenter

overbitstreamtypeinfrastructures.Severalselectablesynchronousdata

interfaces,includingV.35,RS‐530,RS‐449,X.21,andRS‐232,makethis

EthernetBridge'sconnectionbetween10Base‐Tand100Base‐TXLANand

variousSYNCdataportinterfacesconvenient.

Features

Supports raw HDLC, Cisco® HDLC, and PPP encapsulation

10BASE-T/100BASE-TX, Full Duplex or Half Duplex

HPAuto-MDI/MDIX detects and corrects crossed cable

Automatic address learning, aging and deletion after 5 minutes

Forwarding and filtering rate at wire speed with through put latency of

1 frame.

Auto padding of undersized packets to meet the minimum Ethernet

packet size requirement

1763 packet buffer

Ethernet interface has automatic Twisted Pair polarity correction

Built-in nx64K / nx56K timing clock generator for WAN link for speeds

up to 10mbps

256 MAC Table

Ethernet flow control per IEEE802.3x

ET100A LAN-WAN Bridge

8

Specifications

LAN

Standard Fully compliant with IEEE 802.3/802.3u, 802.3x

Connector Shielded RJ-45

Speeds 10BASE-T/100BASE-TX, Full or Half Duplex

MTU 1536 bytes

MAC Table 256 addresses

WAN

Interface Selectable RS-232(SYNC), V.35, RS-449/530, and

X.21

Protocol Synchronous HDLC, PPP or Cisco® HDLC

Buffer 1763 Packets

Connector DB25 Male

Type DTE port

Data Rates n x 64(56)Kbps, up to 10Mbps

Clock Source Internal or External

General

Power AC Adapter; EUP 100~240VAC / 12VDC-1A

Unit; DC9~12V/300mA

Environment Temperature: 0~50oC

Humidity: <90% non-condensing

Dimensions 135(L) x 80(W) x 25(H) mm

Weight 150g

LED INDICATORS

SYNC (green) ON=WAN Protocol Up

LINK (green) ON=receiving CTS and DSR signal

Rx (green) ON=WAN receive data (blinking)

Tx (green) ON=WAN transmit data (blinking)

PWR (green) ON=Power OK

ERROR (red) OFF=system OK,

2 pulse=configuration error; 3 pulse=WAN CRC

ACT (green) OFF=No link; Blinking=receiving data

LINK (green) ON=LAN linked; OFF=no link

ET100A LAN-WAN Bridge



9



Clock

Generator

SYNC

SPEED

N56K to

1792K

N64K to

10M

Interface

Select

RS-530/449 Serial Port

Line Drivers



Figure1:ET100AFunctionalBlockDiagram

V.35

X.21

RS-232



SYNC

HDLC

CONTROLLER

Full Du

lex

Half Du

lex

Ext. clock

Int. clock



FILTER

ENGINE

MAC Address Table

Frame Buffe

WAN SIDE

DB25-Male

DTE

LAN SIDE

RJ-45

ERROR

Clock

Source

LINK

Tx LED

Rx LED

SYNC

ACT

LINK

IEEE802.3u I/F

ET100A LAN-WAN Bridge

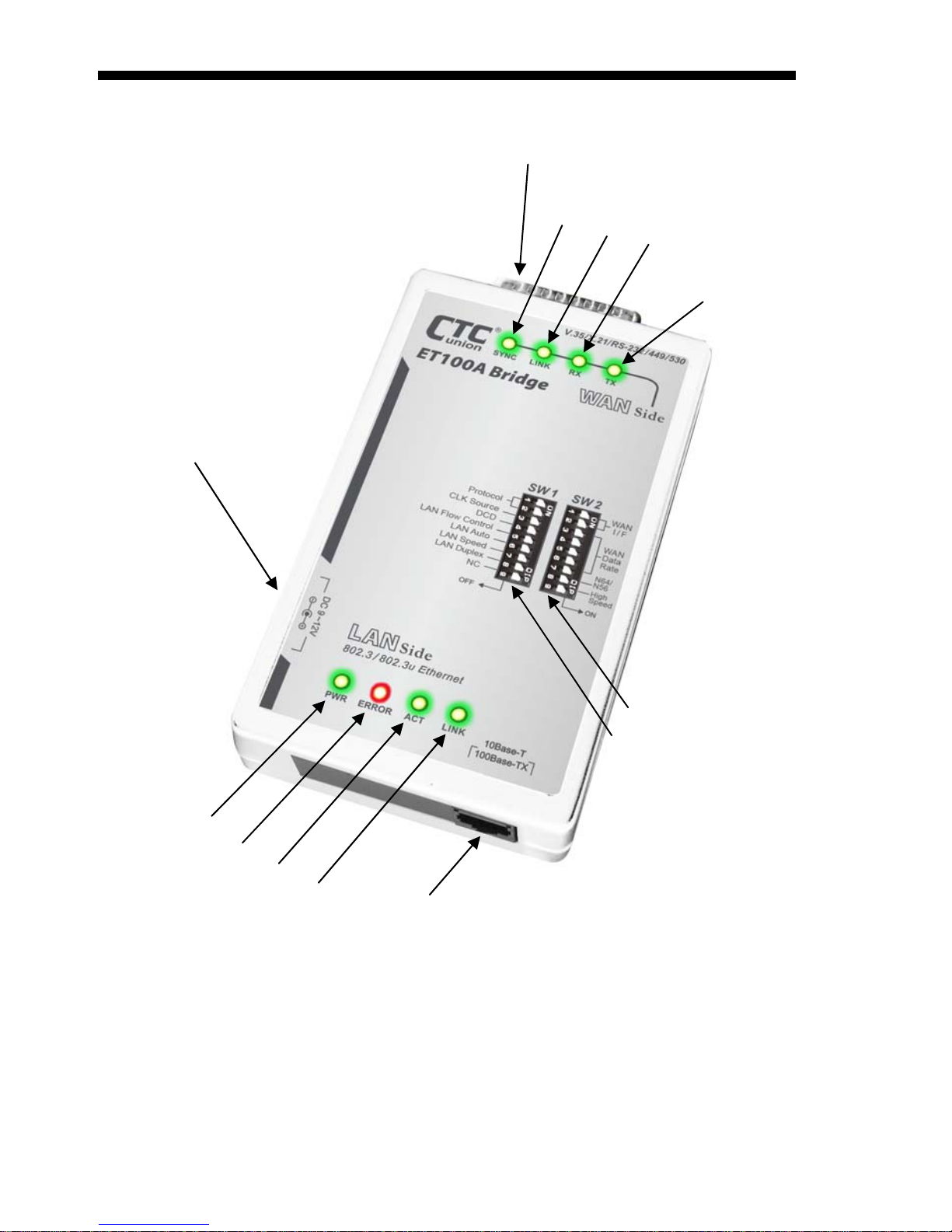

Unit Detail

13

11

10

8

6

7

9

5

12

4

23

1

Figure2.ET100AUnitDetail

10
