Cybertek EM5018 Bedienungsanleitung

Shenzhen Zhiyong Electronics Co., Ltd

www.cybertek.cn

Absorbing Clamp

EM5018

（30MHz～1000MHz）

Shenzhen Zhiyong Eletronics Co., Ltd

CYBERTEK

Shenzhen Zhiyong Electronics Co., Ltd

www.cybertek.cn

1. Summary

EM5018 Absorbing Clamp is mainly used for measuring the power interference signal from the

power cable of EUT, frequency ranging from 30MHz to 1000MHz. EM5018 is in accordance with

CISPR 16-1-3 regulation, with operating current over 25A, pore diameter around 20mm, can be

widely used in the measurement of testing the interference signal of the standard power supply cable

like CISPR 13/EN 55013, CISPR 14-1/EN 55014-1.

2. Product and Accessories

①Gasket Clamp: can increase the measurement accuracy when the diameter of cable under test

is less than 6mm. If the diameter is over 6mm, remove the gasket clamp.

②EUT port: used to connect the cable of EUT.

③Spring catch: locked during measurement

④RF output port: interference signal output port, connecting with measuring devices like

receiver.

3. Electronics Specification

Frequency range

30 MHz~1000MHz

Input loss

13 dB to 22 dB

Clamp factor

-4 dB to +5 dB refer to the diagram below

Maximum allowable disturbance power

<10 W

Maximum allowable

cable diameter

20 mm

Clamp with gasket

6mm

Maximum allowable DC or AC peak

working current

25 A

RF Output port

BNC, 50 Ω

Operating temperature

+4°C to +40°C

Dimension（W×H×D）mm

around 648*105*85mm

Weight

around 6.5kg

CYBERTEK

Shenzhen Zhiyong Electronics Co., Ltd

www.cybertek.cn

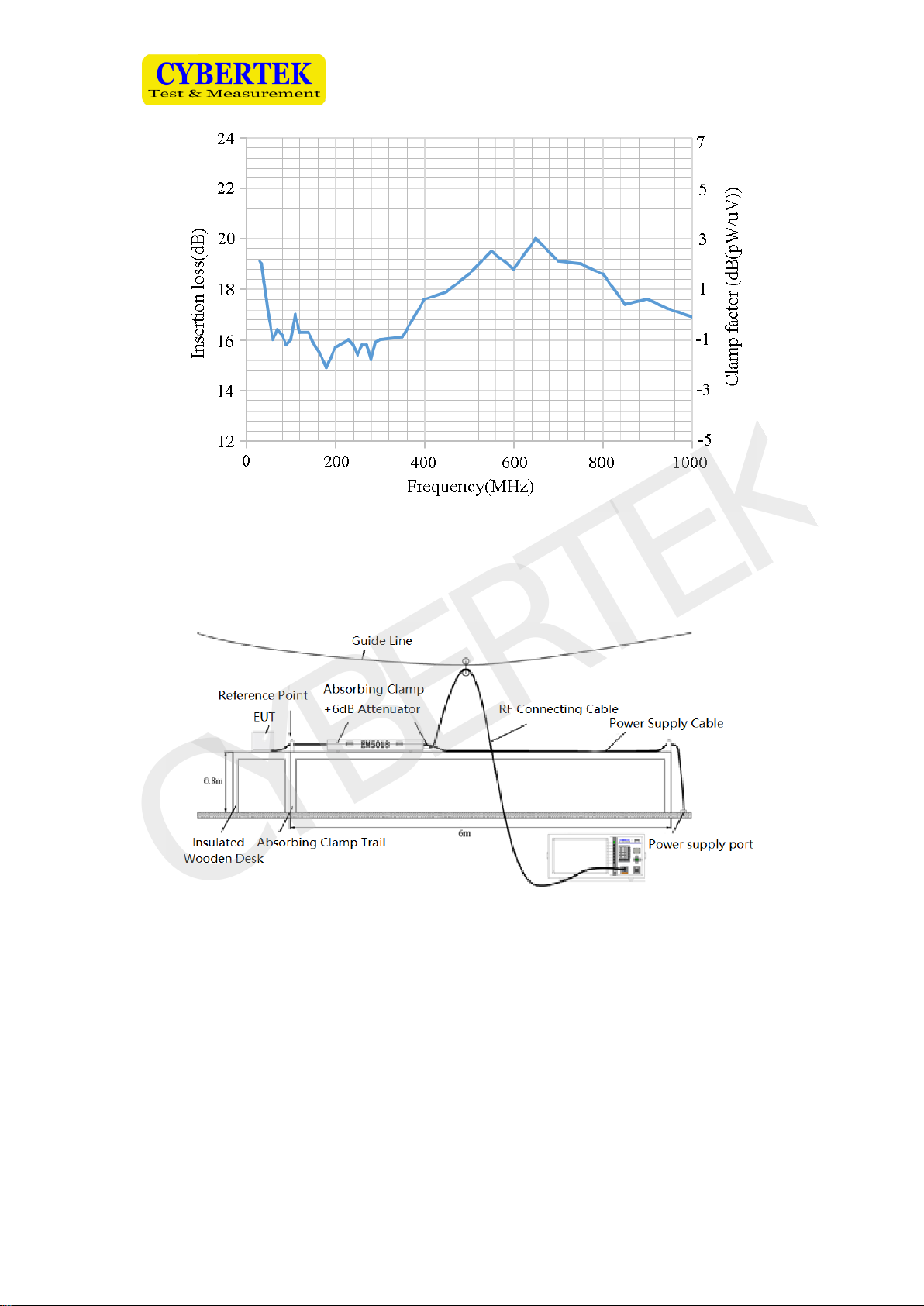

4．Typical application configuration diagram of power disturbance

measurement



When the diameter of the cable under test is over 6mm, remove the gasket clamp of the

absorbing clamp, which can increase precision when the cable is thin



Important tips during measurement:



Please lock the absorbing clamp.



The side with EUT mark should be close to the EUT, absorbing clamp cannot be installed

reversely.



Find maximum value of all frequency point by moving absorbing clamp on the trail.



Interference signal measured P (dB(pW)) = Voltage measured V(dB(uV)) + Clamp factor

(dB(pW/uV))

CYBERTEK

Shenzhen Zhiyong Electronics Co., Ltd

www.cybertek.cn

5. Packing List

Packing List

EM5018

6dB attenuator （CK-AT6）

BNC Cable 5m

Instruction Manual

Warranty Card

Test Report

CYBERTEK

SHENZHEN ZHIYONG ELECTRONICS CO.,LTD.

Addr：RoomA1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang

District, ShenZhen City, China

Tel: +86-400 852 0005

+86-755-86628000

Q Q: 400 852 0005

Fax: +86-755-86620008

Email: cy[email protected] © Zhiyong Electronics, 2021

Url: http://www.cybertek.cn Published in China, Mar.1, 2021
