CYCMOTOR X1 PRO Bedienungsanleitung
14S Controller Version 2.0
CYC MOTOR LTD
X1 PRO
USER MANUAL
2
01 SAFETY
General Safety
Operating Safety
Before the Ride
Proper Use
02 SPECIFICATION
General Specication
Variants and Dimensions
68 - 83mm Version
100mm Version
120mm Version
Motor & Controller
Part list
03 INSTALLATION
Required tools
Adjusting the Width of the Bottom Bracket
Mounting the X1 pro to the frame
PAS Sensor Installation
Mounting the Crankset (Gear Version)
Mounting the Crankset (Chain Version)
Wiring and Connection
04 MAINTANENCE
General Maintenance
Gear Version
05 MOBILE APP
Getting Started
Dashboard
Preset Modes
Trip Planner
Data Logger
06 DISPLAY
07 QUICK START
08 TERMS AND CONDITIONS
00 TABLE OF CONTENTS
3
Please read through the entire user manual as it con-
tains important information for the X1 PRO’s proper
usage and reduced user risk. Keep the manual for
reference.
Your personal safety is your own responsibility. If you
have any questions or misunderstanding, please con-
tact your X1 PRO dealer or component manufacturer.
Some X1 PRO accessories may present a choking
hazard to small children. Keep these accessories away
from children.
RIGHT-HAND and LEFT-HAND sides are determined by
the bike handle, RIGHT-HAND corresponds to the right
handle.
All components attached to the drive unit may be
replaced only with identical components or compo-
nents specically approved by the bicycle manufac-
turer. This protects the drive unit against overload and
damage.
The X1 PRO does not comply with EU or US e-bike regu-
lations, it is for off-road and private-track use only. User
please follow all local, state and federal regulations
when registering and using the drive unit.
Operating Safety
Before the ride:
Check that the drive unit chain has the proper tension.
Before connecting any power supply, make sure the
power supply is completely connected.
Make sure that no loose wire is dangling from the bike
that could be jammed into any moving parts.
Before turning on the system, ensure that the throttle
can be twisted freely without friction, that the throttle
can return to its original position and double check
that the throttle is restored to its ORIGINAL POSITION.
Ensure that the chains are properly lubricated.
Check the chains regularly for proper tension.
Check electrical wires and plugs to see if there is any
damage.
01 SAFETY 01 General Safety
4
Proper Use:
Do not install anything other than the parts and ac-
cessories that came with the drive unit, doing so could
damage the product,
Never interfere with the movable parts when the drive
unit is connected to power supply.
The drive system can be activated by holding down
the on/off button on the display.
Do not change the bike gear (note: this is different
from the electronic gear in your app) when the drive
unit is powering the bike, this will lead to excessive
wear on chain and chain rings leading to chain failure.
To change gear, please use only your own pedaling
power. After the gear is changed, you may accelerate
again with the throttle.
Take off with the appropriate gear; choose the gear
you can power at take off, then slowly twist the throttle
to reach the desired power.
Overloading the drive unit for an extended period of
time will damage the materials used.
The X1 PRO is splash proof, rain proof but not water
proof, do not submerge it underwater or ride through
streams.
01 SAFETY 02 Operating Safety
5
General
Rated Voltage 36 - 72V D.C.
Max. rpm > 180 rpm
Rated Power 3000W
Max Torque ≥ 180 N.m.
Overall efciency ≥ 80%
Bottom bracket BSA / PressFit
Color Black
Total Weight 3.5kg
Bracket Materials 7075-T6
Crank Arm 7075-T6 170mm
Q Factor 190mm - 210mm
Compatibility Bike frame with standard BB
thread and width of 68 / 73/
83 / 100, or press t frames
with 41mm diameter with
width of 92mm or less
Gearbox
First-stage 1:6 hardened steel planetary
Second-stage 1:6 72T Chainring
11:63 63T Chainring
11:53 53T Chainring
Overall reduction ratio ~1:36
02 SPECIFICATION 01 General Specication
6

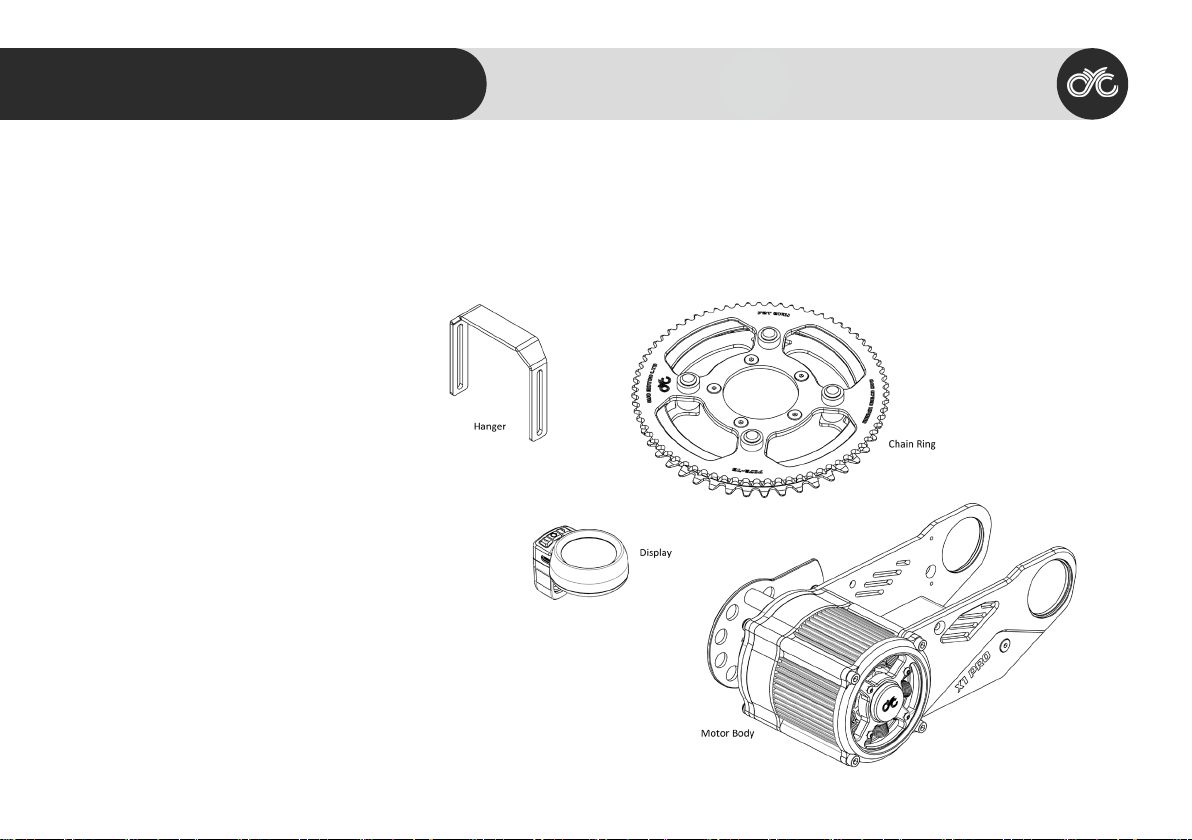

Parts List
Common Parts
Motor body (includes controller)
Chainring
Display
Thumb Throttle
1 to 4 Controller Wire
E-Brakes
219H Chain
Bike Hanger (83mm or 100mm)
02 SPECIFICATION 02 Variants and Dimensions
7
83mm BSA Torque Sensing Version
Dimensions
A: 94mm
b: 253mm
c: 190mm
D: 34mm
e: 110mm
F: 178.6mm
G: 83mm
H: 190mm
83mm BSA Torque Sensing Version Extra Parts
• 83mm BSA Torque Sensing Version Crank Set
• 3mm, 5mm, 7mm Spacers
02 SPECIFICATION 03 Variants and Dimensions
8
92mm PressFit Torque Sensing Version
Dimensions
A: 94mm
b: 253mm
c: 190mm
D: 34mm
e: 110mm
F: 178.6mm
G: 92mm
H: 190mm
92mm PressFit Torque Sensing Version Extra
Parts
• 92mm PressFit Torque Sensing Version Crank Set
• 1mm, 2mm Spacers
02 SPECIFICATION 04 Variants and Dimensions
9
100mm BSA Torque Sensing Version
Dimensions
A: 94mm
b: 253mm
c: 190mm
D: 34mm
e: 110mm
F: 178.6mm
G: 100mm
H: 210mm
100mm BSA Torque Sensing
Version Extra Parts
• 100mm BSA Torque Sensing Version Crank Set
• Extra Plate & Spacers
02 SPECIFICATION 05 Variants and Dimensions
10
83mm BSA Cadence Sensor Version
Dimensions
A: 94mm
b: 253mm
c: 190mm
D: 34mm
e: 110mm
F: 178.6mm
G: 83mm
H: 190mm
83mm BSA Cadence Sensor Version Extra
Parts
• 83mm BSA Cadence Sensor Version Crank Set
• 3mm, 5mm, 7mm Spacers
02 SPECIFICATION 06 Variants and Dimensions
