CYmodel Cessna 195 Bedienungsanleitung

SAFETY PRECAUTIONS

This radio control model is not a toy!

lFirst-time buildersshould seekadvice frompeople havingbuilding

experience inorder toassemble themodel correctlyand toproduce

its performanceto fullextent. ,

lAssemble thiskit onlyin placesout ofchildrens reach!

lTakeenough safetyprecautions priorto operatingthis model.

You areresponsible forthis models assemblyand safeoperation!

lAlways keepthis instructionmanual readyat handfor quick

reference,even aftercompleting theassembly.

lCould causeserious injuryor evendeath

SPECIFICATION

Wing Span: 2285mm (90in)

Wing Area: 72.2dm (1120sq.in)

Total Length: 1800 mm (71 in)

Engine :35cc gas engine

Radio : 5 channels ,8 servos

Cessna 195Cessna 195

ALMOST - READY - TO - FLYALMOST - READY - TO - FLY

Before commencing assembly,please read these instructions thoroughly.

Thank you for choosing CYmodel

Global : www.cymodel.com

Australia : www.austars-model.com

Italia : www.biellaexpress.com

Instruction Manual

Item Nr: CY8038

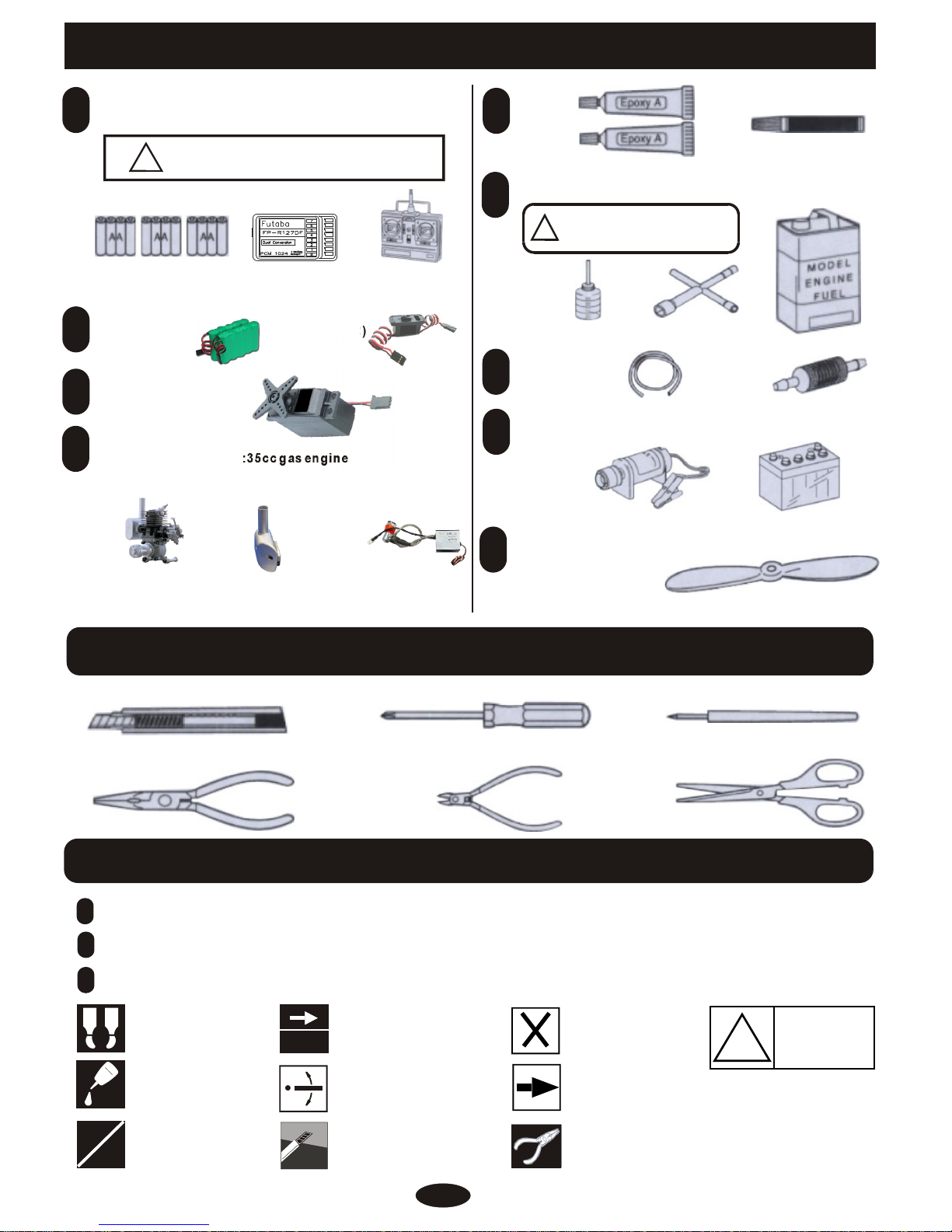

REQUIRED FOR OPERATION (Purchase separately)REQUIRED FOR OPERATION (Purchase separately)REQUIRED FOR OPERATION (Purchase separately)REQUIRED FOR OPERATION (Purchase separately)

TOOLS REQUIRED ( Purchase separately)TOOLS REQUIRED ( Purchase separately)TOOLS REQUIRED ( Purchase separately)TOOLS REQUIRED ( Purchase separately)

BEFOREYOUBEGINBEFOREYOUBEGINBEFOREYOUBEGINBEFOREYOUBEGIN

SharpHobbyKnife Phillips Screw Driver Awl

NeedleNosePliers Wire Cutters Scissors

Read through the manual before you begin ,so you will have an overall idea of what to do.

Check all parts .if you find any defective or missing parts .contact your local dealer.

Symbols used throughout this instruction manual,comprise.

111

222

333

Warning!

Do not overlook this symbol.

Aminimum 5channel radio for airplanes (with 8/9servos).

And dry batteries.

CAUTION: Only use a minimum 5channel radio for

airplanes! (No other radio may be used!)

12 AA-size Batteries

Aminimum 5 channel

transmitter for airplanes.

For handing the radio properly.refer to its instruction manual.

Engine and Muffler

Purchase a propeller that

will match your engine

Silicone Tube Fuel Filter

required for engine starting Glow engine fuel only.

WARNING: Normal gasoline cannot

be used with glow engines.

Fuel Pump Plug Wrench

Glue

Instant glue

Epoxy Glue

Other equipment for enhancing

airplane operation & perormance

12VBattery (for starter)

Engine Starter

BBBB

Cut off shaded portion.

Ensure smooth non-binding

movement while assembling.

Must be purchased

separately!

Pay close attention

here!

Drill holes with the specified

Diameter(here:2mm)

Assemble left and right

Sides the same way.

Apply instant glue

(CA glue,super glue).

Apply epoxy glue.

Cut off excess.

502

C.AC.A

AB2mm2mm

Model Airplaneengine:35ccgasengine

receiver

Battery (need 2)

Servo(need 8/9 servos )

remote control

Switch (need 2)

Muffler

Ignition

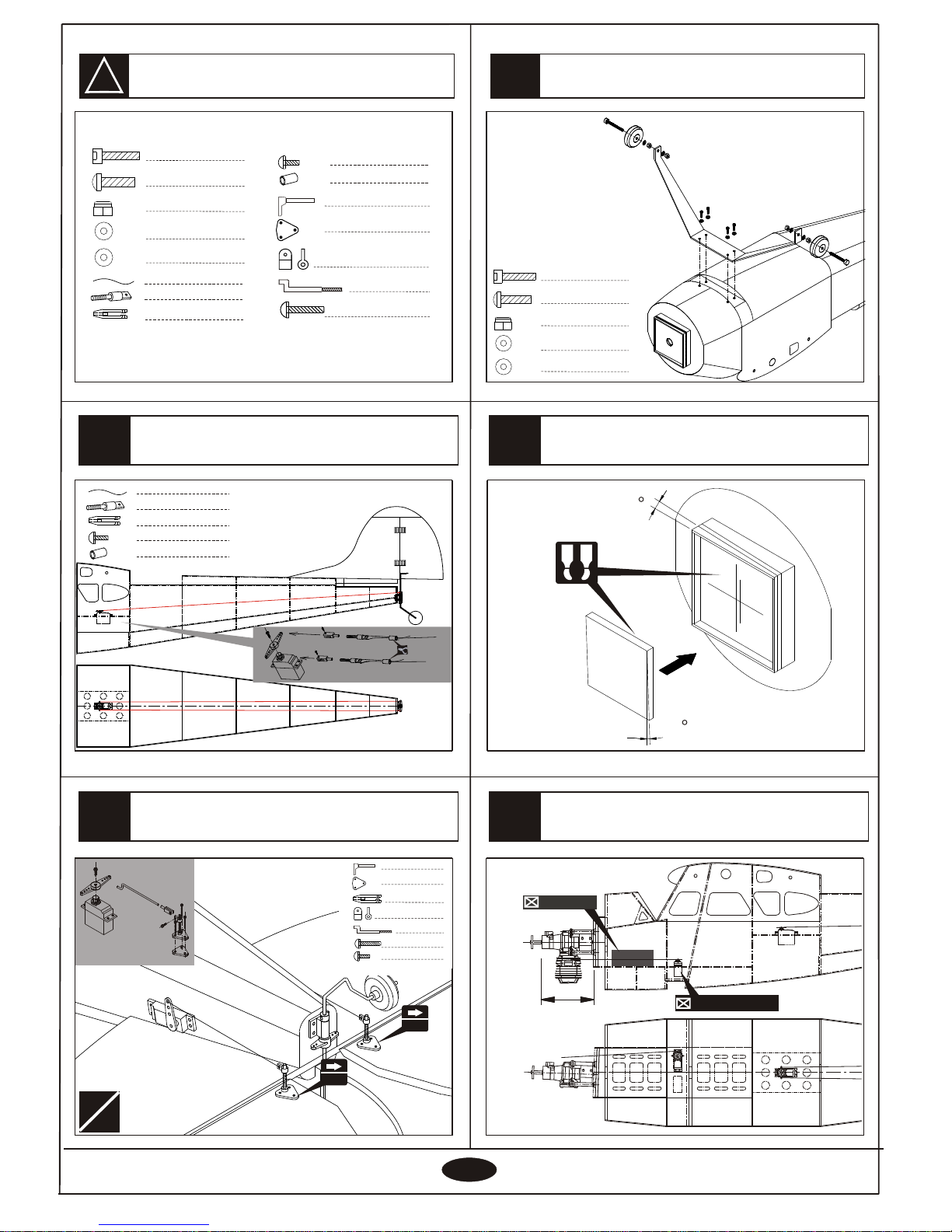

Install the aileron and flap

Install the servo

Aileron

Flap

Hinge

Install the aileron and flap

Bottom view

FlapAileron

Ming wing

Hinge

Accessory list for this page.

Securely glue together. If comingoff duringflights,you'll

lose control ofyour airplane whichleads to accidents!

Warning!Warning!

- - - - - - - - 6

A B

Servo line

FlapAileron

Make sure hingesare

mounted in thesame line

2mm2mm

Horn

Connecting rod head

Rod adjuster

2x10mm Screw

1.8X70mm rod

2x30mm Screw

2.6X12mm Tp screw

3X12mm Tp screw

Horn 2

8mm Nut

Cut the film,

put the aileronservo

line into thefuselage

25X960mm tube25X960mm tube

Horn

Connecting rod head

Rod adjuster

2x10mm Screw

1.8X70mm rod

2x30mm Screw

2.6X12mmTp screw

3X12mmTp screw

Horn 2

8mm Nut

710

Accessory list for this page.

Main wing

Securely glue together

,if coming off during flights.

You lose control of your airplane

which leads to accidents!

Securely glue together

,if coming off during flights.

You lose control of your airplane

which leads to accidents!

Install the elevator

Hinge

- - - - - - - - 6

Securely glue together. If comingoff duringflights,you'll

lose control ofyour airplane whichleads to accidents!

Warning!Warning!

Horizontal/Vertical tail

Install the rudder and tail wheel

Hinge

- - - - - - - - 2

3.2mm Collar

3.2mm Nylon Collar

3X3mm Screw

3.2mm Rocker

A B

2mm2mm

Hinge

3.2mm Collar

3.2mm Nylon Collar

3X3mm Screw

3.2mm Rocker

12 15

Accessory list for this page.

Install the rudder servo

Rod adjuster

Rod

2X10mm screw

Install the elevator servo

1100mm Steel wire

Aluminium tube 8

Horn

Connecting rod head

Rod adjuster

2x10mm Screw

1.8X110mm rod

2x20mm Screw

Horn 2

2mm2mm

Install the main landing gear

4X20mm screw

5mm lock nut

4mm Washer

5X45mm screw

5mm Washer

Install the engine(35cc gas)

Fuel tankFuel tank

Throttle servoThrottle servo

140mm

Install the engine

4X20mm screw

5mm lock nut

4mm Washer

5X45mm screw

5mm Washer

Rod adjuster

Rod

2X10mm screw

1100mm Steel wire

Aluminium tube 8

Horn

Rod adjuster

1.8X110mm rod

2x20mm Screw

Horn 2

17 20

Accessory list for this page.

Engine:100cc gasEngine:100cc gas

After confirmingthe

position(see frontof

fuel tank).

Insert and tighten

the screw.

Fuel supply line

Fuel pipe Air pressure line

Radio Equipment

Assembly of the full tank

ReceiverReceiver

BatteryBattery

Battery/IgnitionBattery/Ignition

Install the cover

2.6X12mmTpscrew

Install the throttle servo

1.8X350mm Rod

- - - - - - 1

Linkage Stopper

2mm Nut

- - - - 1

3X3mm Screw

- - - - - - 1

1.8X350mm Rod

- - - - - - 1

Linkage Stopper

2mm Nut

- - - - 1

3X3mm Screw

- - - - - - 1

2.6X12mmTp screw

- - - - 4

22 25

Accessory list for this page.

3X14mm screw 3mm Washer

- - - - - 4 - - - - - 4

Install the thr cowling

Install the canopy

2.6X12mmTpscrew

502

C.AC.A

Cut awaythe surpluspats

of canopy,care fullyalong

the shadedline.

SpinnerSpinner

PropellerPropeller

Install the afterbody

2.6X12mmTpscrew

3X14mm screw

3mm Washer

- - - - - 4

- - - - - 10

ELEVATOR

Adjust the travel of each control surface to the

values in the diagrams.

These values fit general flight capabilities.

Readjust according to your needs and flight level.

Top view

AILERON

Adjustment.

Top view

Adjust the travel of each control surface to the

values in the diagrams.

These values fit general flight capabilities.

Readjust according to your needs and flight level.

888

Adjustment.

Never fly before checking the Cg srequired position.

In order to obtain the CG specified ,reposition the

receiver and battery.

NEVER fly the model

without well balancing.

Warning!

Side view

Rudder

Adjust the travel of each control surface to the

values in the diagrams.

These values fit general flight capabilities.

Readjust according to your needs and flight level.

Top view

Adjustment

Adjustment.

Side view

Flap

110-120mm110-120mm

Side view
