CYP CLUX-2EN Bedienungsanleitung
CLUX-2EN
1 by 2 HDMI Splitter
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 29/08/12 Preliminary Release
VS0 24/06/13 Updated format/diagrams
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel.........................................3
6.2 Rear Panel .........................................3
7. Connection Diagram ............................ 4
8. Specications ........................................ 5
9. Acronyms ............................................... 6
1
1. INTRODUCTION
This 1 by 2 HDMI Splitter can split and distribute a single HDMI input into
2 identical HDMI outputs without any loss of quality. It supports a wide
range of HDMI features including high denition video and lossless
audio, 3D, and 12-bit Deep Color.
2. APPLICATIONS
• Simultaneously display an HDMI source on up to 2 displays
• Retail sales display
• Home entertainment HD distribution
• HDTV/Projector distribution
3. PACKAGE CONTENTS
• 1 by 2 HDMI Splitter
• 5 V/2.6 A DC Power Supply Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI output
• Displays (TV/Projector/monitor) with HDMI input
2
5. FEATURES
• Supports HDTV resolutions up to 1080p60 and PC resolutions up to
WUXGA (1920×1200 Reduced Blanking)
• HDMI and HDCP compliant
• Supports up to 12-bit Deep color
• Supports up to 7.1 channels of high denition audio: LPCM, Dolby
Digital, Dolby Digital Plus, Dolby TrueHD, DTS, and DTS-HD Master
Audio transmission (32~192 kHz Fs sample rate)
• Supports 3D signals
• Supports HDMI input cable lengths of up to 15 meters (8-bit)/10
meters (12-bit) and HDMI output cable lengths of 15 meters (8-bit)/10
meters (12-bit)
• Cascades up to 3 layers
• Power LED indicator
• Locking power supply unit
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
OUTPUT 1OUTPUT 2
CLUX-2EN 1X2 SPLITTER
1
1OUTPUT 1/2: Connect each of the HDMI outputs to HDMI displays
for simultaneous HDMI distribution.
6.2 Rear Panel
INPUT SERVICE
POWER DC 5V
1 2 3 4
1INPUT: Connect the input port to the HDMI or DVI output (using a
DVI to HDMI adaptor) of your source equipment such as DVD/Blu-
ray player, game console, or set-top box.
2SERVICE: Manufacturer use only.
2POWER LED: The power LED will illuminate when the unit is powered.
4DC 5V: Connect the 5V DC power supply to the unit and plug the
adaptor into an AC wall outlet.
4

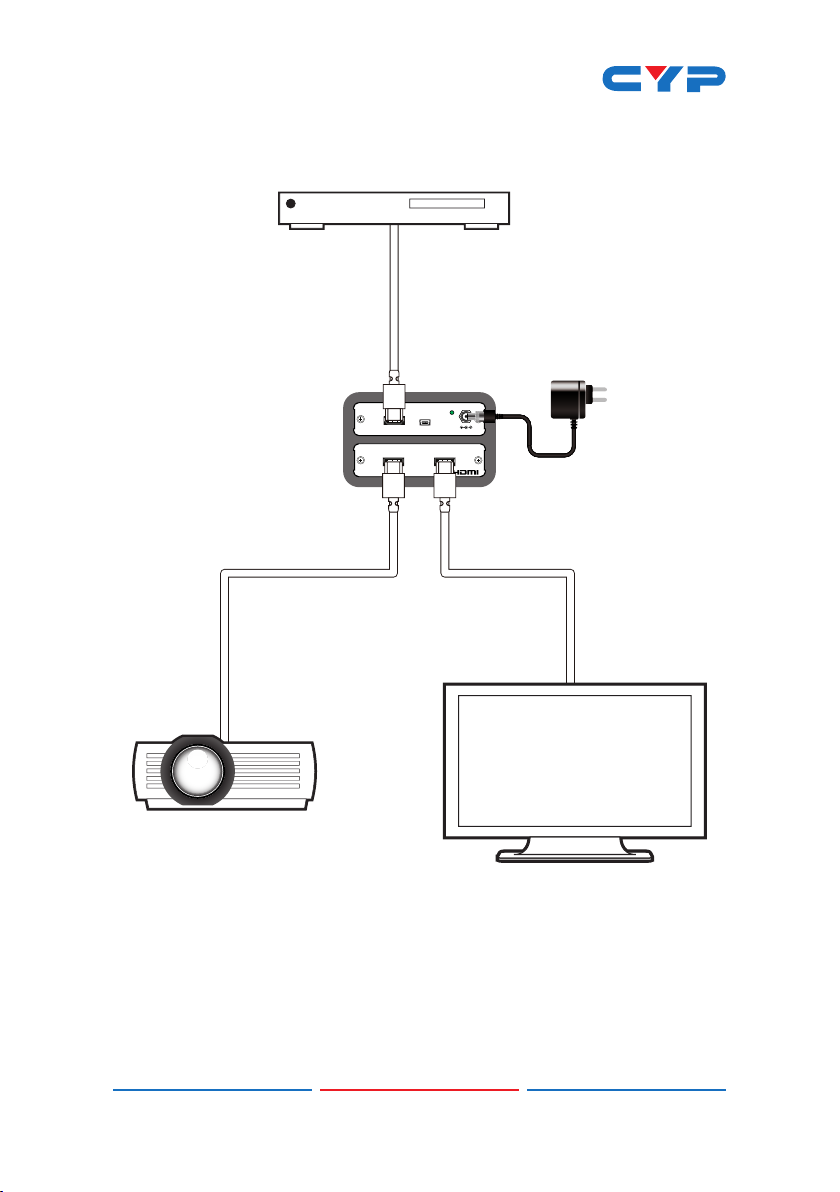

7. CONNECTION DIAGRAM
OUTPUT 1 OUTPUT 2
CLUX-2EN 1X2 SPLITTER
INPUT SERVICE
POWER DC 5V
HDMI Output HDMI Output
HDMI Input
Blu-ray or PS3 Player
Projector
Power
Supply
HDTV
5
8. SPECIFICATIONS
Video Bandwidth 225 MHz/6.75 Gbps
Input Ports 1×HDMI (Female), 1×USB (Service only)
Output Ports 2×HDMI (Female)
Output Resolution 480i ~ 1080p@24/50/60 up to 12-Bit Color
Depth, and VGA ~ WUXGA(RB)
HDMI Input Cable 15m (1080p 8-bit)/10m (1080p 12-bit)
HDMI Output Cable 15m (1080p 8-bit)/10m (1080p 12-bit)
Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/
UL certied), Locking Type, center positive
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions 103 mm (W)×155 mm (D)×25 mm (H)
Weight 298 g
Chassis Material Metal
Color Black
Operating Temperature 0 ˚C ~ 40 ˚C/32 ˚F ~ 104 ˚F
Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 3.5 W
