CYP CPT-387 Bedienungsanleitung
CPT-387
CPT-387
HD to Video Converter
Operation Manual
1. Introduction................................................................................
2. Main Features.............................................................................
3. Hardware Description................................................................
3.1 Front Panel.............................................................................
3.2 Rear Panel.............................................................................
4. Connections and Installation....................................................
5. Specifications.............................................................................
TABLE OF CONTENTS
1
1
2
2
2
3
3
1. Introduction
This is a HD to Video with HD bypass scan converter box. It is designed to
convert a variety of HD images, from 480p up to 1080p and converts them to
NTSC or PAL standards video and HD images bypass. Simply use switch to select
NTSC/PAL output format, the user also can adjust the overscan/underscan from
the front panel. It is ideal for using in applications like video conference, home
theater, business presentation, lecturing room or viewing HD image on TV.
2. Main Features
Supports high resolution HD input up to 1080p.
Supports component (YPbPr) input and scale down to Composite
video/S-video output or HD bypass. Suggest the component input can
lower the resolution as possible because the scales down from the high
resolution to Composite video/S-video output the resolution will distortion
during the video processing.
Switch between NTSC/PAL
Image Overscan/Underscan selection.
Easy to install and simple to operate.
1
3. Hardware Description
The following sections describe the hardware components of the unit.

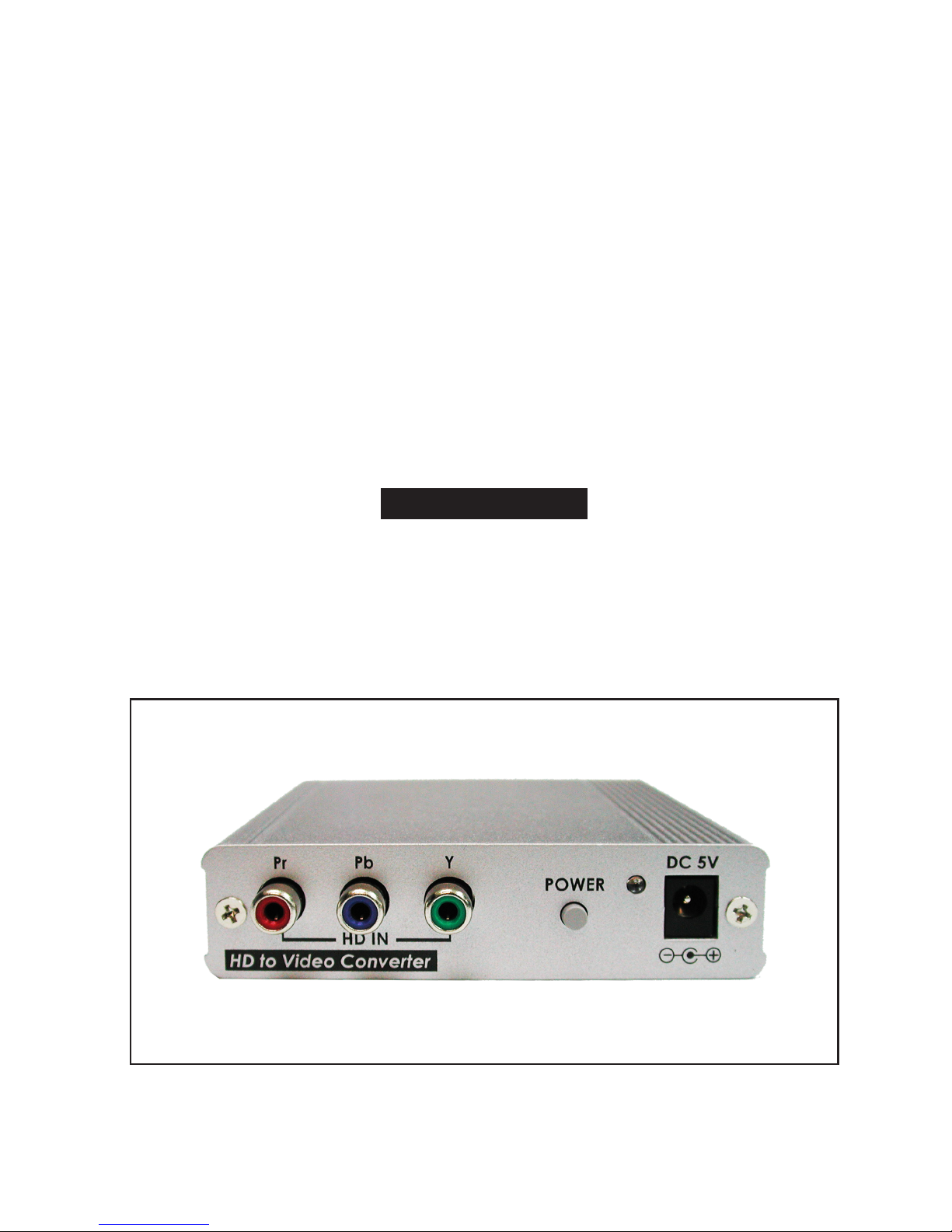

3.1 Front Panel
1 . HD input: Connect the YPbPr input connecter to the source, such as DVD
player.
Note: When input source end is not displaying full screen (i.e. letter
box/pillbox image) then the output display end may come out with
wrong size or position images. Hence, input source must set on full
screen first before powering on the converter.
2 . Power indicator: The power LED will illuminate in Green color when power
is on. When LED illominate in Red color the system is in standby mode.
3 . Power: Plug the 5V DC power supply into the unit and connect the adaptor
to AC wall outlet.
3.2 Rear Panel
1 . Underscan/Overscan: Switch the switcher to select underscan/overscan the
pictures.
2 . PAL/NTSC: Switch the switcher to select PAL/NTSC output.
3 . Composite video output: Connect to video output display.
4 . S-Video output: Connect to S-Video output display.
5 . HD Bypass: The YPbPr output connecter will bypass HD signal as follow input
HD signal.
54321
OUT HD Bypass
Under
Scan Video S-Video Pr Pb YPAL
Over
Scan NTSC
1 2 3
DC 5V
Pr Pb Y
HD IN
HD to Video Converter
POWER
2
4. Connection and Installation
5. Specifications
Input ports
Output ports
Switcher
Power Supply
Dimensions (mm)
Weight(g)
Chassis Material
Silk Skin Color
Operating Temperature
1 x Component (Y/Pb/Pr)
1 x Component bypass (Y/Pb/Pr), 1 x Composite,
1 x S-video
1 x Underscan/Overscan, 1 x PAL/NTSC
5V/2A DC (US/EU standards, CE/FCC/UL certified)
105(W) x 102(D) x 25(H)
230
Aluminum
Silver
Operating from 0°C ~ 40°C
3
NTSC / PAL TV
DVD
Y/Pb/Pr
Y/Pb/Pr
CV/SV
4
20080212 MPM-CPT387
5
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
