CYP CDPH-1S Bedienungsanleitung

CDPH-1S

DisplayPort to HDMI

Converter Adaptor

Operation Manual

CDPH-1S

Disclaimers

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes

no commitment to update or to keep current the information

contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer file, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

Version 1.0 November 2009

Trademark Acknowledgments

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

fire, electrical shock and injury to persons.

 To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Revision History

Version No Date Summary of Change

V1 20091109 Preliminary Release

Table of Contents

1. Introduction…………………………………………………........……….

2. Applications……………………..…………………………................….

3. Package Contents…………………………......…………….............…

4. System Requirements……...…………………..….…………........…….

5. Features…………………………………………….......……........………

6. Specications..………………………………………...........………...….

7. Operation Controls and Functions………………...……........………

7.1 Front Panel................................................................................

7.2 Rear Panel …………………….…………………….........…….…

8. Connection and Installation …….…………………..........…..…..…...

9. Acronyms …….…………………........................................…..…..…...

1. Introduction

Although most devices use HDMI ports, it is becoming more common that

come upon products that use the Display Port (DP) interface instead of HDMI,

as their primary graphics solution. When you wish to display on a large display,

like an HDTV, users would need a device that can connect a DP source to an

HDMI output. Our latest “DP to HDMI mini level shifter adaptor”provides you

with a quick and easy solution. This adaptor is not only compatible with HDMI

1.3, but it also has a remarkable frequency rate that can reach up to 2.7Gbps

per line. Connecting your DP source with an HDMI display has never been as

convenient as this, thanks to the “DP to HDMI mini level shifter adaptor”.

2. Applications

 Display a Display Port signal onto an HDMI display

 Lets your from Notebook, PC or MAC use an HDTV/HDMI monitor as an

external display.

3. Package Contents

 DP to HDMI converter adaptor

 Operation Manual

4. System Requirements

 Input source equipment with DP output.

 Output display to LCD TV or HD Monitor with HDMI connector.

5. Features

 Converts low-swing alternative current (AC) into an HDMI signal.

 HDMI V1.3 and DVI 1.0 compliant

 HDMI level shifting operating up to 2.7 Gbps per lane

 Acts as an adaptor allowing you to use your HDMI/DVI cables on HDMI

and DVI displays

 Fail safe outputs for backdrive protection

 Stylish design

 Runs without the need to install any software

Frequency Bandwidth 2.7Gbps (single link)

Input Port 1 x DisplayPort (Male type)

Output Port 1 x HDMI (Female type)

Output Resolution 480i ~ 1080p, 1080p24, VGA ~ UXGA

ESD Protection Human body model: ±10kV (air-gap discharge)

±6kV (contact discharge)

Core chipset: ±2kV

Dimensions (mm) 81(W) x 25(D) x 11(H)

Weight(g) 22

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity 20~90% RH (no condensation)

6. Specications

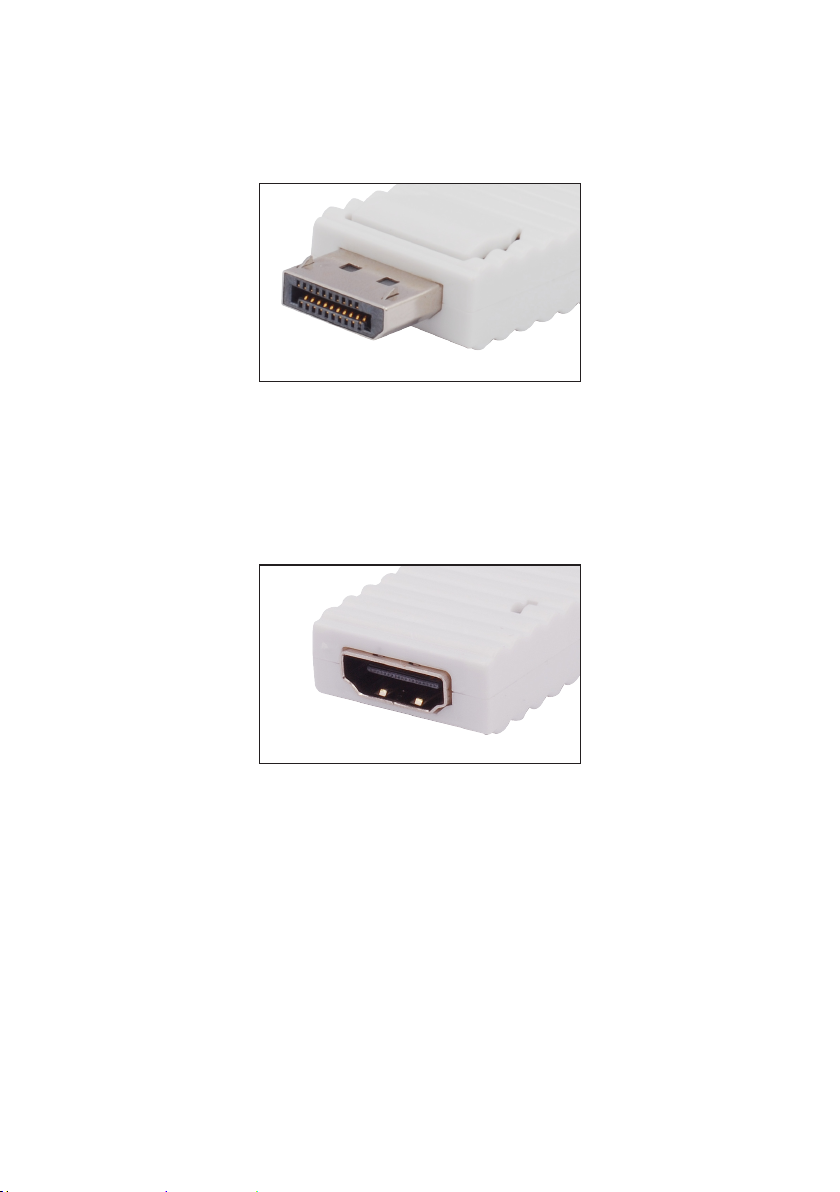

①DP input: Connect to a PC/source that has a DP output connector. In

order to disconnect this adapter you first have to press the button on top

of the device, fairly to do so will damage the device.

7. Operation Controls and Functions

The following sections describe the hardware components of the unit.

7.1 Top Panel

7.2 Rear Panel

Frequency Bandwidth 2.7Gbps (single link)

Input Port 1 x DisplayPort (Male type)

Output Port 1 x HDMI (Female type)

Output Resolution 480i ~ 1080p, 1080p24, VGA ~ UXGA

ESD Protection Human body model: ±10kV (air-gap discharge)

±6kV (contact discharge)

Core chipset: ±2kV

Dimensions (mm) 81(W) x 25(D) x 11(H)

Weight(g) 22

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity 20~90% RH (no condensation)

①HDMI output: Connect the HDMI output to the HDMI input of your display

using an HDMI cable.

Note : Some PC's DP output do not have audio support, if the input

cannot send an audio signal, then the HDMI port will likewise not

be able to deliver an audio signal.

8. Connection and Installation

LCD TV

Acronyms A

Acronym Complete Term

HDMI High-Definition Multimedia Interface

DVI Digital Visual Interface

DP DisplayPort
