CYP CS-801H Bedienungsanleitung
CS-801H
HD High Resolution Scaler with 3D
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 06/01/12 Preliminary Release
RDV2 07/02/12
RDV3 31/07/12 Add RS-232 Commands
RDV4 22/12/12 Support timing change
VS01 09/12/14 Updated Text/Diagrams
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................3
6.3 Remote Control................................4
6.4 RS-232 Protocols ...............................5
6.5 RS-232 Commands...........................5
6.6 OSD Menu.........................................7
7. Connection Diagram ............................ 9
8. Specications ...................................... 10
8.1 Technical Specications ...............10
8.2 Supported Input Resolutions .........11
8.3 Supported Output Resolutions......13
9. Acronyms ............................................. 13
1
1. INTRODUCTION
This HD High Resolution Scaler can switch and convert HDMI,
DisplayPort and VGA, Component Video inputs to an HDMI output,
along with their associated audio signals. With the ability to scale a
wide range of resolutions and allows 3D movies to be watched on
a 2D displays, the operation of all features can be easily handled
through on-panel controls, IR remote control, or by RS-232 protocol.
2. APPLICATIONS
• Scale HDMI, DisplayPort and VGA/Component Video input
resolutions to HDMI output resolutions
• Convert 3D signal to 2D signal for 2D display
• Bypass 3D source to 3D display without scaling
• Commercial presentation switching scaler
3. PACKAGE CONTENTS
• 1×HD High Resolution Scaler with 3D
• 1×Remote Control (CR-111)
• 1×5V/2.6A DC Power Adaptor
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
HDMI/DisplayPort/PC/YUV sources and output to a 2D or 3D HDMI
display.
5. FEATURES
• Supports HDMI and Component Video input resolutions up to
1080p@50/60 Hz, DisplayPort up to 2560×1600@60 Hz (RB) and PC up
to 1920×1200@60/75 Hz
• Supports HDMI 3D processing on Frame Packing and Top-and-
Bottom signals at resolutions of 720p@50/60 Hz and 1080p@24 Hz
and Side-by-Side Half signals at resolutions of 720p@50/60 Hz,
1080i@50/60 Hz (input signal only) and 1080p@24/50/60 Hz
• Supports digital and analog audio bi-directional conversion,
embedding and de-embedding for the audio signals from individual
inputs or from the HDMI source
• Supports Component Video input via D-sub 15-pin to 3 RCA phono
adaptor
2
6. OPERATION CONTROLS AND FUNCTIONS

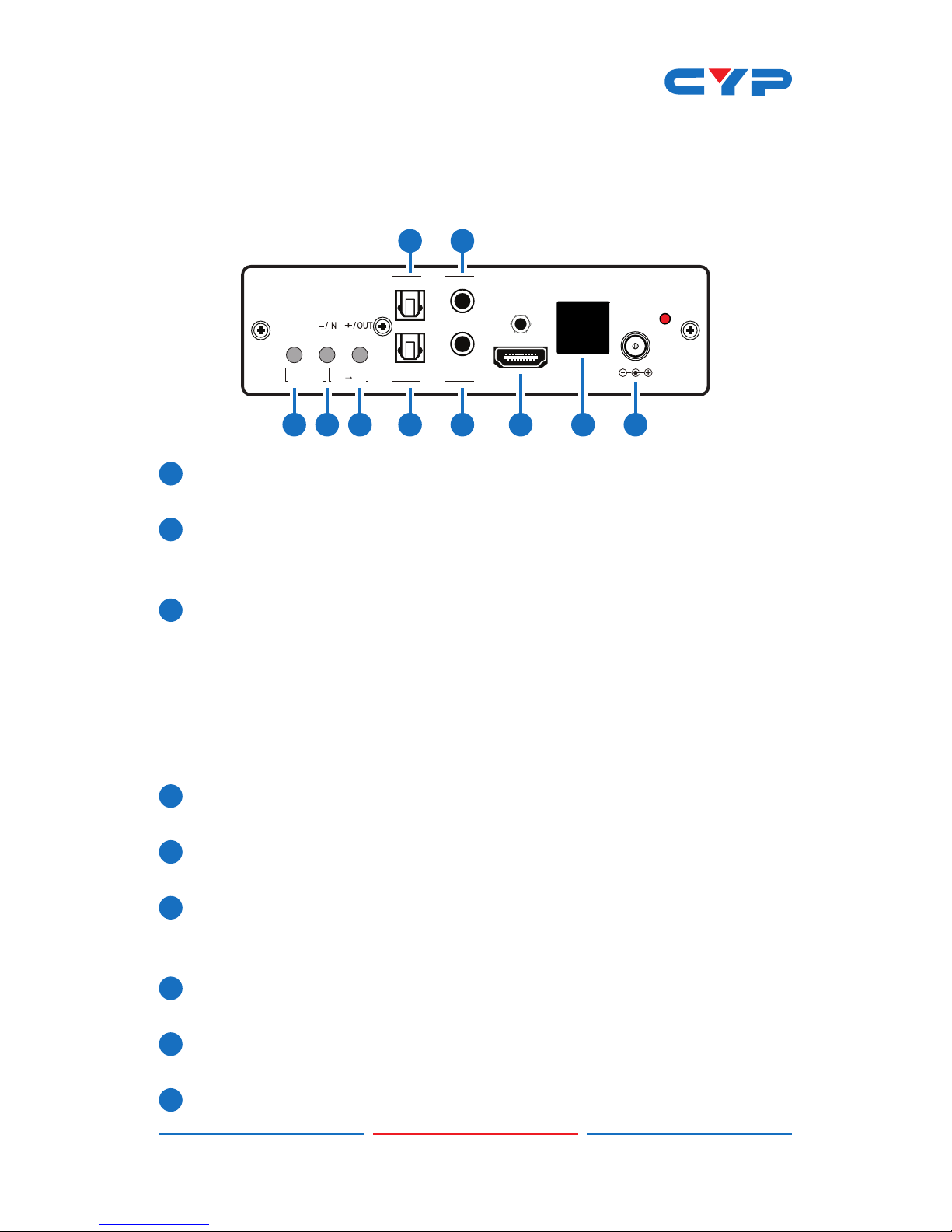

6.1 Front Panel
3D
BYPASS 3D
→
2D
ENTER
MENU/
OPTICAL
OUT
IN
AUDIO HDMI OUT
DC 5V
POWER
OPTICAL AUDIO
1
6
2 3 4
7
589 10
1MENU/ENTER: Press this button to ENTER the On-screen Display (OSD)
menu. Press again to conrm the selection.
2MINUS (-)/IN: When in the OSD menu, press this button repeatedly
to move down through the menu. When not in the OSD menu,
press this button to quickly select the required input.
3PLUS (+)/OUT: When in the OSD menu, press this button repeatedly
to move up through the menu. When not in the OSD menu, press
this button to quickly select the required output resolution.
Note:Pressing '−' (MINUS) and 'ENTER' simultaneously will
immediately switch the output resolution of the unit to 3D Bypass.
Pressing '−' (MINUS) and '+' (PLUS) simultaneously will immediately
switch the output resolution of the unit from 3D to 2D.
4OPTICAL IN: Digital audio TOSLINK input. Use this input to connect
to a source with an OPTICAL cable.
5AUDIO IN: Analog audio input. Use this input to connect to analog
source with a 3.5mm mini-jack cable.
6OPTICAL OUT: Digital audio TOSLINK output. Use this output to
connect to an Amplier or Active Speakers to an optical digital
input with an OPTICAL cable.
7AUDIO OUT: Analog audio output. Use this output to connect to
Active Speakers or an Amplier with a 3.5mm mini-jack cable.
8HDMI OUT: Connect to a HDMI equipped TV/monitor for display of
the source signal.
9IR Window: Receives the IR signal from the supplied IR Remote only.
3
10 DC 5V and POWER LED: Connect the supplied 5V DC power supply
to the unit and plug the power supply to AC wall outlet. Once the
system turns on the LED will turn RED.

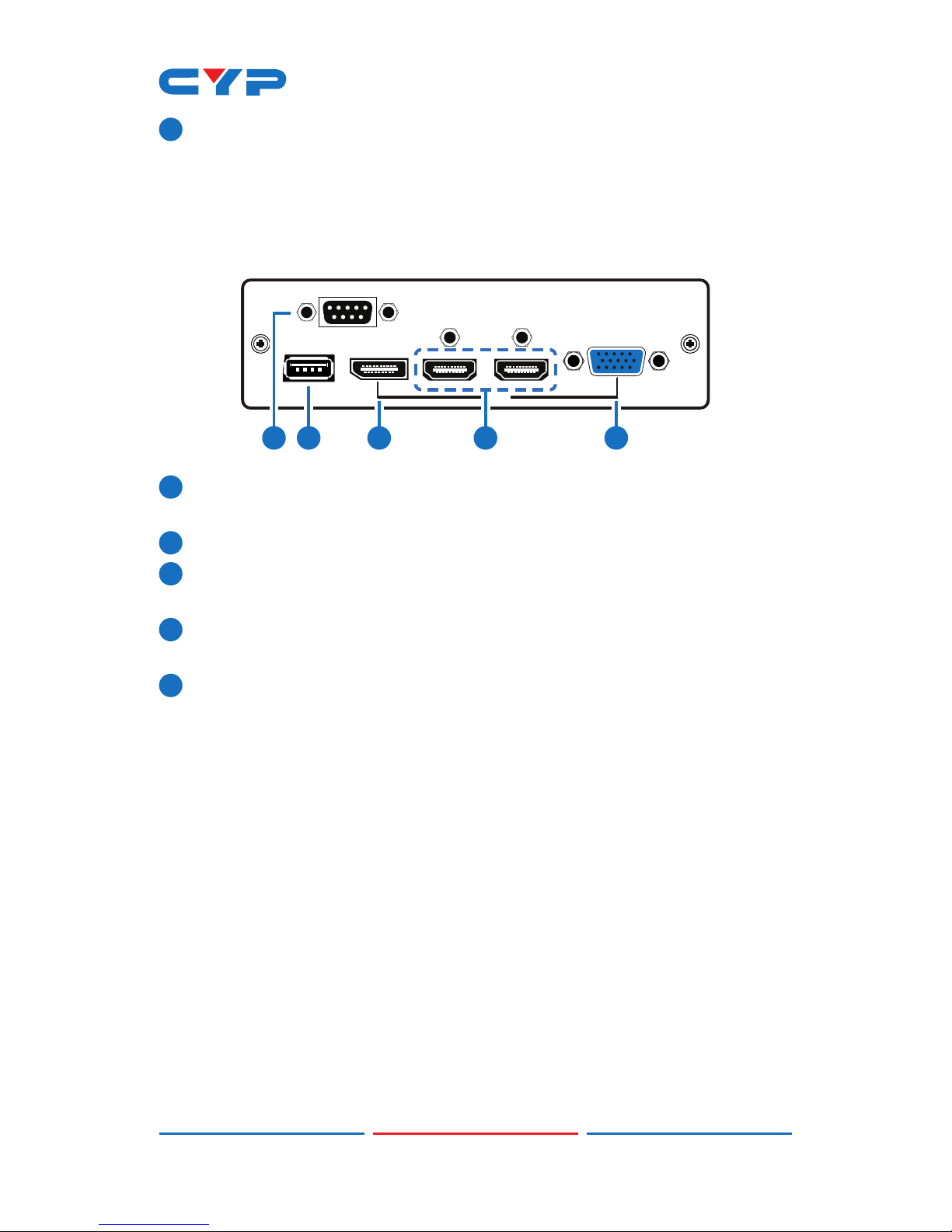

6.2 Rear Panel
HDMI 1 HDMI 2 VGA
SERVICE DisplayPort
RS232
IN
21 3 4 5
1RS232: Connect to a PC or RS-232 control system with a D-sub 9-pin
cable for RS-232 control.
2SERVICE: Manufacturer use only.
3DisplayPort IN: Connect to a DisplayPort source device such as a
PC/Laptop with a DisplayPort cable.
4HDMI 1/2 IN: Connect to the HDMI source devices such as a DVD
player or a Set-top Box with HDMI cables.
5VGA IN: Connect to a VGA source such as a PC/Laptop source
equipment with a D-sub 15-pin cable or to a Component
Video source with a D-sub 15-pin to 3 RCA phono adaptor for
component video signal input.
4
6.3 Remote Control
1POWER: Press to turn the system ON/
OFF.
2VIDEO IN: Press the required key to
directly select the video source (HDMI
1/HDMI 2/DP/PC/COMP).
3AUDIO IN: Press the required key
to directly select the audio source
(AUDIO/OPTICAL/HDMI/MDP) or to
MUTE the system.
4MENU: Press this button to ENTER the
OSD menu.
5EXIT: Press this button to EXIT the OSD
menu.
6ENTER and ▲/▼/◄/►: Press ENTER button to conrm the selection
and press the arrow keys to navigate the OSD menu.
7INFO: Press to show the input and output resolution information.
8OUTPUT: Press to show the output resolution table.
9 3D→2D: Press to switch from 3D to 2D.
10 3D BYPASS: Press to switch to 3D bypass.
11 NATIVE: Press to switch to native resolution.
DP
HDMI/DP
MENU
OUTPUTINFO
HDMI 1
PC
AUDIO
MUTE
EXIT
NATIVE
3D →2D 3D BYPASS
HDMI 2
COMP
OPTICAL
ENTER
CR-111
AUDIO IN
VIDEO IN
6
2
3
4
8
11
5
7
9
10
1
5
6.4 RS-232 Protocols
SCALER REMOTE CONTROL
Pin Denition Pin Denition
1 NC
►
◄
1 NC
2TxD 2RxD
3RxD 3TxD
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data Bit: 8 bits
Parity: None
Stop Bit: 1 bit
Flow Control: None
6.5 RS-232 Commands
COMMAND DESCRIPTION
POWER ? Power Status
POWER ON Power On
POWER OFF Power Off
3D ? 3D Status
3D TO 2D 3D In, 2D Out
3D BYPASS 3D In, 3D Bypass Out
VIDEO ? Video Input Source
HDMI 1 Video Input in HDMI1
