CDL-165ETHG

ETHERNET/USB to HDMI/VGA Display Converter

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VS1 19/12/11 First Release

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................4

7. Software Installation .............................. 5

7.1 Install DispalyLink Software..............5

7.2 Install USB Server Software...............5

7.3 Using USB Server ...............................7

7.4 IP Property Setting............................8

8. Using DisplayLink Manager ................ 11

8.1 Using DisplayLink Manager ...........11

8.2 Using More DisplayLink Manager .16

9. Uninstall the Device Driver.................. 17

10. Connection Diagram ........................ 19

11. Troubleshooting ................................. 20

12. Specications .................................... 21

13. Acronyms ........................................... 22

1. INTRODUCTION

The device that can send audio/video signals from a Notebook/PC

over a local area network through regular Ethernet cables to a TV

which can be used as the primary display. When a keyboard and

mouse are plugged in, the device will lets you to edit word processing

documents and play your music/movies on a TV. Supporting a direct

connection up to 100 meters away when using network cables, this

gadget also includes two USB ports which let users operate printers,

scanners and other USB devices at the same time, just like a PC. This

is useful in many different scenarios, for example: During meetings

each attendee would be able to access a projector from their

laptop without having to fumble with any cables as long as they are

connected to the network. This device can also be used as a simple

USB to HDMI signal converter thanks to its mini USB input port.

2. APPLICATIONS

• Educational teaching

• Home entertainment

• Ofce network

• Home network

3. PACKAGE CONTENTS

• Ethernet/USB to HDMI/VGA Converter

• 5 V/2.6 A DC power adaptor

• User Manual

• Driver CD

4. SYSTEM REQUIREMENTS

• System Hardware Requirements: 2.4 GHz single core CPU with at

least 1 GB RAM for optimal performance.

• Operating Systems:

- Windows XP Home or Professional SP2

- Windows Vista/Windows 7

Note:

- The MAC OS driver does not support connection over ethernet

whereas connection via USB supports Mac OS X (v10.4.11 and

v10.5.6)

• USB Port Extension:

- An available USB 2.0 port with USB to mini-USB cable

• Network Extension:

- An available Ethernet port at home or a commercial network with

RJ-45 cable

5. FEATURES

• Supports HDMI & VGA outputs

• 16/32-bit Color for high-quality images

• HD resolutions up to 1920×1080

• HDMI and RGB display connectivity

• EDID selectable with switch for VGA or HDMI output

• Experience the complete PC environment on a TV from 100m away

• Allows a TV to act as the primary PC display and the use of

keyboard and mouse to browse the internet, use Microsoft Ofce,

watch/listen to movies/music from any networked computer

• Supports high performance 16-bit stereo, 48 kHz audio sampling

• Supports TCP/IP ethernet protocols

• Supports 10/100/1000 Mbps ethernet

• Extend or mirror audio and video through a network or USB cable

to an HDMI display

• Share HDMI display with multiple users through your existing ofce

or home IP network

• Add an HDMI display to your computer through a USB 2.0 port

• Supports mirror and extended video modes

6. OPERATION CONTROLS AND FUNCTIONS

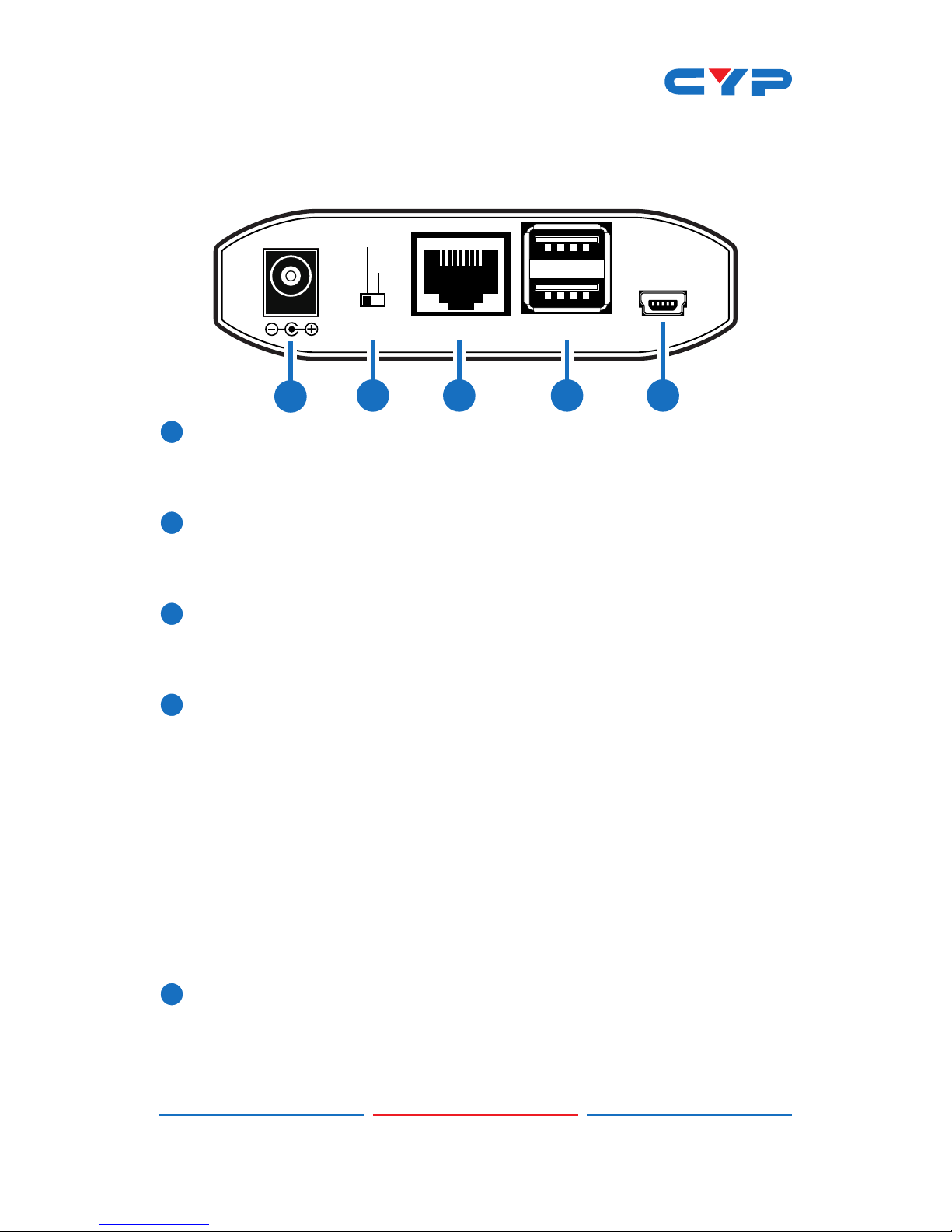

6.1 Front Panel

USB

LAN

DC 5V

INPUT LAN IN USB PORT

USB IN

12 3 4 5

DC 5V

Plug the 5V DC power supply into the unit and connect the

adaptor included in the package to an AC wall outlet.

INPUT LAN/USB Switch

This switch allows users to choose the input source signal from

ethernet or USB.

LAN IN

This slot is to connect with a CAT5e/6 cable to your network system

or ethernet hub.

USB PORT

These ports act like a USB hub, allowing users to connect an

External Hard Drive, Keyboard, or Mouse.

Note:

• These two USB ports cannot be connected to a USB extension

hub,doing so will trigger the system to detect the external Hub and

will cause a system failure.

• Before removing the USB device, the user must follow the USB

devices hardware removal procedure for the relevant operating

system. Failure to do so will cause the system to crash.

Mini USB IN

This port supports mirror or video extension (via USB cable) from

the PC/laptop source device to your HDMI display, including both

video and audio output signals.

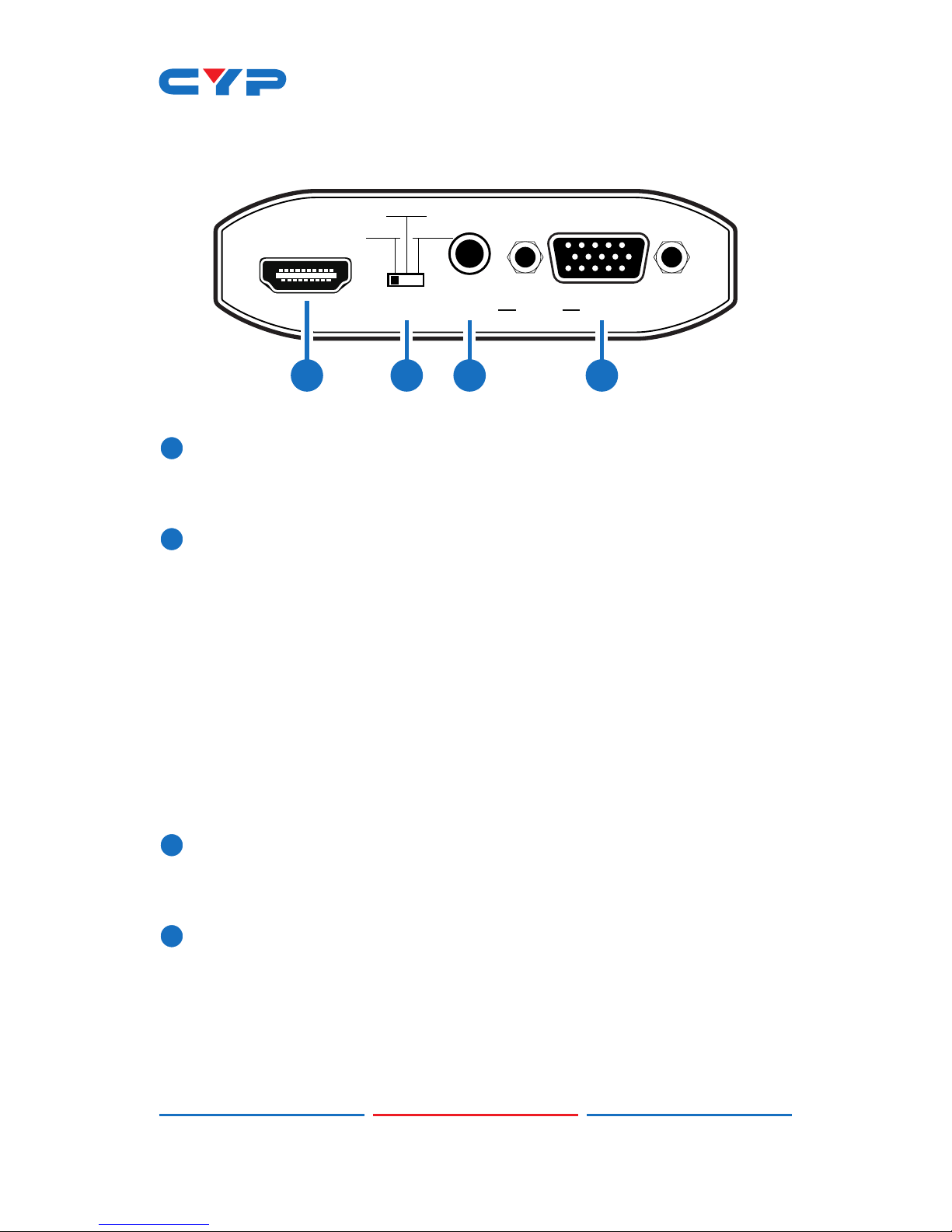

6.2 Rear Panel

HDMI

VGA

OFF

HDMI OUT

EDID AUDIO VGAOUT

1 2 3 4

HDMI OUT

Connect to the HDMI TV/display with HDMI cable for video and

audio output.

EDID Control Switch

The default setting for this switch is on HDMI, leave the switch here

as long as the connected display is compatible. When the switch

is set to 'OFF' this will allow use of the built-in EDID (the input source

device must be re-powered/restarted in order for this to function).

However, switching from 'OFF' to 'HDMI' or 'VGA' will not require a

restart.

Built in EDID as follow:

640×480, 720×480, 768×576, 800×600, 1024×768, 1280×720,

1280×1024, 1360×768, 1366×768, 1440×900, 1600×1200, 1680×1050,

1920×1080.

AUDIO OUT

Connect with 3.5 mm phone jack cable to active speakers or PC

monitor with speaker input for audio output.

VGA OUT

Connect to display monitor or TV that has a D-Sub 15-pin input for

VGA video signal output.

7. SOFTWARE INSTALLATION

The following sections list the procedures to follow when installing the

USB to HDMI and USB device drivers. Insert the provided CD into your

CD-ROM drive, then begin the USB Install Disc and follow the below

steps to install the driver.

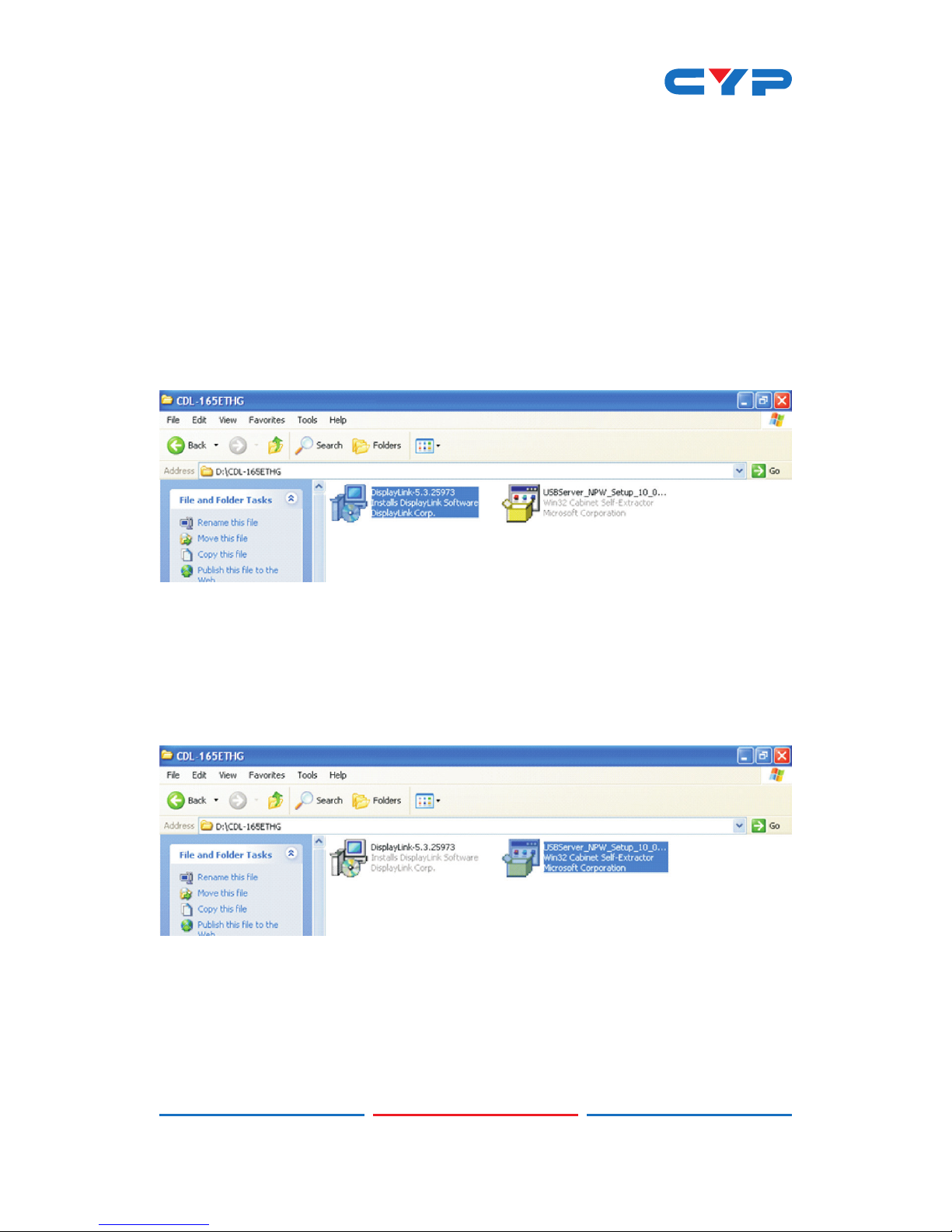

7.1 Install DispalyLink Software

Insert the CD driver included in the package and double click on the

DisplayLink icon to execute the setup.

7.2 Install USB Server Software

Double click on the USBServer Setup icon to execute the set up and

click nish when the setup is complete.
