CSC-6015

4K UHD+HDMI to HDMI Scaler

Quad-Set

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE

RDV1 11/12/17 Preliminary release

VS1 22/12/17 Final technical review

VS2 09/04/18 A minor change to the

package contents

CONTENTS

1. Introduction......................................................1

2. Applications.....................................................1

3. Package Contents ..........................................1

4. System Requirements......................................2

5. Features............................................................2

6. Operation Controls and Functions.................3

6.1 Front Panel ................................................. 3

6.2 Rear Panel.................................................. 4

6.3 OSD Menu.................................................. 5

6.4 EDID Management ................................... 9

7. Connection Diagram ....................................10

8. Specications ................................................11

8.1 Technical Specications ........................ 11

8.2 Video Specications............................... 12

9. Acronyms .......................................................13

1. INTRODUCTION

This HDMI to HDMI Scaler Quad-Set is designed to convert and

scale a wide range of HDMI sources for output to an equally wide

array of HDMI resolutions with 4 independent scaling units in a single

case. Input sources are supported at resolutions up to and including

4K@60Hz (4:4:4, 8-bit). Supported output resolutions range from SVGA

to 3840×2160@60Hz (4:4:4, 8-bit). The efcient and compact design

ensures that the user can set up each scaling unit quickly and get

high quality pictures on each display. Additionally, this unit provides

analog stereo breakout audio (LPCM 2.0 sources only) to support the

use of external powered speakers. A perfect tool for your HD and UHD

signal conversion needs. Each scaling unit is controlled independently

via front panel buttons with an On-Screen Display (OSD).

2. APPLICATIONS

• Displaying HD video on UHD displays

• Displaying UHD video on HD displays

• Displaying HDMI sources on DVI displays with analog audio breakout

to external speakers

• Video signal quality and level management

3. PACKAGE CONTENTS

• 1×HDMI to HDMI Scaler Quad-Set

• 1×5V/6A DC Power Adaptor

• 1×Power Cord

• 1×Rack Mount Ears (Set of 2)

• 1×Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI source equipment such as media players, video game

consoles or set-top boxes.

• HDMI receiving equipment such as HDTVs, monitors or audio

ampliers.

• The use of “Premium High Speed HDMI” cables is highly

recommended.

5. FEATURES

• HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support

• DVI 1.0 compliant with the use of an HDMI-DVI adaptor

• HDCP 1.4 and 2.2 compliant

• 4 independent scaling units within a single rack-mountable case

• Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) &

4096×2160@60 Hz (4:4:4, 8-bit)

• Supports 16-bit Deep Color up to 1080p@60Hz

• Supports 12-bit Deep Color up to 4K@60Hz (YUV 4:2:0) & 4K@30Hz

(4:4:4)

• Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream

audio formats over HDMI

• Analog stereo audio breakout (LPCM 2.0 sources only)

• Provides EDID management via EDID bypass, 6 built-in EDIDs or 1

user modiable EDID

• Supports up and down scaling of a wide variety of HDMI source

resolutions, from 480p to 4K@60Hz.

• Each scaling unit is controlled independently via front panel buttons

with an On-Screen Display (OSD)

6. OPERATION CONTROLS AND FUNCTIONS

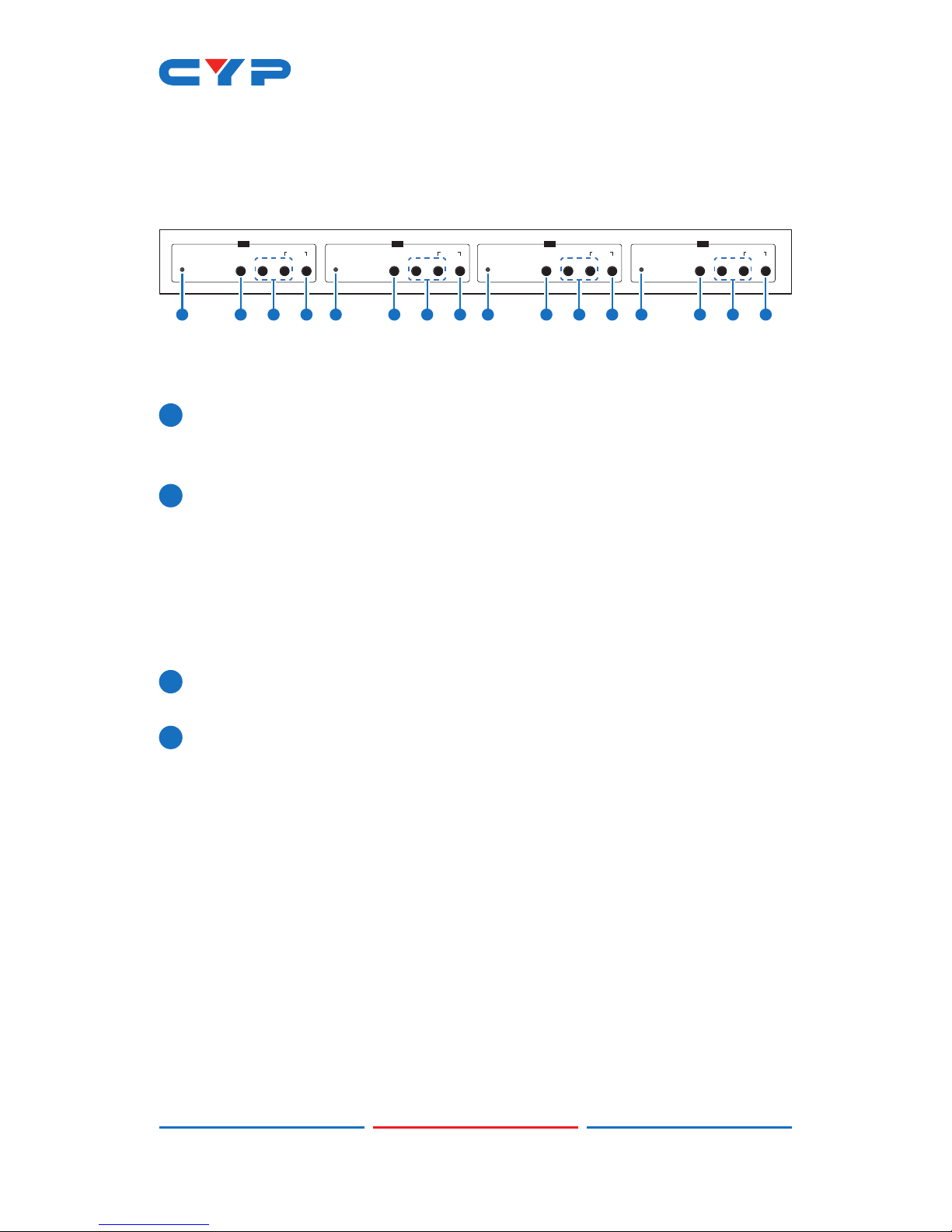

6.1 Front Panel

MENU– +ENTER POWER

LOCK

POWER

MENU– +ENTER POWER

LOCK

MENU– +ENTER

LOCK

POWER MENU– +ENTER

LOCK

1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4

Note: The functionality of scaling units A, B, C, and D is identical,

however each unit is controlled, and operates, independently.

1POWER LED: This LED will illuminate when the unit is receiving power.

When a valid HDMI source is detected the LED will be green, if

there is no valid HDMI source, the LED will be red.

2MENU: Press to enter the OSD menu, or to back out from menu

items.

Note: Press and hold the “MENU” button for 3 seconds while

connecting the power supply to reset all settings to the factory

defaults. Pressing “MENU” and “−” together will reset the output

resolution to 720p@60Hz. Pressing “MENU” and “+” together will

reset the output resolution to XGA (1024×768@60Hz).

3 − & +: Press to move up and down or adjust selections within OSD

menus.

4ENTER: Press to conrm a selection within the OSD or to go deeper

into a menu item.

LOCK: Pressing and holding the “ENTER” and “+” buttons for 3

seconds activates the front panel Lock Mode. The power LED

will blink red multiple times to indicate that Lock Mode has been

activated. To deactivate the front panel Lock Mode, press and

hold the “ENTER” and “+” buttons again. The power LED will

blink green multiple times to indicate that Lock Mode has been

deactivated.

Note: When Lock Mode is active the OSD menu will be disabled,

however OSD signal info will still display normally. If a button is

pressed while Lock Mode is active the power LED will blink red 3

times.

6.2 Rear Panel

HDMI IN SERVICE

AUDIO

OUTHDMI OUT

DC 5V

HDMI IN SERVICE

AUDIO

OUTHDMI OUT

HDMI IN SERVICE

AUDIO

OUTHDMI OUT

HDMI IN SERVICE

AUDIO

OUTHDMI OUT

1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 5

Note: The functionality of scaling units A, B, C, and D is identical,

however each unit is controlled, and operates, independently.

1HDMI OUT: Connect to HDMI TVs, monitors or ampliers for digital

video and audio output.

Note: If no valid HDMI input source is detected the unit will output

blank video using the selected free run color.

2HDMI IN: Connect to HDMI source equipment such as media

players, game consoles or set-top boxes.

3AUDIO OUT: Connect to powered speakers or an amplier for

stereo analog audio output.

Note: Supports LPCM 2.0 audio only. Bitstream formats will be

muted.

4SERVICE: Connect a USB thumb drive to this slot to upload a user

EDID or to perform a rmware update.

5DC 5V: Plug the 5V DC power adapter into this port and connect it

to an AC wall outlet for power.

6.3 OSD Menu

LEVEL 1 LEVEL 2 LEVEL 3

Output Resolution 800×600@60Hz

1024×768@60Hz

1280×768@60Hz

1360×768@60Hz

1280×800@60Hz

1440×900@60Hz

1280×1024@60Hz

1400×1050@60Hz

1680×1050@60Hz

1600×1200@60Hz

1920×1200@60Hz (RB)

720×480p@60Hz

720×576p@50Hz

1280×720p@50Hz

1280×720p@60Hz

1920×1080i@50Hz

1920×1080p@50Hz

1920×1080i@60Hz

1920×1080p@60Hz

3840×2160p@24Hz

3840×2160p@25Hz

3840×2160p@30Hz

3840×2160p@50Hz

(Y420)

3840×2160p@60Hz

(Y420)

3840×2160p@50Hz

3840×2160p@60Hz

Bypass
